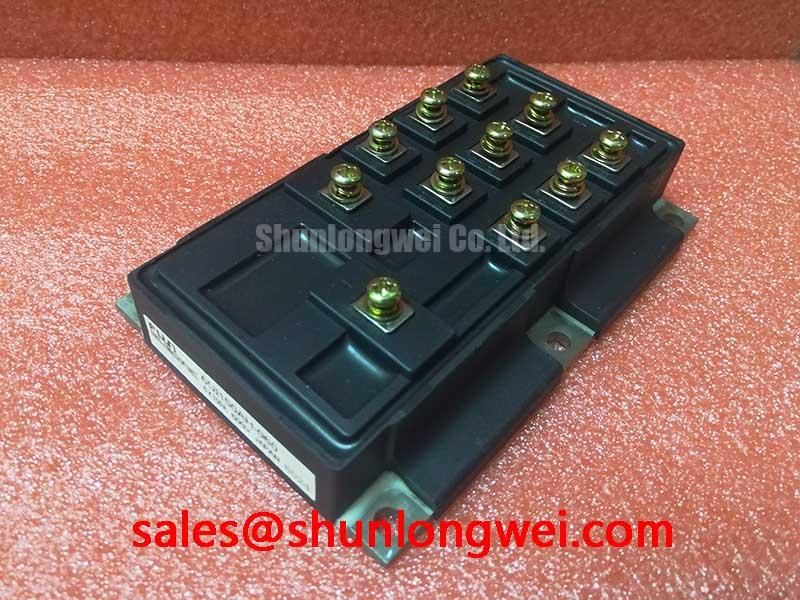

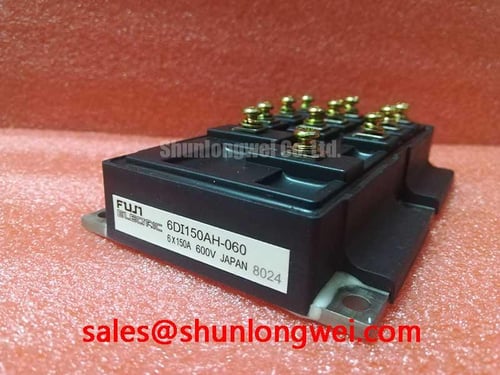

Fuji Electric 6DI150AH-060 | Robust 600V, 150A Six-Pack IGBT for Industrial Drives
The Fuji Electric 6DI150AH-060 is a high-performance IGBT module engineered for reliability and efficiency in demanding power conversion systems. Integrating a full three-phase bridge into a single, robust package, this module simplifies system design and provides a dependable power switching solution for a wide range of industrial applications. Its proven technology makes it a workhorse component for systems where uptime and durability are paramount.
Product Highlights
- Configuration: Integrated Six-Pack (6-in-1) configuration containing six 600V / 150A IGBTs for a complete three-phase inverter bridge.
- Technology: Utilizes robust Non-Punch-Through (NPT) IGBT technology, known for its wide Safe Operating Area (SOA) and rugged performance under harsh electrical conditions.
- Voltage & Current Ratings: Rated for a collector-emitter voltage (Vces) of 600V and a continuous collector current (Ic) of 150A, making it ideal for 200-240V AC line applications.
- Integrated Diodes: Each IGBT is paired with a high-speed, low-loss Freewheeling Diode (FWD) to handle inductive load currents safely.

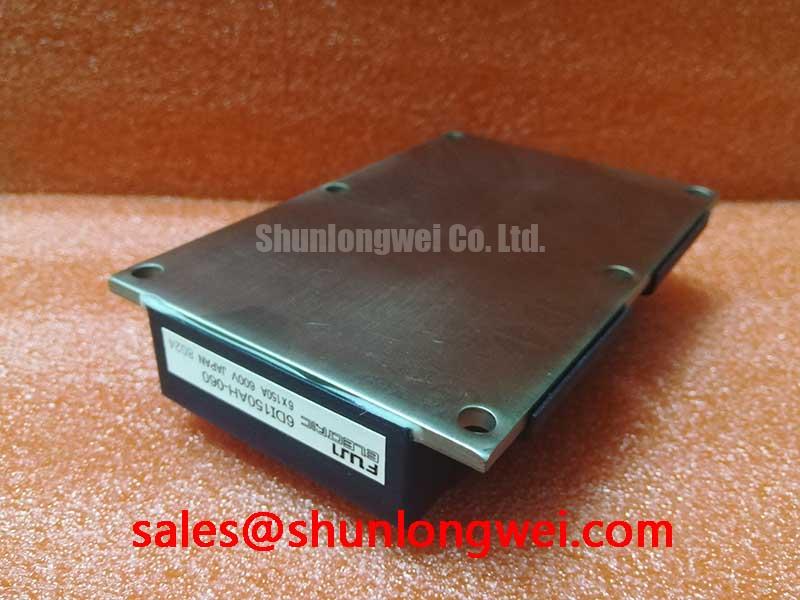

- Package: Housed in a standard industrial package with an isolated copper baseplate for superior thermal transfer to a heatsink.
Key Technical Specifications
Engineers can rely on the following specifications for system design and simulation. For a comprehensive overview of all electrical and thermal characteristics, download the complete 6DI150AH-060 datasheet.
| Parameter | Value |
|---|---|
| Max Collector-Emitter Voltage (Vces) | 600V |
| Continuous Collector Current (Ic) at Tc=25°C | 150A |
| Max Collector-Emitter Saturation Voltage (Vce(sat)) | 2.7V (Typical at 150A) |
| Package Type | 6-in-1 Module |
| Max Junction Temperature (Tj) | 150°C |
| Total Power Dissipation (Pc) | 690W |
Application Scenarios & Engineering Value
The Fuji 6DI150AH-060 excels in applications that demand both high current capacity and proven field reliability. Its integrated design adds significant value by reducing assembly time and improving system-level performance.
- AC Motor Drives: As a complete three-phase inverter, this module is a perfect fit for Variable Frequency Drives (VFDs) powering industrial motors. Its rugged NPT structure can withstand the torque-induced current spikes common in conveyor systems, pumps, and fans.
- Uninterruptible Power Supplies (UPS): In UPS systems, reliability is non-negotiable. The 6DI150AH-060 provides a trusted power stage for the inverter, ensuring seamless power delivery during outages. The 150A rating supports mid-range kVA systems.
- Welding Power Supplies: Welding applications present extreme electrical stress. This module's excellent short-circuit withstand time and robust SOA make it a suitable choice for the core of a welding inverter, where it must handle rapid load changes and potential short-circuits.
Technical Deep Dive: The Engineering Behind the 6DI150AH-060
The Advantage of NPT IGBT Technology
While newer trench-gate field-stop technologies offer lower Vce(sat) and faster switching, the Non-Punch-Through (NPT) technology in the 6DI150AH-060 is deliberately chosen for its exceptional ruggedness. NPT IGBTs feature a thicker n-drift region, which provides a superior Safe Operating Area (SOA), especially under short-circuit conditions. Furthermore, NPT devices exhibit a positive temperature coefficient for Vce(sat), which means as the device heats up, its on-state resistance increases. This characteristic inherently aids in preventing thermal runaway and simplifies the paralleling of devices, though this is a self-contained module. For many industrial applications, this built-in durability is more critical than achieving the absolute lowest switching losses. Understanding these trade-offs is crucial for robust system design, a topic further explored in our guide to preventing common IGBT failures.
The Value of Six-Pack Integration
Consolidating all six switches and diodes of a three-phase inverter into a single module offers compelling system-level benefits. This design drastically reduces the stray inductance in the power loop compared to using six discrete components, leading to lower voltage overshoots during switching. This simplifies or even eliminates the need for complex snubber circuits. Additionally, mounting a single module to a heatsink is far more efficient for both manufacturing and thermal management than handling multiple discrete devices, ensuring more consistent thermal performance across all phases. This level of integration is a cornerstone of modern high-efficiency power systems.
Frequently Asked Questions (FAQ)
What are the recommended gate drive parameters for this module?
For optimal performance, a gate drive voltage of +15V for turn-on is recommended. For turn-off, a negative gate voltage (e.g., -5V to -10V) is strongly advised. This ensures a rapid and secure turn-off, providing high immunity to dv/dt-induced parasitic turn-on, a common issue in noisy industrial environments. For more practical advice, see our guide on robust IGBT gate drive design.
Is the 6DI150AH-060 suitable for high-frequency switching (>20 kHz)?
The NPT technology in this module is optimized for ruggedness and conduction performance, not ultra-high-speed switching. Its switching losses increase significantly at higher frequencies. It is best suited for applications operating in the low-to-mid frequency range, typically below 10 kHz, which covers the vast majority of industrial motor drives and UPS systems. For higher frequency designs, IGBTs based on Trench-Stop or SiC technology should be considered.
