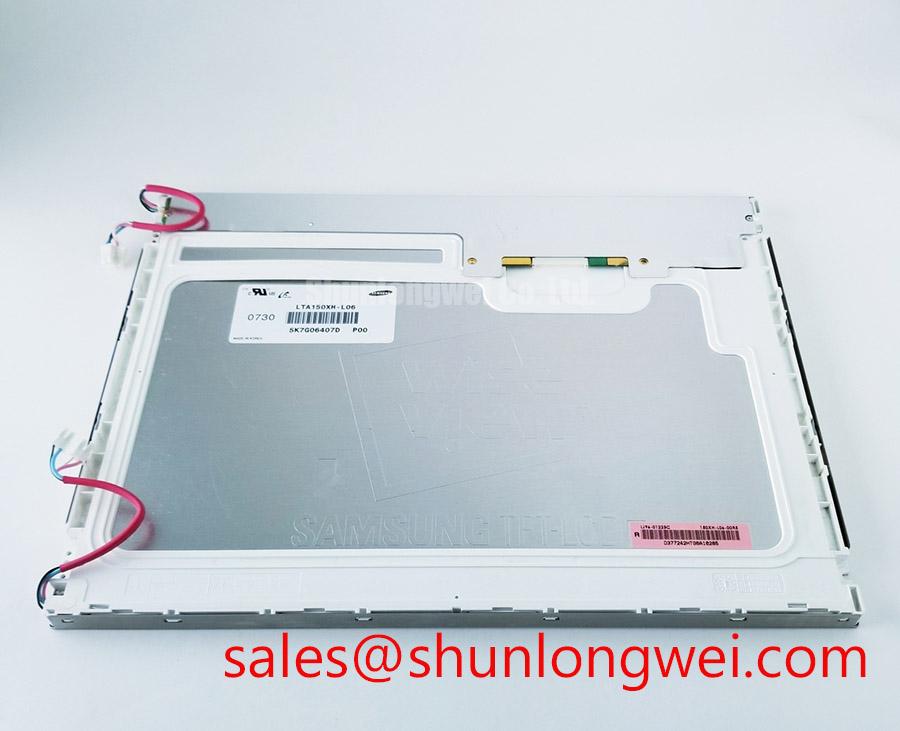

Backlight Ignition and Driver Isolation in the LTA150XH-L06
Measure the backlight supply at the display assembly while commanding a uniform white image, then compare the reading and startup waveform with the original equipment documentation. A panel that receives image data but remains dark can point to the backlight power path, its enable control, the light source, or an optical obstruction. Record which condition changes when brightness is adjusted rather than treating a dark screen as proof of a failed LCD matrix.
The confirmed identity of the Samsung LTA150XH-L06 is a TFT-LCD active matrix color module. The supplied factory facts do not establish its backlight technology, ignition voltage, driver current, dimming method, or service-life rating. A high-voltage striking test is appropriate only if the original equipment documentation identifies a lamp inverter and provides its test method. An LED constant-current driver requires a different measurement approach. Neither driver type should be assigned to this model by assumption.
If the documented assembly uses an inverter, inspect its output insulation and connectors with power isolated, then use equipment rated for the specified output when observing startup. If it uses an LED driver, check the documented output and enable behavior under load. In either case, distinguish a driver that never starts from one that starts and shuts down. That distinction narrows the next inspection without implying a particular failure inside the panel.
Maintenance Note: Isolate power and allow the display assembly to discharge before disconnecting a backlight cable.
Design Consideration: Brightness measured at the front of an installed HMI also depends on its cover glass, gasket opening, surface reflections, and enclosure lighting. Compare the serviced display with a known-good assembly in the same viewing conditions. Do not infer a sunlight contrast rating, anti-glare treatment, or backlight lifetime for the LTA150XH-L06 from an unrelated panel.

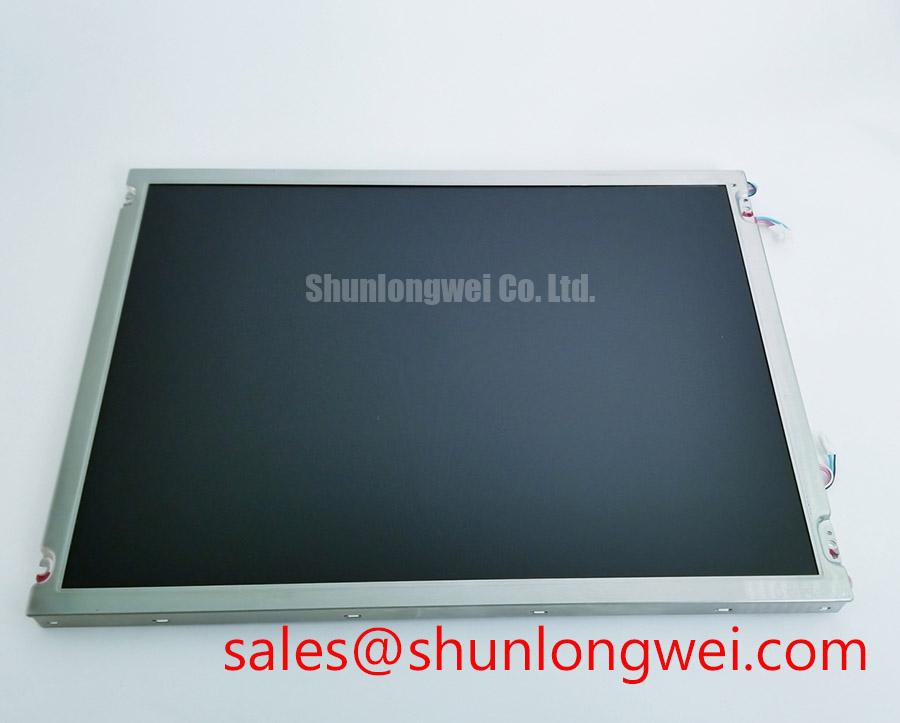

Locating a Vertical Hairline or Uneven Illumination
Display red, green, and blue full-screen patterns and note whether a vertical hairline remains at the same position in every image. Follow with a white field and a dark field. A line confined to image content calls for a different investigation from a stationary dark band in the illumination. Photograph the patterns at fixed brightness and viewing angle so a subsequent cable or controller check can be compared against the same evidence.
For a faint band, illuminate the screen obliquely with a handheld light while the image is dark. If the visible pattern changes with external illumination, investigate the optical and backlight paths alongside the image drive. If a sharp line persists through color changes, check the input cable seating, connector contacts, and source image first. A line remaining in the same location after those checks may indicate a panel-side drive fault, but the visible symptom alone does not identify a specific internal bond or circuit.
Keep pressure off the active display area during this inspection. Uneven bezel loading can change the appearance of bright and dark patches, making a mechanical condition look like a backlight defect. Check that the dust seal sits flat and that the mounting points draw the frame down evenly. When cleaning the viewing window, inspect the gasket for gaps or compression damage before closing the enclosure; contamination behind a front window can persist after the LCD surface has been cleaned.
At a cold start, allow the display to stabilize before judging response time, brightness uniformity, or a slow-moving image. Temperature affects liquid-crystal response, while condensation can obscure the optical stack or create electrical trouble at exposed connections. Design Consideration: If the host equipment moves between cold and humid areas, assess enclosure sealing and the equipment’s warm-up procedure under its actual operating conditions. No cold-start limit or low-temperature response-time value is established here for the LTA150XH-L06.
Do not use a generic backlight decay curve as a replacement criterion. Instead, compare luminance and uniformity with an approved reference assembly using the same image, brightness setting, and measurement geometry. For broader maintenance planning around seals, illumination, and environmental exposure, see Industrial Display & HMI Solutions.
Tracing Pixel Jitter and Horizontal White Lines Near Motor Drives
Capture the image signal and display power waveforms while the nearby motor drive is stopped, starting, and running, and mark when jitter or horizontal lines appear. A disturbance that follows drive operation warrants inspection of cable routing, grounding, and the host controller as well as the panel. A stable incoming image does not, by itself, prove that the display connector or its local supply remains stable under vibration.

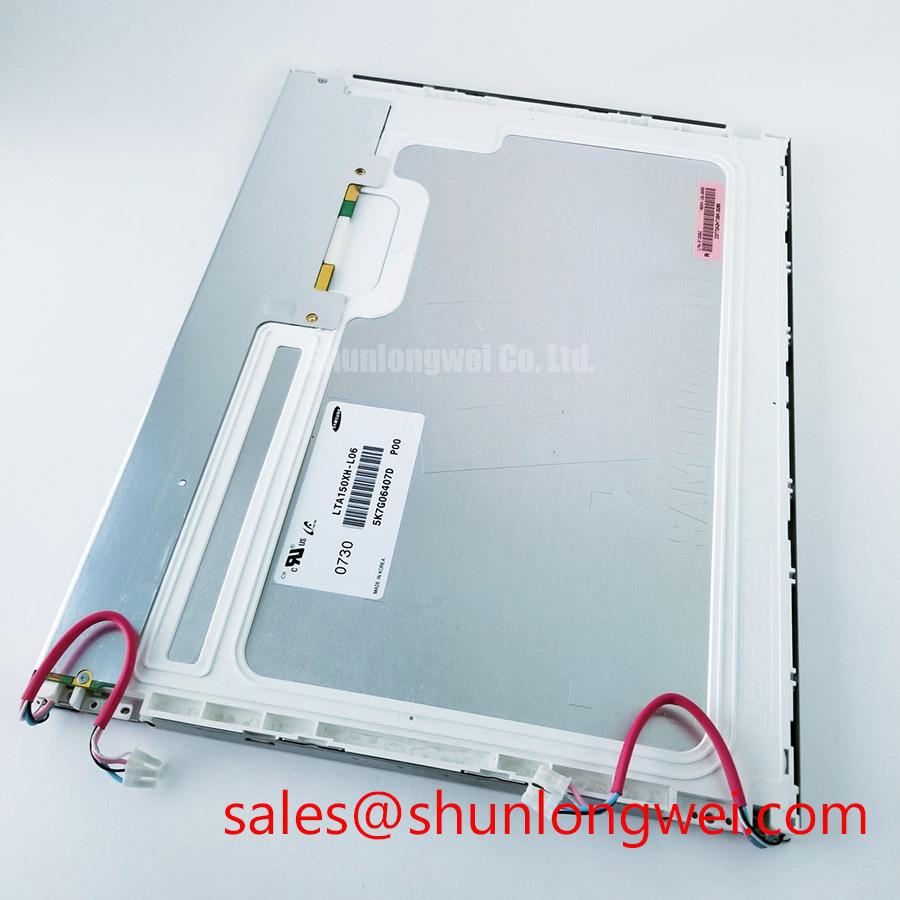

Trace the installed display cable from controller to module. Inspect the locking mechanism, contact seating, shield termination where fitted, and any location where the cable passes close to motor wiring. The supplied specification facts do not identify the LTA150XH-L06 signal interface or its pinout, so do not label its connector LVDS or apply a generic shield termination to an undocumented pin. The system integrator should verify signal assignments and supply requirements from the original panel documentation and equipment schematic.
Design Consideration: Route display signals away from high-current switching paths to reduce coupled interference, then validate the arrangement with the equipment operating in the state that produces the symptom. A common-mode ferrite or a change to shield bonding is a system-level option for evaluation, not an established fix for this panel. Measure the result at both the controller and display ends; an apparent improvement at one point can conceal an unresolved ground-path issue elsewhere.
Inspect flexible cables for creases near a fixed connector and for rubbing where the door or service frame moves. Repeated bending concentrated at one spot can undermine connection reliability, while a partly latched connector can react to cabinet vibration. Preserve the original cable path and strain relief when refitting the assembly, then repeat the image test with the enclosure closed. This checks the installed configuration rather than a cable position that exists only on the bench.
If brightness changes coincide with the interference, compare the equipment’s dimming-control waveform with its service documentation. Audible noise or visible flicker may involve the driver, control signal, or mounting structure. No PWM frequency, dimming ratio, or immunity rating has been established as an official specification for the LTA150XH-L06; the host design determines acceptable control settings and must be checked in operation.
Viewing-Angle Shifts, Grayscale, and Mounting Stress
View a grayscale test image from the operator’s normal position, then change the viewing angle while keeping brightness and ambient lighting fixed. Record whether dark tones merge, light tones wash out, or a bright patch stays fixed to the bezel edge. This separates an angle-dependent image complaint from a localized pressure or illumination complaint before any mounting adjustment.
The confirmed description, TFT-LCD active matrix color display module, does not establish the panel’s liquid-crystal mode, normal optical state, viewing direction, or anti-glare treatment. Do not specify a normally white TN installation angle or assume IPS-like viewing symmetry for this model. Obtain the original optical and mechanical drawings when setting the operator sightline. As a general optical reference, liquid-crystal display construction and polarizers explain why image appearance varies with the optical stack; they do not supply model-specific viewing limits.
With the display powered down, check that the front gasket contacts the window consistently and that the frame bears evenly on its mounting surfaces. Recheck the grayscale and white-field images after refitting. If a light patch changes when enclosure fasteners are relaxed and retightened evenly, document that observation before assigning the fault to the LCD. Design Consideration: Allow the host assembly to accommodate temperature-related movement without pressing unevenly on the display; the acceptable mounting geometry must come from the original mechanical drawing and an installed-unit inspection.
Examine the front window under the lighting used by the operator. Reflections can reduce legibility even when the panel produces a usable image, and a textured protective window can alter perceived sharpness. Optical diffusion and brightness-enhancement structures are distinct from an external anti-glare surface; optical diffusion principles provide useful context without establishing which films are present in this Samsung module.
For a potential surgical navigation or ultrasound display repair, evaluate the complete equipment assembly against its original image, cleaning, and qualification requirements rather than treating the LCD model name as evidence of medical suitability. When comparing NL8048AC19-13BD during a fit assessment, check the documented active area, outline, mounting points, interface, power sequence, and optical performance for both parts. A similar panel description alone does not establish interchangeability.
