Mitsubishi PM50RSK060 | High-Performance Intelligent Power Module (IPM) for Servo Drives

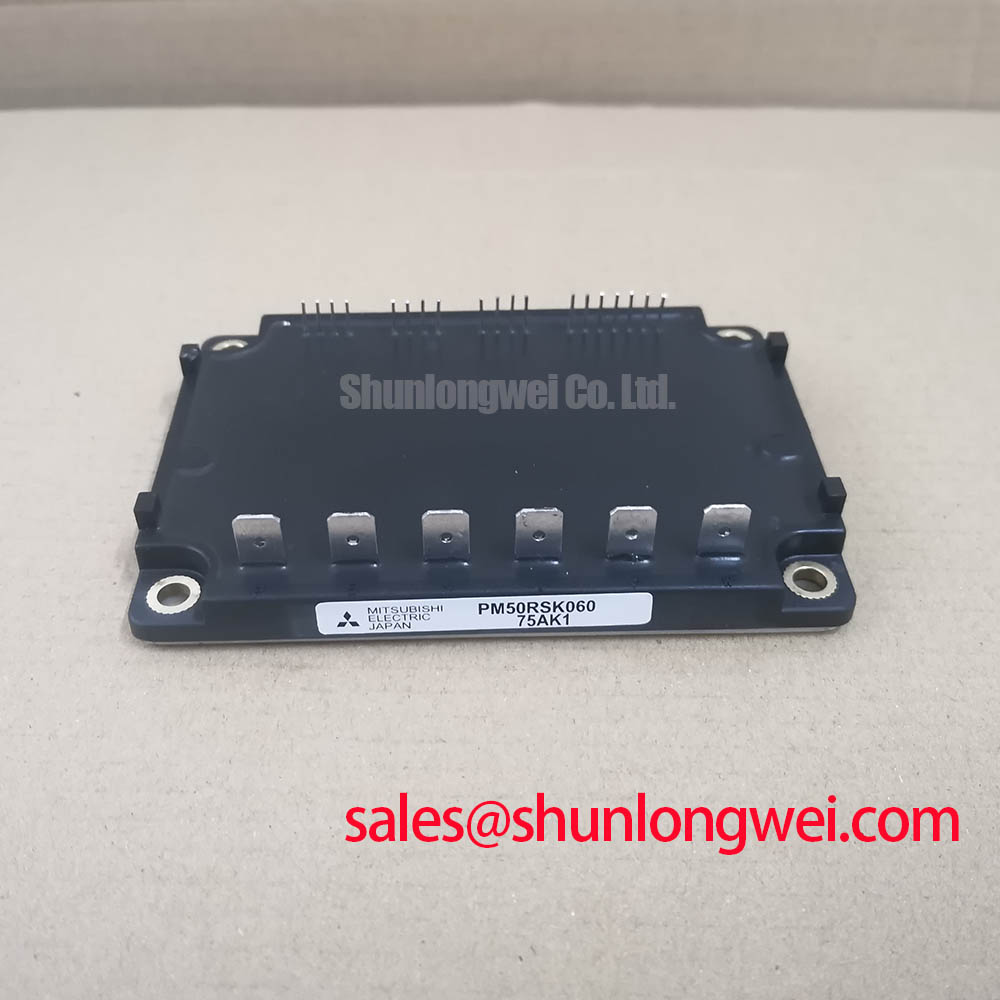

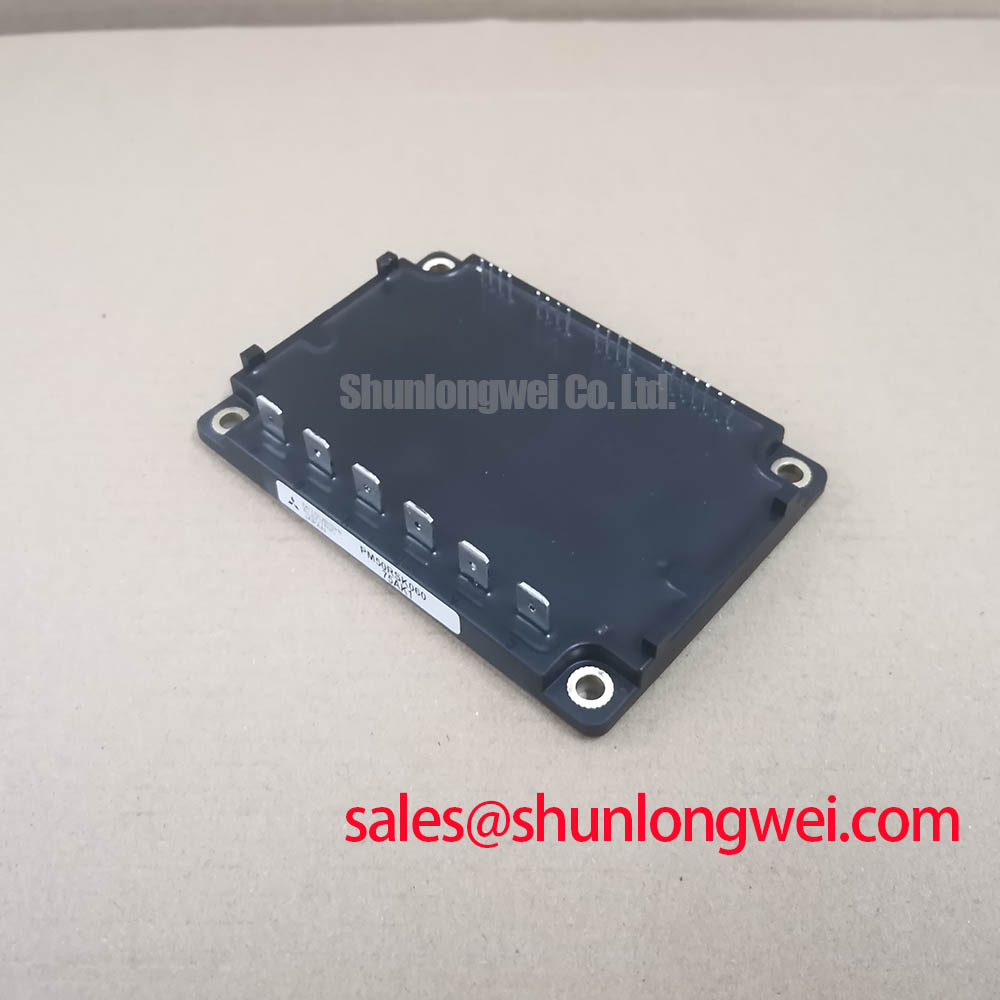

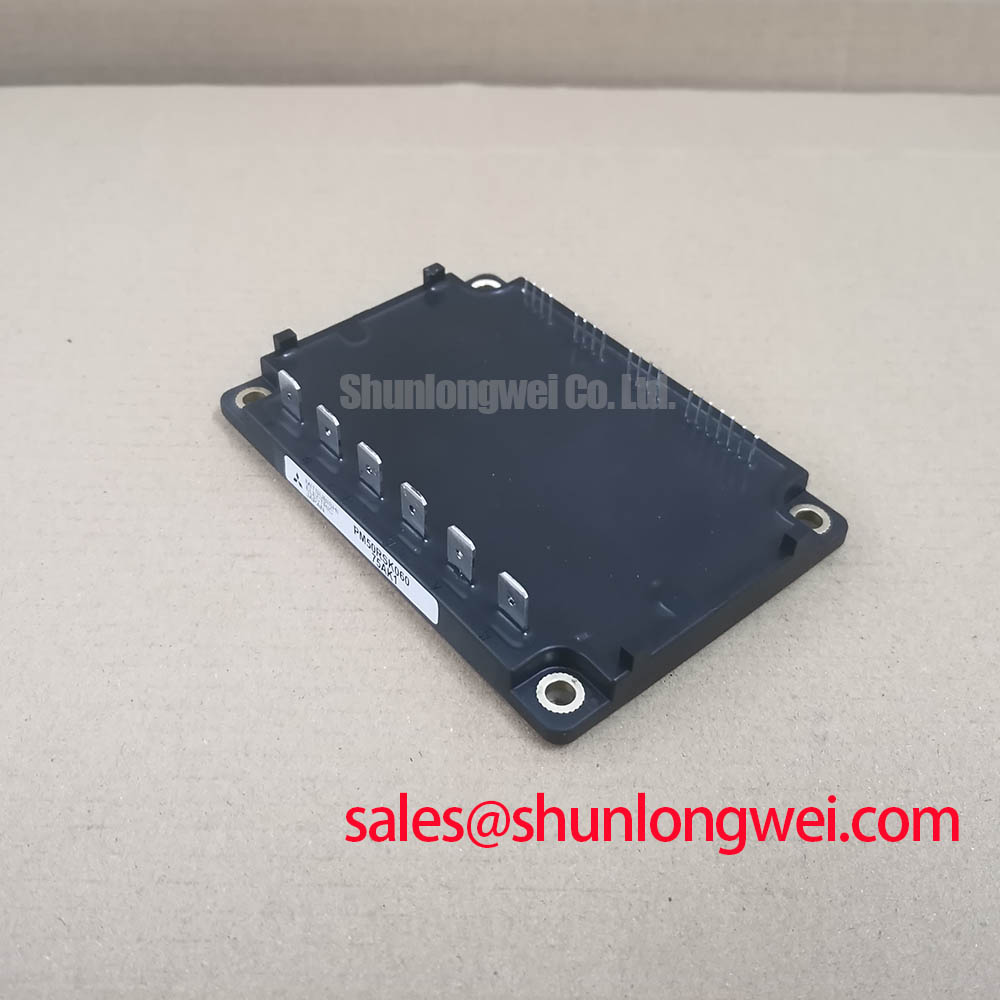

The Mitsubishi PM50RSK060 is an R-Series Intelligent Power Module (IPM) engineered to deliver a superior balance of integration, performance, and reliability. Designed for power conversion systems up to approximately 2.2kW, this module streamlines the design process for engineers working on high-performance motion control and industrial automation applications. It is not just a component; it's a system-level solution that reduces design complexity, minimizes board space, and enhances overall system robustness.
Product Highlights: The Engineer's Advantage
- High Integration: The PM50RSK060 consolidates a three-phase IGBT bridge with optimized gate drivers and comprehensive protection circuits (Overcurrent, Short-Circuit, Control Supply Under-Voltage, Overtemperature) into a single, compact package.
- Optimized for Motion Control: Leveraging Mitsubishi's advanced CSTBT™ (Carrier Stored Trench-gate Bipolar Transistor) chip technology, this IPM achieves a remarkably low collector-emitter saturation voltage, directly contributing to lower power losses and improved thermal efficiency.
- Enhanced Reliability: By integrating protection functions and a high-voltage IC (HVIC), the module provides a robust defense against common failure modes, simplifying safety-critical designs.
- Simplified Assembly: The single-package design reduces component count, simplifies PCB layout, and minimizes assembly time and potential sources of error compared to discrete solutions.
Technical Deep-Dive: Integrated Intelligence and Efficiency
Two core engineering principles set the PM50RSK060 apart: intelligent integration and silicon-level efficiency. The integration of the gate drive circuit is more than a convenience; it is precision-matched to the IGBTs' characteristics. This eliminates the complex and error-prone task of designing a separate gate drive, ensuring optimal switching performance while minimizing gate ringing and parasitic inductance. For a deeper understanding of the core component technology, see our analysis of the IGBT hybrid structure.
At the heart of the module lies Mitsubishi's cutting-edge Mitsubishi CSTBT™ technology. This silicon innovation is specifically designed to reduce the low collector-emitter saturation voltage (VCE(sat)). For the design engineer, this translates directly into lower conduction losses during operation. Lower losses mean less waste heat, enabling the use of smaller heatsinks and contributing to a more compact, energy-efficient final product.
Key Parameter Overview
The following table outlines the critical electrical characteristics for the Mitsubishi PM50RSK060, providing a quick reference for design-in evaluation. For a comprehensive look at Mitsubishi's power semiconductor technology, you can review technical documentation such as their PowerMOS application notes.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600 V |
| Collector Current (IC) | 50 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) (Typ.) | 1.75 V (at IC = 50A, Tj=125°C) |
| Isolation Voltage (Viso) | 2500 Vrms (for 1 minute) |
| Control Supply Voltage (VCC) | 15 V |
| Integrated Protection | Short-Circuit (SC), Over-Temperature (OT), Control Under-Voltage (UV) |
Application Focus: Where the PM50RSK060 Excels
The unique feature set of the PM50RSK060 makes it an ideal choice for several demanding applications:
- Robotic Servo Drives: In precision robotics, rapid and accurate motor response is paramount. The PM50RSK060's integrated, low-propagation-delay gate driver ensures crisp switching, while its built-in protections safeguard the system during high-torque, dynamic load changes. This is critical for powering precision in servo drives.
- Small Industrial Motor Drives: For general-purpose inverters and compact motor controllers, space and reliability are key concerns. This IPM's high power density and all-in-one design reduce the overall system footprint and enhance long-term operational reliability.
- HVAC Systems: In modern air conditioning and ventilation systems, energy efficiency is a primary design driver. The low VCE(sat) of this module minimizes power dissipation, helping the end product meet stringent energy consumption standards.
Frequently Asked Questions (FAQ)
What is the primary benefit of using an IPM like the PM50RSK060 over a discrete IGBT and driver solution?The main benefit is system reliability and design simplification. An IPM has an internally optimized gate drive and matched protection circuits, which reduces parasitic inductance and virtually eliminates the risk of gate drive oscillation. This integrated approach also reduces component count, shrinks PCB size, lowers assembly costs, and simplifies the supply chain. While discrete designs offer flexibility, they transfer the complex burden of optimization and preventing common failure modes to the design engineer.
How does the integrated under-voltage (UV) protection in the PM50RSK060 improve system robustness?The under-voltage lockout (UVLO) for the control supply is a critical safety feature. If the gate drive supply voltage (Vcc) drops below a safe threshold, the HVIC will shut down the IGBTs. This prevents the IGBTs from operating in their linear region due to insufficient gate voltage, a condition that can lead to high power dissipation and rapid thermal failure. By integrating this function, the PM50RSK060 ensures a safe shutdown and prevents catastrophic damage.
For detailed selection advice or to discuss how the Mitsubishi PM50RSK060 can be integrated into your next project, please contact our technical team.
