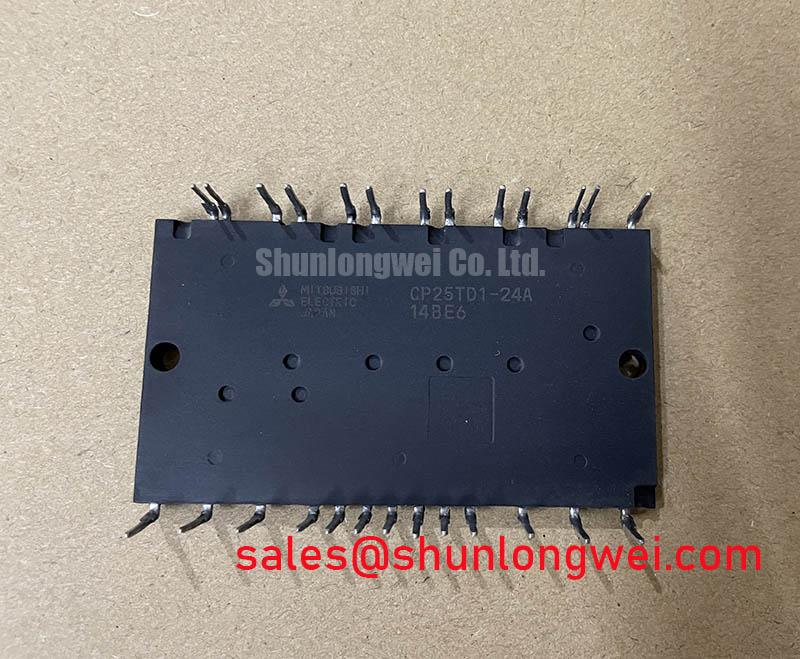

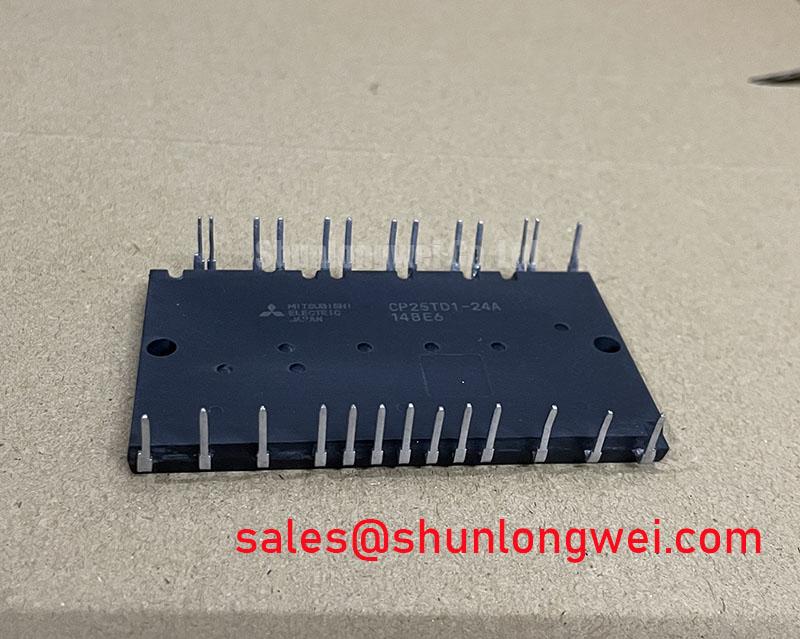

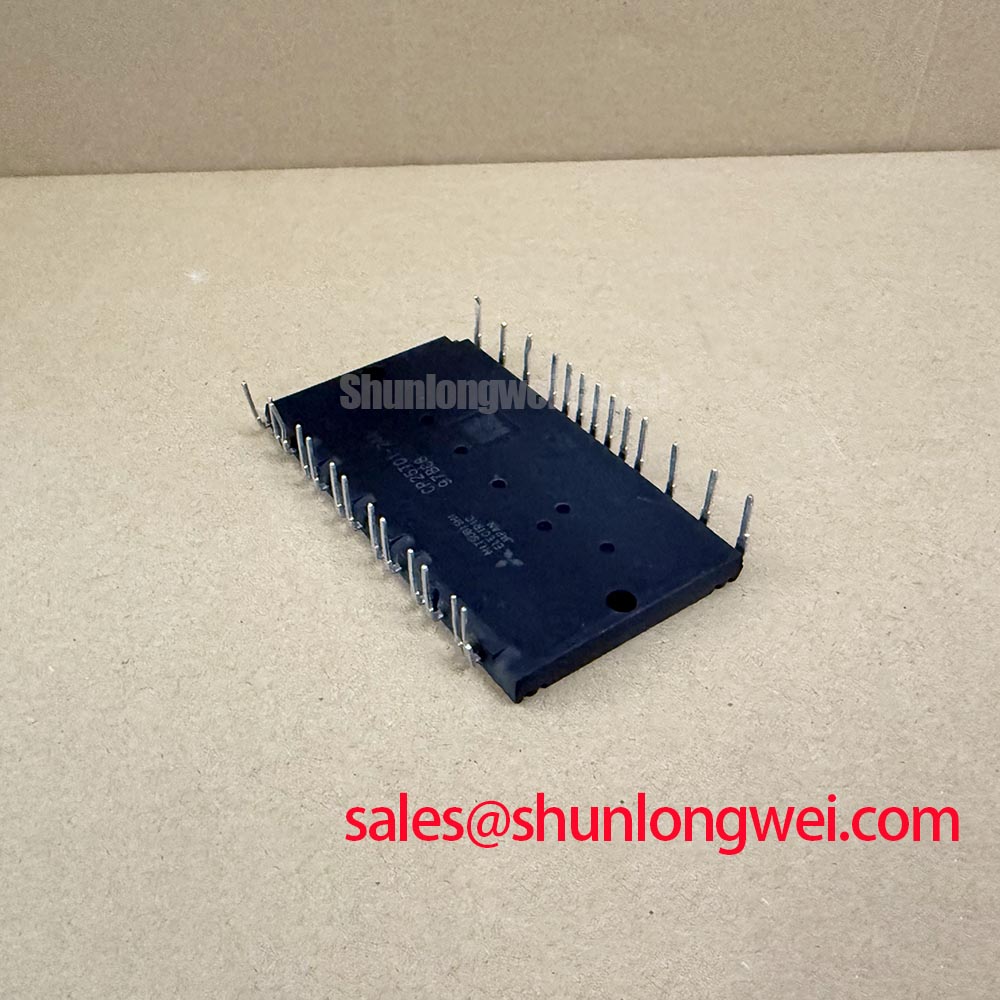

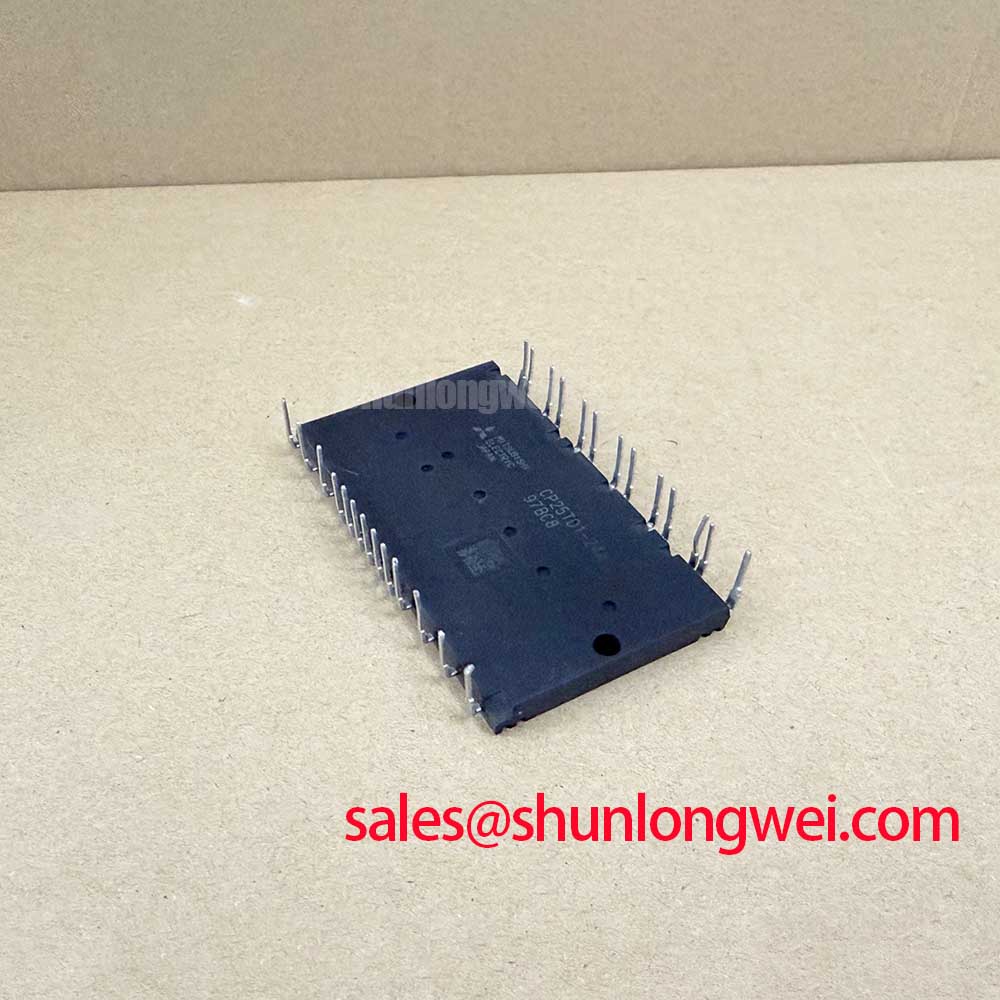

CP25TD1-24A Thyristor Module: 1200V/25A Data & Analysis
Engineered for robust AC power control, the Mitsubishi CP25TD1-24A Thyristor Module integrates six thyristors for three-phase systems. With top specifications of 1200V | 25A | Viso 2500V, it provides exceptional electrical isolation and a streamlined thermal path. Key benefits include simplified heatsink mounting and enhanced operational stability. Its insulated baseplate directly addresses the engineering challenge of achieving effective thermal management in compact power conversion units by creating a direct, low-resistance path for heat dissipation, a critical factor for long-term system endurance.
Strategic Thermal Design for Industrial Uptime
In today's automated industrial environments, equipment uptime is directly linked to component durability. The strategic design of the CP25TD1-24A centers on thermal integrity, a cornerstone of long-term reliability. The module incorporates an insulated base, which eliminates the need for additional insulating sheets between the module and the heatsink. This simplification is not merely for convenience; it reduces the number of thermal interfaces, thereby lowering the overall thermal resistance of the assembly. A lower thermal resistance means heat generated by the thyristors during operation can be evacuated more efficiently, keeping the junction temperature within safe operating limits. This approach directly mitigates a primary failure vector in power electronics—overheating—and supports the development of more compact, power-dense systems without compromising on service life.
Inside the CP25TD1-24A: A Focus on Thermal Integrity

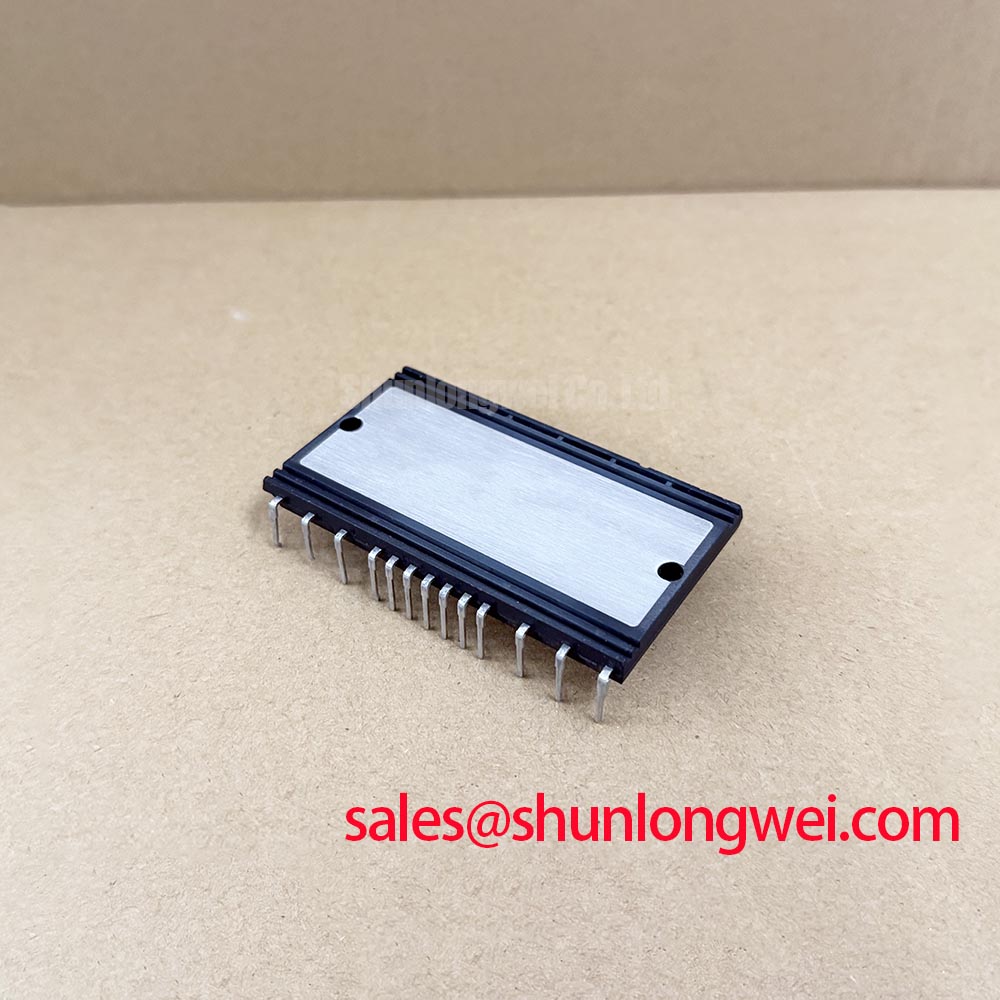

The internal construction of the Mitsubishi CP25TD1-24A is optimized for efficient power handling and heat dissipation. It houses six thyristors connected in a configuration suitable for three-phase AC switch or bridge rectifier applications. The critical element is the module's electrically isolated mounting base. This feature, providing 2500V (RMS) of isolation, allows multiple modules to be mounted on a single, common heatsink without the risk of electrical short circuits.
This design choice has a significant engineering benefit. Think of thermal resistance like the narrowness of a pipe restricting water flow. Every extra layer, like a separate insulator, is an additional constriction. The CP25TD1-24A's integrated isolation widens this "pipe," allowing heat to flow away from the semiconductor junctions more freely. This results in a lower operating temperature for a given load, which is a key factor in extending the component's operational lifespan and maintaining system performance under sustained industrial workloads. For more information on how thermal performance dictates IGBT and Thyristor longevity, see this guide on unlocking thermal performance.
Core Specifications for Reliable Power Control
The technical parameters of the CP25TD1-24A are tailored for precision and endurance in AC power control circuits. The following specifications are foundational for system design and performance evaluation.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1200 V |
| Average On-State Current (IT(AV)) | 25 A |
| RMS On-State Current (IT(RMS)) | 39 A |
| Surge On-State Current (ITSM) | 420 A (at 60Hz) |
| Isolation Voltage (Viso) | 2500 Vrms |
| Operating Junction Temperature (Tj) | -40 to +125 °C |
Download the Complete Datasheet
Application Arenas Where Thermal Stability is Paramount
The robust thermal architecture of the CP25TD1-24A makes it a suitable component for a range of power control systems where consistent performance under thermal stress is crucial. Its capabilities are particularly valuable in applications such as:
- AC Motor Soft Starters: By precisely controlling the voltage ramp-up to industrial motors, this thyristor module helps reduce mechanical shock and electrical inrush current. Its thermal efficiency ensures it can handle the repetitive power cycles inherent in motor starting and stopping operations.
- Temperature Control Systems: In industrial ovens, furnaces, and plastic molding machines, the CP25TD1-24A can be used to regulate power to heating elements. Its stable operation across a wide temperature range ensures accurate and repeatable thermal processing.
- Lighting Dimmers and Controls: For large-scale commercial or theatrical lighting systems, the module provides a reliable method for managing high power loads, with its isolation simplifying the construction of multi-channel control panels.
For systems where precise motor control is paramount, such as in advanced robotics, designers often evaluate integrated solutions. For instance, the role of IGBTs in robotic servo drives highlights a different approach to motion control. What is the primary benefit of the CP25TD1-24A's design? Simplified thermal assembly through its integrated 2500V isolated base. Given its 1200V rating and 25A current capacity, the CP25TD1-24A is an optimal choice for low-to-medium power AC control applications prioritizing long-term reliability and simplified manufacturing.
Data-Driven Comparison for System Integration
To assist in the component evaluation process, this section provides a factual comparison based on datasheet specifications. This data is intended to empower engineering decisions by highlighting key performance metrics.
When evaluating components for AC power control, engineers often consider various factors. The CP25TD1-24A provides a six-thyristor topology in a single package. For applications requiring a different level of current handling or integration, other components may be considered. For example, for higher power motor drives, an IGBT Module such as the BSM50GB120DN2, rated at 1200V and 50A, offers a different set of characteristics focused on high-frequency switching. The choice depends entirely on the specific demands of the application, such as the required switching speed, power level, and control strategy. The CP25TD1-24A is specifically optimized for line-frequency phase-angle control, where the ruggedness of thyristors is a distinct advantage.
As industrial systems become more interconnected and power requirements more stringent, the foundational components must evolve beyond basic specifications. The Mitsubishi CP25TD1-24A represents a strategic approach to power module design, where features like integrated electrical isolation are not just add-ons but core enablers of future-proof system architecture. This focus on simplifying thermal management and enhancing electrical safety positions designers to build more compact, reliable, and cost-effective power control systems that are ready for the demands of next-generation industrial automation.
