PS11035 IPM: Simplified 600V/15A Inverter Design
Highlights of the PS11035 Intelligent Power Module

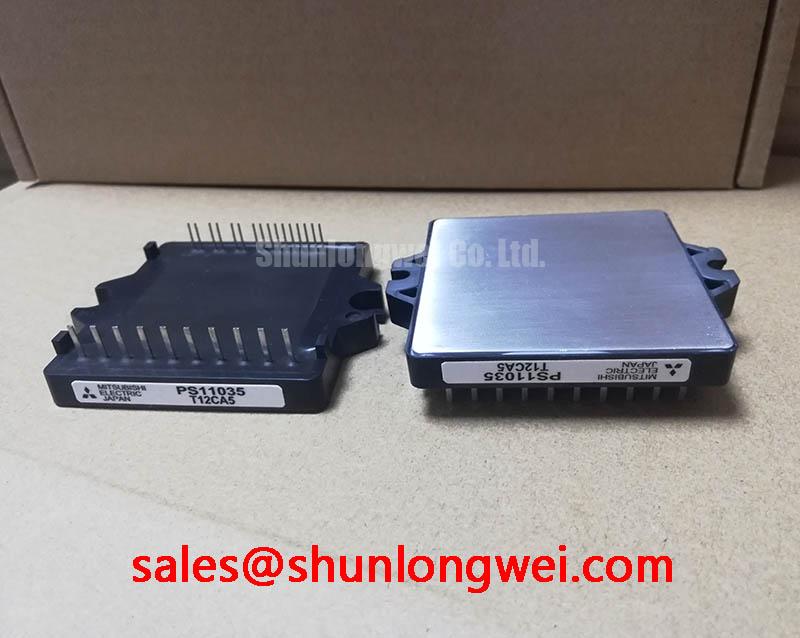

The Mitsubishi PS11035 is an intelligent power module (IPM) engineered to fundamentally simplify the design of three-phase DC-to-AC power inverter stages. It provides a compact, functionally dense solution for engineers moving away from complex discrete component designs. The module integrates key power and control elements, directly addressing the challenge of implementing robust, reliable motor control while minimizing board space and assembly overhead. By co-packaging the drive and protection circuitry, it enables a more streamlined and dependable system architecture.
- Core Specifications: 600V | 15A | 1500Vrms Isolation
- Key Benefits: Drastically reduced component count. Accelerated development cycles.
- Integrated Protections: Includes built-in short-circuit (SC), control supply undervoltage (UV), and over-temperature (OT) protection.
Inside the PS11035: An Architecture of Integration
The PS11035's primary engineering value lies in its high level of integration. Within its compact DIP (Dual In-line Package), the module contains six IGBTs arranged in a three-phase bridge configuration. Crucially, it also incorporates the necessary high-voltage and low-voltage integrated circuits (HVICs and LVICs) to provide optimized gate drive signals for these IGBTs. This eliminates the need for engineers to design, match, and qualify separate gate driver components, a process that is often time-consuming and fraught with potential layout-induced noise issues.
Furthermore, the control logic includes comprehensive protection mechanisms. Short-circuit protection actively monitors for dangerous current levels, while undervoltage lockout ensures the device does not operate with insufficient control voltage, which could lead to unsafe IGBT operation. A fault signal (FO) output provides a direct communication link to the system's master controller (MCU), enabling immediate, system-level responses to fault events for enhanced safety and diagnostics.
Accelerating Market Entry in a Competitive Landscape
In industries such as home appliances and light industrial automation, speed to market is a significant competitive advantage. The PS11035 intelligent power module acts as a design accelerator. By providing a pre-engineered, pre-validated power stage, it allows development teams to bypass many of the complexities associated with discrete IGBT circuit design. This includes managing gate drive power requirements, implementing protection schemes, and optimizing the thermal layout for multiple individual components. This reduction in design complexity directly translates to shorter project timelines and allows engineering resources to be focused on application-specific features and software development, rather than on the intricacies of the power electronics hardware. For further reading on the foundational components, explore this in-depth analysis of IGBT modules.
Data for Your Design Decision: PS11035 vs. Discrete Solutions
When evaluating the PS11035 against a traditional power stage built from discrete IGBTs, gate drivers, and protection components, the trade-offs become clear. While a discrete approach might offer granular component selection, it introduces significant complexity in layout, component count, and validation. The PS11035 offers a compelling alternative centered on system-level efficiency. An analysis of board space often reveals a footprint reduction of over 50% compared to a discrete equivalent. This integration inherently improves reliability by reducing the number of solder joints and potential points of failure. For designs where space is constrained and a verified protection scheme is paramount, the integrated nature of the PS11035 provides a decisive advantage. The module's data-driven best fit is in motor drive applications under 1kW where reducing PCB footprint and development time is a primary design constraint.
From Concept to Control: A Deployment Snapshot
Consider the development of a high-efficiency variable-speed drive for a residential air conditioner's compressor motor. Using the PS11035, the design team can connect the control signals directly from their PWM-generating microcontroller to the module's high-active-logic inputs. The module's single control power supply requirement further simplifies the power tree design. During a fault condition, such as a motor winding short, the IPM's internal protection instantly shuts down the output and flags the fault via the FO pin. The microcontroller registers this signal and can initiate a safe shutdown and user alert, a sequence that would require significantly more external circuitry and software overhead in a discrete design.
Powering Compact and Reliable Motor Control
The specific ratings and integrated feature set of the PS11035 make it well-suited for a range of low-power three-phase inverter applications. Its robust construction and built-in protections provide the reliability needed for long-life consumer goods and light industrial equipment. Key application areas include:
- Variable frequency drives (VFDs) for small induction motors
- Inverters for residential and commercial air conditioning systems
- Washing machine and dishwasher motor controls
- Low-power servo drives for automation
- General-purpose fan and pump control systems
In systems where a higher voltage rating is required, the related SKM300GA123D offers a Vces of 1200V.
PS11035 Core Specifications at a Glance
This table highlights the key performance indicators for the PS11035, providing the essential data points for initial system evaluation. For comprehensive details, please refer to the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600 V |
| Collector Current (IC) | 15 A |
| Isolation Voltage (Viso) | 1500 Vrms (for 1 minute) |
| Control Supply Voltage (VCC) | 13.5 ~ 16.5 V (15V typ.) |
| Short-Circuit Protection | Integrated for all lower arm IGBTs |
| Fault Signal Output (FO) | Open-drain output, active-low |
Interpreting Key Values:
- Collector-Emitter Voltage (VCES): At 600V, this parameter indicates the maximum voltage the internal IGBTs can block, making it suitable for applications running on rectified 200-240V AC mains power with a sufficient safety margin.
- Collector Current (IC): The 15A rating defines the continuous current handling capability of each IGBT. This value is critical for matching the module to the power requirements of the target motor.
- Isolation Voltage (Viso): The 1500Vrms rating represents the dielectric strength between the power terminals and the mounting baseplate. Think of it as an electrical firewall; it ensures that high voltages on the power side cannot leak to the grounded chassis, which is a fundamental requirement for operator safety and is governed by standards from agencies like UL.
Frequently Asked Questions about the PS11035
1. What is the primary advantage of the integrated gate drive in the PS11035?
The integrated gate drive is optimized specifically for the internal IGBTs, ensuring proper switching characteristics, minimizing losses, and eliminating the complex task of designing and laying out an external driver circuit. This directly reduces component count and PCB complexity.
2. How does the Fault Output (FO) pin function?
The FO pin is an open-drain output that signals a fault condition. It is normally in a high-impedance state. When a short-circuit, over-temperature, or control supply undervoltage event occurs, the internal logic pulls this pin low. This signal is used to alert the main system controller to take immediate protective action.
3. What are the power supply requirements for the PS11035?
The module simplifies power architecture by requiring only a single 15V (typ.) DC supply for the internal control and gate drive logic. This contrasts with many discrete designs that may require multiple isolated power supplies for the high-side and low-side gate drivers.
Strategic Outlook for System Design
Adopting an integrated power module like the PS11035 is more than a component choice; it's a strategic decision that impacts the entire product development lifecycle. For engineering teams aiming to create more compact, cost-effective, and reliable motor control systems, the move away from discrete complexity towards integrated solutions is essential. The PS11035 provides a clear path to achieving these goals, allowing designers to innovate at the system level, confident that the core power stage is robust and validated. This approach is key to developing next-generation products that meet market demands for higher efficiency and smaller form factors. A deep understanding of IPM vs. discrete IGBT design is crucial for making informed architectural decisions.
