PM450CG1C065 Intelligent Power Module: High-Reliability Power Conversion with Integrated Protection
Content last revised on October 6, 2025.
Introduction to the PM450CG1C065 IPM
Streamlining High-Current Designs with Built-in Intelligence

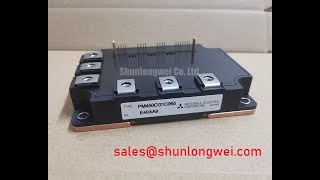

The Mitsubishi PM450CG1C065 is an advanced Intelligent Power Module (IPM) that integrates a high-performance three-phase IGBT inverter with optimized gate drive and protection circuits. This module delivers robust power handling and exceptional reliability, featuring key specifications of 650V | 450A | VISO 2500Vrms. Its core benefits include simplified gate drive design and comprehensive, real-time fault detection. The PM450CG1C065 directly addresses the engineering need for compact, fault-tolerant power stages in demanding industrial applications. For high-power motor drives requiring a balance of performance and built-in protection, this 450A IPM offers a highly integrated and reliable solution.
Key Parameter Overview
Decoding the Specs for Integrated System Reliability
The technical specifications of the PM450CG1C065 are engineered to provide a robust and reliable foundation for high-power inverter designs. The parameters below are grouped by function to clarify their role within the module's integrated architecture.
| Parameter | Conditions | Value |
|---|---|---|
| Inverter Part Maximum Ratings (Tvj = 25°C) | ||
| Collector-Emitter Voltage (VCES) | VD=15V, VCIN=15V | 650 V |
| Collector Current (IC) | TC=25°C | 450 A |
| Collector Current (Pulse) (ICRM) | - | 675 A |
| Total Power Dissipation (Ptot) | TC=25°C | 1388 W |
| Junction Temperature (Tvj) | - | -20 to +150 °C |
| Control Part | ||
| Supply Voltage (VD) | - | 15 V (13.5 - 16.5 V) |
| Input Signal Voltage (VCIN) | - | 15 V (0 - 16.5 V) |
| Fault Output Pulse Width (tFO) | SC / UV / OT Protection | 2.0 / 4.0 / 8.0 ms (Typ.) |
| Isolation Characteristics | ||
| Isolation Voltage (Visol) | 60Hz, Sinusoidal, AC 1min | 2500 Vrms |
Download the PM450CG1C065 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Motor Drives
The PM450CG1C065 is engineered for high-power, high-reliability applications where system uptime and fault tolerance are critical. Its primary value lies in its high level of integration, which simplifies the design of complex power electronics systems such as Variable Frequency Drives (VFDs), industrial servo drives, and renewable energy inverters. A key engineering challenge in these systems is implementing robust protection against short-circuits, over-temperature, and under-voltage conditions without adding significant complexity and component count. The PM450CG1C065's integrated protection features, including a direct chip temperature feedback for over-temperature protection and dedicated fault output signals, provide a streamlined solution. This integration not only reduces the bill of materials (BOM) and printed circuit board (PCB) footprint but also accelerates development time by providing a pre-validated and reliable power stage. This module's 450A capability makes it a strong candidate for controlling motors in the 150 kW to 220 kW class. For applications requiring different current or voltage ratings, related components such as the CM600DX-24T may offer alternative solutions.
Frequently Asked Questions (FAQ)
What is the main benefit of the integrated protection features in the PM450CG1C065?
The primary advantage is enhanced system reliability and simplified design. By integrating over-current, short-circuit, over-temperature, and under-voltage protection with dedicated fault output signals, the module reduces external component count, minimizes potential points of failure, and provides immediate, actionable feedback to the system controller, enabling safer and more robust operation.
How does the "Full-Gate CSTBT™" chip technology contribute to the module's performance?
The Full-Gate CSTBT™ (Carrier Stored Trench-gate Bipolar Transistor) is a proprietary Mitsubishi Electric technology. It is designed to lower the on-state voltage (VCE(sat)) and reduce switching losses simultaneously. For an engineer, this translates to higher energy efficiency, as less power is dissipated as heat during operation. This improved efficiency can lead to smaller heatsink requirements and a more compact overall system design.
What does the fault output signal (Fo) indicate?
The Fo signal is a critical diagnostic feature. It is an open-collector output that goes to a low state to signal that a fault (short-circuit, over-temperature, or supply under-voltage) has occurred in either the upper or lower arm of the inverter. This allows the system's microcontroller to immediately shut down the drive signals, preventing catastrophic failure of the module and protecting the connected motor or load.
Engineer's Perspective
A Call to Action for Simplified, Robust Design
For engineers developing the next generation of high-power industrial systems, the PM450CG1C065 represents a strategic shift from discrete component design to integrated system solutions. Adopting this Intelligent Power Module is not just a component selection; it is a design choice that prioritizes reliability, reduced development cycles, and a smaller physical footprint. By leveraging its built-in protection and diagnostics, you can focus on system-level control and application-specific features, confident in the robustness of the core power stage. We encourage you to evaluate the PM450CG1C065 for your next high-current motor control or power conversion project to experience the tangible benefits of a highly integrated and intelligent power solution.
