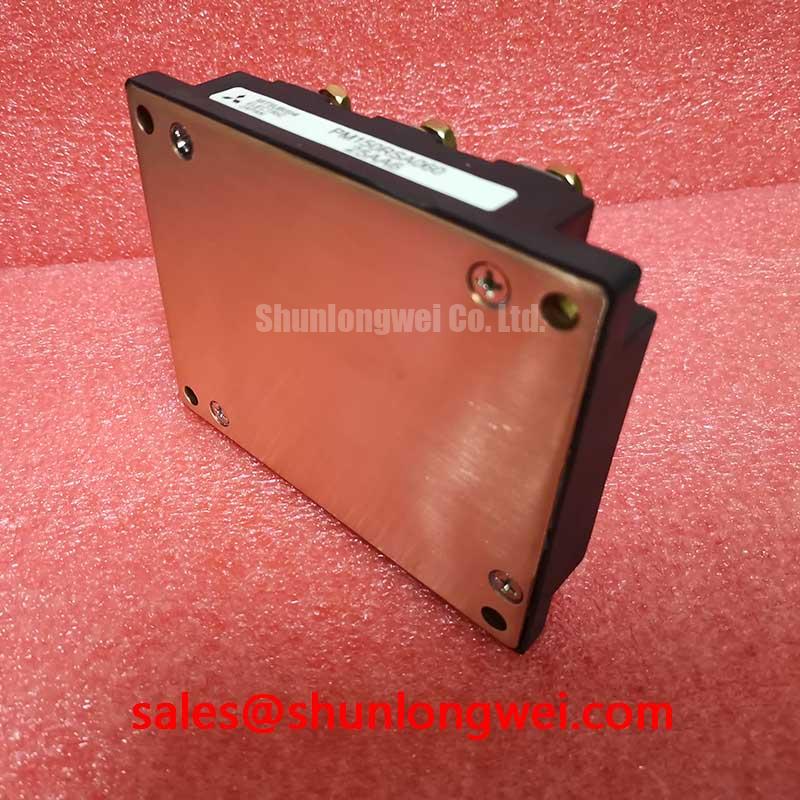

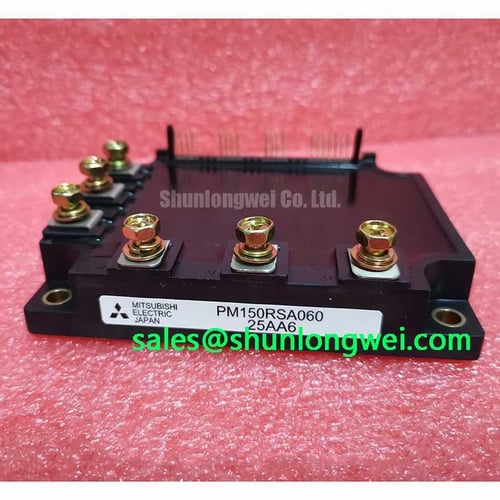

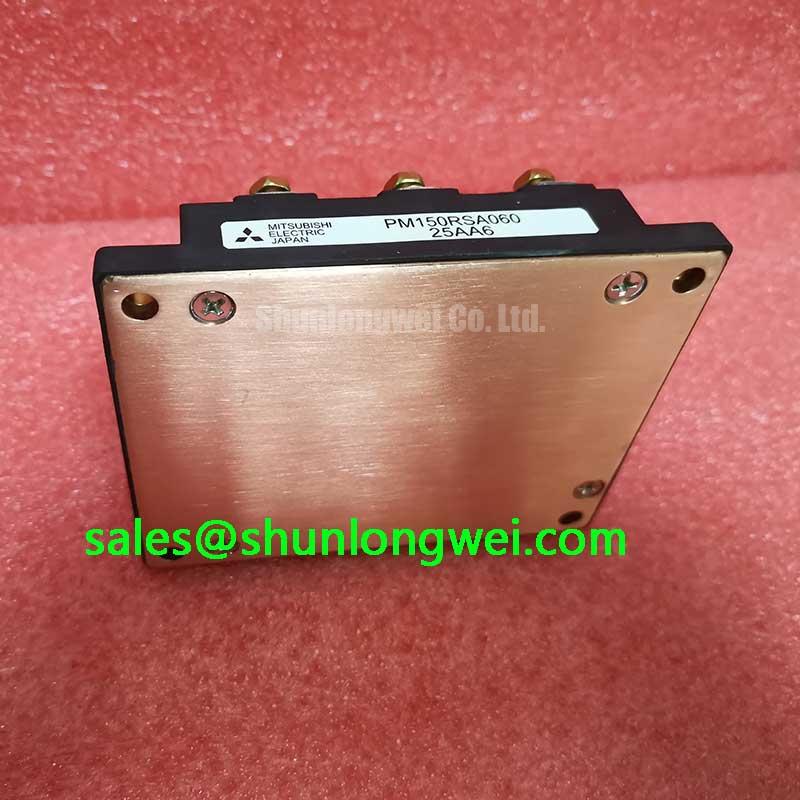

Mitsubishi PM150RSA060 IGBT Module

PM150RSA060 IPM: 600V/150A Module for Reliable, High-Efficiency Motor Control

An Integrated Approach to Power Stage Resilience

In modern power electronics, the transition from discrete components to integrated solutions marks a significant leap in design efficiency and system reliability. The core principle is to embed intelligence directly alongside the power switches, creating a self-protecting, pre-validated subsystem. The Mitsubishi Electric PM150RSA060 is an exemplary embodiment of this philosophy. This 600V, 150A Intelligent Power Module (IPM) is not merely a collection of IGBTs; it is a compact power conversion engine featuring integrated gate drive circuits and a suite of critical protection functions. This integration directly addresses the engineering challenge of minimizing design complexity while simultaneously hardening the system against common failure modes like short circuits and overheating, providing a robust foundation for high-performance power applications.

Key Performance Indicators for the PM150RSA060

The specifications of the PM150RSA060 are tailored for robust performance in demanding, high-frequency switching applications. Here is a breakdown of its essential operational parameters. For a comprehensive list, please Download the Datasheet.

Accelerating Development in Demanding Drive Systems

The true value of the PM150RSA060 lies in its ability to streamline the design process and enhance the operational robustness of the final product. Its integrated nature makes it a prime candidate for applications where time-to-market and long-term reliability are critical design drivers.

• AC Servo Drives & Robotics: In precision motion control, predictable performance and protection against motor stalls are paramount. The module's fast-acting short-circuit protection safeguards the inverter stage during abrupt load changes, a common occurrence in robotic arm applications. For engineers focused on this area, our guide on IGBTs in robotic servo drives offers further context.
• General-Purpose Industrial Inverters: For variable frequency drives (VFDs) controlling pumps, fans, and conveyors, the PM150RSA060 simplifies the power stage design. Its integrated over-temperature and under-voltage lockout features reduce the need for external monitoring circuits, shrinking PCB footprint and lowering the bill of materials (BOM).
• Uninterruptible Power Supplies (UPS): The module's high isolation voltage and proven reliability are essential for building dependable UPS systems. The fault signal output provides crucial diagnostic feedback to the system controller, enabling faster service and maintenance.

Deployment Snippet: Upgrading a CNC Machine Spindle Drive

A mid-sized machine tool manufacturer faced reliability issues with their existing spindle drive, which used discrete IGBTs. Field failures were often traced to transient short-circuit events during heavy cutting operations. Their engineering team selected the PM150RSA060 for the next-generation design. By replacing a complex board of discrete components with this single IPM, they eliminated multiple points of potential failure. The module's built-in short-circuit protection and direct fault feedback to the machine's primary controller allowed them to implement a more intelligent shutdown and recovery sequence, dramatically reducing field service calls and improving customer uptime.

Strategic Advantage Through Integrated Power Design

In an increasingly competitive industrial market, engineering teams are pressed to deliver more complex products on shorter timelines. The PM150RSA060 serves as a strategic enabler by abstracting the complexity of the power switching stage. This allows designers to de-risk a critical part of their system and reallocate valuable engineering resources toward software development, control algorithms, and user-interface innovation. This shift from component-level design to system-level integration is a key tenet of Industry 4.0, where component intelligence contributes directly to overall system availability and diagnostic capability. Adopting an IPM like this is not just a hardware choice; it is a strategic decision to accelerate innovation and enhance product resilience.

Selection Guidance: IPM vs. Discrete Solutions

Choosing between an Intelligent Power Module like the PM150RSA060 and a traditional design using discrete IGBTs, gate drivers, and protection circuitry depends on key project priorities. A discrete approach offers granular control over component selection but carries a higher design burden in terms of layout, component sourcing, and validation. The PM150RSA060 provides a compelling alternative when system-level goals are paramount.

Opt for the PM150RSA060 if your design priorities include:

• Reduced Time-to-Market: Leveraging a pre-certified and integrated module significantly cuts down on the design, testing, and qualification time for the power stage.
• Enhanced Reliability: The co-packaged and optimized layout of the IGBTs and drive circuitry, along with factory-tested protection features, leads to higher field reliability compared to discrete assemblies.
• Compact Footprint: Integrating multiple functions into a single housing saves considerable PCB space, enabling smaller and more power-dense end products.

For systems requiring a slightly higher current rating with similar integrated benefits, the PM200DSA060 offers a direct upgrade path. A deeper exploration of this trade-off can be found in our analysis of IPM vs. discrete IGBTs.

Deconstructing the Module's Protective Intelligence

Two key characteristics define the engineering value of the PM150RSA060: its low conduction loss and its intelligent protection mechanisms. Understanding these is crucial to leveraging its full potential.

Low VCE(sat) for Thermal Efficiency: The typical Collector-Emitter Saturation Voltage (Vce(sat)) is 2.1V. This parameter is a direct measure of how much voltage drops across the IGBT when it's fully turned on. A lower VCE(sat) means less power is converted into waste heat during operation. Think of it as water flowing through a pipe; a lower VCE(sat) is like a wider, smoother pipe that creates less friction. This superior efficiency simplifies thermal management, potentially allowing for a smaller heatsink, which reduces system size, weight, and cost.

Integrated Short-Circuit (SC) Protection: This is arguably the most critical feature. The internal circuitry constantly monitors the IGBT's VCE(sat). If a short-circuit in the load causes the current to spike uncontrollably, the VCE(sat) will rise above a predefined threshold. The IPM detects this abnormal condition in microseconds and safely shuts down the IGBTs before they can be destroyed by the massive current flow. It's an integrated, high-speed safety net that is extremely difficult and costly to implement reliably with external discrete components, as detailed by manufacturers like Mitsubishi Electric. This built-in protection is a cornerstone of creating fault-tolerant drive systems.

Take the Next Step in Your Power Design

The Mitsubishi Electric PM150RSA060 offers a clear path to developing more reliable, compact, and efficient power conversion systems. By integrating essential drive and protection functions, it allows your team to focus on system-level innovation rather than component-level complexity. To evaluate how this IPM can accelerate your next project, contact our technical support team to discuss your application requirements or request a quote today.
