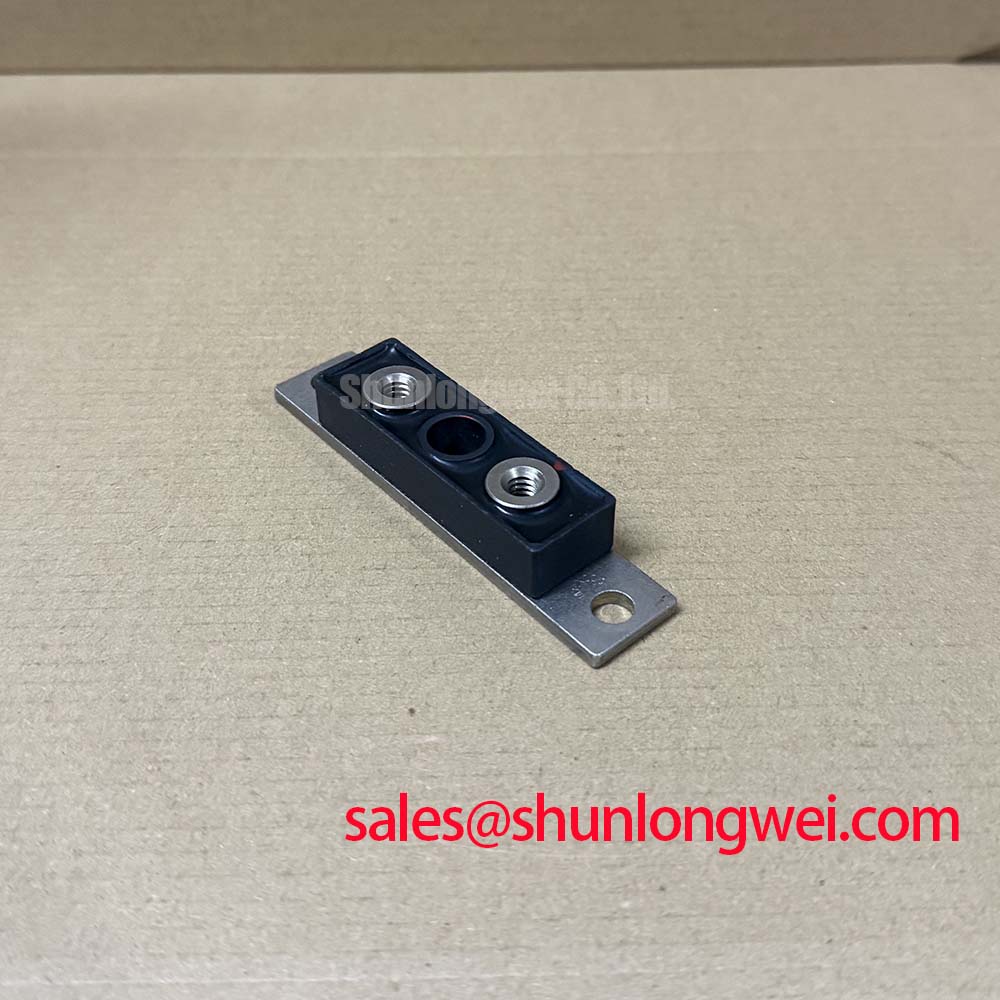

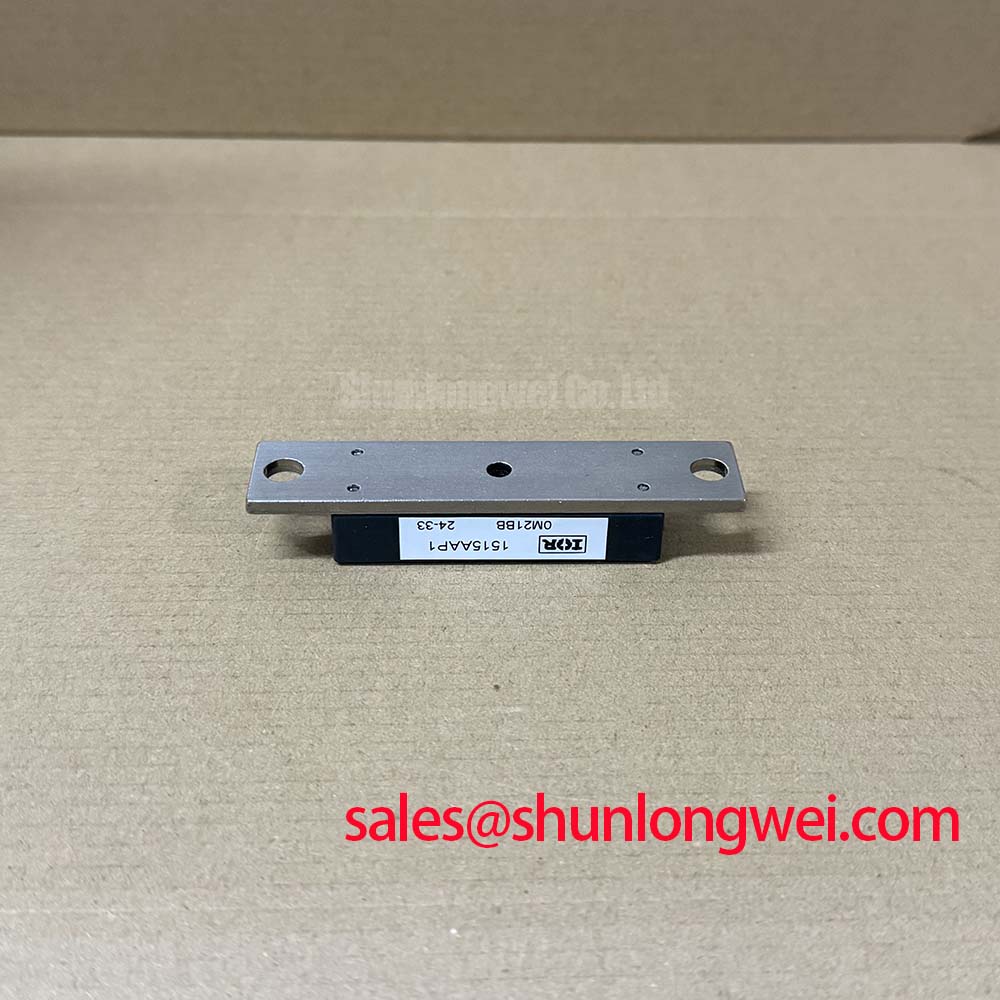

1515AAP1 POW-R-BLOK™ Dual SCR Module: Engineering for High-Stress Industrial Power Control
Product Overview & Key Specifications
Engineered for Reliability in Demanding Phase Control Applications
The 1515AAP1 is a high-performance dual SCR (Silicon Controlled Rectifier) module from the POW-R-BLOK™ series, designed to deliver precise and reliable power control in demanding industrial environments. It provides robust performance through exceptional surge current handling and an industry-standard, electrically isolated package. Key specifications include: 1500V Peak Repetitive Off-State Voltage | 150A Average On-State Current | 5000A Peak Surge Current (ITSM). This module offers enhanced operational longevity and simplified thermal management. The design directly addresses the need for components that can withstand the electrical stresses inherent in high-power motor control and regulation systems. For industrial soft starters and rectifiers requiring robust performance up to 1500V, the 1515AAP1's surge handling capability makes it a definitive choice.
Application Scenarios & Value
System-Level Benefits in Motor Control and Power Regulation
The 1515AAP1 is engineered for deployment in high-power AC and DC control systems where reliability is paramount. Its primary application is in AC soft starters, where its ability to handle massive inrush currents is critical. The engineering challenge in starting large induction motors is managing the initial current surge, which can be 5 to 8 times the normal running current. The 1515AAP1's impressive 5000A non-repetitive surge current (ITSM) rating provides the necessary headroom to manage these events without device degradation, ensuring a reliable startup sequence every time. What is the key benefit of its high ITSM rating? It ensures survival during high inrush currents, crucial for motor starting.
Beyond motor control, this module is a core component in:
- Phase-controlled rectifiers for industrial power supplies and DC motor drives.
- Temperature and lighting control systems requiring precise power regulation.
- Crowbar circuits in power supplies, offering a rugged overvoltage protection mechanism.
The module's low on-state voltage drop (VTM) directly contributes to higher system efficiency. Think of VTM like friction in a pipe; a lower value means less energy is lost as heat when current flows through the device. This reduction in thermal load simplifies heatsink selection and can contribute to a more compact and cost-effective overall system design. For applications requiring a complete bridge rectifier configuration, a related module like the MDS200A1600V could be considered for its four-diode arrangement.
Key Parameter Overview
Decoding the Specs for Enhanced Operational Reliability
The technical specifications of the 1515AAP1 are tailored for robust performance in industrial power systems. The parameters below highlight its capacity for high-stress operation and thermal stability. For a comprehensive guide to its performance characteristics, refer to the official datasheet.
| Parameter | Value | Engineering Implication |
|---|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1500V | Provides a significant safety margin for operation on 480V and 600V AC lines, enhancing reliability against voltage transients. |
| Average On-State Current (IT(AV)) @ TC=85°C | 150A | Supports high continuous current loads, suitable for medium- to high-power industrial machinery. |
| Peak Surge Current (ITSM) | 5000A | Critical for surviving fault conditions and the large inrush currents typical in motor soft starters and transformer energization. |
| I²t for Fusing | 104,000 A²s | Facilitates precise coordination with protective fuses, preventing catastrophic failures under short-circuit conditions. |
| Isolation Voltage (Visol) | 2500V | Ensures safety and simplifies system assembly by allowing the module to be mounted directly to a grounded heatsink. |
Download the 1515AAP1 datasheet for detailed specifications and performance curves.
Application Vignette
Vignette: Ensuring Soft Starter Reliability Under High Inrush Currents
Consider the design of a soft starter for a 100 HP, 480V three-phase industrial conveyor belt motor. The primary challenge is managing the startup inrush current, which can cause significant voltage dips and mechanical stress. The 1515AAP1 module, used as the core AC phase angle controller, directly mitigates this risk. Its 5000A ITSM rating means it can comfortably absorb the repeated startup surges without the risk of degradation that might affect lesser-rated components. This level of surge immunity translates directly into a longer operational life for the soft starter and reduces the likelihood of costly downtime. The module’s robust thermal design also ensures stable performance, even as it ramps up the voltage to the motor, making it a reliable cornerstone for the entire motor control system.
Frequently Asked Questions
Engineering FAQs for the 1515AAP1 Module
How does the 1515AAP1's 5000A surge current rating (ITSM) benefit a soft starter design?
The high ITSM rating is a critical reliability feature. It provides the robustness needed to repeatedly handle the large inrush currents that occur when starting heavy inductive loads like large motors. This prevents the SCRs from failing prematurely due to electrical overstress, leading to a more durable and dependable soft starter with a lower total cost of ownership.
What is the significance of the 2500V isolation voltage (Visol)?
The 2500V isolation integrated into the module's baseplate simplifies both the mechanical and electrical design of the power assembly. It allows the module to be mounted directly onto a common, grounded heatsink without the need for additional insulating materials like thermal pads or bushings. This not only reduces assembly time and part count but also improves thermal transfer and system reliability, as specified by standards like IEC 60947.
For inquiries regarding the 1515AAP1 module or to discuss your specific power control requirements, please contact our technical support team for assistance.
