2DI150D-050 Fuji Electric 500V 150A Power Transistor Module

Content last revised on December 21, 2025

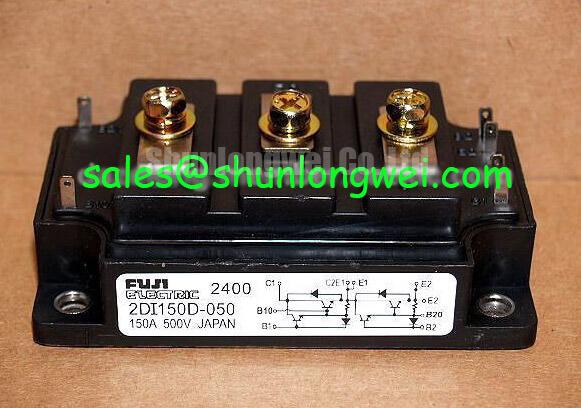

2DI150D-050 Fuji Electric 500V 150A Darlington Power Transistor Module

The Fuji Electric 2DI150D-050 is a high-performance Darlington Power Transistor Module designed for high-power switching and amplification in industrial environments. Utilizing a dual-Darlington configuration, this module provides a high DC current gain (hFE), significantly reducing the driving power required for the base circuit. With an isolated mounting base, it allows for simplified heat sink arrangements in multi-module systems.

For engineers managing 400V or 500V DC bus systems, the 2DI150D-050 offers a robust 500V (Vceo) rating and a continuous collector current of 150A. Key benefits include optimized switching speeds and high reliability under thermal stress, making it a foundational component for legacy motor drive maintenance and heavy-duty power supplies.

For 400V systems requiring modern trench technology, the related 2MBI150U2A-060 offers a similar 150A rating with IGBT characteristics. For 500V DC bus applications prioritizing high gain and legacy compatibility, the 2DI150D-050 remains the optimal choice.

Application Scenarios & Value

High-Gain Precision in Industrial Motion Control

In the context of Variable Frequency Drive (VFD) and Servo Drive systems, the 2DI150D-050 serves as a critical power stage. A frequent challenge for engineers is managing the base drive current for high-power transistors. The 2DI150D-050 addresses this with its high hFE (min 100 at 150A), which acts like a two-stage mechanical lever: a small input force (base current) triggers a massive output force (collector current), allowing for smaller, more efficient drive circuitry.

In high-fidelity engineering scenarios such as Welding Power Supply or UPS (Uninterruptible Power Supply) design, the 150A IC rating ensures the module can handle significant transient loads during startup or sudden load changes. This robustness is critical for maintaining system uptime in harsh environments. This module is also frequently utilized in large-scale induction heating applications where stable current amplification is required to maintain magnetic field consistency.

By leveraging the high-speed switching capabilities and low saturation voltage of this Fuji module, designers can effectively reduce total harmonic distortion in output waveforms. If your design requires a higher phase count or different topology, consider the 6DI150AH-060 as a complementary option for system-wide power management.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

Download the 2DI150D-050 datasheet for detailed specifications and performance curves.

Technical & Design Deep Dive

A Closer Look at the Darlington Configuration for Efficiency

The 2DI150D-050 is engineered using two bipolar transistors connected so that the current amplified by the first is amplified further by the second. This internal structure is analogous to a cascading waterfall; the initial flow is multiplied as it hits the second stage, resulting in a much larger total volume. This high-gain nature is essential for legacy systems where Gate Drive power is limited. Furthermore, the inclusion of an integrated fast-recovery freewheeling diode protects the transistor from the inductive kickback common in Motor Drive applications, significantly improving SCSOA (Short Circuit Safe Operating Area) performance.

Thermal management is equally critical. The 2DI150D-050 features an alumina ceramic substrate that provides excellent heat conduction while maintaining 2000V isolation. Proper Thermal Management using a high-quality thermal interface material (TIM) is necessary to keep the junction temperature below the 150°C limit, ensuring the module achieves its full operational lifespan in continuous-duty cycles.

FAQ

How does the hFE rating of 100 impact the driver circuit design for the 2DI150D-050?
The high hFE allows the base drive circuit to operate at much lower currents than standard transistors. For a 150A load, a base current of only 1.5A is typically required to saturate the module, enabling the use of smaller, lower-cost drive components and reducing overall power consumption in the control stage.

What are the primary considerations for snubbing in 500V Darlington modules?
Due to the switching speeds of the 2DI150D-050, a proper Snubber Circuit is required to suppress voltage spikes caused by stray inductance. Engineers should focus on minimizing the loop area between the module and the snubber capacitor to protect the 500V VCEO rating during turn-off transients.

Can the 2DI150D-050 be used in parallel for higher current applications?
While possible, IGBT Paralleling or Transistor paralleling requires careful matching of saturation voltages and base drive synchronization. Because Darlington transistors have a negative temperature coefficient for Vbe, unbalanced current sharing can lead to thermal runaway if not properly compensated with emitter resistors or matched modules.

How does the 2000V isolation voltage affect system-level safety?
The 2000V Visol rating means the internal live components are safely isolated from the metal mounting base. This allows the module to be bolted directly to a grounded Thermal Management heatsink, facilitating compliance with industrial safety standards and reducing the risk of ground faults in high-voltage cabinets.

For more technical insights on power semiconductor selection, you may explore our guide on IGBT vs MOSFET vs BJT selection or learn about diagnosing key failure modes in power modules.

Understanding the interplay between high gain and thermal dissipation is the foundation of a reliable power stage. By prioritizing precise base drive control and robust heatsink interfacing, engineers can maximize the service life of the 2DI150D-050 in demanding industrial applications.
