2ED300C17-ST EiceDRIVER™: 3A Isolated Gate Driver for Enhanced IGBT Efficiency and Protection

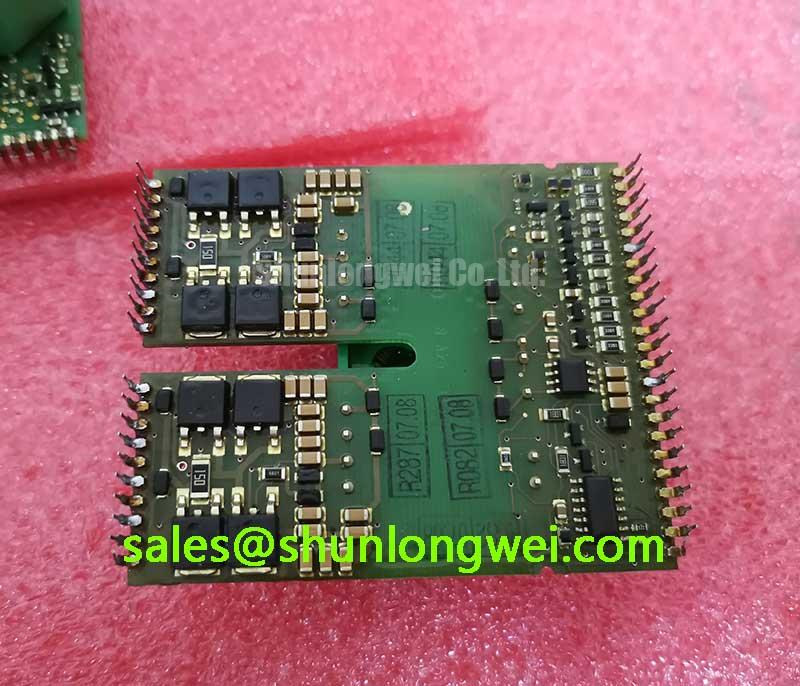

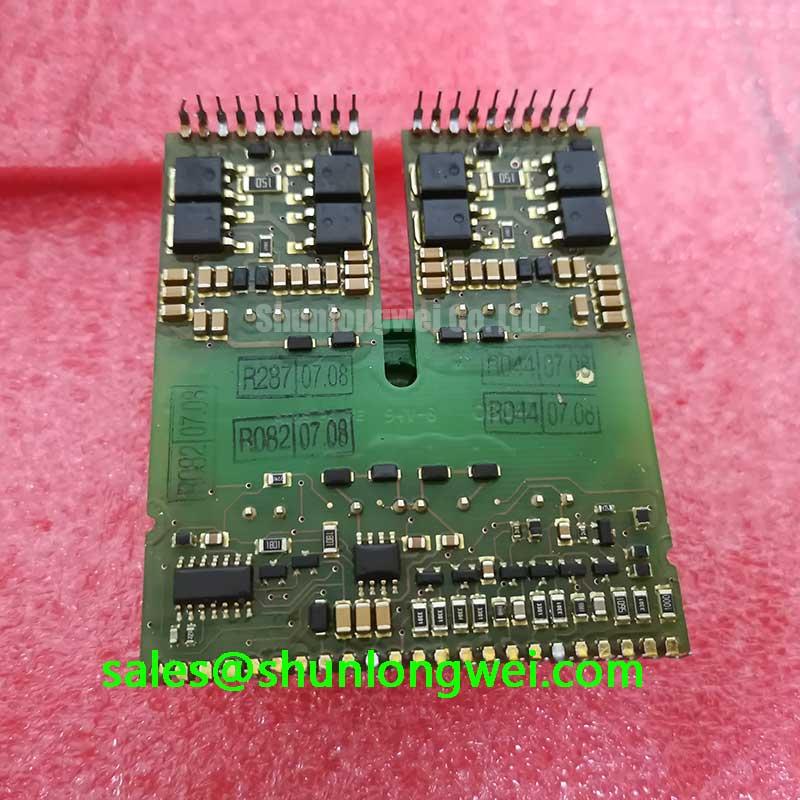

Product Overview: Core Features and Engineering Value

Delivering Precision Gate Control for High-Power IGBT Modules

The Infineon 2ED300C17-ST is a single-channel isolated gate driver engineered to deliver robust 3A peak current, maximizing IGBT switching efficiency and system protection. Key specifications include: 3A Peak Current | Suitable for up to 1700V IGBTs | 70ns Propagation Delay. This component provides two critical engineering benefits: robust short-circuit protection and prevention of parasitic turn-on. It directly addresses parasitic turn-on events in half-bridge topologies through an integrated Active Miller Clamp, significantly enhancing system reliability. For high-power industrial drives where fast, clean switching and robust protection are non-negotiable, the 2ED300C17-ST is the optimal gate control solution.

Key Parameter Overview

Decoding the Electrical Characteristics for High-Efficiency Switching

The performance of the 2ED300C17-ST is defined by its electrical characteristics, which are optimized for driving large IGBTs efficiently and safely. The parameters below are critical for system design, directly influencing switching speed, protection levels, and overall inverter performance.

Note: The values presented are typical or maximums under specified test conditions. For a complete overview of all parameters, graphs, and application notes, please refer to the official datasheet.

Download the 2ED300C17-ST datasheet for detailed specifications and performance curves.

Application Scenarios & Value

System-Level Benefits in Demanding Power Conversion Systems

The 2ED300C17-ST is designed for high-reliability, high-power applications where precise control of the IGBT is fundamental to system performance and longevity. Its feature set provides tangible value in several key industrial systems.

• Industrial Motor Drives: In a Variable Frequency Drive (VFD), fast and clean switching of the inverter stage IGBTs is critical for motor efficiency and reducing EMI. The 3A peak output current of the 2ED300C17-ST enables rapid charging and discharging of the IGBT gate capacitance, minimizing switching losses. This allows for higher switching frequencies, which can lead to smaller magnetic components and a more compact overall drive design.
• Solar Inverters & UPS: System uptime and reliability are paramount in solar inverters and Uninterruptible Power Supply (UPS) units. The high dV/dt rates in modern designs can induce parasitic turn-on, leading to shoot-through events that degrade or destroy the power switches. The 2ED300C17-ST’s integrated Active Miller Clamp provides a low-impedance path to ground during switching transitions, effectively preventing this failure mode and ensuring the integrity of the half-bridge topology.
• Welding and Induction Heating: These applications are characterized by harsh electrical environments and frequent load changes. The adjustable DESAT protection offers a robust and configurable defense against short-circuit events, protecting the expensive IGBT module from damage. Furthermore, its high Common-mode transient immunity (CMTI) ensures reliable operation even in the presence of high electrical noise.

For systems that may require a different integration level or feature set, exploring options such as the SKHI 24 R can provide additional perspective on available gate driver technologies.

Technical Deep Dive

A Closer Look at the Active Miller Clamp and DESAT Protection Mechanisms

Two of the most significant features of the 2ED300C17-ST are its integrated protection and switching integrity functions. Understanding their operation is key to leveraging the driver's full potential.

The Active Miller Clamp: During the turn-off of an IGBT in a half-bridge, the rapidly rising voltage (dV/dt) across the switching device can induce a current through its parasitic Miller capacitance (Cgc). This current flows into the gate, potentially raising the gate voltage above its threshold and causing a brief, unintended turn-on—a dangerous condition known as parasitic turn-on. The Active Miller Clamp acts as an intelligent, ultra-fast gatekeeper. The moment it senses the output voltage is below a certain threshold (around 2V), it activates a transistor that creates a very low-impedance path from the IGBT's gate to its emitter. This clamp effectively shunts the Miller current to ground, holding the gate voltage down and ensuring the IGBT remains securely off.

DESAT Protection Explained: Desaturation detection is a critical method for protecting IGBTs from overcurrent and short-circuit conditions. The DESAT pin on the 2ED300C17-ST monitors the collector-emitter voltage (VCE) of the IGBT when it is in the on-state. Under normal operation, this VCE(sat) is very low. If a short-circuit occurs, the IGBT is forced out of saturation, and its VCE rapidly increases. When the DESAT pin senses that VCE has exceeded a predefined threshold (typically 9V), it triggers a fault condition. After a short, user-configurable blanking time to prevent false trips, the driver initiates a soft turn-off of the IGBT and sends a fault signal to the microcontroller. This mechanism is far faster and more reliable than shunt-based current sensing for handling catastrophic fault events.

Frequently Asked Questions (FAQ)

How does the Active Miller Clamp in the 2ED300C17-ST prevent parasitic turn-on?
By creating a low-impedance path from the gate to the emitter during the turn-off transition. This shunts the current induced by high dV/dt through the Miller capacitance, preventing the gate voltage from rising to the turn-on threshold and avoiding shoot-through currents in half-bridge configurations.

What is the purpose of the adjustable DESAT protection, and how does it improve IGBT reliability?
The adjustable DESAT protection detects short-circuit events by monitoring the IGBT's collector-emitter voltage. What is its primary benefit? It provides rapid, reliable protection that prevents catastrophic failure of the power module. The ability to adjust the blanking time allows designers to tune the protection to their specific IGBT and application, avoiding nuisance tripping while ensuring safety.

With a 3A peak output current, what size IGBTs can the 2ED300C17-ST effectively drive?
A 3A peak current provides robust driving capability for a wide range of IGBT modules, typically those with collector currents up to several hundred amperes, depending on the required switching frequency and the IGBT's total gate charge (Qg). It ensures fast switching transitions, which is crucial for minimizing switching losses and improving thermal performance in high-power systems.

Strategic Implementation

Maximizing System Performance and Reliability

Integrating the 2ED300C17-ST is more than a component choice; it is a strategic decision to enhance the core performance and robustness of a power electronics system. By offloading critical protection and switching integrity functions to a dedicated, high-performance IC from a reputable manufacturer like Infineon, engineering teams can simplify their control logic, accelerate development time, and deliver a more reliable end product. The combination of strong gate drive, advanced protection, and galvanic isolation makes this driver a foundational element for next-generation power converters aiming to meet stringent efficiency and safety standards.
