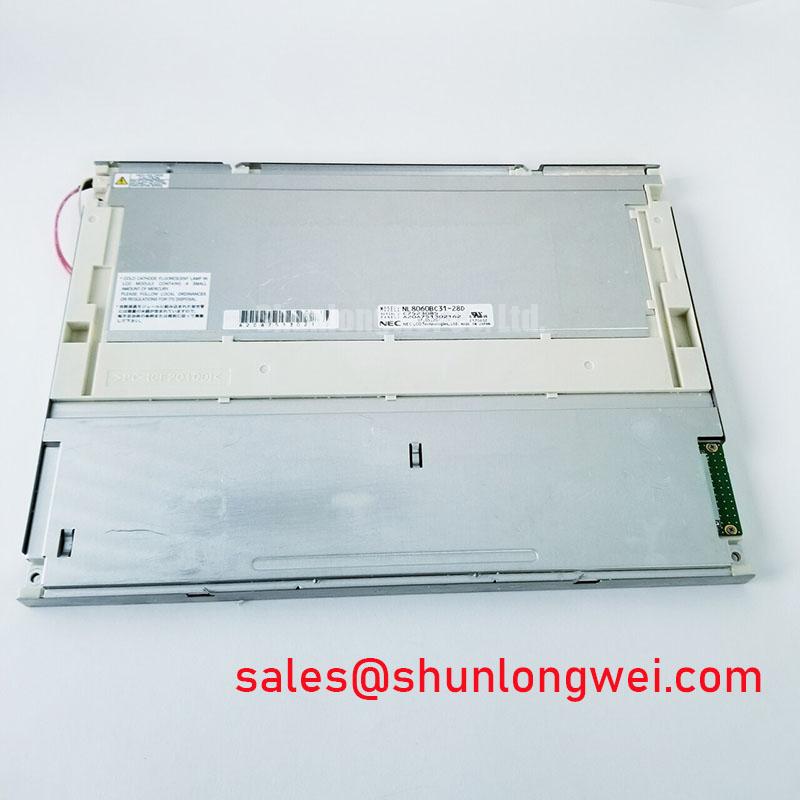

NL8060BC31-28D: 12.1-inch SVGA Industrial TFT-LCD, Engineered for Longevity and Environmental Resilience
Content last revised on October 5, 2025.
The NL8060BC31-28D is a 12.1-inch SVGA TFT-LCD module from NEC, specifically designed for robust optical performance and exceptional reliability in demanding industrial applications. It delivers proven visual clarity and operational stability across a wide thermal range, making it a premier choice for long-life cycle systems. Key specifications include: 12.1" Diagonal | 800x600 SVGA | 350 cd/m² | -10°C to 70°C Operating Temperature. The module offers significant engineering benefits, including simplified system integration and enhanced durability in harsh environments. Addressing the critical need for reliable displays in legacy equipment, its standard SVGA resolution and LVDS interface facilitate seamless upgrades without costly redesigns. For industrial HMIs requiring proven SVGA resolution with uncompromising performance across a wide thermal range, the NL8060BC31-28D is the definitive choice.
Key Parameter Overview
Decoding the Specs for Environmental Reliability
The technical specifications of the NL8060BC31-28D are tailored to ensure consistent performance and straightforward integration into industrial equipment. The parameters below highlight its suitability for environments where temperature fluctuation and readability are primary design considerations.
| Parameter | Specification | Engineering Value |
| Screen Size | 12.1 inches (30.8 cm) | Provides a significant active area for complex GUIs in a standard industrial form factor. |
| Resolution | 800(RGB) x 600 [SVGA] | Ensures compatibility with a vast range of legacy and new industrial control software. |
| Luminance | 350 cd/m² (Typ.) | Delivers clear, readable images in typical factory floor and control room lighting conditions. |
| Operating Temperature | -10°C to +70°C | Critical for deployment in non-climate-controlled environments, reducing the need for auxiliary heating or cooling systems. |
| Contrast Ratio | 600:1 (Typ.) | Provides excellent depth and distinction between colors and shades, crucial for detailed process monitoring. |
| Interface | LVDS (1 ch, 6-bit) | Offers a high-speed, low-noise digital connection standard in industrial controllers. |
| Viewing Angle | 70°/70° (H), 45°/55° (V) (Typ., CR≥10) | Ensures readability from off-axis positions, a key requirement for panel-mounted HMIs. |
Download the NL8060BC31-28D datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
What is the primary benefit of the NL8060BC31-28D's specification set? It offers a low-risk, high-reliability display solution for both new designs and mid-life upgrades of industrial assets. The module is particularly well-suited for applications where operational uptime and long-term component availability are paramount.
A high-fidelity engineering scenario is the upgrade of a legacy Computer Numerical Control (CNC) machine's operator console. The original CRT or early-generation LCD may have failed or faded, impacting productivity. The engineer's challenge is to find a replacement that is mechanically compatible and electrically simple to integrate without forcing a complete software overhaul. The NL8060BC31-28D directly addresses this challenge. Its 800x600 SVGA resolution is a drop-in match for the native resolution of countless industrial systems, eliminating the need for complex signal scaling or driver redevelopment. Furthermore, its wide operating temperature range ensures it can withstand the thermal stresses of a factory floor, from cold morning startups to peak afternoon temperatures, providing consistent performance year-round. This makes it an ideal choice for process control systems, factory automation HMIs, and specialized test and measurement equipment. While this model is ideal for SVGA systems, for applications requiring higher detail, the related NL10276AC30-42D offers a 1024x768 XGA resolution in a similar class of industrial displays.
Frequently Asked Questions (FAQ)
How does the -10°C to 70°C operating temperature range directly benefit system design?
This wide thermal range allows the display to be deployed in enclosures without dedicated heating or cooling components, simplifying mechanical design, reducing bill-of-materials (BOM) cost, and eliminating potential points of failure. It ensures reliable screen startup in cold conditions and prevents image degradation in hot industrial environments.
What is the significance of the 350 cd/m² brightness for industrial HMI applications?
A luminance of 350 cd/m² provides a bright, clear image that remains easily readable under the typical overhead fluorescent or LED lighting found in factories, warehouses, and control rooms. Think of it as the difference between trying to read a dim phone screen outdoors versus one with its brightness turned up; this display has the intrinsic brightness needed for clarity in its intended environment.
Does the LVDS interface offer advantages over older parallel RGB interfaces?
Yes, the LVDS Interface (Low-Voltage Differential Signaling) provides superior noise immunity and allows for longer cable runs between the display and the system controller. This is a critical advantage in electrically noisy industrial settings, ensuring signal integrity and a stable, flicker-free image.
Is the NL8060BC31-28D suitable for applications with moderate shock and vibration?
Based on typical specifications for this class of industrial display, it is designed for a higher level of durability than consumer-grade panels. The datasheet specifies a vibration resistance of 2.0G (19.6 m/s²), confirming its suitability for panel-mounted applications on machinery and in environments with inherent mechanical stress.
Technical Deep Dive
A Closer Look at the Design for Durability
The reliability of the NL8060BC31-28D is not accidental; it is a direct result of its underlying a-Si TFT (Amorphous Silicon) technology and robust construction. The use of a CCFL (Cold Cathode Fluorescent Lamp) backlight system, while a mature technology, is well-understood and has a proven track record of long operational life, a key requirement for industrial systems with 10+ year service life expectations. The stated backlight lifetime provides a predictable maintenance horizon, which is critical for calculating the total cost of ownership (TCO).
The panel's surface features an antiglare treatment and a hard coating (3H), which are essential for industrial use. The antiglare surface diffuses reflections from overhead lighting, preventing the operator's view from being obscured. The hard coating provides a necessary layer of protection against accidental scrapes and contact, preserving the optical clarity of the display over its lifespan. This is analogous to the durable, non-reflective dashboard displays in automobiles, which are designed to be readable and resilient under a wide variety of conditions for years.
Industry Insights & Strategic Advantage
Maximizing Asset Value with Reliable HMI Solutions
The NL8060BC31-28D aligns with a crucial industry trend: the extension and modernization of existing industrial infrastructure. As companies seek to maximize the return on investment from their machinery, upgrading critical components like the Human-Machine Interface (HMI) becomes a cost-effective strategy. This display provides an engineering pathway for a "legacy system upgrade" without the risks and expenses of a full system replacement. Its standard resolution and interface minimize integration friction, enabling engineers to enhance operator efficiency and equipment reliability with a targeted investment.
By incorporating components like the NL8060BC31-28D, system integrators and maintenance managers can ensure that their industrial HMI remains a reliable and effective control point. This strategic approach to maintenance and upgrades, supported by robust components from manufacturers like NEC, is fundamental to maintaining productivity and operational continuity in modern manufacturing and process control environments.
Strategic Outlook for System Integration
Integrating the NL8060BC31-28D into a system is a strategic decision that prioritizes long-term reliability and operational stability over fleeting feature sets. Its proven technology, robust environmental specifications, and standard interface provide a dependable foundation for critical industrial HMIs. For engineering teams focused on minimizing lifecycle costs and maximizing equipment uptime, this display offers a well-defined and highly reliable solution, ensuring that the visual interface remains a strength, not a vulnerability, of the overall system architecture.
