Full-Screen Primary Color AOI Screening: Stuck Sub-Pixels & Background Uniformity Audit
With the equipment isolated, check the display cable seating and connector locks before reconnecting power for a controlled image test. On the NEC NL6448BC26-26F, separate a missing image from missing illumination before deciding which assembly needs attention. Record whether the screen is completely dark, faintly readable under external light, unevenly illuminated, or showing fixed lines.

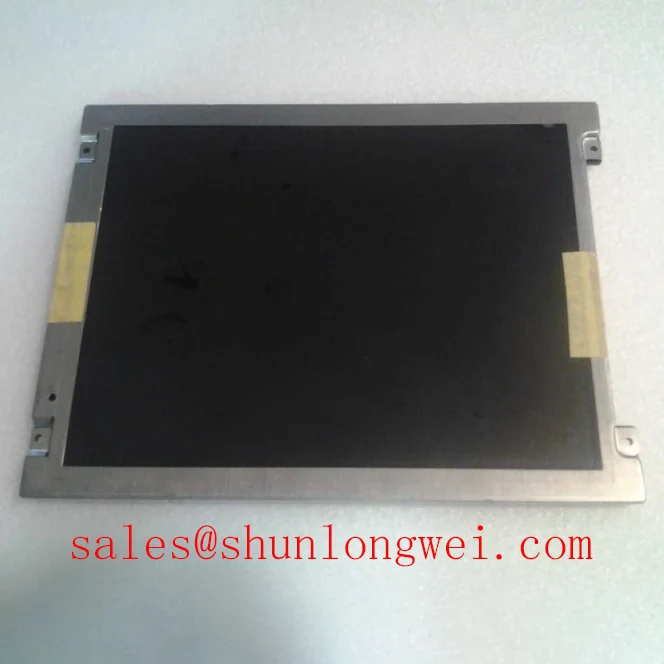

The NL6448BC26-26F is an industrial LCD/HMI panel with a TFT-LCD active matrix color display module construction. For replacement assessment, place the original panel drawing and electrical specification beside the host schematic: supply requirements, connector assignments, timing, mounting dimensions, and backlight connections are the acceptance references. A matching model designation identifies the intended part; it does not establish the condition of the surrounding power and video circuitry.
Display solid red, green, and blue fields sequentially through a known-good image source, keeping the viewing position and room lighting unchanged. As a Design Consideration, this primary-color sequence helps expose persistent bright or dark subpixels without confusing them with application graphics. Photograph repeatable defects at the same exposure, then inspect a neutral field for broad brightness variation.
For a dark screen, direct a flashlight obliquely across the surface while the host sends a recognizable image. A faint visible image supports further investigation of the illumination path, but does not identify the failed component. Check the backlight supply, enable control, connectors, and driver behavior against the equipment schematic. Avoid treating a flashlight observation as proof that the entire video path is healthy.
Fixed lines require a different comparison. Observe whether they remain at the same screen coordinates across every color field and through a normal restart. Persistent lines can involve the panel drive path, cable connections, or source electronics; their appearance alone does not establish an internal bond fracture. Do not press the glass or driver edge to provoke a response.
For brightness deterioration, distinguish observed luminance loss from a service-life prediction. A useful bench record includes brightness setting, warm-up state, ambient conditions, and measurement position. Neither a generic backlight lifetime nor an assumed illumination technology is an acceptance criterion for this panel. Compare measurements with the applicable manufacturer limits and an equivalent known-good assembly.
Preventing Localized Light Guide Plate (LGP) Compression Warp on Dark Screen Fields
Compare dark-field uniformity with the display mechanically supported before and after the enclosure bezel is secured. As a Design Consideration, a patch that changes with enclosure loading warrants inspection of mounting alignment, gasket placement, and bezel contact. It does not, by itself, prove that an internal light guide has warped.
Check that the chassis supports the intended mounting locations without forcing the module into position. Cable bundles, misplaced spacers, or an uneven enclosure lip can introduce localized pressure. Tighten the assembly progressively according to the approved mechanical drawing, using its specified fasteners and torque rather than transferring a generic screw-size recommendation to the NL6448BC26-26F.
Allow the harness enough freedom to avoid pulling on the panel connector when the enclosure closes. Where equipment experiences vibration, evaluate connector retention and cable support as an assembled system. Repeated flexing should occur in the intended service loop, not at the connector exit; a universal cable bend-life figure cannot substitute for the actual harness specification.
For equipment exposed to direct sunlight, assess readability through the complete front window at the intended viewing position. Reflections, window contamination, and enclosure shading affect the result. A marine radar or navigation bridge console is a potential compatibility assessment case, subject to environmental protection and optical testing; it is not evidence of a marine rating. The Industrial Display & HMI Solutions resource provides broader integration context for enclosure and environmental evaluation.
Polarizer Durability & Optical Retardation Film Inspection under Direct Industrial Lighting
Inspect the unpowered surface under diffuse and directional lighting before attributing a washed-out image to the controller. Surface residue, scratches, and damage to an external protective window can alter apparent contrast. As an Engineering Recommendation, clean only with the materials and method approved for the installed optical surface, keeping liquid away from panel edges and connectors.
With a grayscale pattern displayed, move through the operator’s actual viewing positions and observe whether dark shades merge, reverse, or lose distinction. Record the direction of the effect rather than assigning the panel an unverified liquid-crystal mode or symmetrical viewing-angle specification. Also check readability while wearing any eyewear required at the workstation.
Evaluate brightness control while displaying stationary text and dark backgrounds. As a Design Consideration, correlate visible modulation with the driver’s dimming command and measured illumination waveform. Camera banding alone is not a reliable flicker diagnosis, and an assumed PWM frequency is not a panel specification. Audible noise likewise requires investigation of the driver and surrounding power circuitry.
If operation includes cold starts, compare image settling and grayscale transitions at the equipment’s approved temperature boundaries. Separate delayed optical response from delayed supply startup by recording both behavior and electrical timing. Manufacturer context is available through NEC Industrial TFT Display Solutions and NEC; model-specific acceptance limits belong in the panel specification.
VESA vs. JEIDA Data Mapping Alignment & Even/Odd Channel Signal Integrity
Establish the NL6448BC26-26F connector pinout and actual interface before applying any VESA/JEIDA mapping checklist. Those mapping conventions concern applicable LVDS implementations and should not be imposed on an unidentified interface. Trace the host signal path through any adapter board, noting where conversion or channel assignment occurs.
Field Alert: Isolate power and allow the equipment’s specified discharge interval before disconnecting or reseating the display harness.
As an Engineering Recommendation, capture supply startup, control signals, and video activity at accessible test points, then compare their order with the panel’s timing requirements. Select probing methods appropriate to the interface so the measurement does not introduce excessive loading. Investigate split images, incorrect colors, or intermittent lines by comparing the host output with a known-good signal path rather than assuming one symptom identifies one fault.
When assessing NL6448BC33-24 alongside this model, compare mechanical fit, active area, electrical interface, connector orientation, timing, and illumination connections independently. A related part number is not proof of interchangeability. During the final harness check, inspect locking engagement and cable strain relief, then repeat the image test with the enclosure closed to expose routing-dependent interruptions.
