LB104S02-TD01: Engineering a Reliable Visual Interface for Industrial and Medical Systems

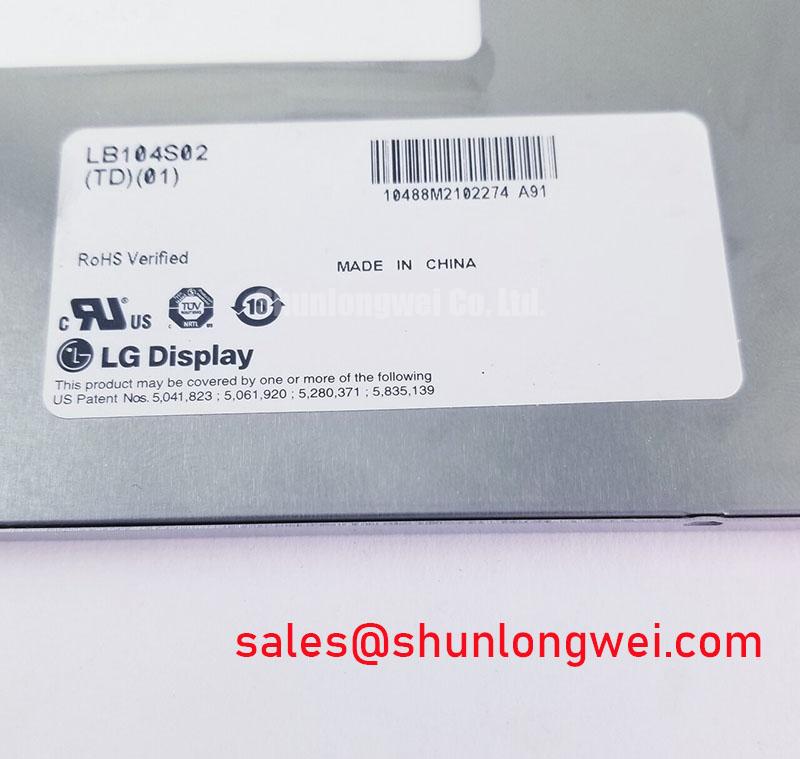

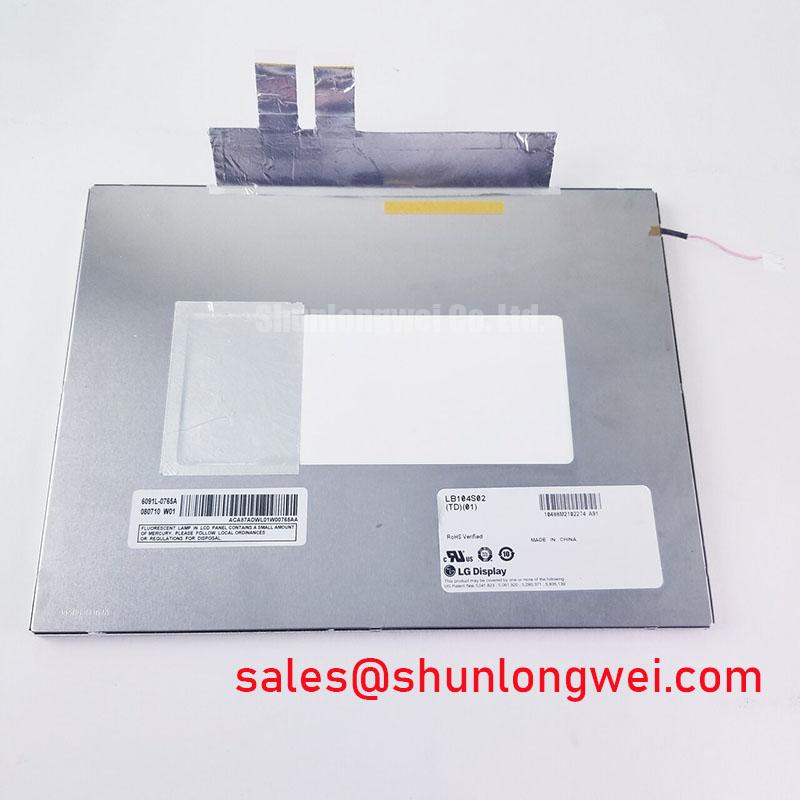

Introduction to the LB104S02-TD01 TFT-LCD
The LB104S02-TD01 is an a-Si TFT-LCD module delivering proven visual performance and reliability for embedded systems where long-term operational stability is a primary design criterion. With its standard 10.4-inch SVGA form factor, it provides a dependable display solution engineered for consistent readability in controlled environments. Its key specifications include: 10.4” Diagonal | 800x600 SVGA Resolution | 250 cd/m² Brightness. This results in two main engineering benefits: simplified system integration and stable visual output. The panel's design directly addresses the need for a durable display in process control and instrumentation applications without requiring specialized high-brightness components. For industrial HMIs and medical monitoring equipment that demand consistent performance over extended life cycles, the LB104S02-TD01 offers a well-balanced and reliable core component.
Key Parameter Overview
Decoding Specifications for System Integration
The technical specifications of the LB104S02-TD01 are tailored for straightforward integration into a wide range of industrial and legacy systems. The parameters prioritize compatibility and reliability, ensuring predictable performance.
| Category | Parameter | Specification |
|---|---|---|
| Display Characteristics | Screen Size | 10.4 inches |
| Resolution | 800(RGB) x 600 [SVGA] | |
| Brightness | 250 cd/m² (Typ.) | |
| Contrast Ratio | 400:1 (Typ.) | |
| Physical & Environmental | Active Area | 211.2(H) x 158.4(V) mm |
| Outline Dimensions | 234.7(H) x 178.6(V) x 6.8(D) mm | |
| Operating Temperature | -10°C to 70°C | |
| Interface & Electrical | Interface Type | Parallel RGB (1 ch, 6-bit) |
| Power Supply Voltage | 3.3V (Typ.) |
Download the LB104S02-TD01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial and Medical HMIs
The LB104S02-TD01 is engineered for applications where clarity, reliability, and a standard interface are paramount. Its SVGA resolution is a perfect match for legacy industrial control systems, CNC machine interfaces, and factory automation terminals that were originally designed for this 4:3 aspect ratio, ensuring seamless software compatibility without scaling artifacts. In a typical process control environment, an operator must be able to quickly read critical data from various angles. The LB104S02-TD01's viewing angle characteristics support this need, providing clear sightlines for operators monitoring production lines. The panel's specified operating temperature range of -10°C to 70°C ensures it can function reliably on a factory floor, where ambient temperatures can fluctuate significantly. This thermal resilience reduces the risk of display failure, contributing directly to higher machine uptime and lower total cost of ownership. For systems requiring higher pixel density or a different form factor, the G104XVN01.0 presents an alternative with XGA resolution in a similar 10.4-inch size.
Frequently Asked Questions (FAQ)
What is the primary benefit of the Parallel RGB interface on the LB104S02-TD01?
The Parallel RGB interface provides a direct, straightforward connection to a wide range of microcontrollers and legacy graphics controllers without the need for specialized LVDS transmitters. This simplifies the hardware design and can reduce BOM costs for certain system architectures, particularly in cost-sensitive industrial HMIs.
How does the 400:1 contrast ratio impact usability in an industrial setting?
A 400:1 contrast ratio ensures a clear distinction between black and white levels, which is critical for the legibility of text, numerical data, and graphical elements like schematics or process flow diagrams. In a controlled indoor lighting environment, such as a control room or laboratory, this level of contrast is sufficient to reduce operator eye strain and improve the accuracy of data interpretation.
Technical Deep Dive: Application Vignette
Integrating the LB104S02-TD01 into a Medical Diagnostic Cart
Consider the design of a portable medical diagnostic cart used for patient-side monitoring. The engineering challenge is to specify a display that is not only electrically compatible but also mechanically robust and provides consistent, readable output for healthcare professionals. The LB104S02-TD01 serves as an ideal solution. Its 6.8mm thickness and 420g typical weight contribute to a lightweight and compact overall system design, enhancing mobility. The display's 3.3V logic voltage aligns with low-power medical-grade single-board computers, simplifying the power delivery network. The most critical aspect is data clarity. In this application, the display will show vital signs and waveforms. The SVGA resolution is perfectly adequate for rendering these graphics without demanding excessive processing power. Interpreting the contrast ratio as a measure of readability, the 400:1 specification provides the necessary clarity for a clinician to distinguish subtle variations in a waveform against its background grid, a crucial factor for accurate diagnosis. The panel's CCFL backlight provides a stable and well-understood illumination source, a key consideration for medical devices requiring long-term certification and predictable performance.
Industry Insights & Strategic Advantage
System Longevity in a Market of Shifting Standards
In the industrial and medical sectors, equipment life cycles often exceed a decade. The LB104S02-TD01, with its use of established technologies like a Parallel RGB interface and CCFL backlighting, offers a strategic advantage in system longevity. While newer interfaces and LED backlights have become common, designing with this panel allows for direct, drop-in replacements and maintenance for a vast installed base of existing systems. This avoids costly and time-consuming redesigns and re-certifications of the entire host system, a major concern in regulated industries like medical devices or avionics. By providing a stable supply of displays that match the specifications of original equipment, system integrators can extend the profitable service life of their products. This aligns with a sustainable, long-term approach to industrial automation, prioritizing total cost of ownership over adopting the very latest display technology for its own sake. For a deeper understanding of modern display technologies, resources like the Wikipedia entry on TFT-LCD provide valuable context.
Engineering Support and Component Sourcing
Our expertise is in providing precise, engineering-focused support to help you evaluate and procure the components that meet your exact system requirements. We offer access to technical documentation and component data to empower your design and purchasing decisions. For detailed inquiries about the LB104S02-TD01 or to discuss your specific application needs, please contact our technical sales team for fact-based assistance.
