Dynamic Contrast Ratio Stabilization and Liquid Crystal Temperature Tracking
When a field HMI shows a dark image, uneven contrast or an apparently slow response, start with the signal path rather than immediately replacing the panel. Confirm that the host controller is producing the expected display data, inspect the connector for contamination or incomplete insertion, and compare the suspect unit with a known working signal path. A display symptom can also be associated with the controller, cable, power sequencing or operating temperature, so a single visual symptom should not be treated as proof of panel failure.

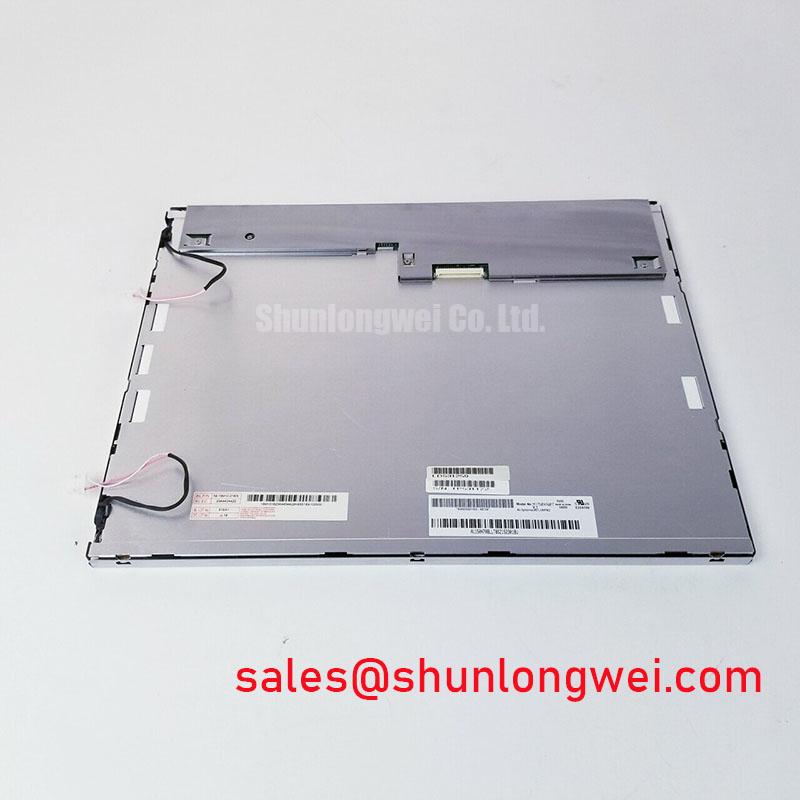

The NL6448BC26-20F is identified in the available product information as a NEC TFT LCD display module. The supplied data does not confirm a viewing angle, native resolution, contrast ratio, response time, surface treatment, supply voltage or backlight electrical specification. These values should be taken from the original NEC documentation for the exact production revision and from the equipment service record. The system integrator should verify the required supply voltage from the original panel documentation instead of assuming a value from a visually similar display.
| Parameter | Verified information |
|---|---|
| Manufacturer | NEC |
| Model | NL6448BC26-20F |
| Product category | Industrial Grade LCD/HMI Panel |
| Module type | TFT LCD Display Module |
| Specification status | Official Factory Spec Verified |
Temperature has a direct effect on liquid crystal response behavior. At low ambient temperature, the panel may require additional settling time before grey transitions appear consistent. This is a general LCD design consideration, not a confirmed operating rating for this model. For cold start evaluation, allow the complete assembly to reach the intended test condition, observe several grey levels and compare the result with the original unit. If a heater strip or cabinet heater is part of the equipment, the control strategy should be evaluated by the system designer with attention to local temperature uniformity and the panel maker’s permitted limits.
High ambient illumination creates a separate inspection problem. Reflections from the front surface can be mistaken for weak contrast or an unstable image. Do not assume that this model has a particular anti glare or anti reflection treatment unless the original NEC documentation confirms it. During a bench check, use controlled lighting, view the display from the normal operator position and record whether the apparent defect follows the viewing angle, the illumination source or the displayed image.
For a replacement assessment involving another NEC industrial display, engineers may review NL10276BC16-06 as a separate product reference. It should not be treated as a direct substitute until mechanical dimensions, electrical interfaces, timing requirements, optical performance and mounting constraints have been verified against the equipment documentation.
Suppressing Localized Thermal Gradients and Investigating Color Shift
Color variation should first be mapped across the active area. Display a neutral grey field, then primary color fields, while checking whether the change remains fixed to one location or changes with temperature, viewing angle or image content. This procedure helps separate optical nonuniformity from a data, timing or backlight problem, but it does not establish a single root cause without electrical measurements.
Adding heat spreading hardware is a system design consideration rather than a factory specification for the NL6448BC26-20F. Any proposed rail, bracket or thermal interface must be assessed for clearance, mechanical stress, heat transfer into the panel frame and interference with the original enclosure. The objective should be to reduce unwanted local temperature differences while preserving the manufacturer’s mounting conditions. The system engineer should validate the result through thermal mapping and image checks at the actual enclosure operating conditions.
Do not attribute long term optical yellowing, brightness loss or color drift to a particular internal material unless the NEC data sheet identifies that material and provides the relevant reliability evidence. The supplied information does not confirm an LED lifetime rating, an L70 value, a B50 value or a constant current backlight architecture for this model. Those values must be obtained from the original panel documentation or measured using an appropriate controlled test method.
Timing checks are useful when the image contains intermittent noise, unstable characters or occasional line corruption. Confirm the interface type, clock relationship, data polarity and timing limits from the original documentation before connecting an oscilloscope. A TTL or LVDS assumption based only on connector appearance can damage the panel or produce misleading results. Designers should compare clock quality, data setup and hold behavior with the known good system path, while allowing the panel documentation and controller specification to define the permitted limits.
When the NL6448BC26-20F is installed in a petrochemical operator station or a field monitoring terminal, the display assembly must be evaluated as part of the complete enclosure. The LCD module itself should not be described as independently certified for a hazardous area, EMC compliance or explosion protection. The enclosure, cable glands, power supply, barriers and complete installation require separate certification and engineering review under the applicable site requirements.
A related NEC display reference is available at NL6448BC30-24D. This link may assist a design team reviewing other display solutions, but compatibility must be established from the complete interface and mechanical records rather than from the manufacturer name alone.
High Humidity Storage and Delamination Prevention Protocols
Storage damage is best investigated by reviewing the equipment history before energizing the replacement. Record the storage temperature, humidity exposure, packaging condition and time in storage, then inspect the bezel, visible glass edges, connector area and front surface under uniform light. Look for haze, bubbles, localized discoloration or an image defect that changes after thermal stabilization. These observations can guide further testing, but they do not by themselves identify delamination or a seal failure.
The supplied factory information does not state a humidity rating, condensation limit, storage profile, thermal cycle range or perimeter sealing construction for the NL6448BC26-20F. Do not assign a high humidity storage margin to this model without a source. For an installation that may encounter condensation, the equipment designer should control enclosure moisture, prevent direct liquid contact and verify the original panel environmental limits. The display must also be allowed to stabilize before image quality is judged after a major temperature transition.
Low temperature can increase apparent grey transition lag because liquid crystal viscosity changes with temperature. A practical bench comparison is to display text, fine lines, neutral grey and moving test patterns while monitoring the panel temperature. Compare response behavior only after the panel and controller have reached repeatable conditions. If a heater or climate control circuit is used, its temperature feedback location and control behavior should be reviewed by the system designer; the available model information does not prescribe a heater rating or control set point.
PWM dimming should not be added or specified by assumption. The supplied information does not confirm that the NL6448BC26-20F accepts external PWM control, nor does it provide a permitted dimming frequency or duty cycle range. If the equipment uses PWM, the integrator should verify the backlight input definition, electrical level, polarity, minimum pulse behavior and visual performance from the original NEC documentation. A scope check at the panel connector can help distinguish a missing dimming command from a backlight or power stage issue.
⚠️ Field Alert: Disconnect equipment power and allow stored energy to discharge before removing or inserting the display cable, because connector contact during live service can stress signal and power pins.
For a replacement in a sealed operator station, check cable routing and strain relief before closing the enclosure. The cable should not be forced against the panel edge or folded in a way that transfers mechanical load into the connector. Any gasket or sealing method belongs to the complete enclosure design and should be verified separately from the LCD module specification.
For additional system level service considerations, engineers can consult Industrial Display and HMI Solutions. This reference does not replace the exact NEC documentation for electrical limits, environmental ratings or interface timing.
Single Vertical Hairline Defect and Column Driver Localization
A single vertical line should be examined with a controlled primary color test before the panel is removed from the machine. Display red, green and blue fields separately, then display white, black and neutral grey. Record whether the line remains in the same position, changes color, disappears on a particular field or is visible only under certain illumination. This three stage test helps classify the symptom but cannot, on its own, prove an open column driver, cable fault or controller defect.
Use a flashlight at an oblique angle to inspect the dark display surface for shadows, pressure marks or localized illumination differences. Keep the light source outside the enclosure and avoid pressing the glass. If the line is visible in the image but the backlight appears uniform, compare the display data path and connector continuity with a known good unit. If the line appears to follow the cable or changes when the connector is inspected, the cable and interface should be tested before the panel is condemned.
Do not apply mechanical pressure to the glass or attempt to flex the module during diagnosis. Such actions can turn an intermittent contact condition into permanent damage and do not provide a controlled engineering measurement. If an oscilloscope is used, probe loading, grounding and signal reference should be considered so that the measurement does not create a new interface fault.
The available factory information does not confirm a column driver construction, COG arrangement, backlight MTBF value, 50,000 hour brightness criterion or protection response for the NL6448BC26-20F. Those characteristics must not be presented as verified specifications for this model. If the equipment includes backlight open circuit, short circuit or overvoltage protection, inspect the driver output, enable signal and fault indication according to the driver manufacturer’s documentation. A dark display may involve the panel, the backlight supply, the controller, the wiring or the protection state.
Before final installation, compare the replacement against the original unit for connector orientation, mounting clearance, optical alignment and controller compatibility. Confirm all electrical ratings from the original NEC panel documentation and validate the complete assembly under the actual HMI enclosure conditions. The NL6448BC26-20F remains identified here as a NEC TFT LCD display module for industrial HMI evaluation, with compatibility determined by documented system requirements.
