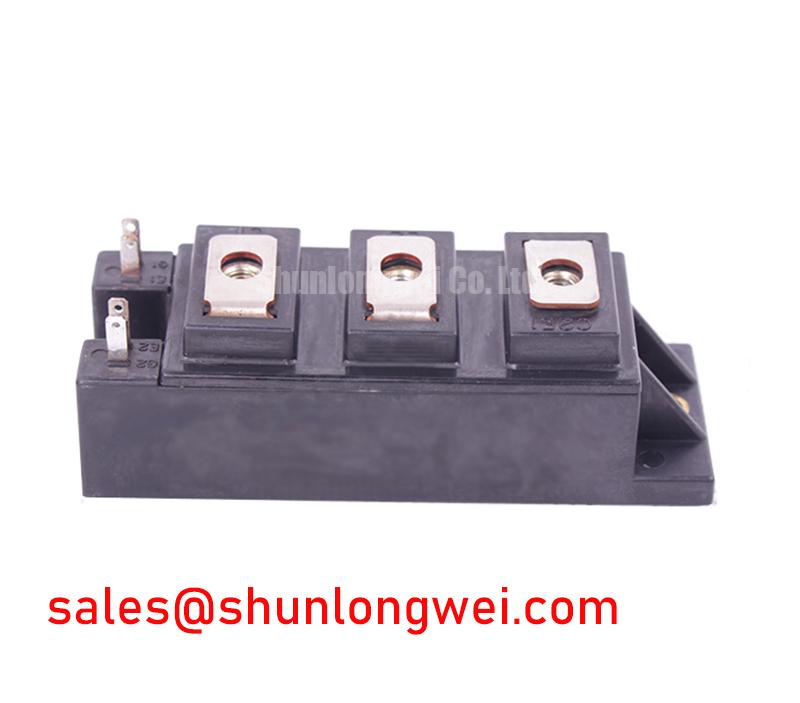

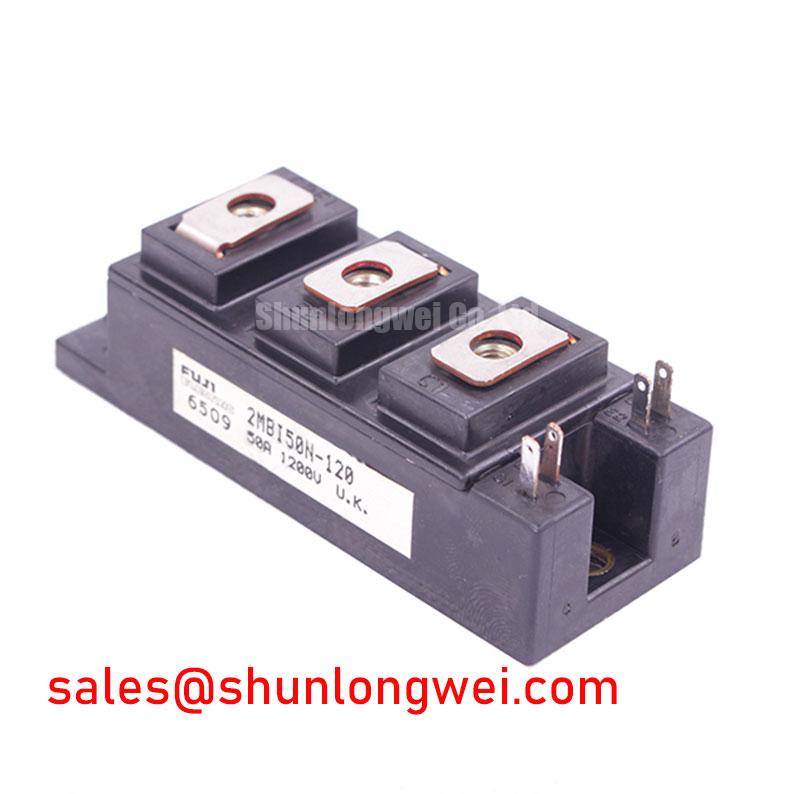

Fuji 2MBI50N-120 IGBT Module

Fuji 2MBI50N-120 IGBT Module | Robust Power Control for Industrial Drives

The Fuji Electric 2MBI50N-120 is a 1200V, 50A dual IGBT module engineered for durability and reliable performance in demanding industrial power conversion systems. Housed in a standard M224 package, this half-bridge module serves as a cornerstone component for designers prioritizing operational stability and long service life over bleeding-edge switching frequencies. It represents a proven, cost-effective solution for a wide range of high-power applications.

Engineering for Reliability: A Closer Look at the 2MBI50N-120's Core

The enduring value of the Fuji 2MBI50N-120 lies not in chasing the lowest possible switching loss figures, but in delivering consistent, resilient performance. This is achieved through a balanced design philosophy focused on real-world industrial challenges.

• Optimized Vce(sat) for Thermal Stability: This module features a low saturation voltage (VCE(sat)) which directly reduces conduction losses and minimizes heat generation. Critically, it exhibits a positive temperature coefficient. This inherent characteristic causes Vce(sat) to increase slightly with temperature, ensuring natural current sharing when modules are paralleled and effectively preventing thermal runaway—a common failure point in high-current systems.
• Robust Short-Circuit Withstand Capability: Industrial environments are prone to unexpected faults. The 2MBI50N-120 is built with a substantial Short-Circuit Withstand Time, typically 10µs. This crucial grace period allows system protection circuits to detect and react to a fault, preventing catastrophic damage to both the module and the end equipment, thereby enhancing overall system safety and uptime.

Where the Fuji 2MBI50N-120 Delivers Tangible Results

This module's design attributes translate directly into performance benefits across several key industrial sectors:

• Variable Frequency Drives (VFDs): In motor control applications for pumps, fans, and conveyors, the primary need is unwavering reliability. The 2MBI50N-120's thermal stability and ruggedness ensure smooth torque delivery and withstand the inductive kickback common in motor loads, reducing maintenance cycles. For more insights, explore how IGBTs are the linchpin of high-efficiency inverters.
• Uninterruptible Power Supplies (UPS): For data centers and critical infrastructure, consistent power is non-negotiable. This module’s ability to handle sudden load changes and its proven track record provide the dependability needed to ensure a clean, stable power output during grid fluctuations or outages.
• Welding Power Supplies: Welding equipment presents a uniquely harsh electrical environment with high current pulses and frequent short-circuits. The robust SOA (Safe Operating Area) of the 2MBI50N-120 allows it to absorb this punishment, leading to a stable welding arc and a longer-lasting power source.

Key Technical Specifications

For a complete list of parameters, please refer to the 2MBI50N-120 Datasheet.

Is the 2MBI50N-120 the Right Choice for Your Design?

When selecting a power module, it's vital to match the technology to the application's core requirements. Compared to modern alternatives like the Fuji Electric X-Series or EconoDUAL™ series, the Fuji 2MBI50N-120 may have higher switching losses. This makes it less ideal for very high-frequency power converters (above 20kHz) where efficiency is the absolute priority. However, for mainstream industrial applications operating at moderate frequencies (e.g., 2-15kHz), its proven robustness, simplicity of implementation, and excellent cost-performance ratio make it an outstanding choice. It is the definitive "workhorse" solution for systems where long-term reliability is paramount.

Frequently Asked Questions

• What is the recommended gate drive voltage for this module?A typical gate drive configuration is +15V for turn-on and -10V to -15V for turn-off. Using a negative gate voltage is crucial to ensure a fast and secure turn-off, preventing parasitic turn-on under high dv/dt conditions.
• Can I parallel these modules for higher current?Yes, the 2MBI50N-120 is suitable for paralleling due to its positive Vce(sat) temperature coefficient. For reliable operation, designers must ensure symmetrical PCB layout, separate gate drive resistors for each module, and effective thermal management to maintain balanced current sharing.

For applications that demand a battle-tested, reliable, and economical power switching solution, the Fuji 2MBI50N-120 remains an exceptional engineering choice. To explore our full range of power solutions, visit our IGBT module catalog or contact our technical support team to discuss your project's specific needs.
