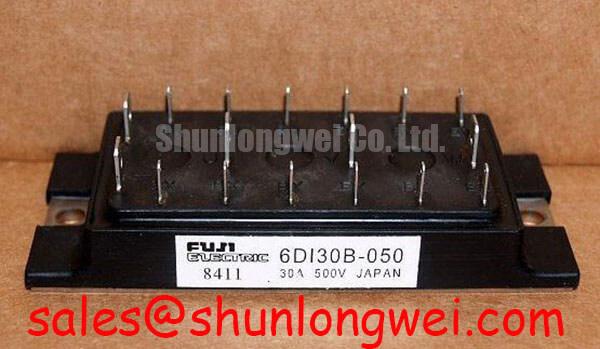

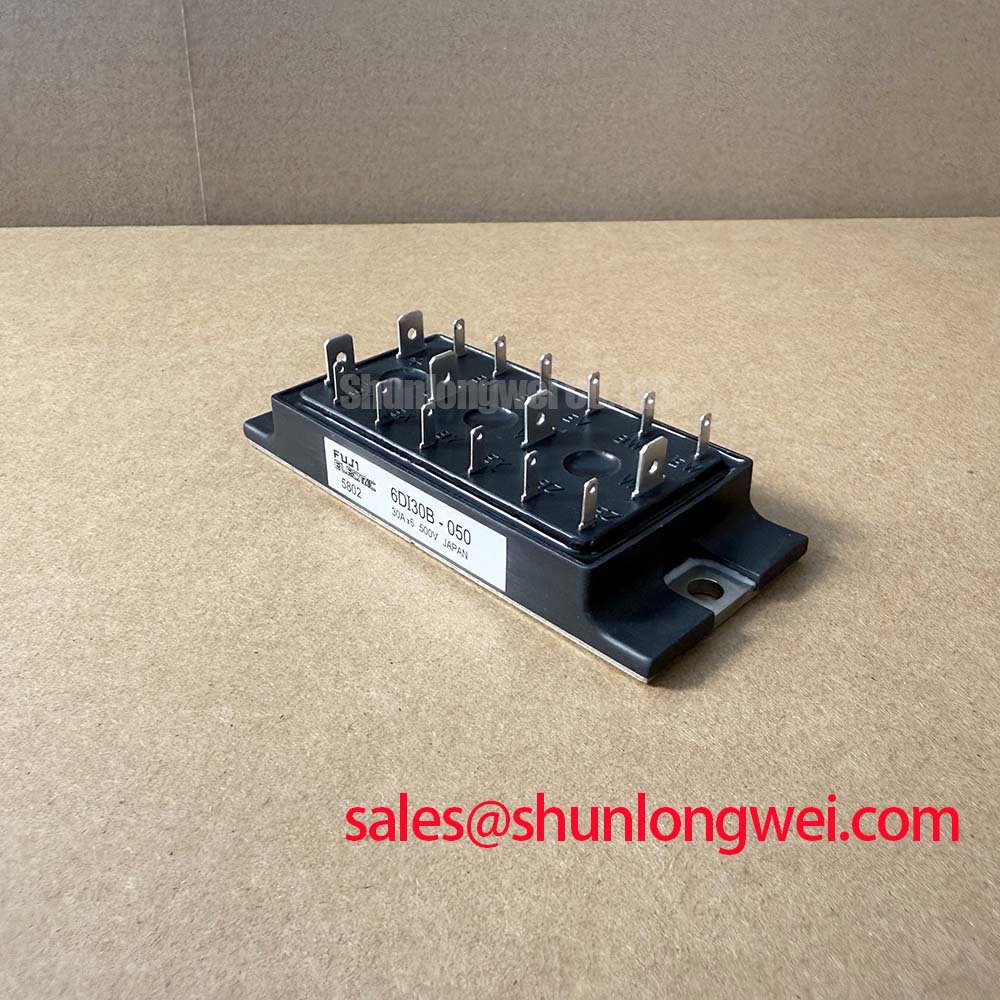

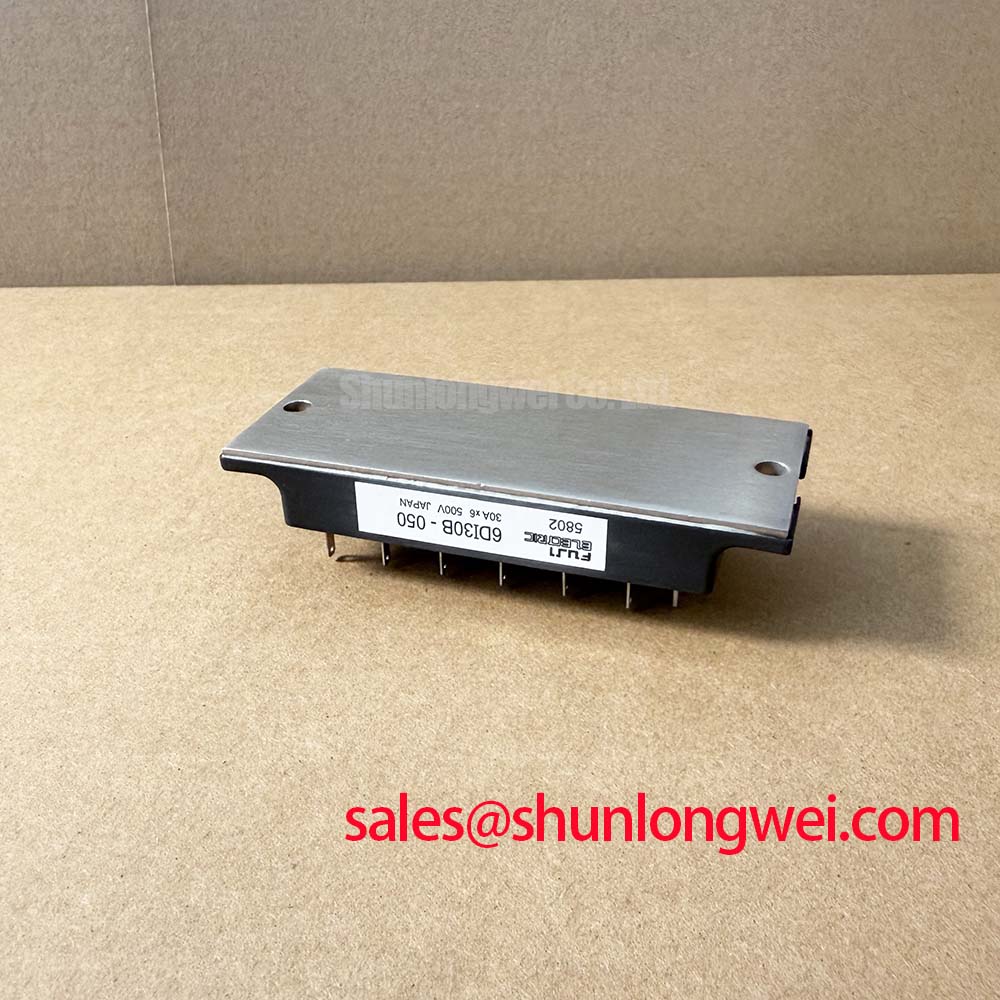

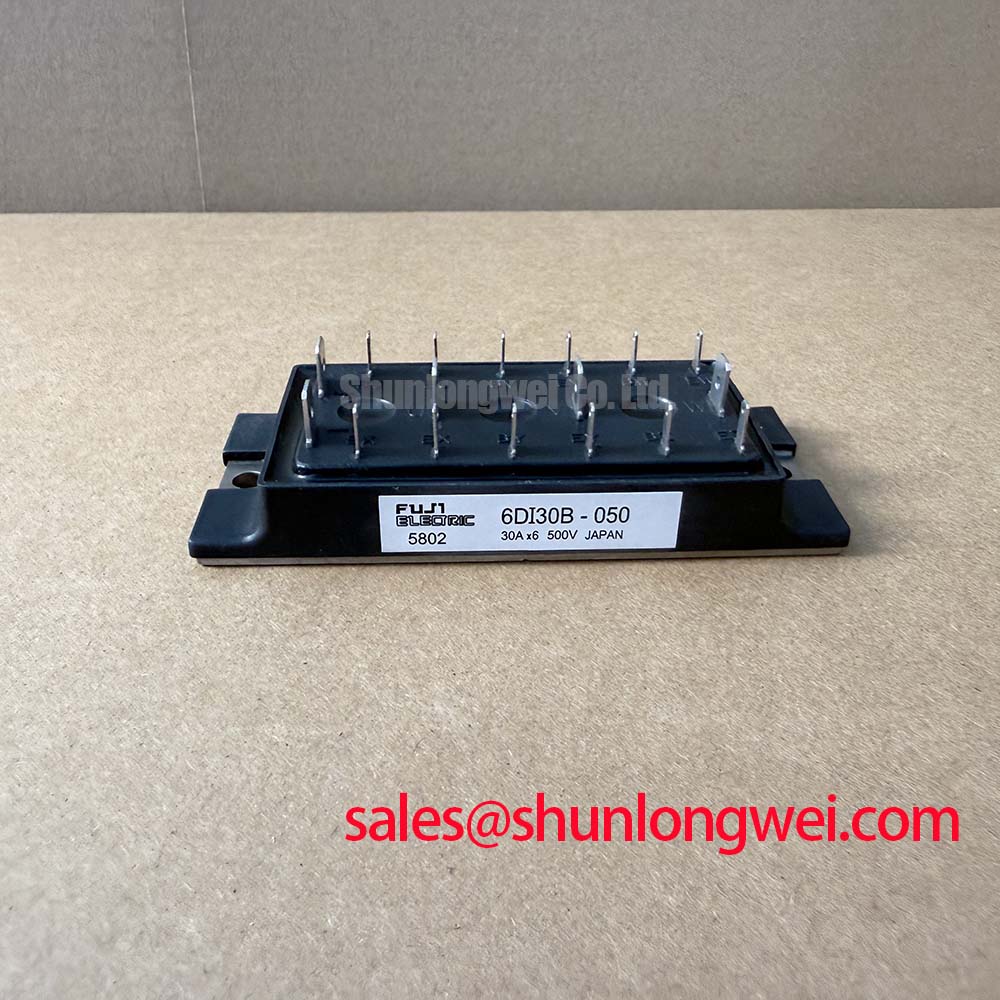

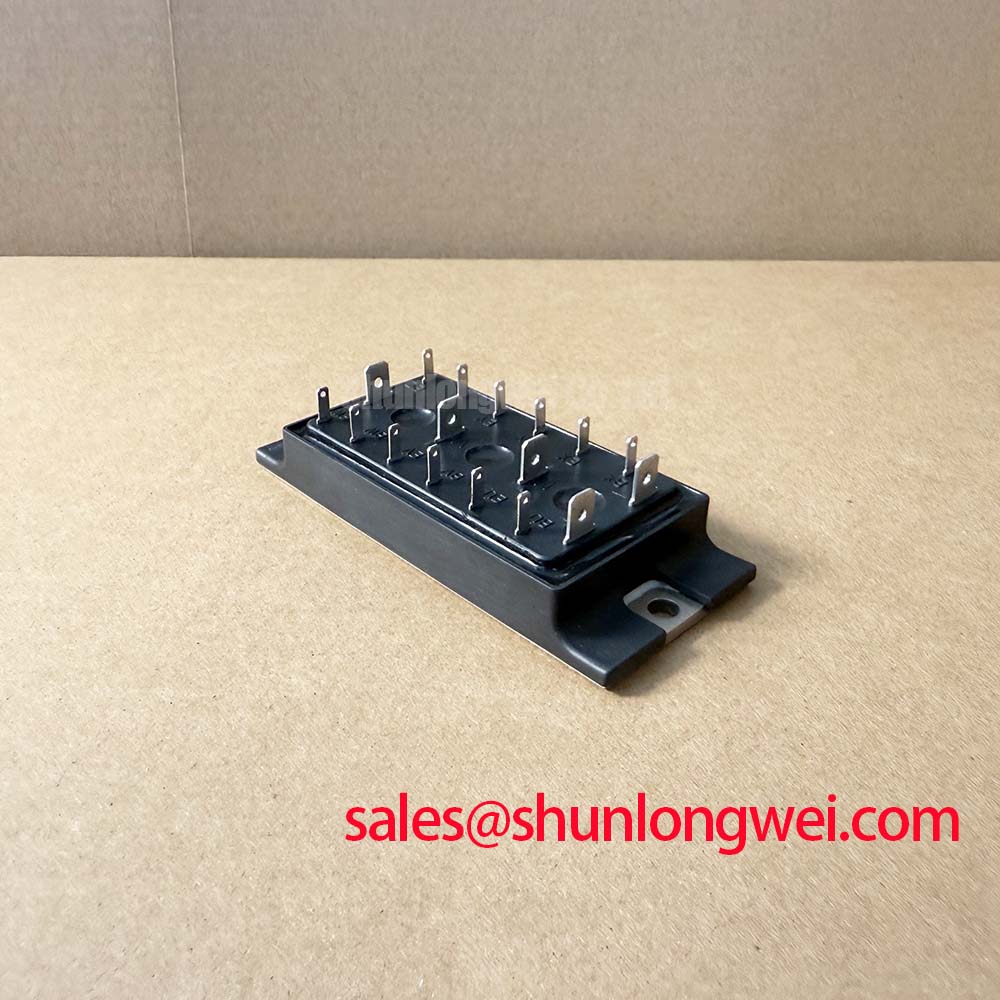

Fuji Electric 6DI30B-050 | Reliable Power Control for Low-Voltage Drives
The **Fuji Electric 6DI30B-050** stands as a testament to robust and dependable power electronics design. While the industry trends towards higher frequencies and complex topologies, this 6-pack Darlington Power Transistor Module remains an indispensable component for maintaining and repairing a vast installed base of industrial machinery. It is engineered not for cutting-edge speed, but for unparalleled reliability and compatibility in low-voltage, medium-current applications such as DC motor drives, servo controllers, and material handling equipment.
Technical Deep Dive: The Foundation of Durability
Understanding the **6DI30B-050** requires appreciating its core design principles, which prioritize stability and longevity over raw switching performance.
- Integrated 6-Pack Darlington Configuration: The module houses six independent Darlington transistor pairs, each pair consisting of two bipolar junction transistors (BJTs) cascaded to achieve very high current gain (hFE). This integration is crucial for building compact and efficient 3-phase inverters. For engineers, this means simplified circuit design, reduced external component count, and critically, well-matched thermal and electrical characteristics across all phases, ensuring balanced torque delivery and smooth motor operation.
- Proven Robustness for Industrial Environments: The design of the **Fuji 6DI30B-050** predates the hyper-sensitive gate structures of modern IGBTs. This translates into a higher tolerance for the electrical noise and transient voltage spikes common in factory settings. This inherent ruggedness minimizes the risk of nuisance tripping or catastrophic failure, making it a "fit-and-forget" solution for extending the service life of critical industrial automation systems.
Key Technical Specifications
The performance parameters of the **6DI30B-050** are tailored for specific, demanding industrial tasks. Below is a summary of its essential ratings.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCEO) | 50V |
| Collector Current (IC) | 30A |
| Collector Power Dissipation (PC) | 100W per Transistor |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.0V (Max) |
Multi-Dimensional Application Value
The true value of the **Fuji Electric 6DI30B-050** is demonstrated in its ability to solve specific problems across various sectors, ensuring operational continuity and avoiding costly upgrades.
- Legacy Motor Drive Repair: For older CNC machines, conveyors, and automated systems, this module is often the original specified component. Using it as a direct replacement avoids the complex and risky process of re-engineering the gate drive circuitry, which would be necessary when retrofitting a modern IGBT. This ensures a quick, reliable repair that restores the machine to its original performance specifications.
- Low-Voltage Servo Systems: In servo applications running on 24V or 48V DC buses, the 50V rating provides a secure safety margin. The module's predictable and stable switching behavior is essential for maintaining the precise positioning and velocity control that servo systems demand.
- Battery-Powered Equipment: Its efficiency at lower DC voltages makes the **6DI30B-050** an ideal choice for the traction motor inverters in electric forklifts, AGVs, and other material handling vehicles. Its robust construction withstands the mechanical vibrations and electrical demands of these mobile applications.
Selection Insight: Why the 6DI30B-050 is Often a Better Choice than a Modern IGBT
A common question is whether to "upgrade" a faulty Darlington module with a modern IGBT. While IGBTs offer lower conduction losses (Vce(sat)) and faster switching speeds, this is not always an advantage. For systems originally designed around the **6DI30B-050**, the gate drive circuits, snubber networks, and control loop timings are all optimized for its specific characteristics. Introducing a faster-switching IGBT can lead to significant problems, including:
- Increased EMI/EMC: Faster voltage and current transitions (dv/dt, di/dt) can generate high-frequency noise that interferes with sensitive control electronics.
- Control Instability: The system's control loop may not be able to respond correctly to the IGBT's speed, leading to oscillations or erratic behavior.
- Gate Drive Mismatch: IGBTs require different gate voltage levels and drive currents than Darlington transistors, necessitating a redesign of the driver stage.
Therefore, for repair and maintenance, sticking with the **Fuji Electric 6DI30B-050** is the most reliable and cost-effective path to restoring system integrity.
If your application demands a different power rating or package type, you can explore more IGBT modules in our comprehensive portfolio. For specific technical questions or to confirm availability of the 6DI30B-050, please contact us for a quote and expert consultation.
