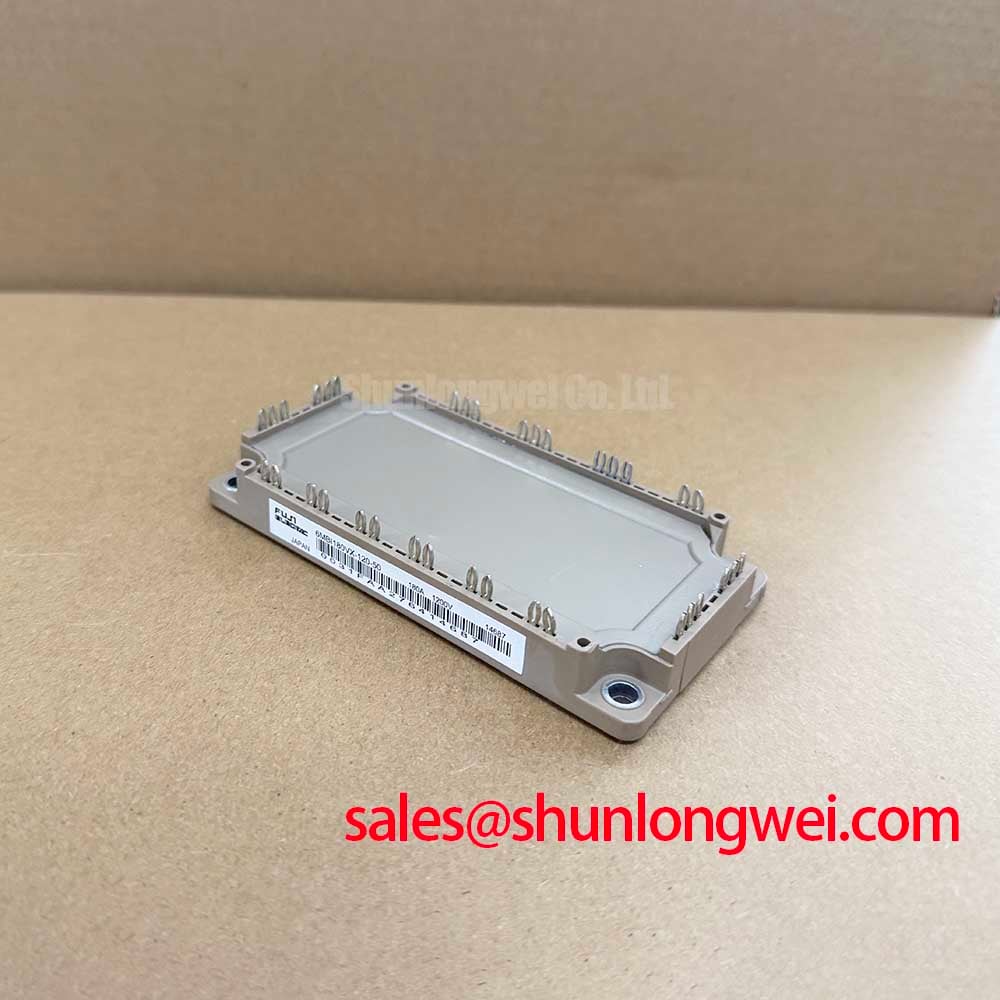

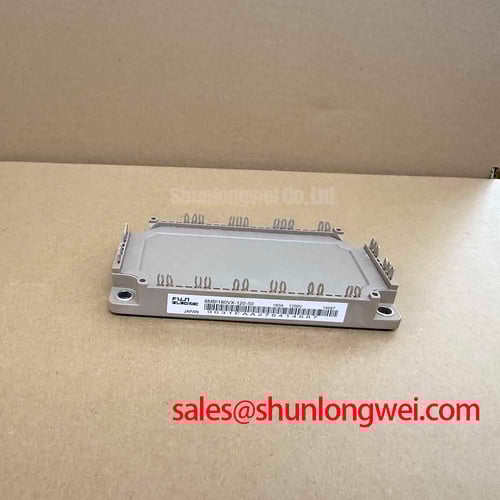

FUJI 6MBI180VX-120-55 IGBT Module

Fuji Electric 6MBI180VX-120-55 | Engineered for High-Density Power Conversion

The Fuji Electric 6MBI180VX-120-55 is a 1200V, 180A six-pack IGBT module meticulously designed for high-performance power conversion systems. As a key component of Fuji's V-Series, this module leverages 6th-generation trench gate and field-stop (FS) technologies to deliver an optimal balance of low conduction loss, reduced switching losses, and robust operational reliability. It is engineered for system designers seeking to enhance efficiency, increase power density, and simplify thermal management in demanding industrial applications.

• Superior Efficiency: Incorporates advanced V-Series IGBT chip technology, which significantly lowers the collector-emitter saturation voltage (Vce(sat)) and switching energy, directly reducing overall system power loss.
• High Power Density: The integrated six-pack configuration, housing a complete three-phase inverter in a single compact package, enables a smaller system footprint without compromising on power output.
• Enhanced Thermal Performance: Designed for an operating junction temperature (Tjop) up to 150°C, providing a wide thermal margin for reliability in harsh industrial environments.
• Application Versatility: Optimized for a range of applications including high-performance Variable Frequency Drives (VFDs), precision servo drives, and uninterruptible power supplies (UPS).

Key Technical Specifications

The technical parameters of the 6MBI180VX-120-55 underscore its suitability for robust and efficient power switching. For a comprehensive overview, please Download the Datasheet.

Technical Deep Dive: The V-Series Advantage

At the core of the Fuji Electric 6MBI180VX-120-55 is the 6th-generation V-Series IGBT technology. This design represents a significant leap forward from previous generations. By employing a refined trench gate structure, the chip achieves a higher cell density. This engineering feat directly translates to a lower on-state voltage drop, or VCE(sat), which is a primary source of conduction losses in an inverter. Furthermore, the integration of a Field-Stop (FS) layer allows for a thinner wafer, which not only reduces Vce(sat) but also curtails the "tail current" during turn-off, minimizing switching losses. For a design engineer, this combination means less heat to dissipate, enabling more compact heatsink designs and improved overall system efficiency—a critical factor in today's energy-conscious market.

Application Focus: Where Performance Matters

The unique characteristics of the 6MBI180VX-120-55 make it an exemplary choice for several key power electronic applications:

• Motor Drives: In industrial motor control, its fast and soft-switching behavior reduces electromagnetic interference (EMI) while the low conduction losses improve efficiency, especially under variable load conditions. The module's robustness is essential for surviving the demanding operational cycles of modern manufacturing.
• Uninterruptible Power Supplies (UPS): Reliability is paramount in UPS systems. The module's high power cycle capability and stable thermal performance ensure that critical loads remain protected during power disturbances. Its high efficiency also contributes to a lower total cost of ownership through reduced energy consumption.
• Solar Inverters: For renewable energy systems, maximizing energy harvest is crucial. The low Vce(sat) and minimal switching losses of the 6MBI180VX-120-55 ensure that more DC power from the solar panels is successfully converted to usable AC power, improving the overall yield of the power electronics system.

Selection Guidance: 6-Pack vs. PIM

When selecting from our portfolio of IGBT modules, engineers often weigh the benefits of a 6-pack module like the 6MBI180VX-120-55 against a Power Integrated Module (PIM). A PIM, such as the 7MBR100VX120-50, integrates the inverter, brake, and sometimes a converter stage. The 6MBI180VX-120-55 offers greater design flexibility. Its dedicated three-phase inverter configuration is ideal for applications where a separate, potentially larger, brake chopper or a customized front-end rectifier is required. This modularity allows for optimized component selection across the entire power stage. In contrast, a PIM excels in applications where space is the absolute priority and the integrated brake and rectifier ratings are a perfect match for the application's needs.

Frequently Asked Questions (FAQ)

1. How does the integrated NTC thermistor improve system reliability?
The built-in NTC thermistor provides real-time temperature feedback from the module's baseplate. This allows the gate drive controller to implement over-temperature protection, derating the output power or initiating a safe shutdown if the module exceeds its thermal limits. This preventative measure is critical for avoiding catastrophic failure and is a key aspect of designing for high reliability. You can learn more by reading about unlocking IGBT thermal performance.

2. What are the key considerations for the gate drive design for this module?
A robust gate drive design is crucial. Key considerations include providing a stable VGE of +15V for full enhancement and a negative voltage (e.g., -15V) at turn-off to prevent parasitic turn-on induced by the Miller effect. The gate resistor (RG) value must be carefully chosen to balance switching speed and voltage overshoot/EMI. Fuji's application notes provide detailed guidance on optimizing the trade-offs between switching losses and device stress.

3. Is this module suitable for paralleling to achieve higher current output?
Yes, but with careful design. The V-Series exhibits a positive temperature coefficient for Vce(sat), which aids in thermal balancing between parallel-connected modules. However, achieving reliable current sharing requires meticulous attention to symmetrical busbar layout to minimize stray inductance differences and ensuring matched gate drive signals for all paralleled modules. For mission-critical high-power designs, please contact our technical team for application support.
