85HR120 International Rectifier 1200V 85A Fast Recovery Diode

Content last revised on March 21, 2026

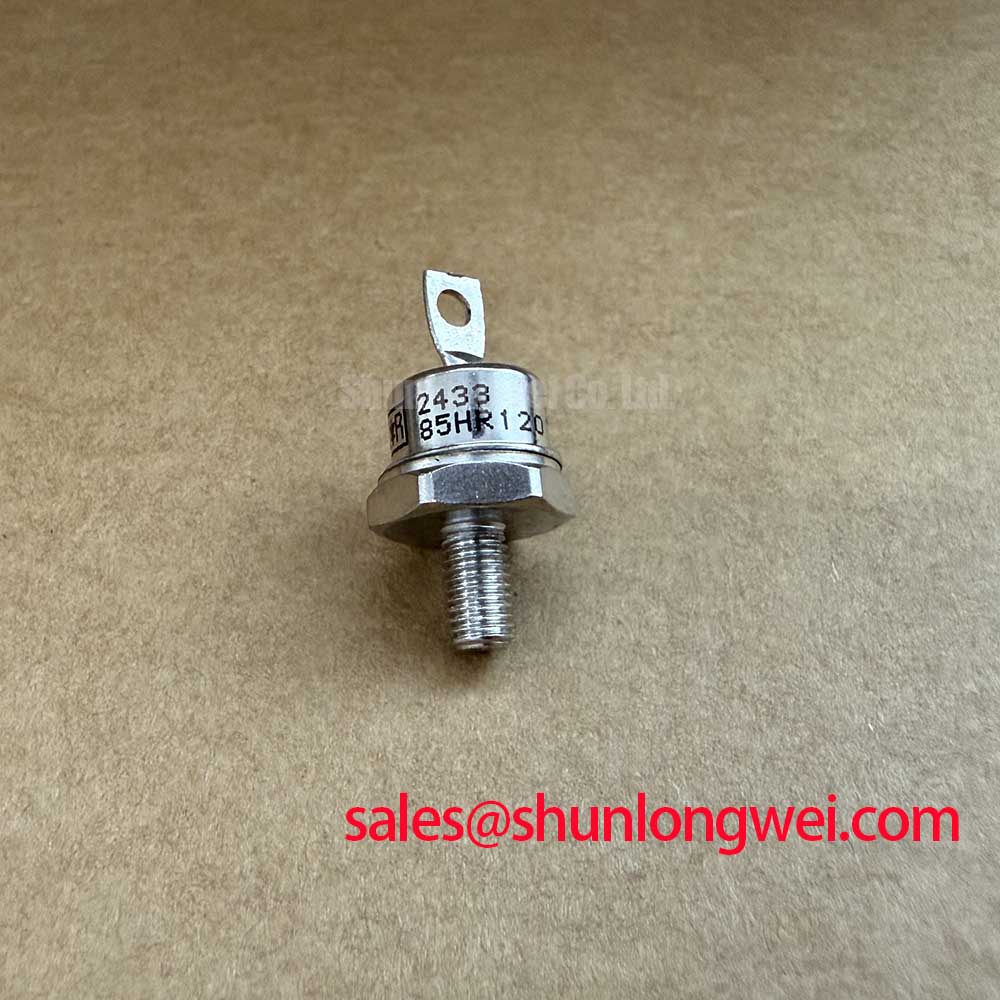

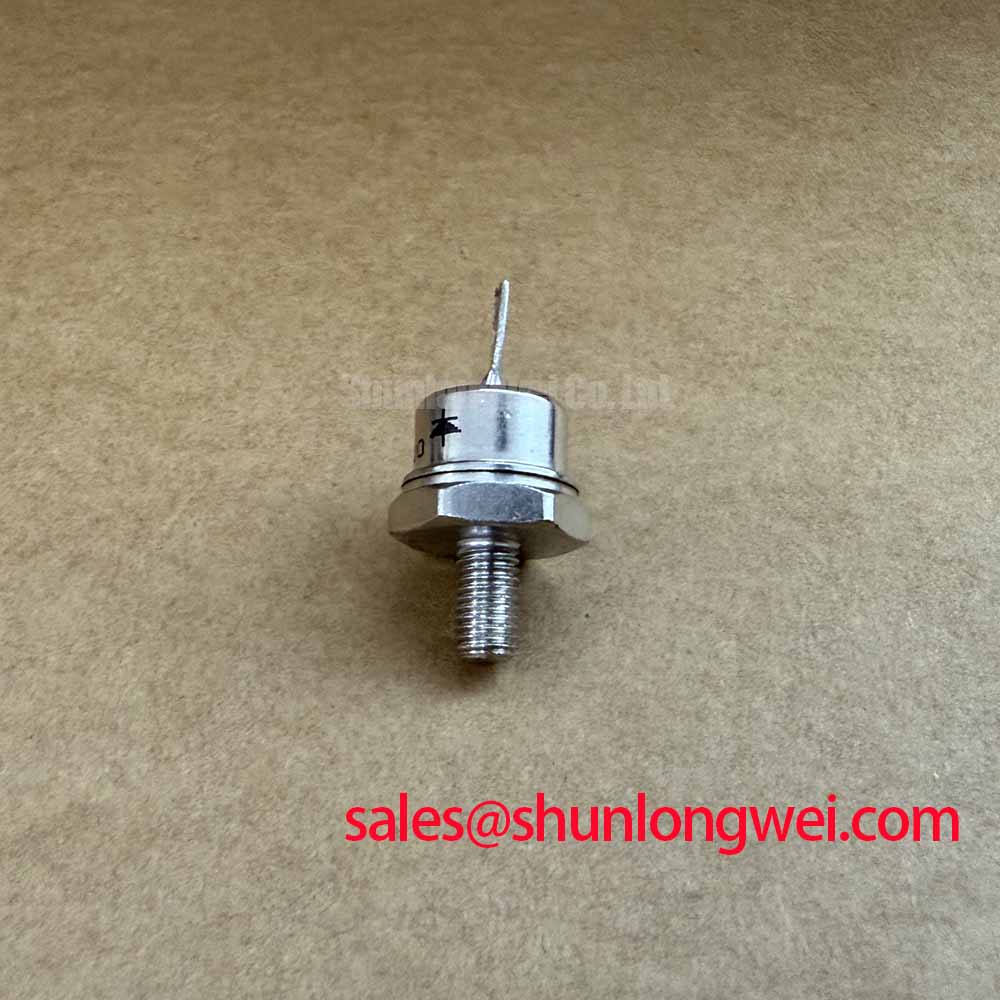

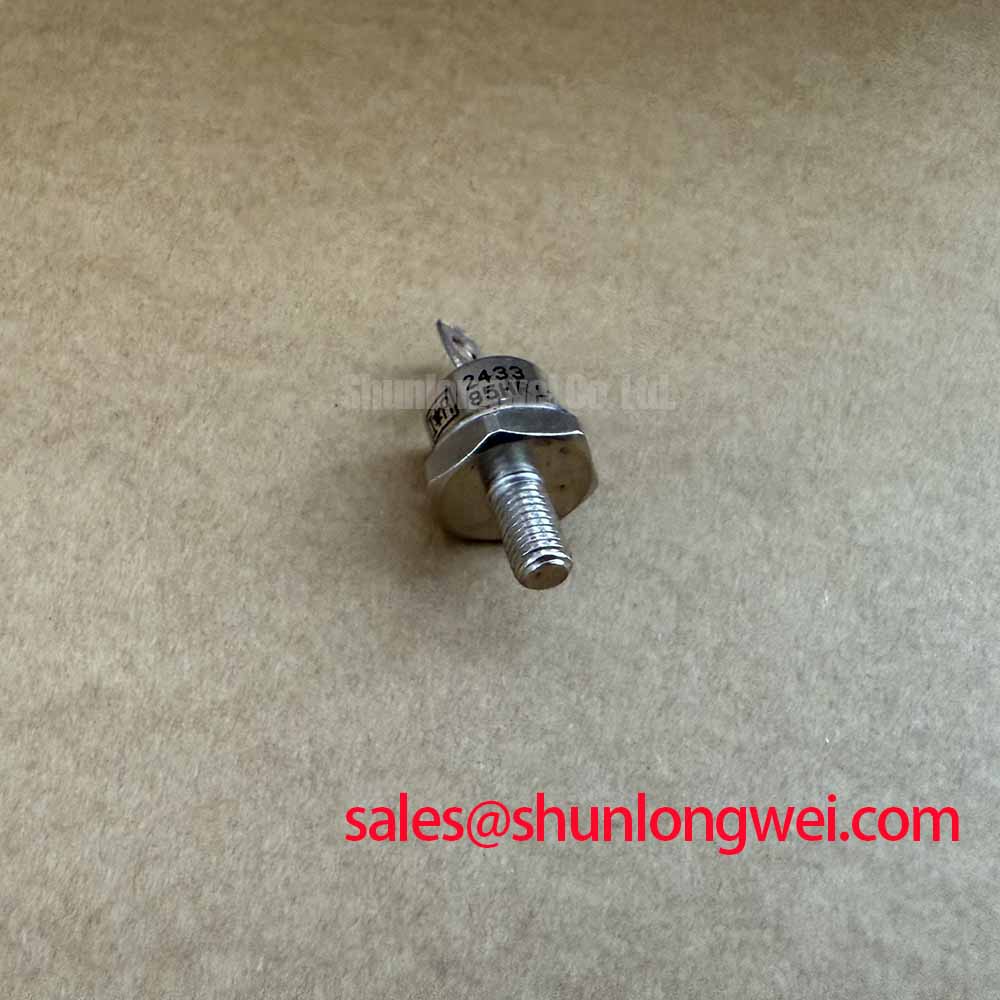

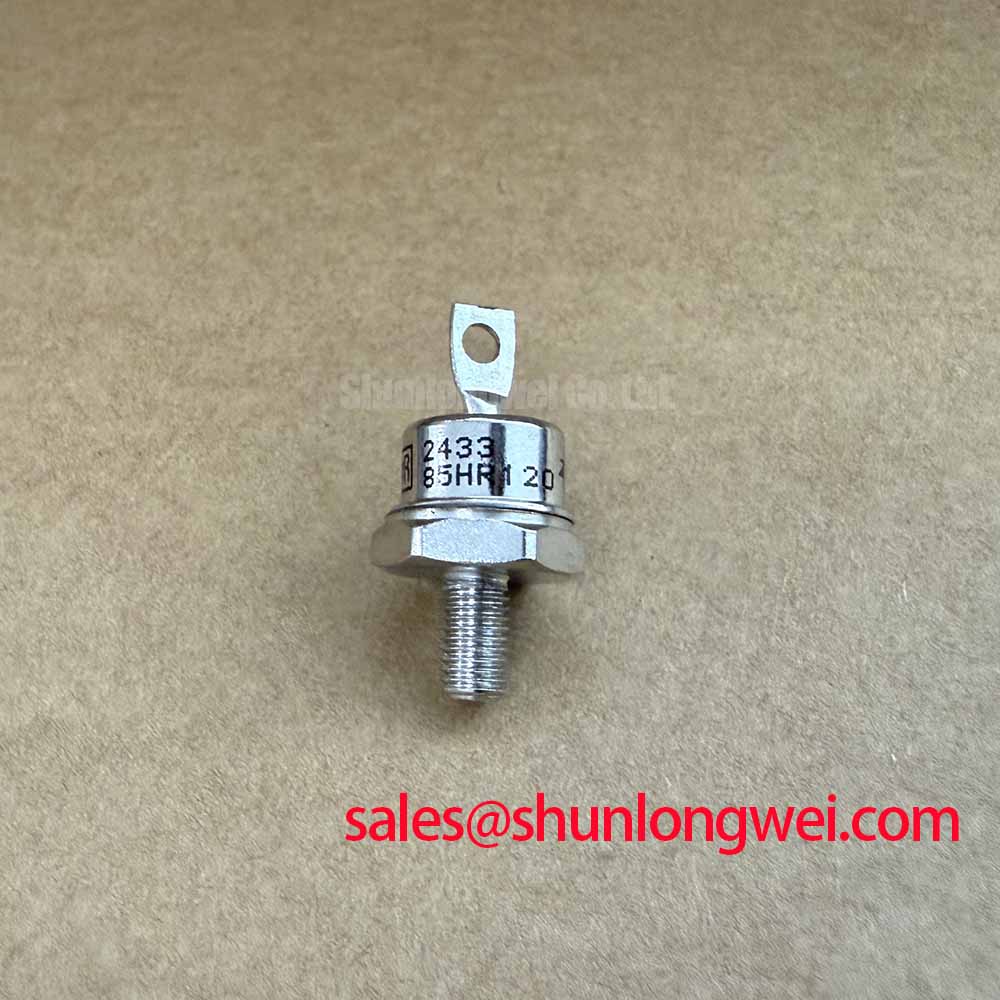

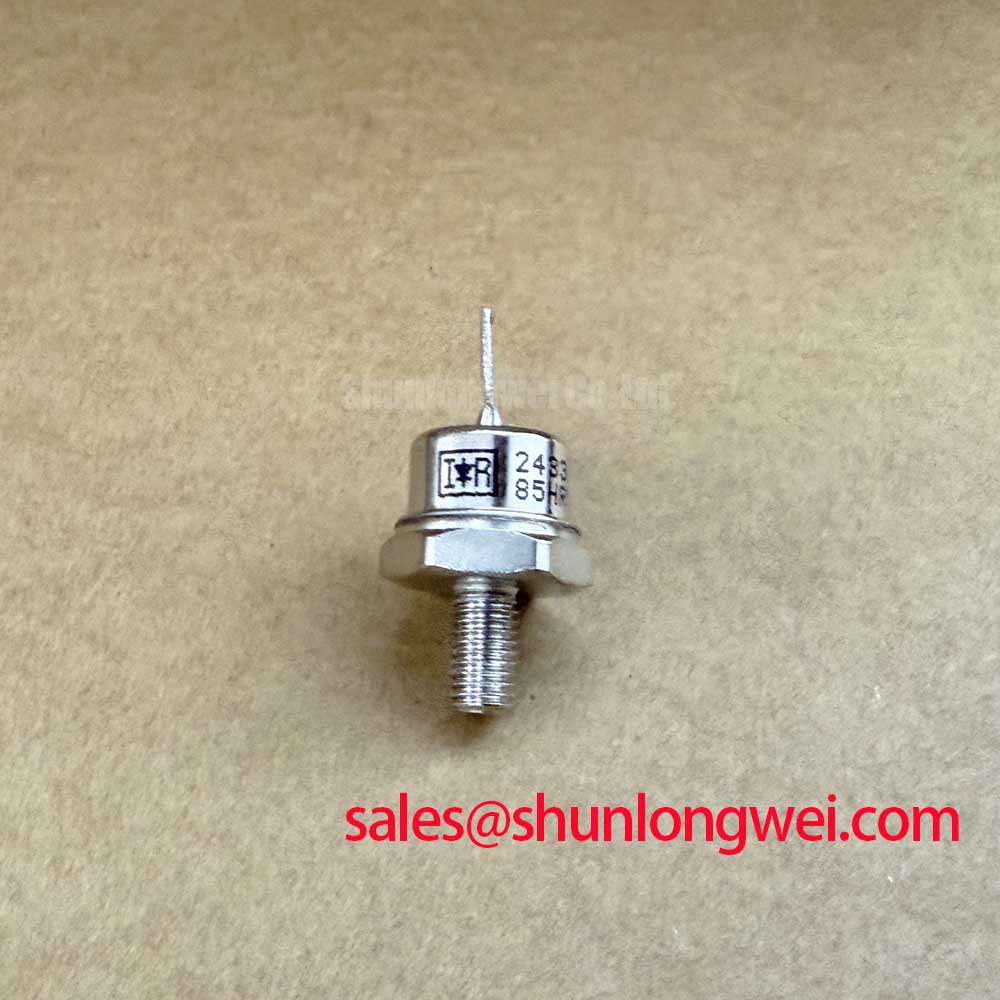

85HR120 High-Speed Fast Recovery Rectifier Diode

The 85HR120, a specialized member of the high-performance fast recovery diode family, is engineered to bridge the gap between high-power handling and rapid switching response. Designed primarily for industrial power conversion, this device leverages a robust stud-mount architecture to ensure maximum thermal reliability under heavy mechanical stress. By providing a 1200V blocking capability and an 85A average forward current, it serves as a critical component in circuits where commutation losses and reverse recovery characteristics directly impact system efficiency. For high-frequency induction heating systems requiring 1200V blocking voltage and low switching stress, the 85HR120 is the superior choice.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

Engineers often face the challenge of managing EMI and thermal runaway in high-power converters, particularly when dealing with inductive loads that generate significant voltage spikes. The 85HR120 addresses these challenges by offering an optimized reverse recovery time, which significantly reduces the "snapping" effect during switching. In a typical Welding Power Supply or high-power UPS, the 85HR120 serves as an output rectifier or a freewheeling diode. Its 85A rating is specifically suited for handling the high-intensity arc-striking surges common in industrial welding environments, where current spikes can easily degrade standard recovery diodes. The mechanical Stud Mount DO-203AB (DO-5) package provides a distinct advantage here: while plastic-encapsulated modules might suffer from lead fatigue in high-vibration machinery, the 85HR120 utilizes high-torque mechanical fastening to maintain consistent thermal contact with the heatsink, ensuring that the Thermal Resistance remains within safe margins even during 24/7 operations.

For systems that require integrated switching and rectification at higher power densities, engineers might compare this discrete solution with integrated IGBT modules. While the 85HR120 excels as a standalone rectifier, for 400V inverter systems requiring integrated freewheeling, the 1MBI300SA-120B offers a Vces of 1200V in a modular format. Choosing between these depends on whether the design favors the serviceability of stud-mount components or the compact integration of a module.

Technical Deep Dive

A Closer Look at the Optimized Recovery for Long-Term Reliability

The internal physics of the 85HR120 are optimized through controlled gold-diffusion or platinum-doping, which reduces the carrier lifetime in the silicon lattice. This is essential for achieving a Fast Recovery characteristic. To understand the significance of the Reverse Recovery Time (trr), think of it like a heavy gate that needs to close instantly. In a standard diode, the gate slams shut slowly, allowing current to leak backward (recovery loss). The 85HR120 acts like a gate equipped with a high-tension spring; it closes with precision and speed, preventing the energy-sapping backflow that creates heat and EMI. This efficiency is critical in high-frequency PFC stages and Inverters where switching happens thousands of times per second.

Furthermore, the DO-203AB package is more than just a housing; it is a critical thermal management tool. The stud mount acts as a direct conduit for heat, transferring energy from the junction to the ambient heatsink with minimal bottlenecking. For a deeper understanding of how these devices compare to other switching technologies, engineers may refer to our guide on IGBT vs MOSFET vs BJT to determine the optimal component for their specific power stage architecture. Technical documentation from manufacturers like Infineon further details the reliability of these stud-mount designs in high-current density applications.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

Frequently Asked Questions

How does the IFSM (Surge Current) rating of 1100A benefit my circuit design?
The 1100A peak surge rating allows the 85HR120 to survive temporary overload conditions, such as the inrush current during the startup of a large motor or a short-circuit fault before protection fuses blow. This provides a safety margin that prevents catastrophic diode failure during transient events.

Does the stud mount package require specific insulation during installation?
Yes, because the stud is electrically connected to the cathode (or anode depending on the version), it must be mounted with an insulating washer (like mica or sil-pad) if the heatsink is shared with other components or is grounded, unless the design intends for the heatsink to be live.

Why is the 1200V VRRM rating significant for 480V AC line applications?
In a 480V AC system, the peak voltage is approximately 678V. A 1200V VRRM provides nearly a 2x safety factor, protecting the diode against line transients and voltage spikes generated by inductive switching without requiring excessive external snubber circuits.

What is the primary benefit of its stud-mount design in high-vibration environments?
Enhanced long-term reliability by eliminating solder fatigue. Unlike PCB-mounted diodes where vibrations can crack solder joints, the mechanical nut-and-bolt fastening of the DO-203AB ensures the electrical and thermal path remains secure under mechanical stress.

Integrating high-voltage rectification requires a strategic balance between switching speed and thermal stability. The 85HR120 provides a proven, rugged solution for these industrial demands. As global power systems move toward higher efficiency and greater power density, the reliability of foundational components like fast recovery diodes remains a critical factor in minimizing the Total Cost of Ownership (TCO) for large-scale industrial assets.
