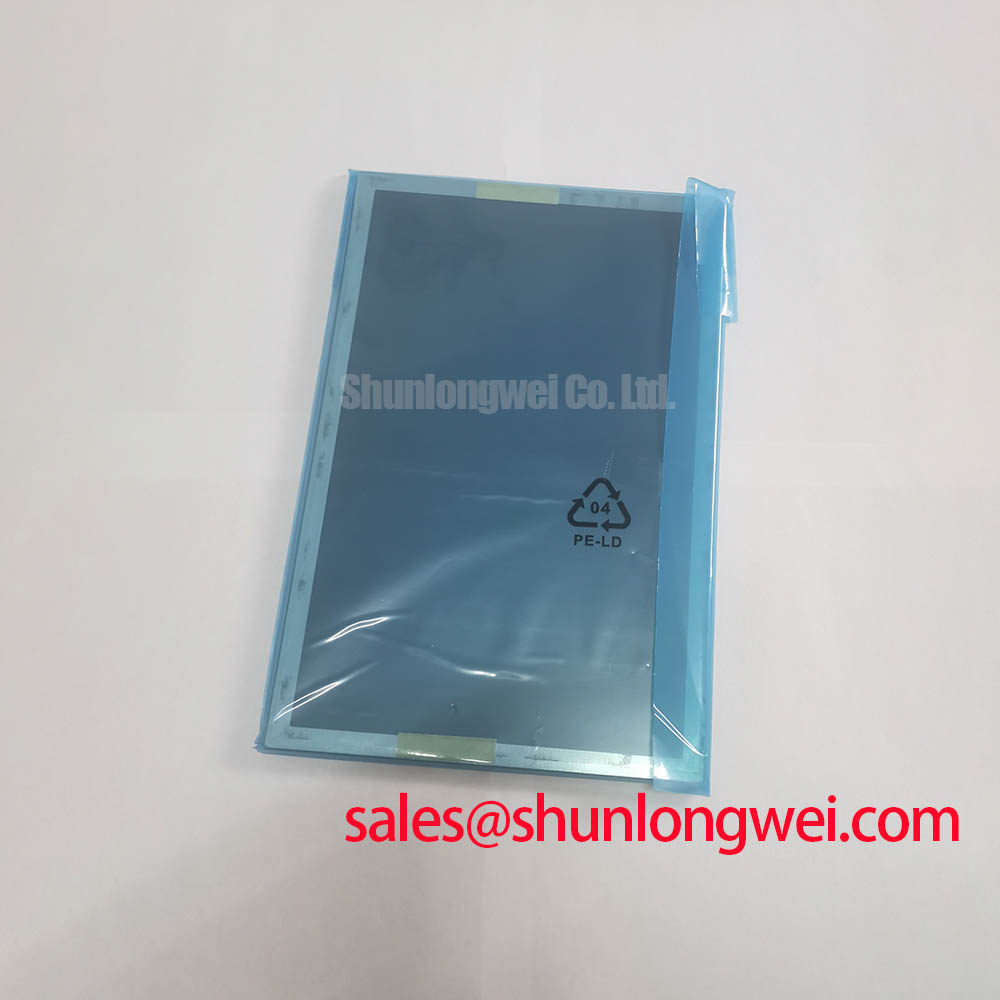

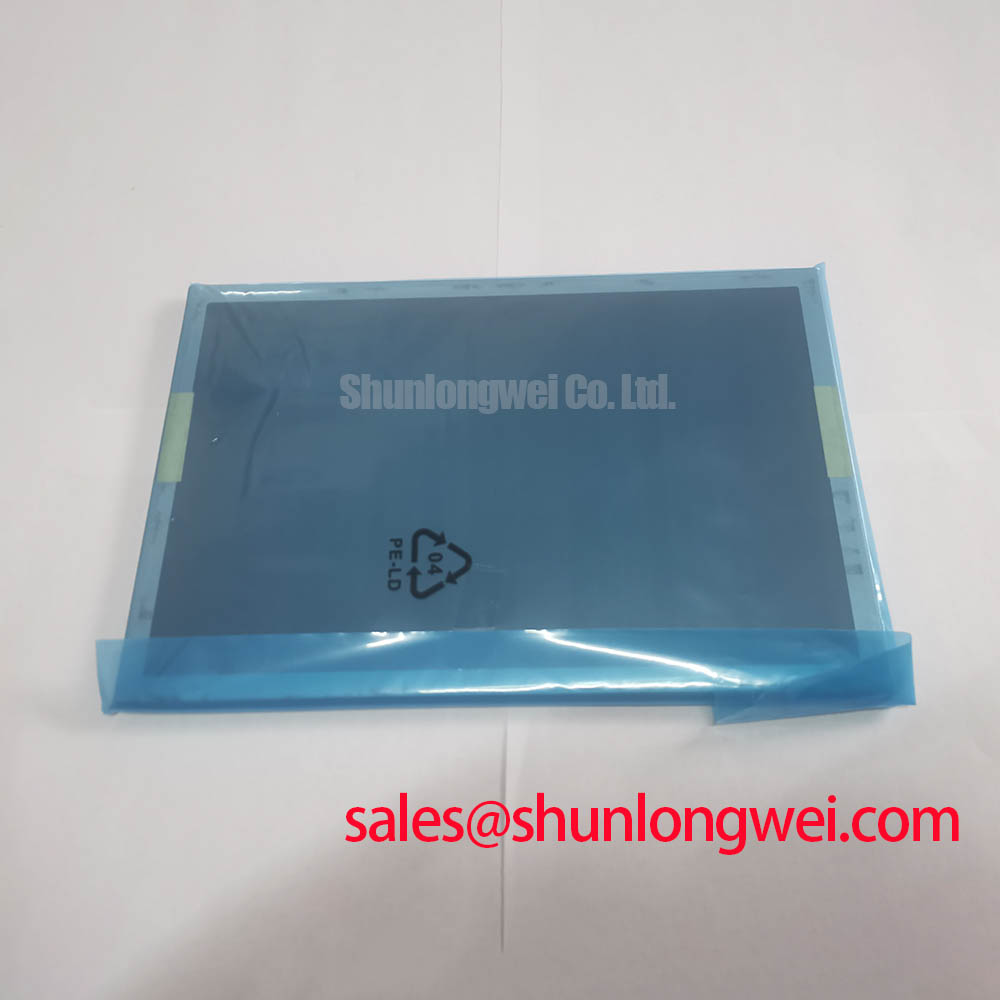

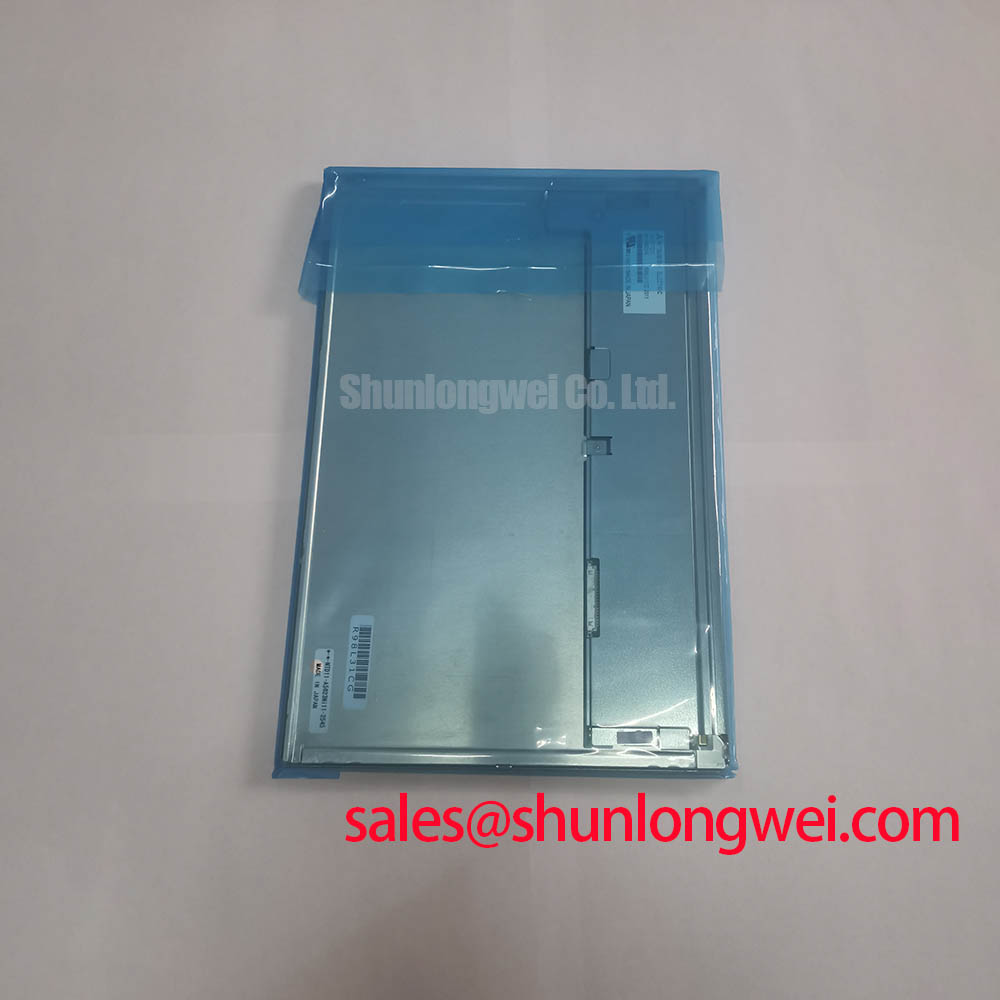

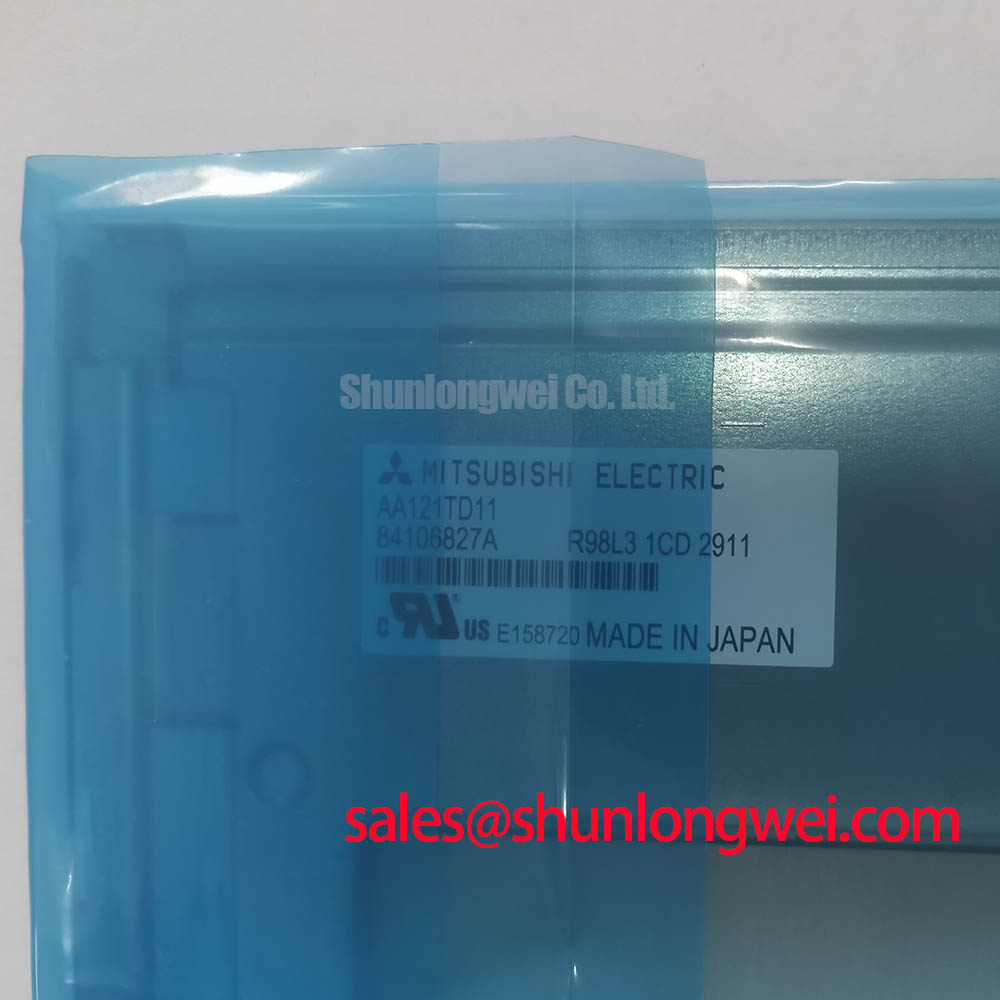

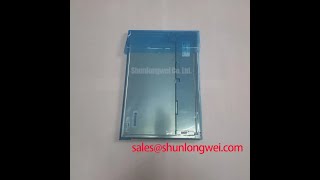

Mitsubishi AA121TD11 | Sunlight Readable 12.1" WXGA Display for Extreme Environments
The Mitsubishi AA121TD11 is not just another industrial display; it is an engineered solution for applications where visual clarity and operational resilience are non-negotiable. Designed for system integrators and engineers developing human-machine interfaces (HMIs) for challenging conditions, this 12.1-inch TFT-LCD delivers exceptional performance that directly translates to enhanced usability, safety, and long-term reliability.
At its core, the AA121TD11 addresses the most common failure points of displays in demanding fields. Its feature set is purpose-built to overcome environmental obstacles, making it a premier choice for mission-critical systems.
- Exceptional All-Weather Brightness: A powerful 1000 cd/m² luminance ensures the screen remains sharp and readable, even in direct, glaring sunlight.
- Extreme Operating Temperature Range: With a certified operational range of -30°C to +80°C, this display functions reliably in environments from industrial freezers to sun-baked vehicle cabins.
- Superior Visual Quality: The 1280x800 (WXGA) resolution provides crisp detail for complex graphical interfaces, while the super-wide viewing angles (85°/85°/85°/85°) ensure readability from nearly any perspective.
- Engineered for Longevity: A long-life white LED backlight system, rated for a typical 100,000 hours, dramatically reduces maintenance cycles and lowers the total cost of ownership.
- Robust and Ready: Featuring a standard LVDS interface and an integrated LED driver, the Mitsubishi AA121TD11 is designed for streamlined integration into new and existing systems.
Technical Deep Dive: Engineering for Clarity and Endurance
Two key specifications elevate the Mitsubishi AA121TD11 from a standard component to a strategic advantage: its brightness and its thermal tolerance. These are not merely numbers on a datasheet but deliberate engineering choices that solve real-world problems.
Uncompromising Readability in High Ambient Light
A typical commercial display, with 250-300 cd/m² of brightness, becomes a reflective, unreadable surface when exposed to direct sunlight. The AA121TD11’s 1000 cd/m² output provides the necessary luminance to overpower ambient light, ensuring that critical data remains vivid and legible. This is crucial for outdoor operators who cannot afford to misread information due to glare. This level of performance is achieved through a highly efficient LED backlight and advanced optical films, making it a truly sunlight-readable HMI solution without the need for bulky, power-hungry aftermarket modifications.
Operational Integrity Across Thermal Extremes
The vast -30°C to +80°C operating temperature range is a testament to the industrial-grade design of the Mitsubishi AA121TD11. At the low end, specially formulated liquid crystals prevent freezing and response time degradation. At the high end, robust components and thermal management design prevent blackouts or "pooling" defects that plague lesser displays in high-heat conditions. For engineers, this eliminates the need for costly and complex auxiliary heating or active cooling systems, simplifying overall system design and improving field reliability.
Where the AA121TD11 Excels: Application-Specific Value
This display's unique combination of features makes it an ideal fit for industries where failure is not an option. It provides a tangible performance edge in several key areas:
- Marine and Nautical Systems: On the open deck of a ship or in a vessel's bridge, sunlight and temperature fluctuations are constant. The AA121TD11 ensures that navigation charts, sonar readings, and engine data are always clear.
- Heavy Machinery and Agriculture: For operators of excavators, combines, and mining equipment, this display provides a rugged HMI that remains visible through dust, vibration, and direct sun exposure. For a deeper look at this use case, explore our guide on engineering displays for heavy machinery.
- Outdoor Kiosks and Digital Signage: Whether used in public transport terminals, EV charging stations, or ticketing machines, this display guarantees 24/7 readability and performance in all weather conditions, while its long-life backlight ensures minimal downtime.
Mitsubishi AA121TD11 Key Specifications
The following table outlines the critical performance parameters for system integration. For a complete list of specifications, you can download the official Mitsubishi AA121TD11 datasheet.
| Parameter | Specification |
|---|---|
| Model Name | AA121TD11 |
| Screen Size | 12.1" Diagonal |
| Resolution | 1280 (RGB) × 800 [WXGA] |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Operating Temperature | -30 ~ 80 °C |
| Interface Type | LVDS (1 ch, 6/8-bit) |
| Backlight | White LED, 100K hours (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
Engineer's FAQ for the AA121TD11
Does the integrated LED driver simplify my system design?
Absolutely. The built-in LED driver board eliminates the need to source, qualify, and integrate a separate external driver. This reduces the bill of materials (BOM), saves valuable PCB space, and removes a potential point of failure. Paired with the industry-standard LVDS interface, it allows for straightforward connection to most industrial single-board computers and display controllers, accelerating development time.
How does the 100,000-hour backlight lifespan benefit my project's long-term viability?
A 100,000-hour typical lifespan equates to over 11 years of continuous, 24/7 operation. For industrial equipment designed for a service life of 10-15 years, this means the display's backlight is highly unlikely to be the life-limiting component. This drastically reduces the total cost of ownership (TCO) by avoiding costly and labor-intensive field replacements, reinforcing the reliability of your final product.
To discuss your specific application requirements, integration strategies, or to request a quote for the Mitsubishi AA121TD11, please contact our technical team.
