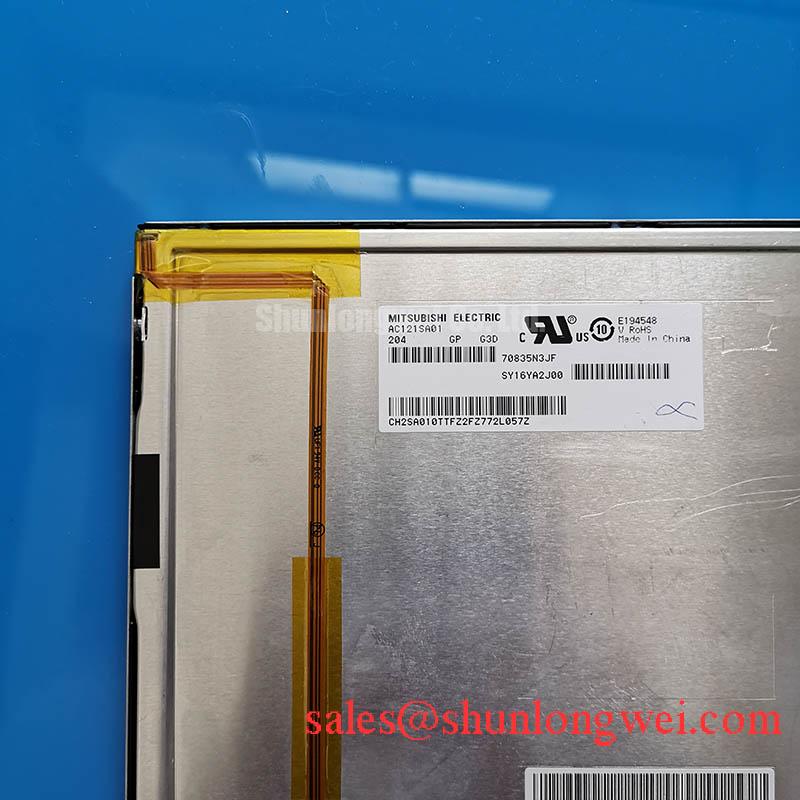

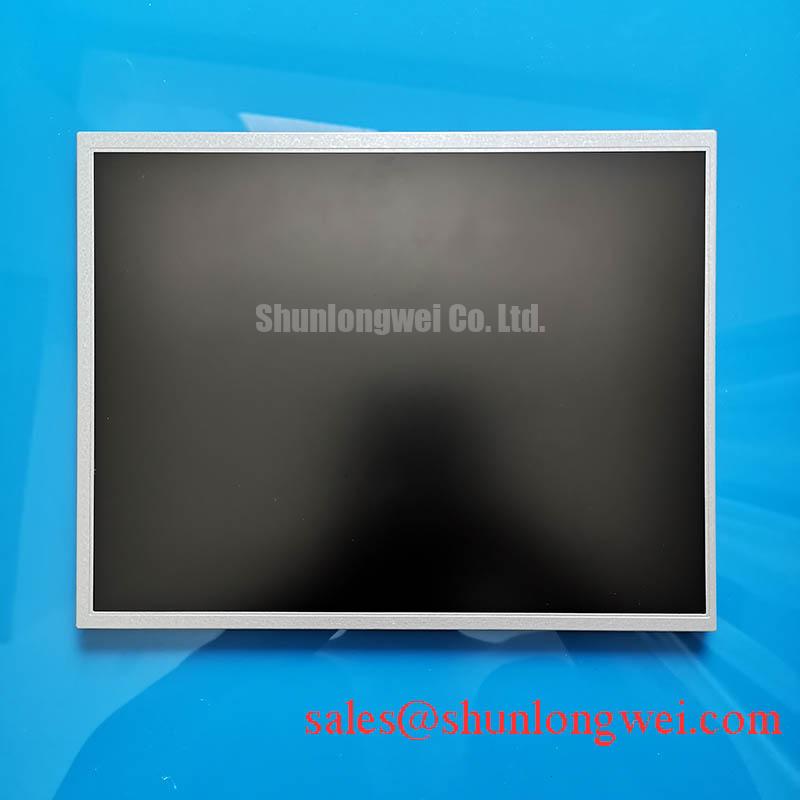

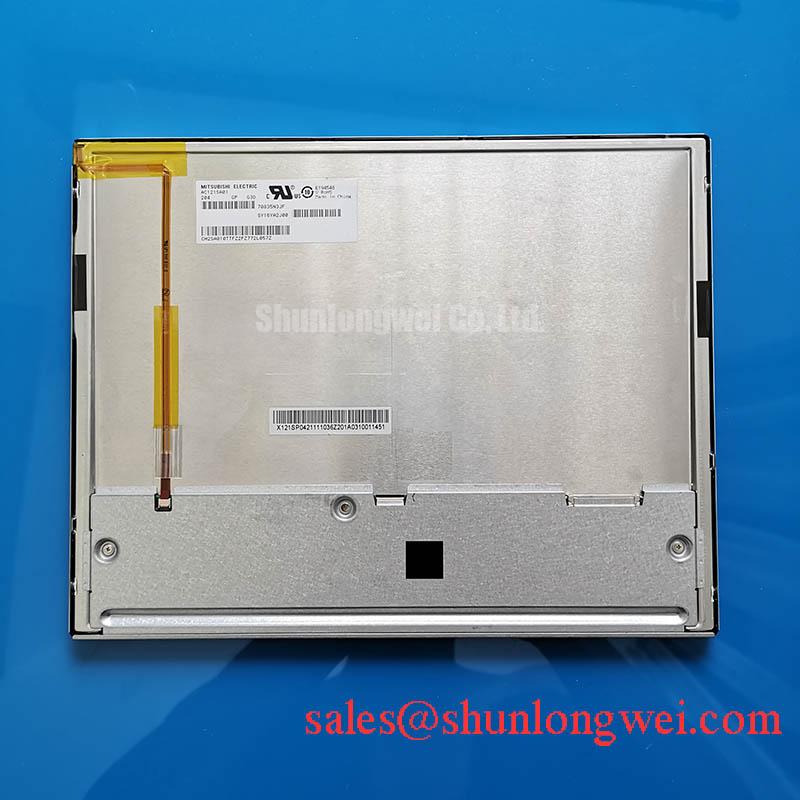

AC121SA01 | 12.1" SVGA TFT-LCD for Extreme Temperature Environments
Engineering a New Standard for Industrial Display Reliability and Clarity
Content last revised on October 19, 2025.
The Innolux AC121SA01 is a 12.1-inch SVGA display engineered for unwavering performance in the most demanding thermal environments. This a-Si TFT-LCD module delivers a precise combination of key specifications—800x600 SVGA | 450 nits | -30 to 85°C Operating Temperature—to enable a new class of resilient and reliable systems. Its core engineering benefits include uncompromised harsh environment operational stability and clear visibility in high ambient light. For engineers designing systems for outdoor or unconditioned environments, its exceptional -30°C to 85°C operating range eliminates the need for auxiliary thermal management, directly simplifying the mechanical design. Best suited for industrial HMIs and outdoor kiosks requiring proven reliability across a vast temperature spectrum.
Key Parameter Overview
Engineering Specifications for Harsh Environment Integration
The technical specifications of the AC121SA01 are curated to deliver robust, reliable performance. The standout feature is its industrial-grade operating temperature range, which provides a significant design advantage. A component's ability to operate from -30°C to 85°C is analogous to an all-weather tire rated for both arctic and desert conditions; it is fundamentally designed not to fail when the environment becomes a critical system variable. This specification provides engineers with the confidence to deploy systems in locations where temperature is unpredictable and uncontrolled.
| Functional Group: Optical Characteristics | |
|---|---|
| Diagonal Size | 12.1 inch |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Surface Treatment | Anti-Glare |
| Functional Group: Environmental & Mechanical | |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
| Outline Dimensions (W×H×D) | 279 × 209 × 9 mm |
| Functional Group: Interface & Backlight | |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins Connector |
| Backlight System | WLED, 50K hours (Typ.) |
Download the AC121SA01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Demanding HMI and Control Systems
The AC121SA01 is engineered for applications where environmental conditions are a primary design challenge. Its feature set provides tangible value in developing robust, long-life systems without the need for complex and costly thermal subsystems. What is the main benefit of its wide operating temperature? It ensures consistent performance and reliability without external heaters or fans.
Consider the design of an outdoor payment kiosk or a Human-Machine Interface (HMI) in an unheated warehouse. The core engineering challenge is ensuring the display is instantly readable and responsive, whether on a -20°C winter morning or during a 40°C summer heatwave. The AC121SA01 directly solves this problem. Its wide temperature range prevents the sluggish liquid crystal response often seen in the cold and avoids display blackouts from overheating. This ensures fast transaction times, accurate operator inputs, and enhances overall system uptime in critical applications like industrial automation and outdoor information terminals. For systems requiring a larger display area and higher resolution, the G150XTN06.8 offers a 15-inch XGA alternative.
Frequently Asked Questions
Design Considerations and Performance Clarifications
How does the 50,000-hour WLED backlight lifetime impact the total cost of ownership (TCO) for an industrial system?
A 50,000-hour backlight rating directly lowers TCO by drastically reducing maintenance requirements. This lifespan is equivalent to running the display 24/7 for over 5.7 years. In typical 8-hour-a-day industrial operations, this translates to a service life exceeding 15 years. This longevity minimizes the need for costly field service calls to replace the backlight, ensuring higher system availability and a more predictable operational budget.
Is the AC121SA01 suitable for outdoor applications with direct sunlight?
The AC121SA01 combines a 450-nit brightness with an effective anti-glare surface treatment, making it well-suited for many outdoor and high ambient light environments, such as covered kiosks or vehicle cabins. It provides excellent readability in bright, indirect light. For applications exposed to continuous, direct sunlight, system designers may need to evaluate panels with higher luminance ratings, typically 1000 nits or more, to guarantee optimal legibility.
Application Vignette
Engineering a Reliable Operator Interface for Heavy Construction Machinery
This module excels in creating ruggedized interfaces for equipment that operates in the planet's toughest conditions. What defines a truly industrial display? The ability to function flawlessly despite extreme temperatures and vibration.
The Engineering Challenge: The operator cab of an excavator or bulldozer experiences a brutal environment. Temperatures can swing from freezing on pre-dawn starts to over 70°C when parked in direct sun. The HMI, which displays critical engine data and safety information, must be instantly operational and perfectly readable under these conditions, while also withstanding constant shock and vibration.
A Datasheet-Driven Solution: The AC121SA01 is a direct fit for this challenge. Its -30°C to 85°C operating range ensures immediate, flicker-free startup, providing the operator with vital machine diagnostics without a warm-up period. The 450-nit brightness, paired with the anti-glare screen, cuts through the harsh glare common on work sites, improving safety and reducing operator eye strain. The industry-standard LVDS Interface allows for straightforward and robust integration with the vehicle's main control unit.
System-Level Benefit: Integrating the AC121SA01 results in a more reliable, safer, and cost-effective HMI design. It completely eliminates the cost, complexity, and potential points of failure associated with a separate thermal management subsystem (heaters/coolers) for the display. This simplified design enhances operator confidence and reduces long-term maintenance, a critical factor in the heavy machinery and industrial equipment sectors.
An Engineer's Perspective on Reliability
Ultimately, the AC121SA01 is more than a display; it is a foundational component for building systems where reliability is non-negotiable. Its specifications are not just numbers on a datasheet but represent deliberate engineering decisions aimed at providing a stable, long-life visual interface that will endure where consumer-grade displays would fail. For engineering teams tasked with deploying technology in unpredictable environments, this module offers a rare degree of certainty, simplifying the design process and reducing long-term operational risk.
