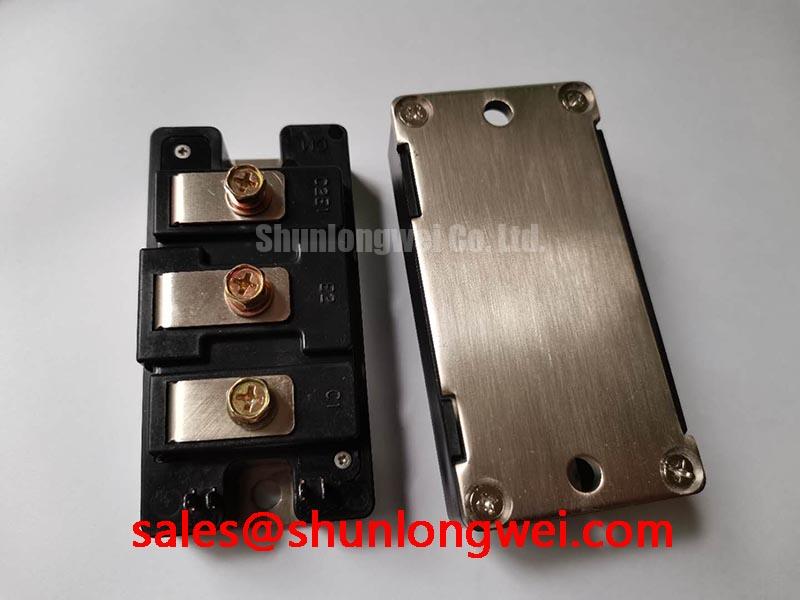

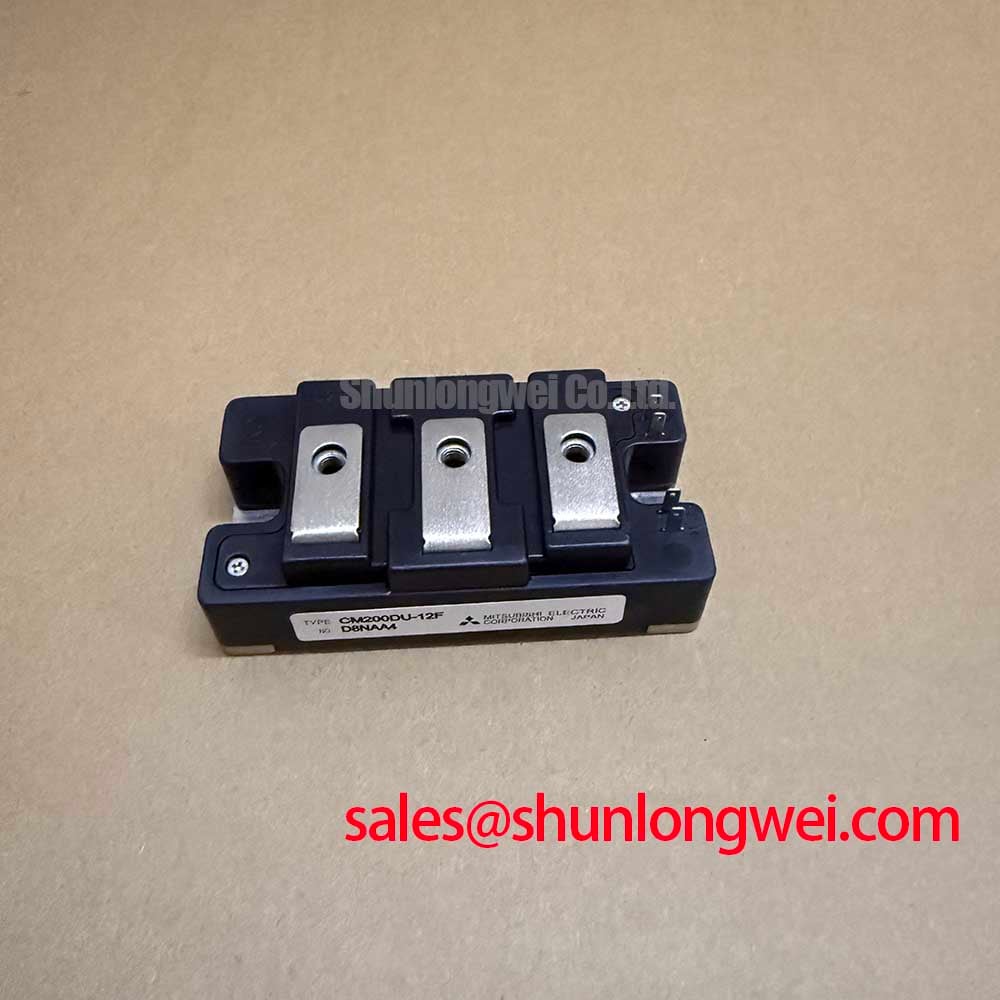

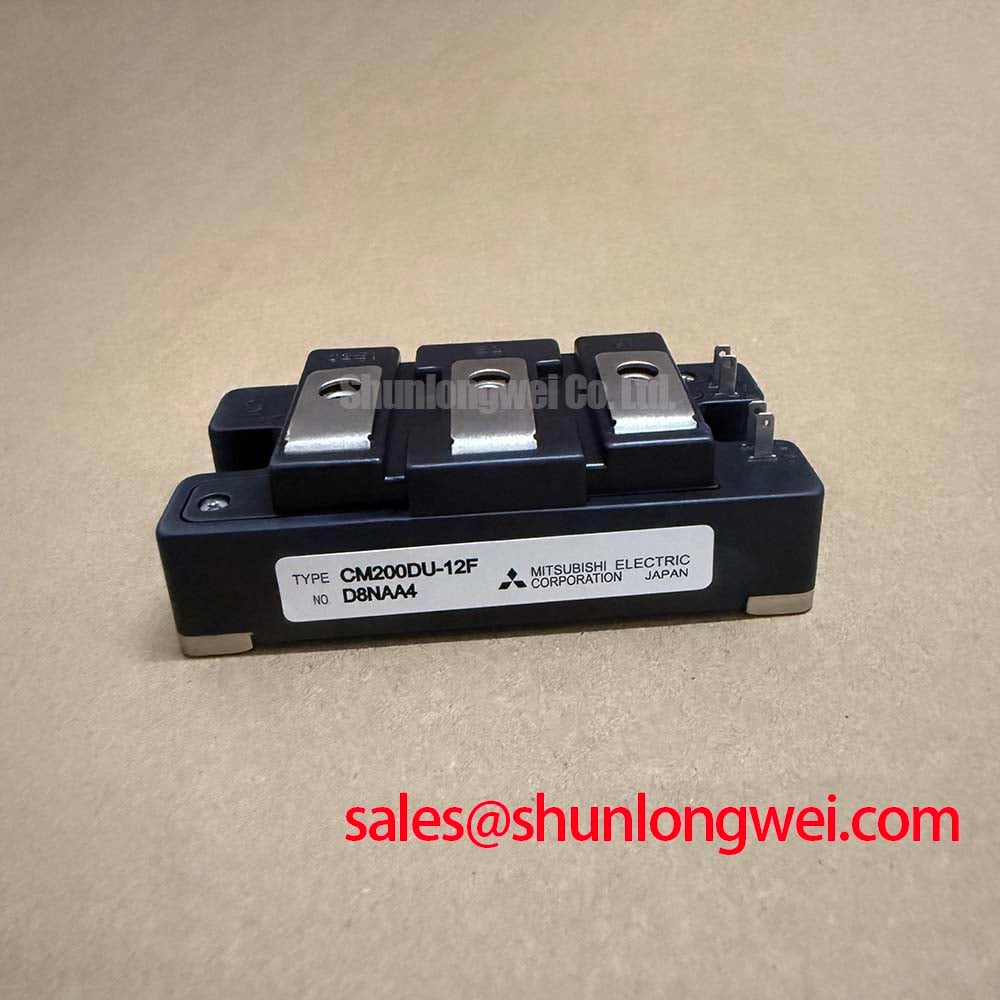

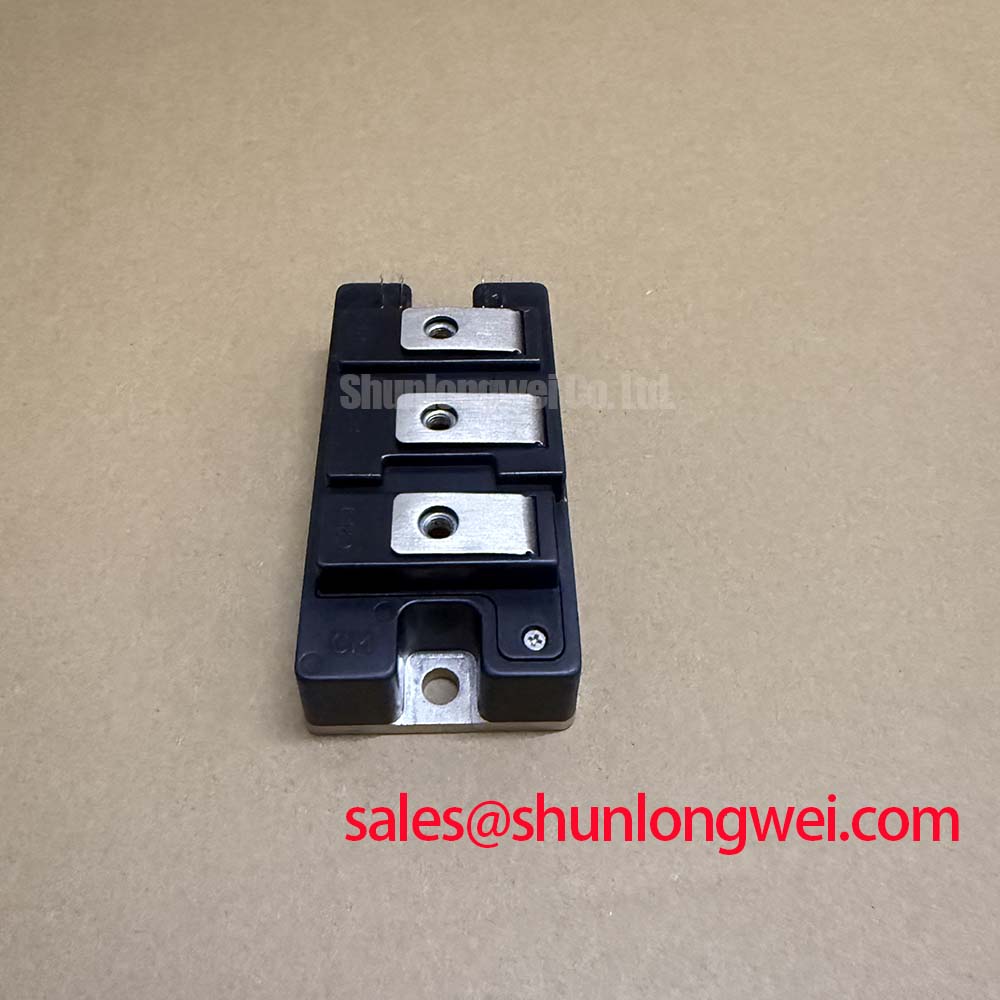

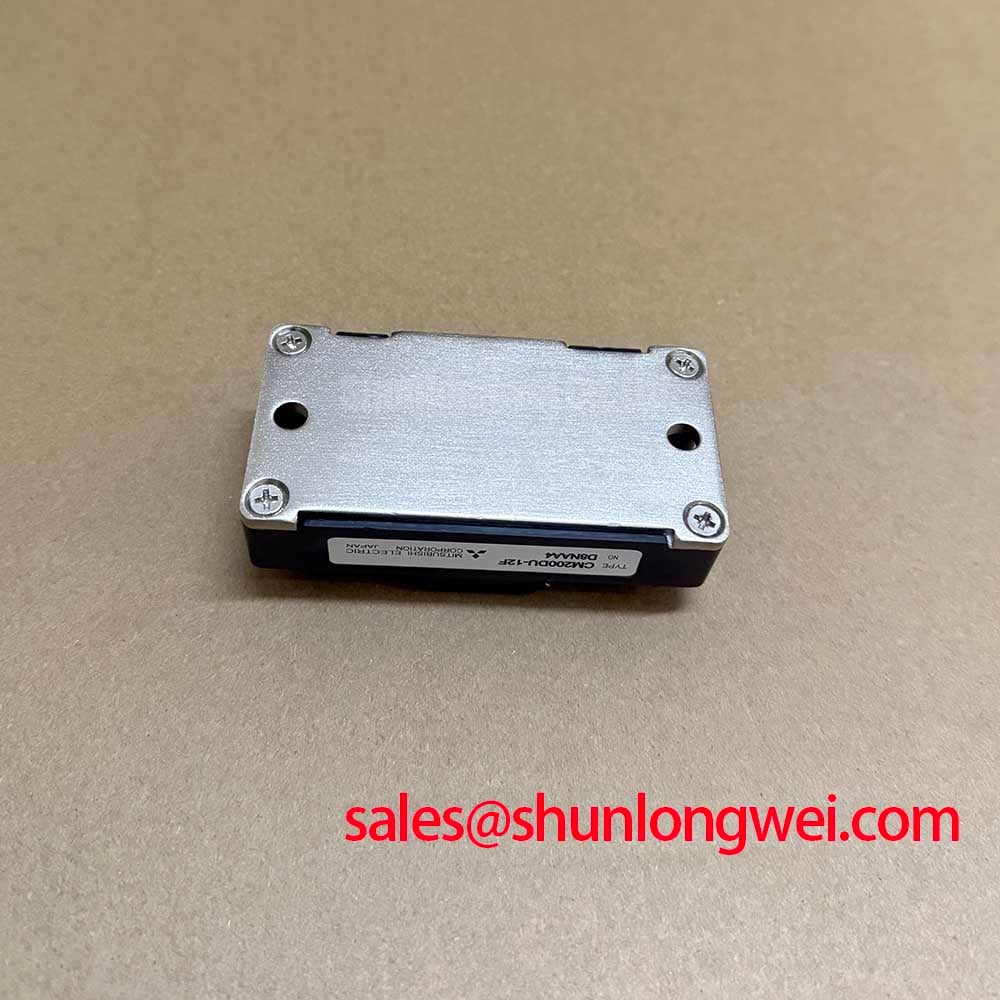

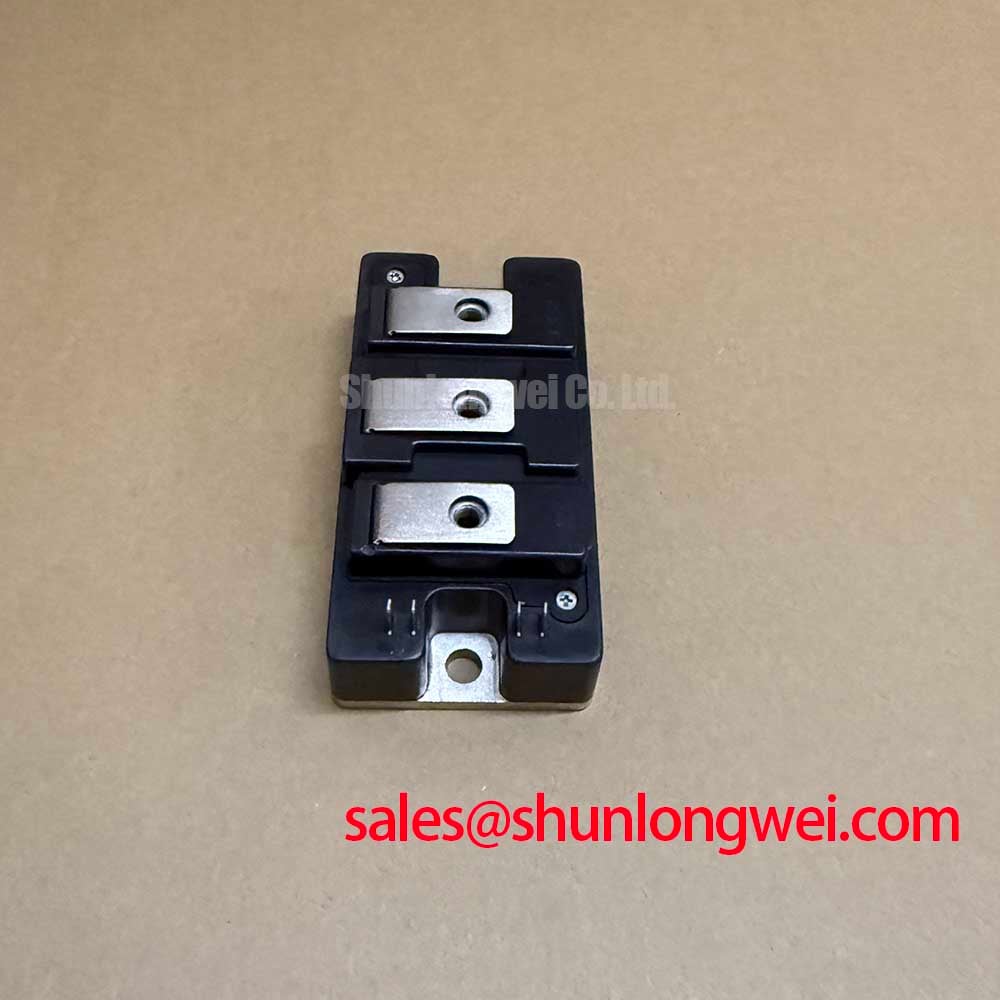

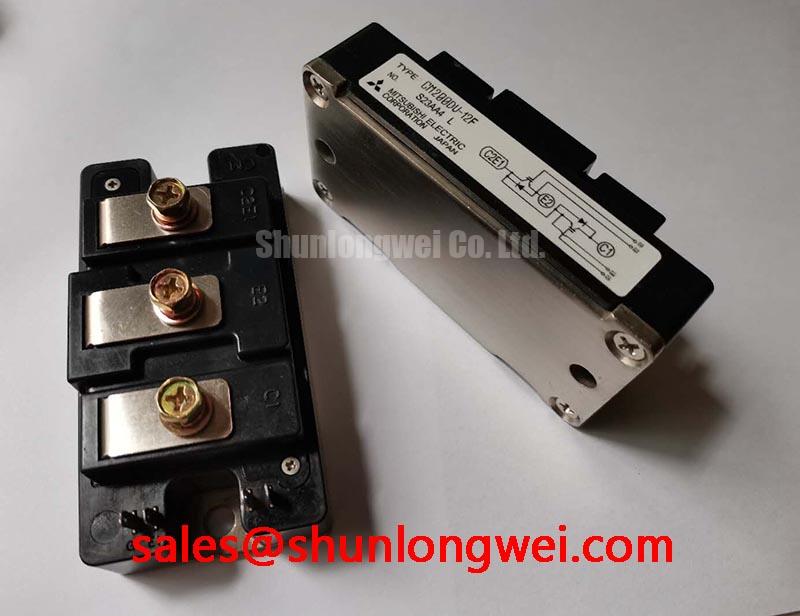

Mitsubishi CM200DU-12F | High-Efficiency 1200V/200A Dual IGBT Module
The Mitsubishi CM200DU-12F is a cornerstone of high-power industrial applications, engineered for designers who prioritize efficiency, thermal performance, and long-term reliability. As a key component of Mitsubishi's F-Series, this 1200V/200A dual IGBT module integrates two transistors in a half-bridge configuration, providing a compact and powerful solution for motor drives, uninterruptible power supplies (UPS), and demanding power conversion systems. Its design focuses on minimizing power losses, a critical factor in reducing operational costs and enhancing system longevity.
Technical Deep Dive: Where Performance Meets Reliability
The true value of the CM200DU-12F lies in its underlying semiconductor technology, which directly addresses common engineering challenges:
- Optimized Conduction and Switching Losses: Featuring a low saturation voltage (Vce(sat)), this module significantly reduces power dissipation when the IGBT is in its ON state. For the end-user, this translates directly into lower operating temperatures, allowing for smaller heatsinks, more compact system designs, and improved overall energy efficiency in applications like industrial automation.
- Integrated Soft-Recovery Free-Wheeling Diode (FWD): The co-packaged FWD is engineered for soft recovery characteristics. This technical advantage minimizes voltage overshoots and high-frequency oscillations during diode turn-off. The practical benefit is a drastic reduction in electromagnetic interference (EMI), which simplifies EMC design, lowers filtering component costs, and accelerates the time-to-market for your product.
Key Technical Specifications: CM200DU-12F
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Collector Current (Ic) | 200 A |
| Collector-Emitter Saturation Voltage (Vce(sat)) (Typ.) | 2.2 V (at Ic=200A) |
| Package Type | Standard Industrial Module |
| Configuration | 2-in-1 (Half-Bridge) |
Application-Specific Advantages: From Raw Power to Precision Control
Merely listing applications is insufficient; understanding the CM200DU-12F's role in solving specific industry pain points reveals its true competitive edge:
- High-Power Motor Drives & Servo Control: In Variable Frequency Drives (VFDs), excess heat is a primary failure point. The low Vce(sat) of the CM200DU-12F directly mitigates this, enabling more compact and reliable drive designs. Its fast and clean switching performance allows for higher PWM frequencies, resulting in smoother motor torque, reduced audible noise, and more precise control in servo applications.
- Uninterruptible Power Supplies (UPS): For data centers and critical facilities, UPS efficiency is paramount. This IGBT module's low total power loss (both conduction and switching) minimizes energy waste during the AC-DC-AC conversion, reducing cooling demands and operational expenditure (OPEX) over the system's lifetime.
- Industrial Welding Equipment: Inverter-based welders require robust components that can handle high-current, repetitive pulses. The 200A rating and excellent thermal cycling capability of the Mitsubishi CM200DU-12F ensure a stable welding arc and provide the durability needed for harsh industrial environments, ultimately reducing equipment downtime.
Comparative Insight & Selection Advice
When evaluating options, engineers often compare the CM200DU-12F with modules like Infineon's FF200R12KS4. While both are 1200V/200A dual modules, the Mitsubishi F-Series is often praised for its excellent balance of low Vce(sat) and robust short-circuit withstand time, making it a particularly safe and efficient choice for general-purpose motor drives. The FF200R12KS4, with its Trench/Fieldstop technology, may offer advantages in specific high-frequency switching applications. Your choice should depend on whether your primary design driver is ultimate efficiency at moderate frequencies (CM200DU-12F) or performance at the upper limits of switching speed. For a comprehensive system analysis, it's best to Contact Us for a Quote and technical consultation.
To further refine your design and explore other power semiconductor solutions, feel free to Explore More IGBT Modules in our extensive portfolio.
