CM300DY-12NF IGBT Module: Technical Product Analysis
Engineered for High-Efficiency Power Conversion
A Datasheet-Driven Overview of the 600V, 300A Dual IGBT Module

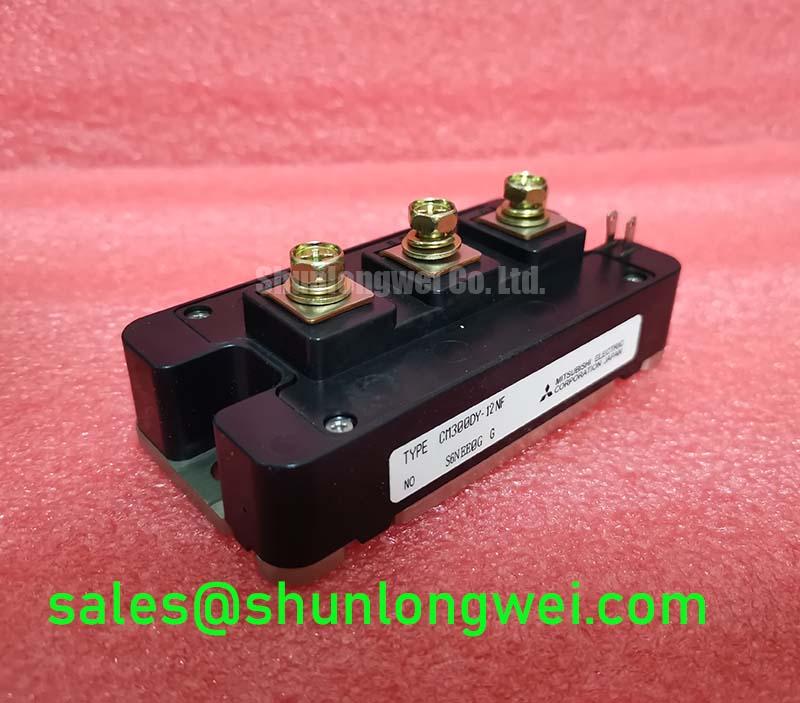

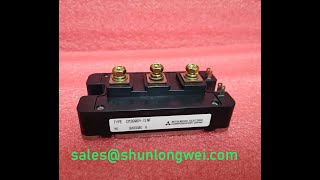

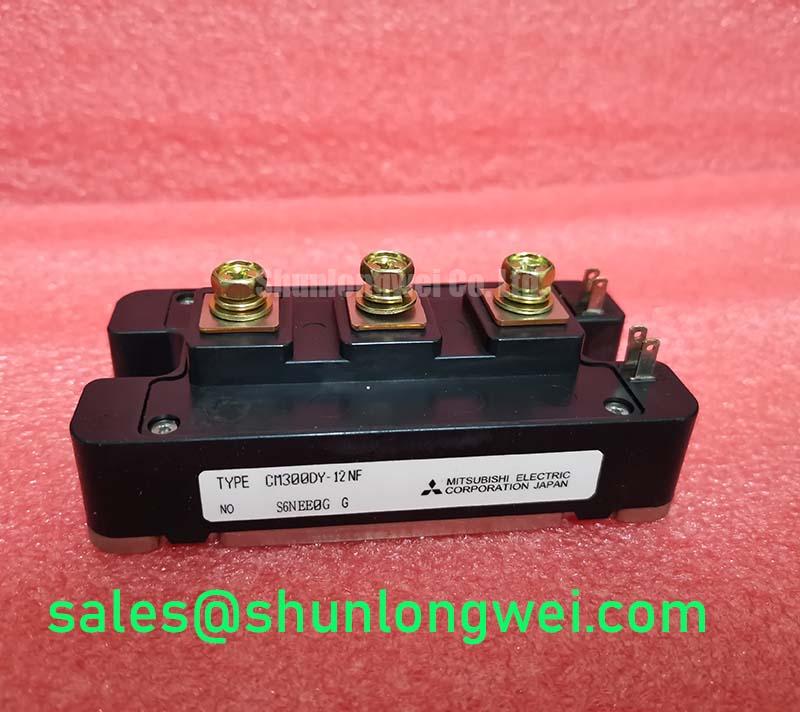

The Mitsubishi CM300DY-12NF is a dual IGBT module designed for high-efficiency switching in demanding industrial applications. This module integrates two IGBTs in a half-bridge configuration, delivering a robust solution for power control systems by focusing on minimizing conduction losses and simplifying mechanical assembly. With key specifications of 600V | 300A | VCE(sat) 2.2V (typ), it offers significant advantages including reduced thermal load and simplified inverter leg design. The module directly addresses the engineering need for efficient and reliable power stages in equipment operating from 200-240V AC lines. What is the primary benefit of its low VCE(sat)? Lower power dissipation during operation, leading to higher system efficiency. For industrial drives requiring robust performance and thermal stability, the CM300DY-12NF offers a compelling balance of electrical characteristics and practical design features.
Key Parameter Overview
Decoding the Specs for Efficient Inverter Design
The electrical and thermal characteristics of the CM300DY-12NF are optimized for performance and reliability in switching applications. The following table highlights the critical parameters derived directly from the official datasheet.
| Parameter | Symbol | Conditions | Value | |
|---|---|---|---|---|
| Absolute Maximum Ratings (Tj = 25°C unless otherwise noted) | Collector-Emitter Voltage | VCES | VGE = 0V | 600V |
| Collector Current (DC) | IC | TC = 25°C | 300A | |
| Total Power Dissipation | PC | TC = 25°C | 1040W | |
| Electrical Characteristics (Tj = 25°C unless otherwise noted) | Collector-Emitter Saturation Voltage | VCE(sat) | IC = 300A, VGE = 15V | 2.2V (Typ.), 2.7V (Max.) |
| Gate-Emitter Threshold Voltage | VGE(th) | IC = 30mA, VCE = 10V | 5.5V (Typ.) | |
| Turn-on Switching Time | tc(on) | Resistive Load | 0.4µs (Typ.) | |
| Thermal Characteristics | Thermal Resistance (Junction to Case) | Rth(j-c) | IGBT Part | 0.12 °C/W |
| Isolation Voltage | Viso | Main Terminal to Base Plate, AC 1 min. | 2500Vrms | |
Download the CM300DY-12NF datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Motor Drives
The CM300DY-12NF is primarily specified for medium-power industrial applications where efficiency and reliability are critical operational metrics. Its robust design and electrical characteristics make it an excellent fit for the power stages of three-phase inverters.
- Variable Frequency Drives (VFDs): In VFDs used to control industrial motors for pumps, fans, and conveyors, the low VCE(sat) of 2.2V directly translates to lower conduction losses. This reduces the heat generated within the drive's enclosure, enabling more compact heatsink designs and improving the overall system's energy efficiency.
- Uninterruptible Power Supplies (UPS): For commercial and industrial UPS (Uninterruptible Power Supply) systems, the module's 300A rating provides ample current handling for battery-to-AC conversion, while its reliability ensures consistent uptime during power disturbances.
- Welding Power Supplies: The fast switching characteristics and robust thermal performance are well-suited for the high-frequency inverters found in modern welding equipment, enabling precise control over the welding arc.
Consider a VFD controlling a 75 kW motor. The primary engineering challenge is managing the thermal load generated by the power electronics to ensure a long operational lifespan. The CM300DY-12NF's low VCE(sat) minimizes a major source of this heat. This is analogous to using a high-efficiency engine in a car; less energy is wasted as heat, meaning more power is delivered to the wheels and the cooling system can be less aggressive. For systems requiring higher current handling in a similar package, the related CM400DY-12NF offers an increased current rating.
Technical Deep Dive
Analyzing the Impact of VCE(sat) and Isolated Mounting on System Reliability
Two key design features of the CM300DY-12NF contribute significantly to its value proposition: its low collector-emitter saturation voltage and its electrically isolated baseplate. The low VCE(sat) is a direct indicator of the voltage drop across the IGBT when it is fully turned on. A lower voltage drop for the same current (P = V * I) means less power is converted into waste heat. This reduction in Switching Loss is not just an efficiency gain; it directly impacts long-term reliability by lowering the operating junction temperature of the silicon, a critical factor in semiconductor device lifetime.
Furthermore, the module's 2500Vrms isolation rating simplifies the entire mechanical and thermal design process. It allows the module to be mounted directly onto a grounded chassis or a common heatsink shared with other components, eliminating the need for fragile and thermally inefficient insulating pads. This design choice reduces assembly time and parts count, and it creates a more reliable and consistent thermal interface, which is crucial for effective thermal management under cyclic loading conditions typical in a Servo Drive.
Frequently Asked Questions (FAQ)
How does the typical VCE(sat) of 2.2V at 300A impact heatsink selection?
A lower VCE(sat) directly reduces the power dissipated as heat (conduction loss). With less heat to manage, engineers can often specify a smaller, lighter, and more cost-effective heatsink to maintain the same target junction temperature, which is critical for maximizing system power density and reducing enclosure size.
What is the primary advantage of the CM300DY-12NF's integrated dual-IGBT configuration?
The dual, or half-bridge, configuration simplifies the design of an inverter leg. Instead of sourcing, matching, and laying out two discrete IGBTs, a single module can be used. This reduces component count, minimizes parasitic inductance between switches, simplifies the Gate Drive layout, and ultimately streamlines the manufacturing process.
System Integration and Support
For engineering teams evaluating the CM300DY-12NF for new or existing designs, our role is to provide the critical technical data needed for an informed decision. We can supply the official datasheet and application notes to help your team analyze its performance in the context of your specific application. By focusing on datasheet-verified parameters, we empower you to accurately model thermal performance, calculate efficiency gains, and validate the module's fit within your system architecture. Please use the contact form on our website to request technical documentation for your project assessment.
