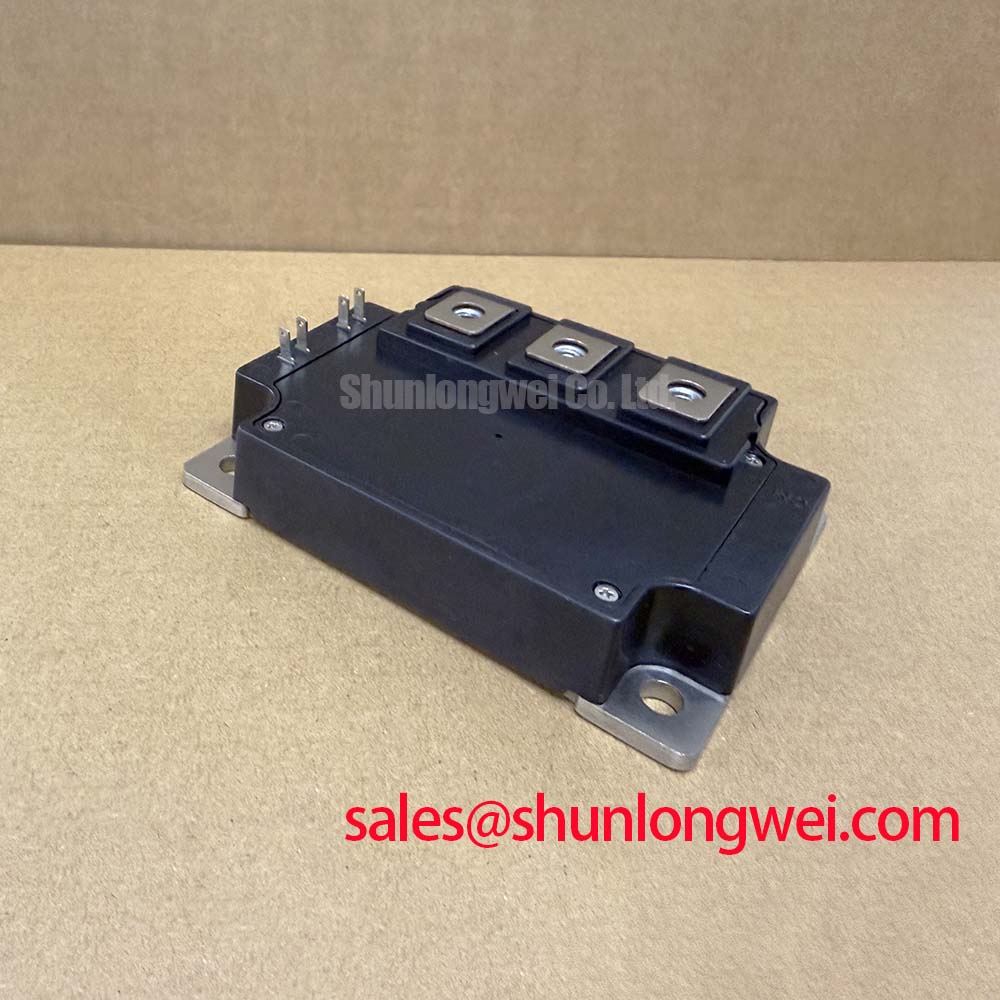

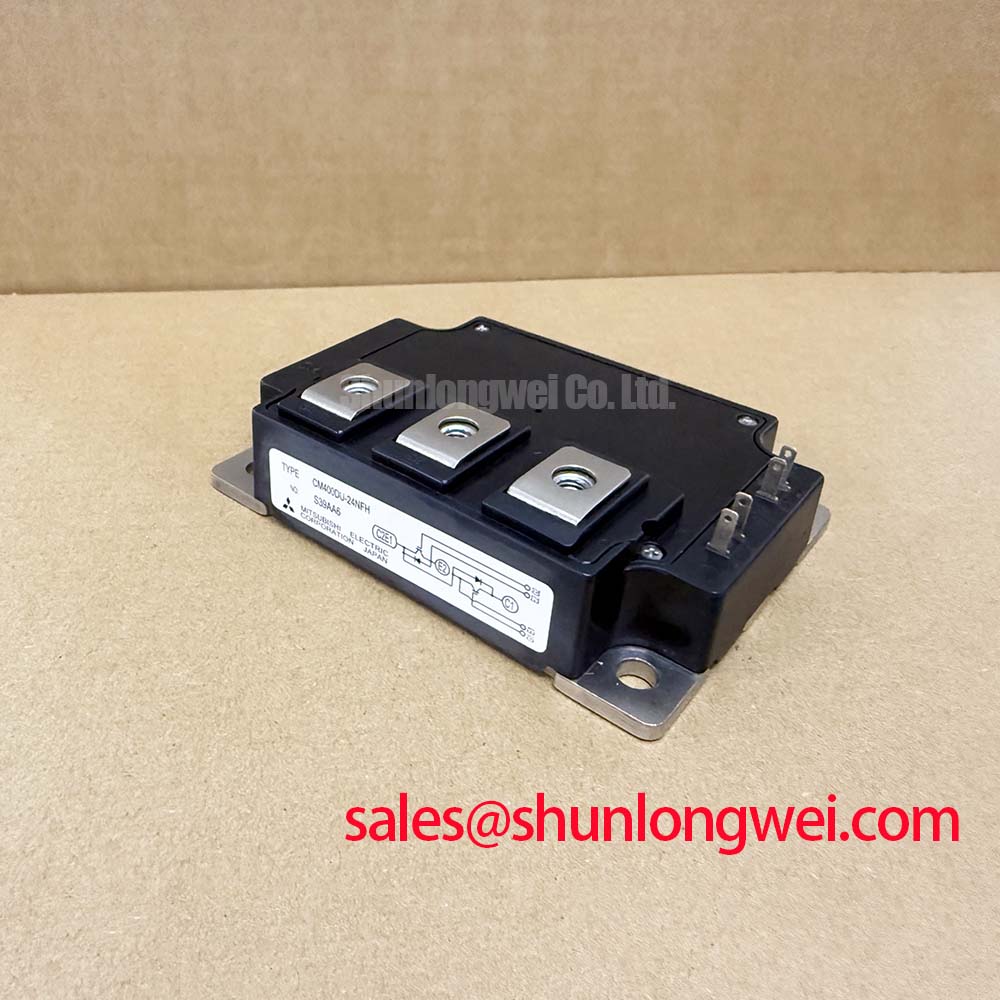

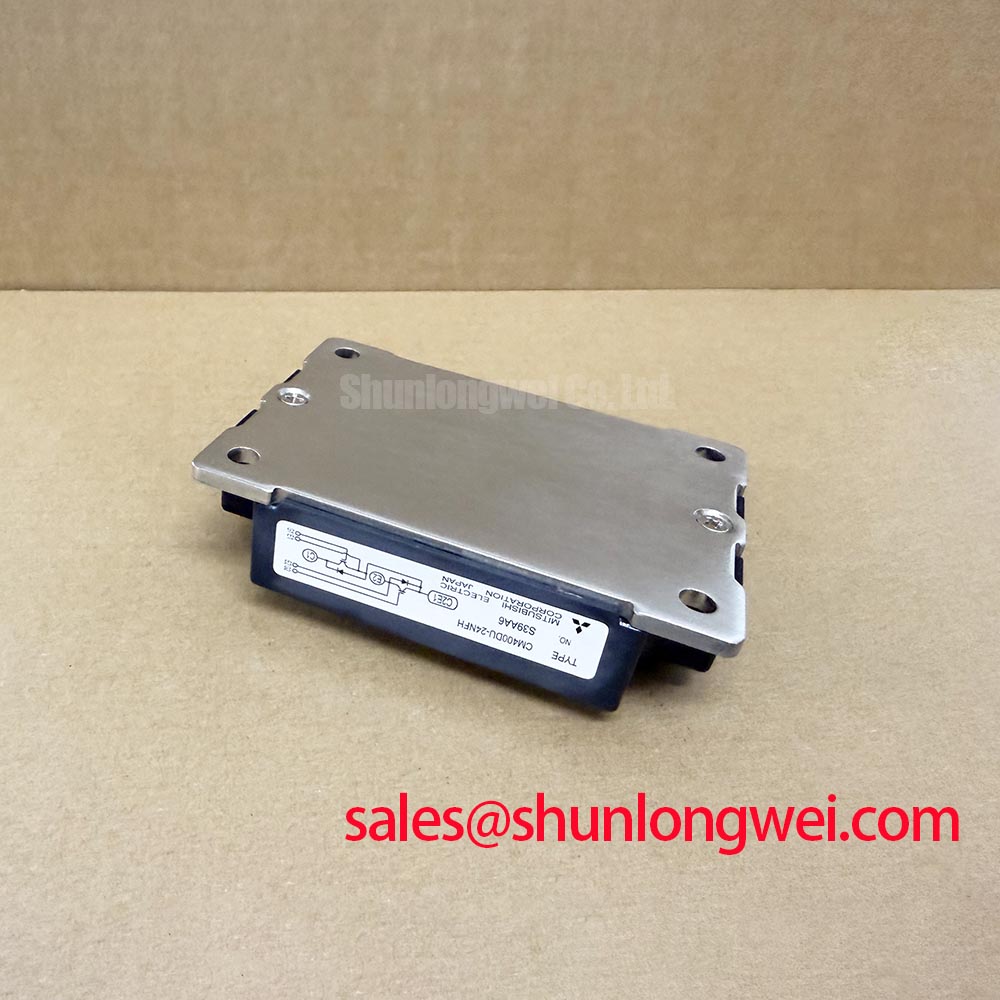

Mitsubishi CM400DU-24NFH | High-Performance Dual IGBT Module for Demanding Power Conversion
The Mitsubishi CM400DU-24NFH is a state-of-the-art dual IGBT module engineered for high-power, high-reliability applications. Rated at 1200V and 400A, this module leverages Mitsubishi's advanced 4th generation CSTBT™ (Carrier Stored Trench-gate Bipolar Transistor) technology to deliver exceptional performance. It is specifically designed for system integrators and engineers working on high-power motor drives, uninterruptible power supplies (UPS), and renewable energy systems who require a balance of extreme efficiency, thermal stability, and long-term operational robustness.
Technical Deep Dive: The Core of the CM400DU-24NFH's Superiority
- Advanced 4th Generation CSTBT™ Technology: At the heart of the CM400DU-24NFH is Mitsubishi's proprietary Mitsubishi CSTBT™. Unlike conventional trench IGBTs, this structure incorporates a carrier storage layer beneath the trench gate. This innovation effectively minimizes the trade-off between collector-emitter saturation voltage (Vce(sat)) and turn-off switching loss. The direct benefit for your design is significantly lower conduction losses, leading to less waste heat and the potential for smaller, more cost-effective heatsink solutions.
- Optimized Soft-Recovery Freewheeling Diode (FWD): Inductive loads, common in motor control, generate significant voltage spikes during switching. The CM400DU-24NFH integrates a perfectly matched freewheeling diode featuring a soft-recovery characteristic. This means reduced voltage overshoot (dv/dt) and minimized oscillation during diode turn-off, which simplifies EMC filter design, reduces stress on components, and enhances the overall reliability of your power stage.
Application-Specific Value: Solving Real-World Engineering Challenges
The features of the Mitsubishi CM400DU-24NFH directly translate into tangible benefits across several demanding fields:
- Industrial Motor Drives: For large-scale AC drives and servo control, efficiency is paramount. The ultra-low collector-emitter saturation voltage of the CM400DU-24NFH reduces operational energy costs over the system's lifetime. Its thermal robustness ensures stable performance even under heavy torque and dynamic load conditions, extending the life of the entire drive system.
- Uninterruptible Power Supplies (UPS): In mission-critical UPS systems, reliability is non-negotiable. The module's superior thermal cycling capability and robust construction ensure uninterrupted power delivery during grid failures. The low overall IGBT power loss improves battery runtime and system efficiency.
- Solar and Wind Inverters: Maximizing energy harvest requires the highest possible conversion efficiency. This IGBT module's low total power losses (both conduction and switching) enable inverters to operate closer to their maximum power point tracking (MPPT) peak, converting more renewable energy into usable grid power.
- Welding Equipment: High-frequency welding applications demand fast, precise control of high currents. The fast switching and soft-recovery FWD within the CM400DU-24NFH allow for stable arc control, resulting in cleaner, stronger welds while its rugged design withstands the harsh electrical environment.
Key Technical Parameters at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic @ Tc=80°C) | 400 A |
| Collector-Emitter Saturation Voltage (Vce(sat)) (Typ. @ 400A, Tj=125°C) | 1.90 V |
| Package Type | Standard Dual Module |
Frequently Asked Questions (FAQ)
- Can the CM400DU-24NFH be paralleled for higher current output?
Yes, these modules are well-suited for paralleling. The positive temperature coefficient of Vce(sat) provides a degree of self-balancing. However, careful gate drive design and a symmetrical PCB layout are crucial to ensure balanced current sharing and prevent thermal runaway. - What is the primary advantage of the CM400DU-24NFH over older IGBT generations?
The main advantage lies in its significantly lower Vce(sat) and optimized switching performance, courtesy of the 4th Gen CSTBT™ technology. This leads to higher overall system efficiency, reduced thermal management requirements, and improved reliability compared to previous generations or standard Non-Punch-Through (NPT) IGBTs.
By integrating proven, advanced semiconductor technology, the Mitsubishi CM400DU-24NFH provides a robust and highly efficient foundation for your next power electronics project. To see how this module can fit into your design or to explore our full range of power components, please explore more IGBT Modules or contact us for a quote to discuss your specific requirements with our technical specialists.
