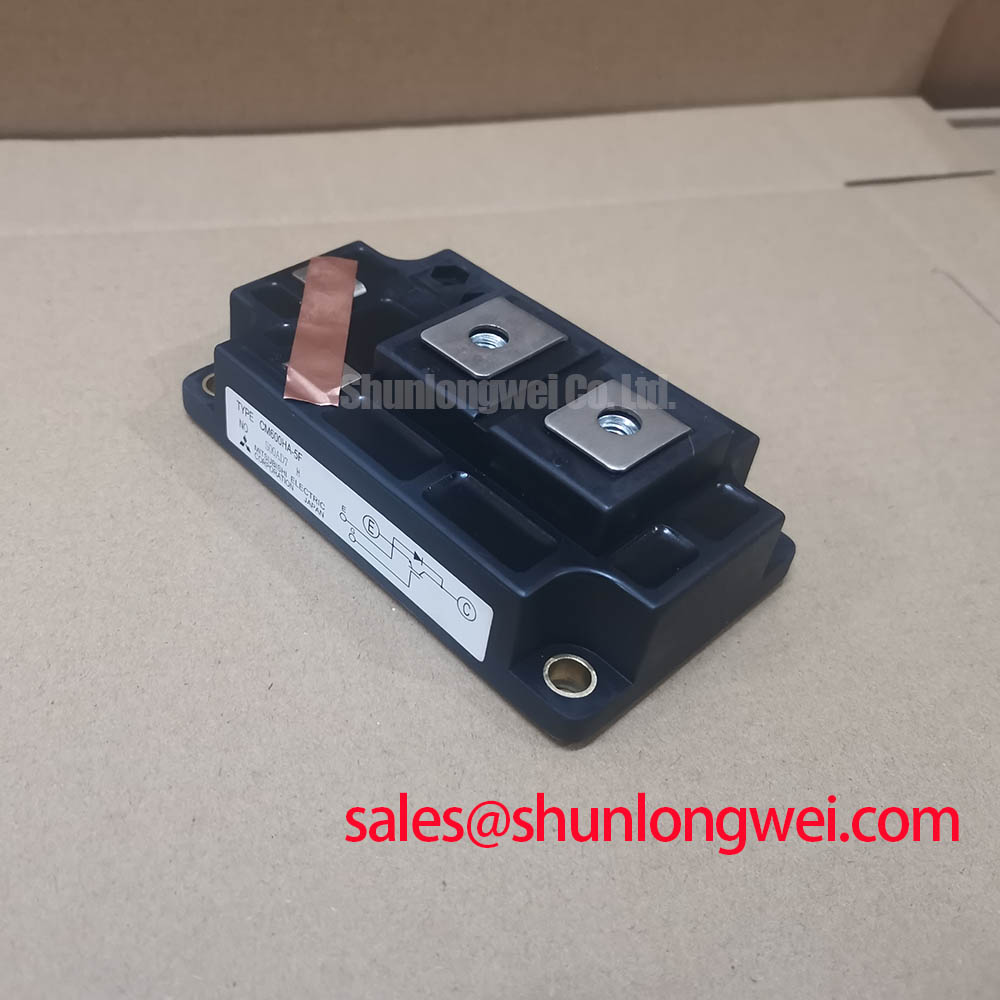

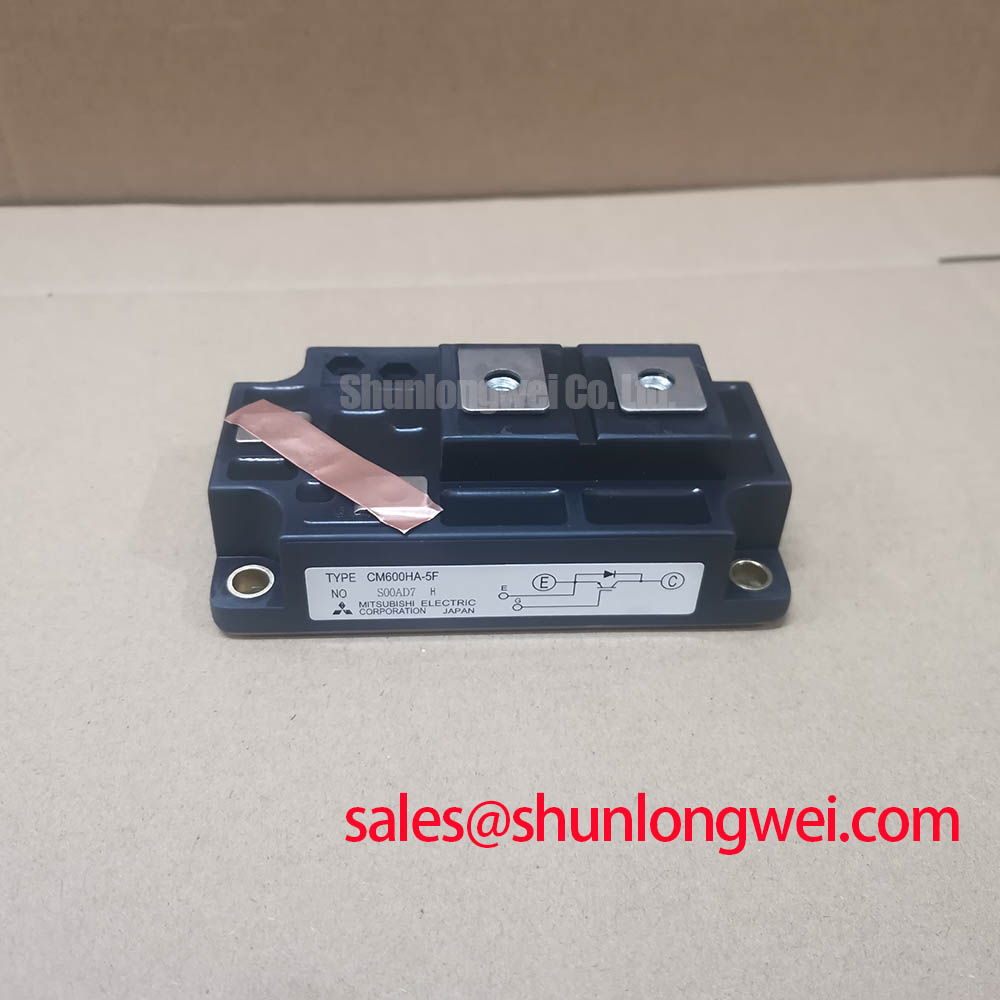

Mitsubishi CM600HA-5F IGBT | Mastering High-Current, Low-Voltage Power Conversion
The Mitsubishi CM600HA-5F is not just another high-current switch; it is a meticulously engineered single IGBT module designed for applications where robust performance and efficiency in low-voltage, high-current circuits are non-negotiable. As a cornerstone of Mitsubishi's H-Series, this 250V/600A module provides a reliable and powerful solution for industrial power systems, moving beyond generic specifications to deliver tangible advantages in thermal stability and energy conservation.
Technical Deep Dive: The Core of the CM600HA-5F Advantage
Understanding what sets the Mitsubishi CM600HA-5F apart requires a look at its fundamental design principles. Two key features directly address common engineering challenges in high-power electronics.
- Optimized for Minimal Conduction Loss: At the heart of its efficiency is an exceptionally low collector-emitter saturation voltage (Vce(sat)). This characteristic is critical in high-current applications. A lower Vce(sat) directly translates to reduced power dissipation as heat during the on-state, which is the dominant state in many DC chopper and welding applications. This design choice not only boosts overall system efficiency but also lessens the burden on the cooling system, potentially reducing heatsink size and cost. For a deeper understanding of this parameter, see this guide on calculating VCE(sat) at different temperatures.
- Engineered for Thermal Reliability: The module features an industry-standard package with an isolated baseplate. This construction simplifies mechanical assembly by electrically isolating the module from the heatsink, eliminating the need for additional insulating layers that can impede thermal transfer. The result is a more direct and efficient path for heat to escape, ensuring the module operates within its safe operating area even under sustained heavy loads. Effective IGBT thermal management is key to long-term reliability.
Multi-Dimensional Application Scenarios
The true value of the Mitsubishi CM600HA-5F is realized when applied to specific industry challenges:
- High-Power Welding Equipment: In resistance and spot welding, delivering precise, high-current pulses is essential. The CM600HA-5F's ability to handle 600A with minimal conduction loss ensures that maximum energy is delivered to the weld, improving weld quality and cycle times while protecting the module from thermal stress.
- DC Motor Drives and Choppers: For low-voltage, high-torque DC motors found in forklifts, AGVs, and other electric vehicles, this IGBT module provides smooth and efficient control. Its high current rating easily manages motor inrush currents, while its low saturation voltage improves battery life by minimizing wasted energy.
- Battery Charging and Test Systems: High-capacity battery banks require high-current charging and discharging cycles. The CM600HA-5F offers the robust switching capability needed for these systems, enabling faster testing and formation cycles without compromising on reliability or energy efficiency.
- Uninterruptible Power Supplies (UPS): In the DC-AC inverter stage of a high-power UPS, efficiency is paramount. The low losses of the CM600HA-5F contribute to a higher overall efficiency rating for the UPS, reducing operational costs over its lifetime.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 250V |
| Collector Current (Ic) | 600A |
| Collector-Emitter Saturation Voltage (Vce(sat)) (Typ. @ Ic=600A) | 2.0V |
| Power Dissipation (Pc) | 1560W |
| Package Type | H-Series Module |
For a full list of parameters, please contact us for the official datasheet.
Selection Guidance: Single Module vs. Paralleled Devices
Engineers designing high-current circuits often face a choice: use a single, high-rated module like the CM600HA-5F or parallel multiple lower-current IGBTs. While paralleling can seem flexible, it introduces complexities in ensuring equal current sharing and thermal balance. Mismatches can lead to thermal runaway in one device, compromising the entire system. The CM600HA-5F eliminates these risks by design, offering a simpler, more reliable solution with a more straightforward gate drive circuit and simplified thermal design, ultimately reducing design time and improving product robustness.
If your application demands uncompromising performance in high-current, low-voltage power conversion, the Mitsubishi CM600HA-5F is an outstanding choice. Explore more IGBT Modules in our portfolio or reach out to our technical team for personalized application support.
