DMF50260NFU-FW-15: Engineering a Legacy Monochrome Display for Industrial HMIs
Content last revised on October 6, 2025.

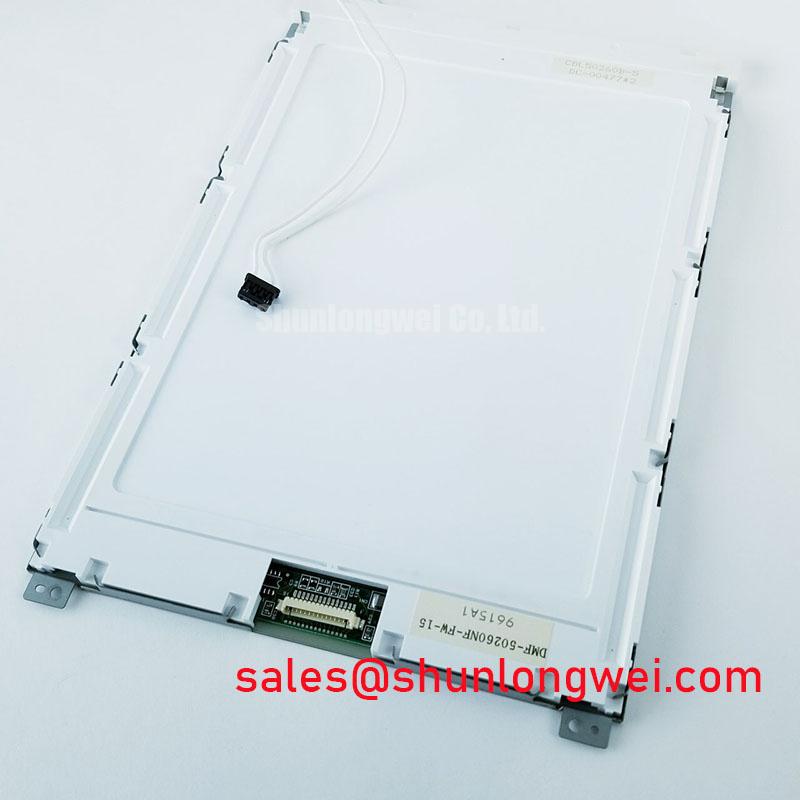

The DMF50260NFU-FW-15 is a 9.4-inch VGA monochrome LCD module engineered for long-term service in industrial control panels, legacy system maintenance, and specialized instrumentation. It delivers a purpose-built solution focused on high-contrast readability and operational endurance, featuring a 640x480 resolution, a CCFL backlight system, and a 4-bit parallel data interface. Key benefits include its proven design for stable, long-term deployments and straightforward system integration. This display directly addresses the need for a reliable, no-frills graphical interface in environments where clarity and durability are paramount. For systems requiring a high degree of visual clarity in text and basic graphical readouts, the DMF50260NFU-FW-15 provides a robust and focused solution.
Key Parameter Overview
Decoding the Specs for Industrial Longevity
The technical specifications of the DMF50260NFU-FW-15 are tailored for industrial applications where performance stability is more critical than cutting-edge features. The parameters below highlight its suitability for control systems that require clear, unambiguous monochrome readouts.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Display Technology | STN (Super-Twisted Nematic), Monochrome | Provides excellent contrast and readability for text and simple graphics, a crucial feature for operator interfaces in industrial machinery. |
| Resolution | 640 x 480 pixels (VGA) | Offers sufficient detail for displaying critical operational data, status indicators, and simple schematics without overwhelming the system's controller. |
| Active Area | 191.97(W) x 143.97(H) mm | The 9.4-inch diagonal provides a generous viewing area, making it easy for operators to read information from a typical distance in a control room or factory floor setting. |
| Brightness | 110 cd/m² (Typ.) | Delivers adequate brightness for indoor industrial environments, ensuring that information remains visible under typical plant lighting conditions. |
| Backlight System | 1 pcs CCFL with 10k Hours (Min.) Lifespan | The Cold Cathode Fluorescent Lamp is a proven technology. A 10,000-hour minimum lifespan signifies a design built for extended operational use before requiring maintenance. |
| Interface | 4-bit Parallel Data | Ensures compatibility with a wide range of established microcontrollers and industrial motherboards, simplifying the design-in process for legacy systems or new cost-sensitive designs. |
| Operating Temperature | 0°C to +50°C | Guarantees reliable operation within the controlled environments of most factory floors, control rooms, and indoor machinery enclosures. |
Download the DMF50260NFU-FW-15 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Legacy and Niche Industrial Equipment
The DMF50260NFU-FW-15 is optimally suited for applications where a straightforward, reliable human-machine interface (HMI) is essential. Its design strengths are most apparent in maintaining or retrofitting existing industrial infrastructure, as well as in new designs that prioritize robustness and simplicity over complex color graphics.
A primary engineering challenge in maintaining legacy industrial equipment, such as older CNC machines or process controllers, is sourcing replacement components that are both electrically and mechanically compatible. The DMF50260NFU-FW-15, with its standard VGA resolution and parallel interface, serves as a dependable drop-in solution. Its physical dimensions and mounting configuration are often aligned with older designs, minimizing the need for mechanical rework. The display's monochrome STN technology provides the high-contrast, unambiguous readouts that are critical for operators monitoring process variables or machine status, ensuring operational continuity without the expense of a complete system overhaul. For systems that may require a smaller footprint, the KCG057QV1DB-G000 offers a 5.7-inch alternative with similar robust characteristics.
Frequently Asked Questions (FAQ)
What is the primary benefit of the STN monochrome display in an industrial context?
STN technology is valued for its high contrast and clear black-and-white imaging. This makes it ideal for displaying critical text and data in factory environments, where quick and error-free readability is more important than color representation.
How does the 4-bit parallel interface impact system design?
This interface is a classic, straightforward method for connecting a display to a controller. It's well-understood by engineers and is supported by a vast number of legacy and low-cost microcontrollers, which simplifies firmware development and hardware integration, especially for maintaining existing product lines.
Is the CCFL backlight still a viable option for new designs?
While LED backlights are more common today, CCFL technology is a mature and reliable solution. For specific replacement scenarios or designs that were originally qualified with CCFL, using the DMF50260NFU-FW-15 ensures consistent performance and avoids the need for re-engineering the backlight driver circuitry.
What does the 10,000-hour backlight lifespan mean for maintenance schedules?
A 10,000-hour minimum lifespan translates to over a year of continuous 24/7 operation. In a typical 8-hour, 5-day work week, this extends to nearly five years of service. This allows for predictable, long-interval maintenance cycles, which is a significant advantage in production-critical industrial machinery.
Mechanical Robustness & Environmental Resilience
Engineered for the Factory Floor
The DMF50260NFU-FW-15 is constructed to withstand the typical conditions of an industrial setting. Its mechanical design prioritizes durability and ease of integration into machine control panels or HMI enclosures. The module's specified operating temperature range of 0°C to 50°C ensures consistent performance in climate-controlled manufacturing areas and equipment rooms. The use of established components like the CCFL backlight and STN glass contributes to a predictable and reliable operational life, reducing the likelihood of unexpected failures that could halt production lines. This focus on fundamental robustness makes it a sound choice for systems where long-term dependability is a key design criterion.
Strategic Considerations for System Integration
Integrating the DMF50260NFU-FW-15 into an industrial system is a strategic decision rooted in prioritizing reliability and long-term supply chain stability for essential HMI components. Its VGA resolution and parallel interface represent a stable, widely supported standard, mitigating risks associated with component obsolescence often seen with more consumer-driven display technologies. For OEMs and system integrators, this means easier long-term product support and maintenance. The module's design is not about chasing the latest technological trends; it is about providing a consistent, dependable visual interface that allows operators to do their jobs effectively. This focus on core functionality ensures that the HMI remains a reliable asset throughout the extended lifecycle of the industrial machinery it serves.
