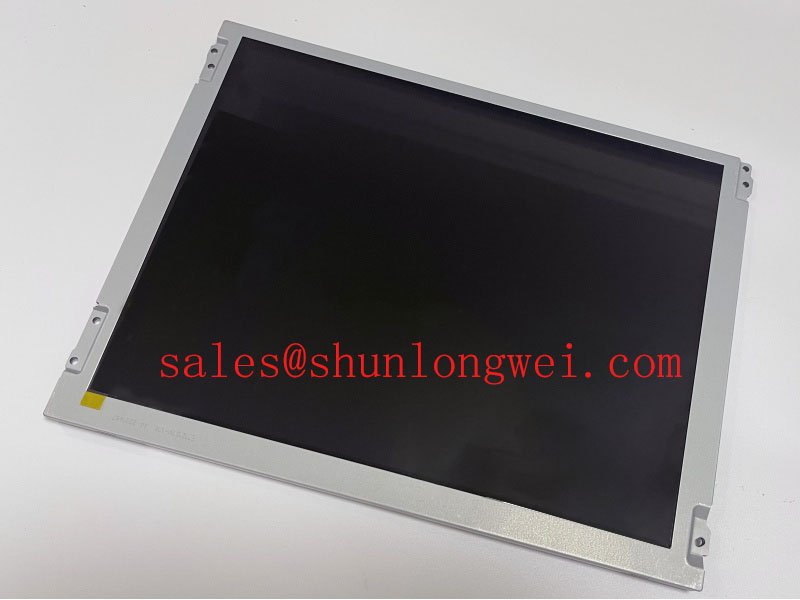

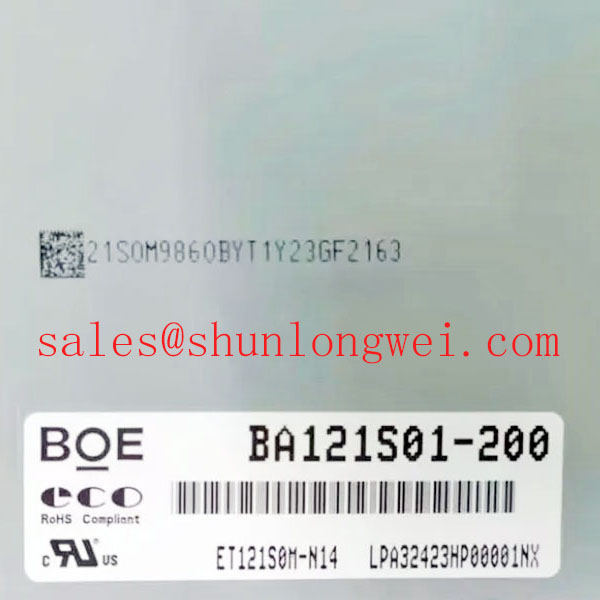

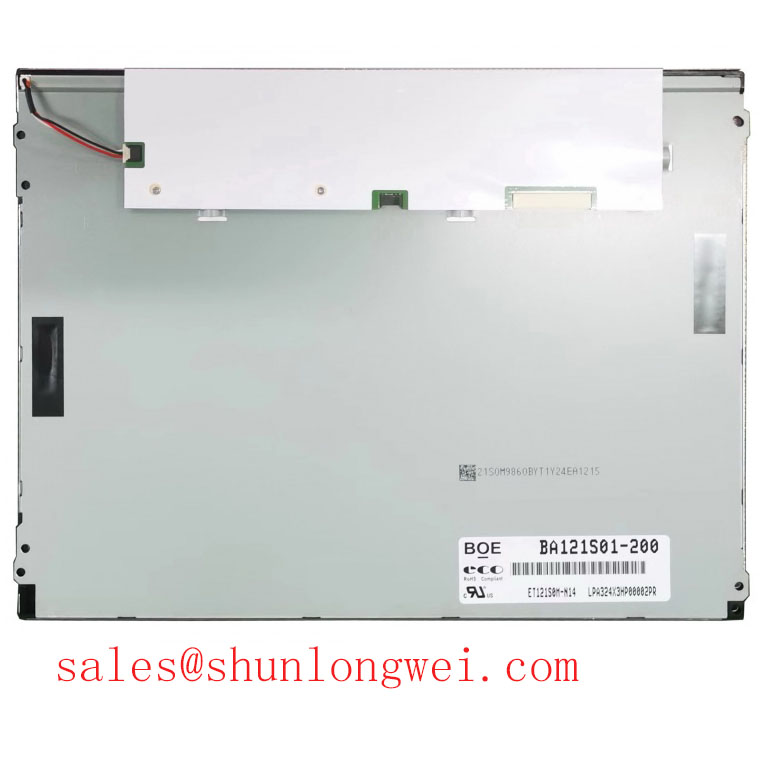

BOE ET121S0M-N14 | A Robust 12.1-Inch SVGA Industrial Display
The BOE ET121S0M-N14 is a 12.1-inch a-Si TFT-LCD panel engineered for long-term performance in demanding industrial environments. It combines a classic SVGA (800x600) resolution with modern manufacturing standards to deliver a display solution that is both reliable and cost-effective. Its robust feature set makes it an ideal choice for new system designs and as a drop-in replacement for legacy applications requiring consistent, high-quality visuals.
- Industrial-Grade Reliability: Built to operate flawlessly in a wide temperature range from -20°C to 70°C, ensuring dependable performance in environments from cold storage facilities to hot factory floors.
- Clear Visual Performance: Features a brightness of 400 cd/m² and a strong 800:1 contrast ratio, delivering crisp, readable images. The antiglare surface treatment minimizes reflections for enhanced visibility under various lighting conditions.
- Long-Term Operational Stability: Equipped with a long-life WLED backlight system rated for 30,000 hours and includes an integrated LED driver. This design minimizes maintenance requirements and lowers the total cost of ownership over the product's lifecycle.
- Seamless Integration: A standard LVDS (Low-Voltage Differential Signaling) interface ensures straightforward connectivity with a wide variety of industrial motherboards and single-board computers, simplifying design and reducing development time.
Key Parameters Overview
The technical specifications of the ET121S0M-N14 are tailored for industrial utility, balancing performance with ruggedness. For engineers requiring comprehensive technical documentation, a detailed datasheet is available for review.
| Parameter | Value |
|---|---|
| Manufacturer | BOE |
| Model | ET121S0M-N14 |
| Screen Size | 12.1 inches |
| Resolution | 800(RGB)×600 [SVGA] |
| Panel Technology | a-Si TFT-LCD, TN, Normally White |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Viewing Angle (L/R/U/D) | 80/80/65/75 (Typ.)(CR≥10) |
| Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Backlight | WLED, 30,000 Hours (with LED Driver) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Technical Deep Dive: The Engineering Behind the Performance
The ET121S0M-N14 is built upon a foundation of proven a-Si TFT (Amorphous Silicon) technology. This mature manufacturing process is the backbone of its reliability and cost-efficiency, offering a stable platform that has been trusted in the industrial sector for decades. While newer technologies exist, a-Si TFT provides an unmatched balance of performance for the vast majority of HMI and control applications where uptime and budget are primary concerns.
Its transition from older CCFL backlights to a modern WLED system is a critical engineering upgrade. This not only extends the operational life to an impressive 30,000 hours but also significantly reduces power consumption and heat generation. Less heat simplifies thermal management within the end-product's enclosure and enhances the reliability of adjacent electronic components. For a deeper understanding of display technologies, explore The Ultimate Guide to TFT-LCD.
Application Scenarios and Value Proposition
The BOE ET121S0M-N14 excels in applications where clarity, reliability, and long-term availability are paramount.
- Industrial Human-Machine Interfaces (HMIs): The 4:3 aspect ratio and SVGA resolution are a perfect match for a wide range of industrial control software. Its robust temperature range and durable construction make it ideal for deployment directly on the factory floor.
- Medical Instrumentation: In devices for diagnostics and patient monitoring, the stable performance and high contrast of the ET121S0M-N14 ensure that critical data is displayed clearly and accurately.
- Test and Measurement Equipment: The standard LVDS interface and straightforward power requirements allow for easy integration into custom-built test benches and portable measurement devices that need to withstand field conditions.
- Transportation and Logistics: This display is well-suited for in-vehicle systems in forklifts, agricultural machinery, and public transit, where it can function as a reliable information or control panel.
Selection & Comparative Analysis
When selecting a 12.1" SVGA display, engineers often weigh options based on specific application needs. The BOE ET121S0M-N14 is a quintessential workhorse, prioritizing reliability and cost-effectiveness. Its TN panel technology offers excellent response times and solid head-on viewing performance, making it perfect for fixed operator stations.
For applications demanding wider viewing angles, a model like the G121SN01 V4 may be a suitable alternative. The G121SN01 V4 often utilizes technology that provides superior off-axis viewing, which is beneficial if the display must be clearly legible to multiple operators or from various angles. However, the ET121S0M-N14 often presents a more compelling value proposition for cost-sensitive projects that do not require such wide viewing cones, without compromising on industrial-grade durability and operational lifespan.
Frequently Asked Questions (FAQ)
Does the ET121S0M-N14 support touch functionality?
While the ET121S0M-N14 module itself does not include an integrated touchscreen, its mechanical design is standardized to facilitate the addition of third-party touch overlays. It is fully compatible with both resistive and projected capacitive (PCAP) touch panels, offering system designers the flexibility to choose the touch technology that best fits their application's requirements, whether for gloved use or multi-touch gestures. For more on this, see our guide on RTP vs. PCAP technology.
What is the primary advantage of the LVDS interface in an industrial setting?
The LVDS interface is critical for industrial applications due to its high immunity to electromagnetic interference (EMI). The differential signaling method effectively cancels out common-mode noise, which is prevalent in environments with motors, actuators, and high-power switching. This results in a stable, flicker-free image even over longer cable distances, ensuring signal integrity where standard single-ended interfaces might fail.
Why choose an SVGA display when higher resolutions are available?
Choosing an SVGA (800x600) display is a strategic engineering decision. Many legacy industrial software systems are optimized for this resolution, ensuring seamless backward compatibility without software redevelopment. Furthermore, SVGA panels consume less power and require less processing bandwidth than their higher-resolution counterparts, leading to a more efficient and cost-effective overall system design. For a wide array of control and monitoring tasks, SVGA provides sufficient detail while maximizing stability and value.
