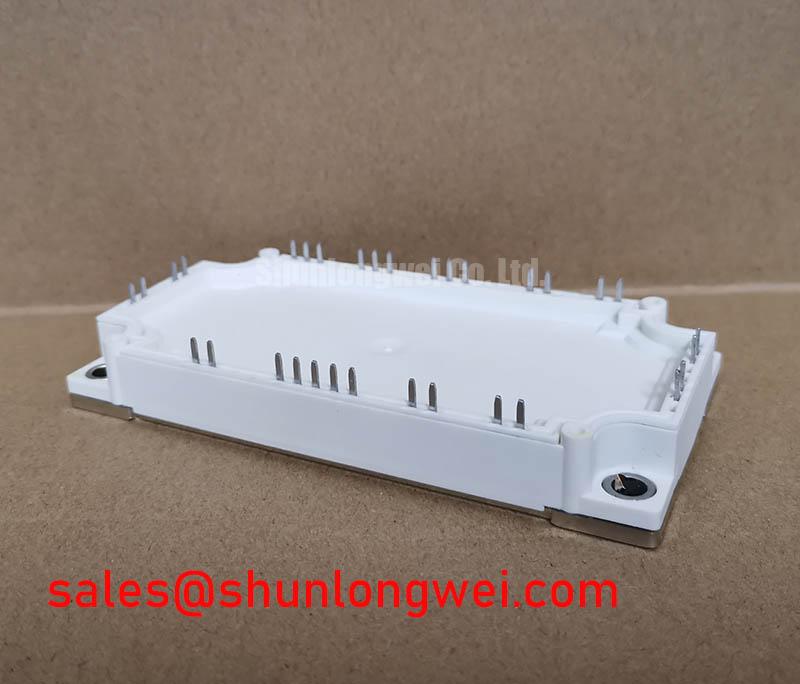

Infineon FP75R12KT4_B16 IGBT Module | Optimizing Efficiency with 3-Level T-NPC Topology
The Infineon FP75R12KT4_B16 is a highly integrated 1200V, 75A Power Integrated Module (PIM) engineered for next-generation power conversion systems. By leveraging an advanced T-NPC topology and Infineon's proven IGBT4 technology, this module provides a superior solution for applications where efficiency, power density, and output quality are paramount. It is specifically designed for engineers developing sophisticated solar inverters, high-performance uninterruptible power supplies (UPS), and advanced industrial motor drives.
Technical Deep Dive: The Core of Performance
- Advanced 3-Level T-NPC Topology: Unlike conventional 2-level inverters that switch between the full positive and negative DC-link voltage, the T-type Neutral Point Clamped (T-NPC) architecture introduces a third, zero-voltage state. This effectively halves the blocking voltage each switching device must handle.
Application Value: This fundamental change drastically reduces switching losses (E_sw), which are a primary source of heat and inefficiency. The result is a system that can operate at higher frequencies for better control, or at the same frequency with significantly lower thermal stress. Furthermore, the 3-level output waveform is a closer approximation of a pure sine wave, which dramatically reduces harmonic distortion (THD), shrinks the size and cost of required output filters, and simplifies EMC compliance. - IGBT4 Trench Field-Stop (TFS) Technology: The FP75R12KT4_B16 is built upon Infineon's robust IGBT4 Trench Field-Stop silicon. This technology provides an excellent balance between low collector-emitter saturation voltage (Vce(sat)) for minimal conduction losses and controlled switching characteristics for robust operation. It is co-packed with an optimized Emitter Controlled 4 freewheeling diode.
Application Value: This translates to exceptional overall efficiency across a broad load range. The soft recovery behavior of the diode minimizes voltage overshoots during turn-off, reducing stress on the IGBTs and mitigating electromagnetic interference (EMI), which simplifies the gate drive and snubber circuit design.
Unlocking Value Across Demanding Applications
The unique features of the Infineon FP75R12KT4_B16 deliver tangible benefits in several key industrial sectors:
- Solar Inverters: In grid-tied solar applications, every percentage point of efficiency counts. The module's extremely low switching losses enable a higher Maximum Power Point Tracking (MPPT) efficiency, maximizing the energy harvested and revenue generated over the system's lifetime.
- Uninterruptible Power Supplies (UPS): For data centers and critical infrastructure, the high efficiency of a 3-Level Neutral Point Clamped inverter directly reduces operating expenses through lower electricity consumption and cooling requirements. The clean output power waveform ensures the highest level of protection for sensitive server and networking equipment.
- High-Efficiency Industrial Drives: In applications like servo control and robotics, the FP75R12KT4_B16 enables smoother motor operation with less torque ripple and reduced acoustic noise. This leads to higher precision, improved product quality, and a better working environment.
- Energy Storage Systems (ESS): The module's bi-directional capability and high efficiency make it ideal for battery charging and discharging cycles, minimizing energy loss and maximizing the round-trip efficiency of the storage system.
Key Technical Parameters at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Nominal Collector Current (I_C nom) | 75 A |
| Collector-Emitter Saturation Voltage (V_CEsat, typ. at I_C nom) | 1.85 V |
| Maximum Operating Junction Temperature (T_vj op) | 150 °C |
| Module Topology | Three-Level T-Type NPC Inverter + Brake-Chopper + Rectifier |
For detailed specifications, please refer to the official FP75R12KT4_B16 Datasheet.
Selection Advice: FP75R12KT4_B16 vs. Conventional 2-Level Modules
Engineers often weigh this module against a standard 1200V/75A 6-pack IGBT module. While a 6-pack offers simpler gate drive logic, it operates in a 2-level mode, resulting in significantly higher switching losses and a poorer quality output waveform. This necessitates larger heatsinks and more complex filtering. The Infineon FP75R12KT4_B16 is the superior choice for systems where maximizing efficiency, achieving high power density, and minimizing EMI are the primary design drivers. The upfront investment in a more advanced topology is quickly repaid through reduced system-level costs and superior performance.
To evaluate if this advanced topology is right for your next project or to Explore More IGBT Modules, our technical team is ready to assist. Contact Us for a Quote and expert consultation.
