FZ800R12KE3: Engineering High-Power Conversion with Unmatched Thermal Stability
A Deep Dive into Robust Performance for Demanding Applications

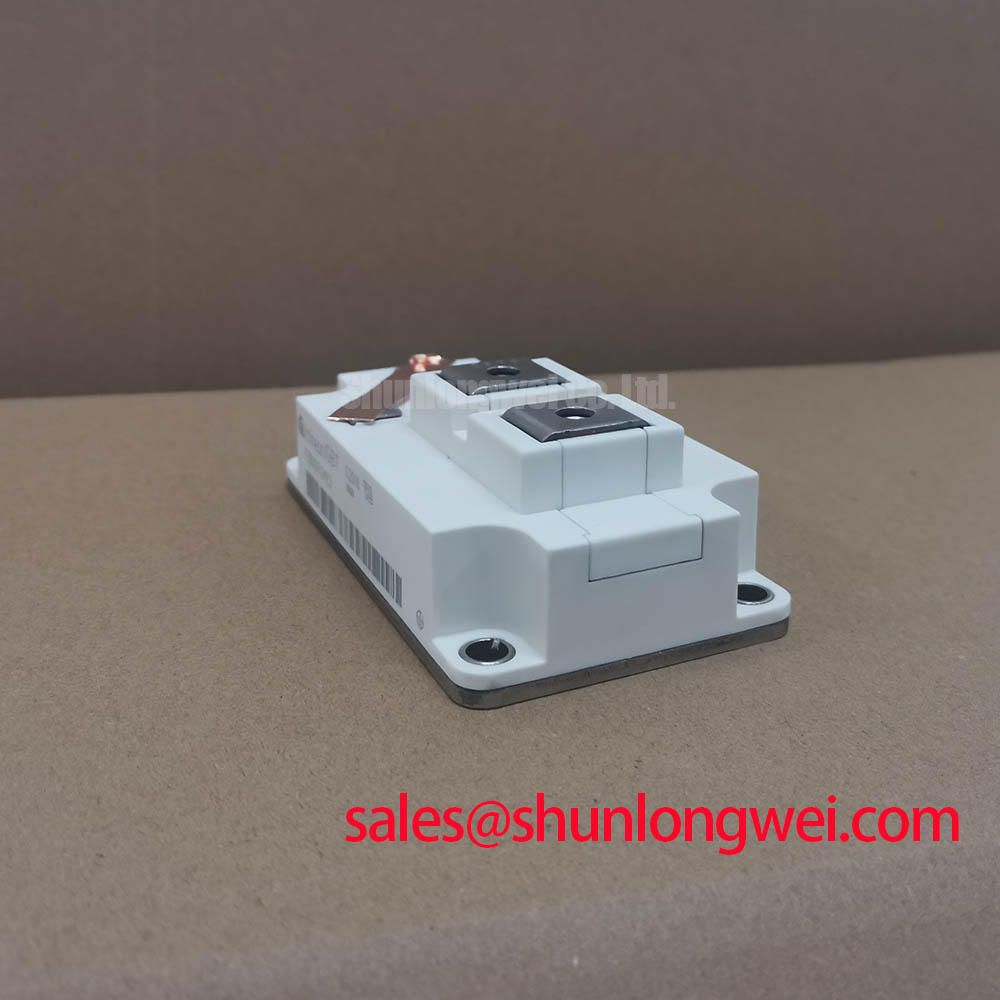

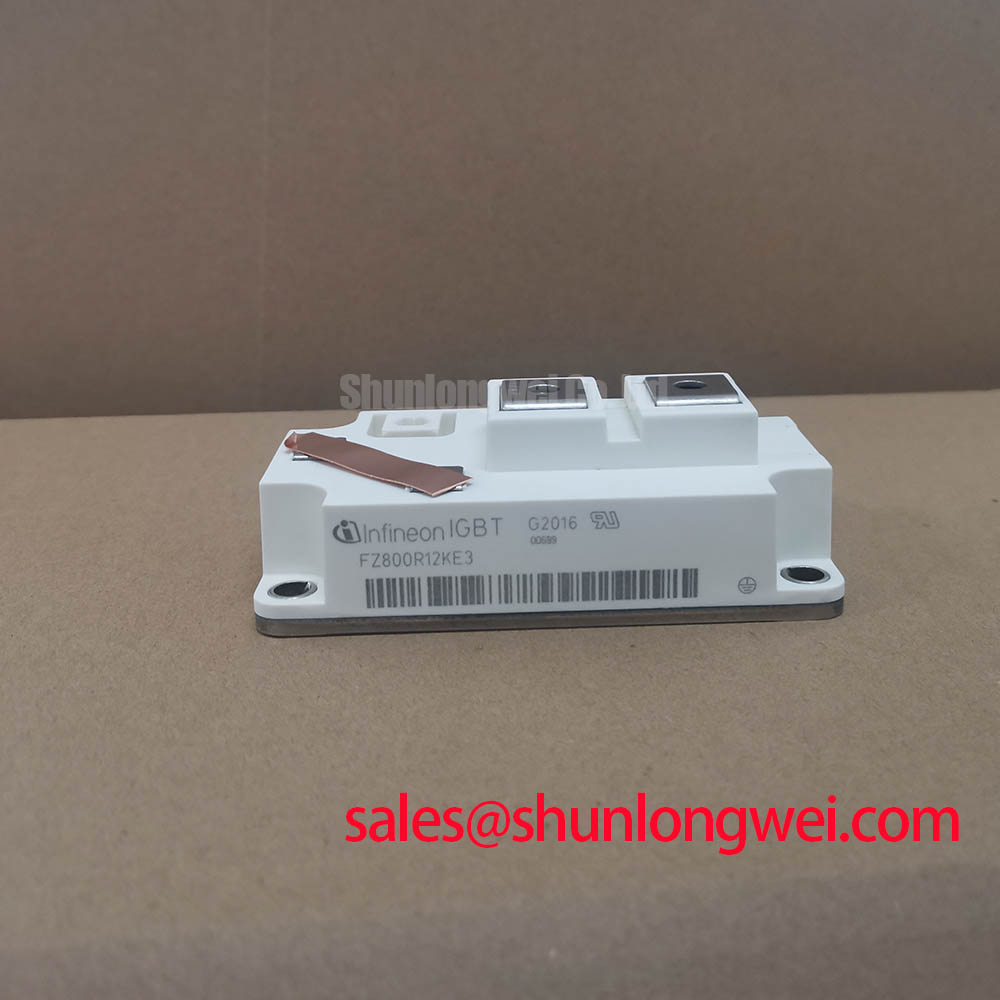

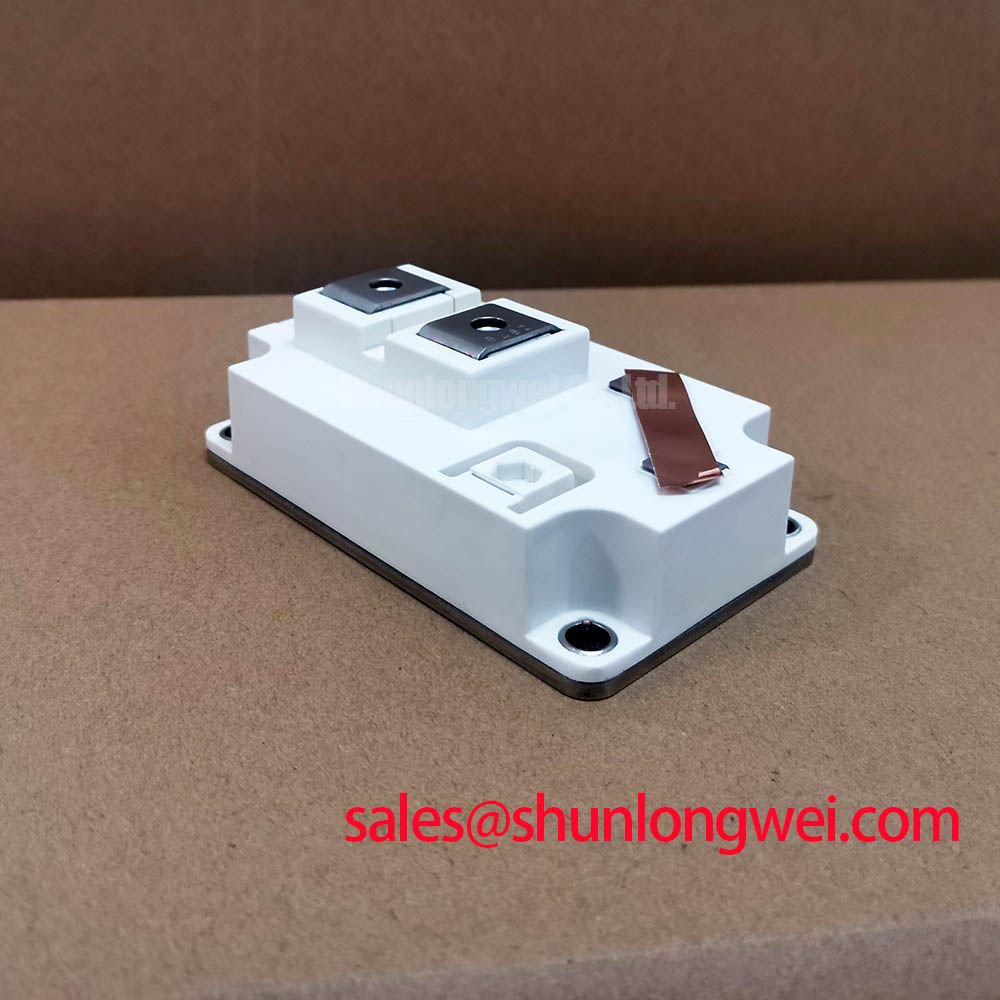

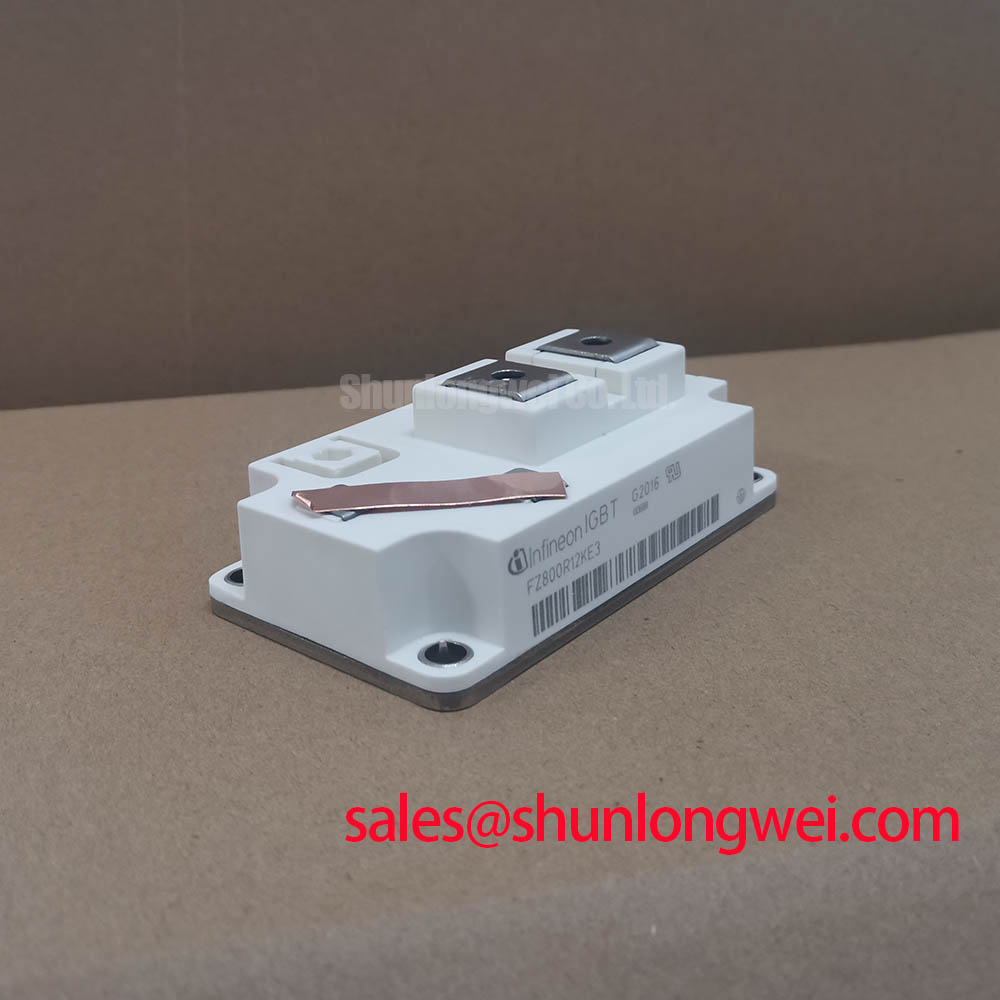

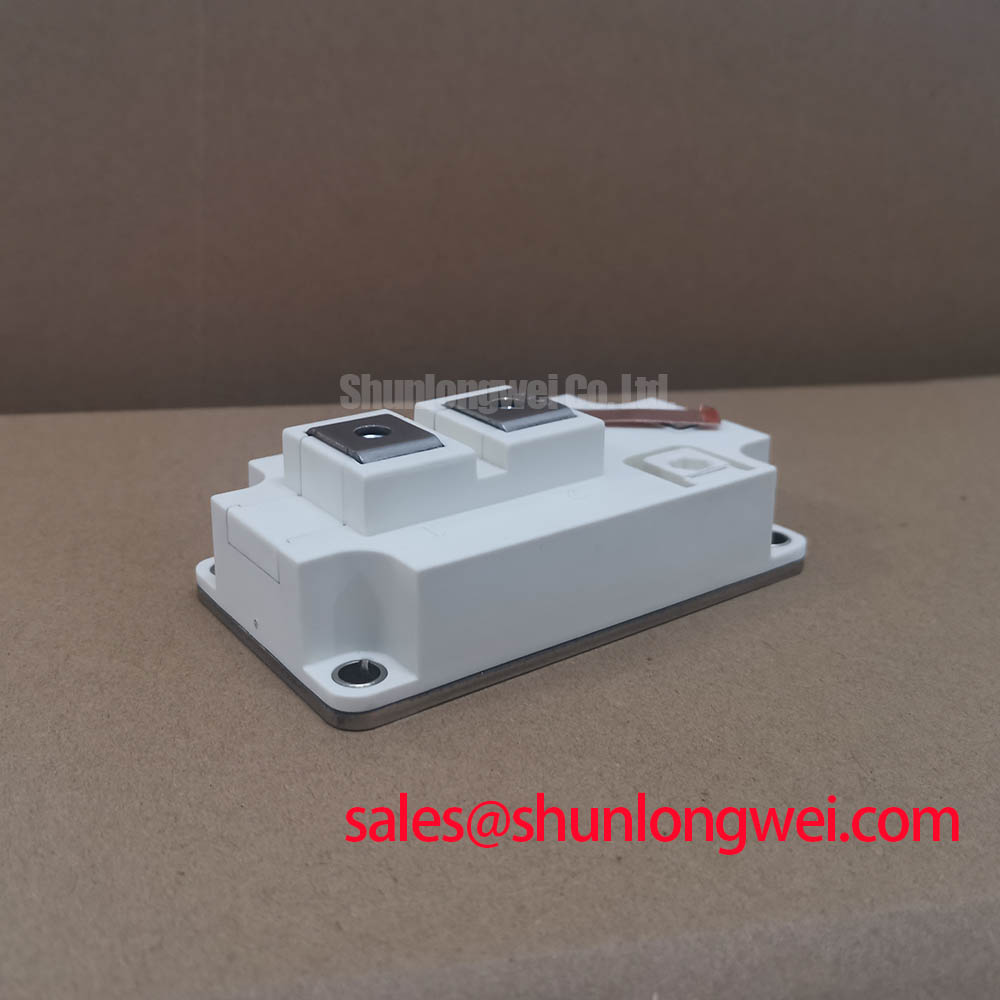

The Infineon FZ800R12KE3 is a 1200V, 800A single-switch IGBT module engineered for high-reliability power conversion systems. Housed in the industry-proven IHM-B package, this module is not just a high-current switch; it's a foundational component for designers prioritizing thermal efficiency, low conduction losses, and operational longevity. At its core, the FZ800R12KE3 leverages Infineon's advanced TrenchSTOP™ IGBT3 technology, which represents a significant step forward in balancing low VCE(sat) with reduced switching losses, a critical trade-off in high-frequency and high-power applications.
Technical Analysis: Beyond the Primary Ratings
While the 1200V blocking voltage and 800A nominal current rating are impressive, the true engineering value of the FZ800R12KE3 lies in its nuanced characteristics. The TrenchSTOP™ IGBT3 technology provides a very low collector-emitter saturation voltage (VCE(sat)) of 1.70V (typical at nominal current). This directly translates to lower on-state power dissipation, a crucial factor in minimizing heat generation and improving overall system efficiency. For engineers developing systems like large-scale solar inverters or commercial UPS units, this reduction in conduction losses allows for more compact heatsink designs or higher power output from a given system footprint.

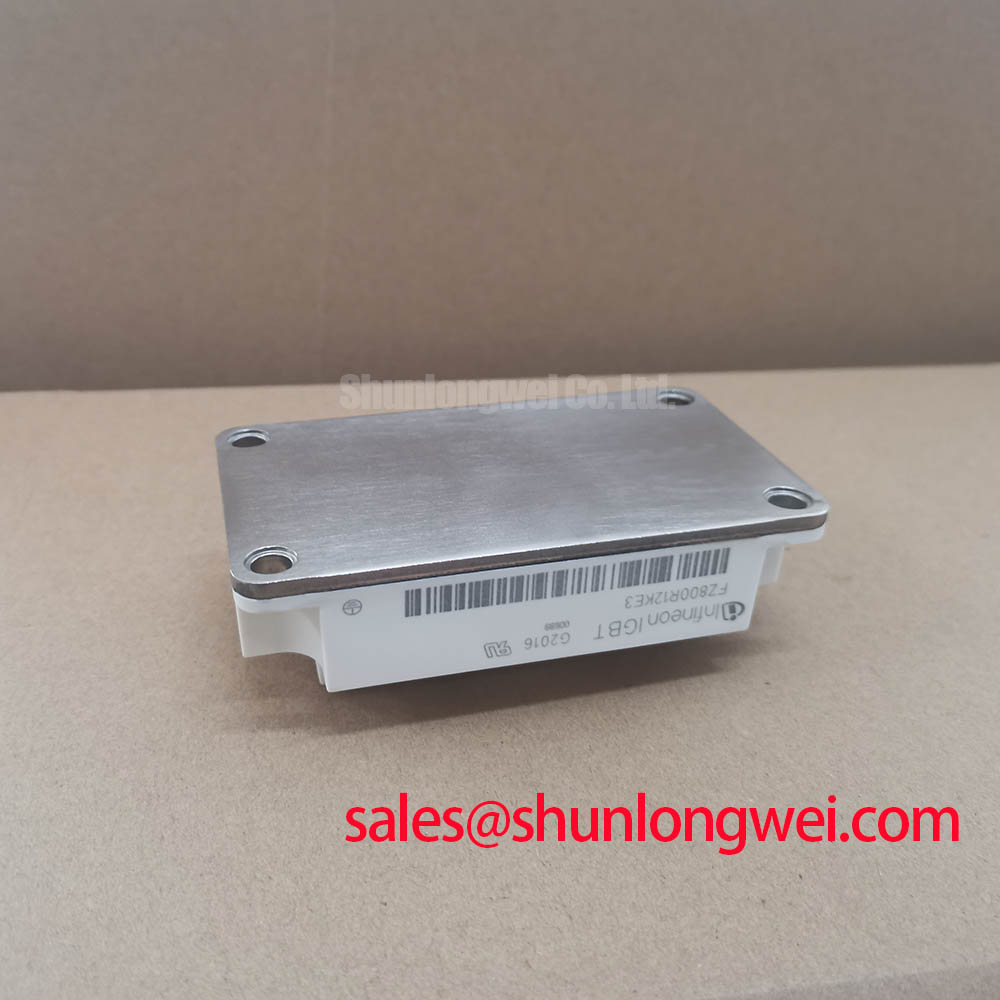

Furthermore, the module's robust IHM-B housing, featuring an AlSiC base plate with a low coefficient of thermal expansion (CTE), ensures superior thermal cycling capability. This mechanical stability is paramount in applications subjected to frequent temperature fluctuations, such as wind turbine pitch controls or heavy-duty industrial motor drives. It mitigates mechanical stress between the module and the heatsink over tens of thousands of cycles, preventing solder fatigue and ensuring a longer operational lifetime. This focus on mechanical reliability is a key differentiator, offering a lower total cost of ownership compared to modules with less robust construction. For even higher power requirements within a similar voltage class, the [FZ1200R12KF5](https://www.slw-ele.com/fz1200r12kf5.html) offers a step up in current handling capability.
Application Spotlight: High-Power Industrial Motor Drives
Consider a variable frequency drive (VFD) for a multi-megawatt industrial motor used in mining or material processing. These systems demand continuous, reliable operation under harsh electrical and thermal conditions. The FZ800R12KE3 is ideally suited for the inverter stage of such a VFD. Its high current handling capacity and low VCE(sat) enable precise and efficient motor control, reducing energy consumption. The module's excellent short-circuit withstand time (10 µs) provides a critical safety margin, protecting the drive from potentially catastrophic load-fault conditions. This robust design ensures the drive can handle the demanding torque and speed requirements of heavy industry, directly contributing to operational uptime and productivity. For further reading on this topic, explore the fundamentals of how IGBTs power high-efficiency systems in our guide, [IGBT Modules: The Backbone of High-Efficiency Power Systems and Emerging Technologies](https://www.slw-ele.com/resources/igbt-modules-the-backbone-of-high-efficiency-power-systems-and-emerging-technologies).
Key Parameter Overview
| Parameter | Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V | Provides a robust voltage margin for applications on 480V to 690V AC lines. |
| Continuous Collector Current (Ic nom) | 800 A (@ Tc = 80°C) | Enables high power throughput for demanding industrial and renewable energy systems. |
| Collector-Emitter Saturation Voltage (VCE(sat), typ.) | 1.70 V | Minimizes conduction losses, leading to higher efficiency and reduced thermal load. |
| Maximum Junction Temperature (Tvj max) | 150 °C | Offers high thermal headroom for reliable operation in demanding environments. |
| Package | IHM-B | Industry-standard housing ensures mechanical robustness and simplifies system integration. |
Frequently Asked Questions for the FZ800R12KE3
- What is the primary advantage of the TrenchSTOP™ IGBT3 technology in this module? The main benefit is the optimized balance between low conduction losses (low VCE(sat)) and moderate switching losses. This makes the FZ800R12KE3 highly efficient for applications operating at typical industrial frequencies (e.g., 2-10 kHz), reducing overall system heat.
- Is paralleling of the FZ800R12KE3 recommended for higher current output? Yes, this module is designed for parallel operation. Its positive temperature coefficient of VCE(sat) ensures inherent thermal stability and aids in current sharing among parallel modules. However, careful attention to symmetrical busbar design and gate drive layout is crucial. A deeper understanding of potential failure modes is essential; see our guide on [IGBT Failure Analysis](https://www.slw-ele.com/igbt-failure-analysis-preventing-overcurrent-overvoltage-and-overtemperature.html).
- What kind of gate driver is suitable for the FZ800R12KE3? A gate driver capable of providing a +15V turn-on voltage and a negative turn-off voltage (e.g., -8V to -15V) is recommended. The negative gate voltage ensures robust noise immunity and prevents parasitic turn-on, which is critical in high-power, noisy environments.
The FZ800R12KE3 from Infineon is more than just a component; it is a strategic choice for engineers who require a power module that delivers on its promises of efficiency, robustness, and long-term reliability. Its blend of advanced chip technology and proven packaging provides a solid foundation for the next generation of high-power converters.
