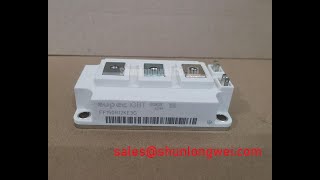

Infineon FF150R12KE3G | The Workhorse 1200V IGBT for Industrial Drives and Converters
The Infineon FF150R12KE3G is not just another component; it's a testament to engineering that prioritizes reliability and performance in the real world. Housed in the industry-standard EconoPACK™ 2 package, this dual 1200V / 150A IGBT module has established itself as a cornerstone for medium-power applications. For engineers designing systems where uptime is non-negotiable and performance must be consistent over years of service, the FF150R12KE3G delivers a proven, cost-effective solution without unnecessary complexity.
Technical Deep Dive: Why It Performs
The enduring success of the FF150R12KE3G is rooted in its foundational technology. It masterfully balances efficiency, robustness, and ease of implementation. Two core elements define its character:
- TrenchStop™ IGBT3 Technology: This represents a pivotal generation of IGBT design. Unlike earlier planar technologies, the Trench Field-Stop structure achieves a significantly lower on-state voltage (VCE(sat)) without a drastic trade-off in switching speed. For the design engineer, this directly translates to lower conduction losses, reducing the thermal load and simplifying heatsink design. It hits the sweet spot for applications operating in the 5 kHz to 20 kHz range, common in many industrial drives.
- Emitter Controlled Diode: The integrated freewheeling diode is not an afterthought. It's an Emitter Controlled diode engineered for soft recovery characteristics. This "softness" is critical for minimizing voltage overshoot and oscillations during IGBT turn-off, which in turn reduces electromagnetic interference (EMI). This simplifies the overall system design, potentially reducing the need for complex snubber circuits and easing the burden of regulatory compliance.
Key Parameters at a Glance
For engineers requiring quick-reference data, the following table summarizes the critical performance metrics of the FF150R12KE3G. These values underscore its suitability for robust power conversion tasks.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C nom) | 150 A (@ T_C = 80°C) |
| Collector-Emitter Saturation Voltage (V_CEsat, typ.) | 1.70 V (@ I_C = 150 A, V_GE = 15 V, T_vj = 25°C) |
| Maximum Virtual Junction Temperature (T_vj max) | 150 °C (175°C for short-term overload) |
| Thermal Resistance, Junction-to-Case (R_thJC) per IGBT | 0.19 K/W |
For a complete and detailed breakdown of all parameters, you can download the official FF150R12KE3G datasheet here.
Application Scenarios & Value Proposition
The true value of an IGBT module is realized in its application. The FF150R12KE3G excels in environments where its specific characteristics solve critical engineering challenges:
- Industrial Motor Drives: In Variable Frequency Drives (VFDs), this module’s excellent thermal performance and robust Safe Operating Area (SOA) provide the durability needed to handle the torque demands and cyclic loads of industrial motors. Its proven reliability translates directly to higher factory uptime.
- Solar Inverters: For commercial string inverters, longevity is paramount. The FF150R12KE3G’s mature technology and robust packaging ensure it can withstand the harsh environmental and thermal cycles of solar applications, contributing to a lower Levelized Cost of Energy (LCOE).
- Uninterruptible Power Supplies (UPS): In online double-conversion UPS systems, efficiency is key. The low VCE(sat) of the IGBT3 technology minimizes conduction losses in the inverter stage, leading to higher overall system efficiency, reduced operating costs, and smaller cooling systems.
Strategic Advantage: The Power of a Proven Platform
In an industry chasing the latest specifications, the Infineon FF150R12KE3G offers a different kind of advantage: certainty. While newer technologies like SiC or advanced IGBT generations push the boundaries of switching frequency and power density, they also introduce new design challenges and supply chain variables. For mainstream industrial systems, this module represents a stable, well-understood platform. Engineers can leverage a vast body of application notes and design knowledge, minimizing project risk and accelerating time-to-market for high-volume, cost-sensitive products. It is the intelligent choice when reliability is more valuable than novelty. For a deeper understanding of how IGBTs function as the core of modern power systems, explore our guide on the backbone of high-efficiency power systems.
Engineer's FAQ
What are the ideal gate drive voltage levels for the FF150R12KE3G?
For optimal performance and to ensure a hard turn-off, a bipolar gate drive is strongly recommended. The standard configuration is +15V for turn-on and a negative voltage between -8V and -15V for turn-off. The negative voltage provides a critical noise margin, preventing parasitic turn-on induced by dV/dt, which is a common cause of catastrophic failure in half-bridge configurations.
How can I ensure optimal thermal management with the EconoPACK™ 2 package?
Effective thermal management hinges on minimizing the thermal resistance between the module's baseplate and the heatsink. Always use a high-quality Thermal Interface Material (TIM) screen-printed to the manufacturer's recommended thickness. Ensure the heatsink surface is flat and clean, and apply the mounting screws using a torque wrench to the specification in the datasheet to guarantee even pressure distribution without warping the baseplate.
