7MBR50UA120-50 IGBT Module: Datasheet & Engineering Review
Compact Power Integration for Demanding Drive Applications

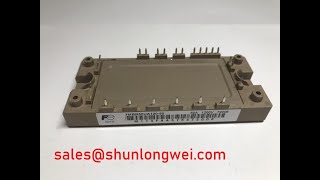

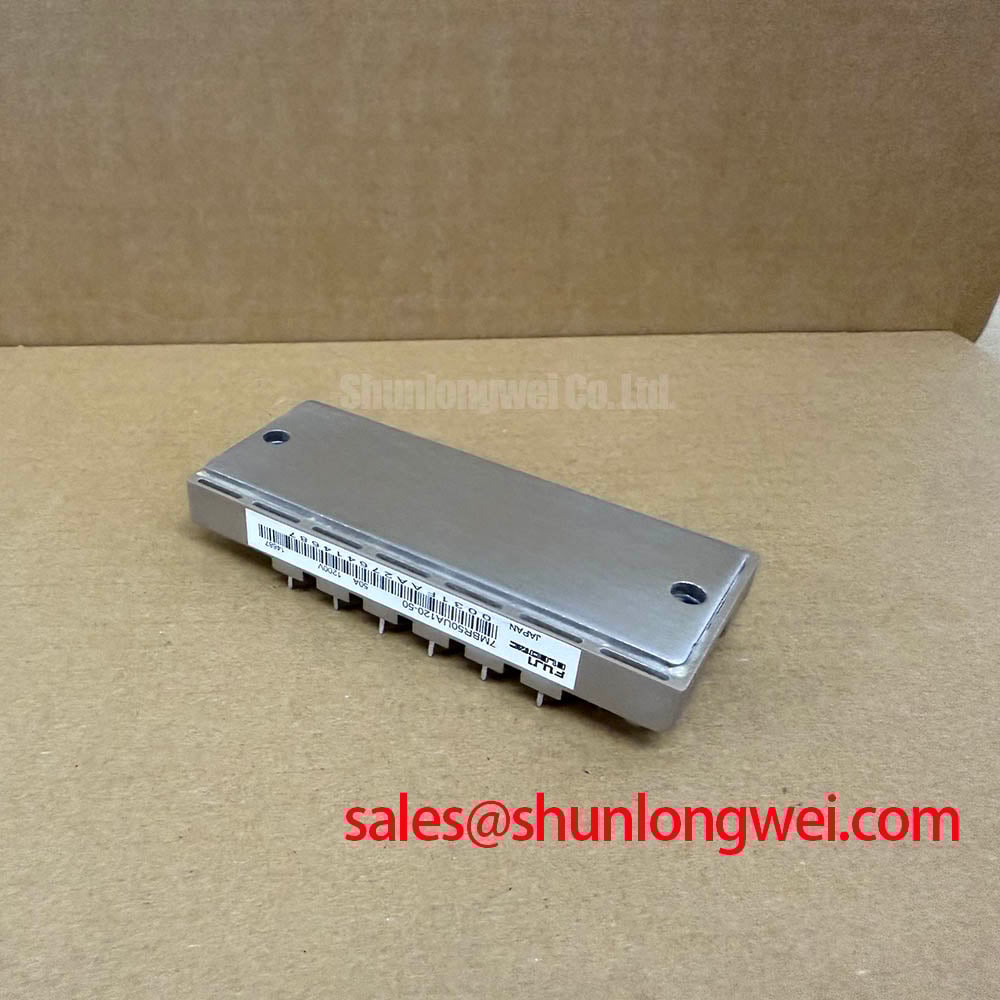

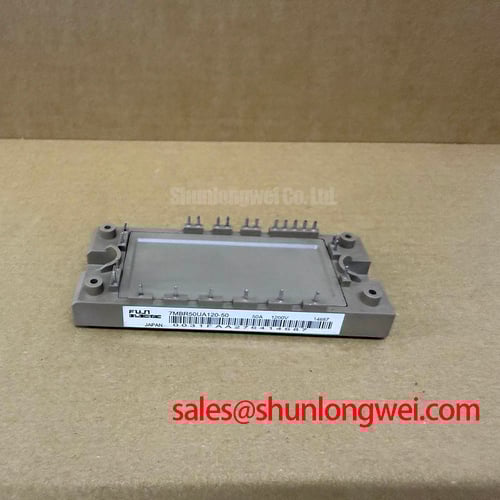

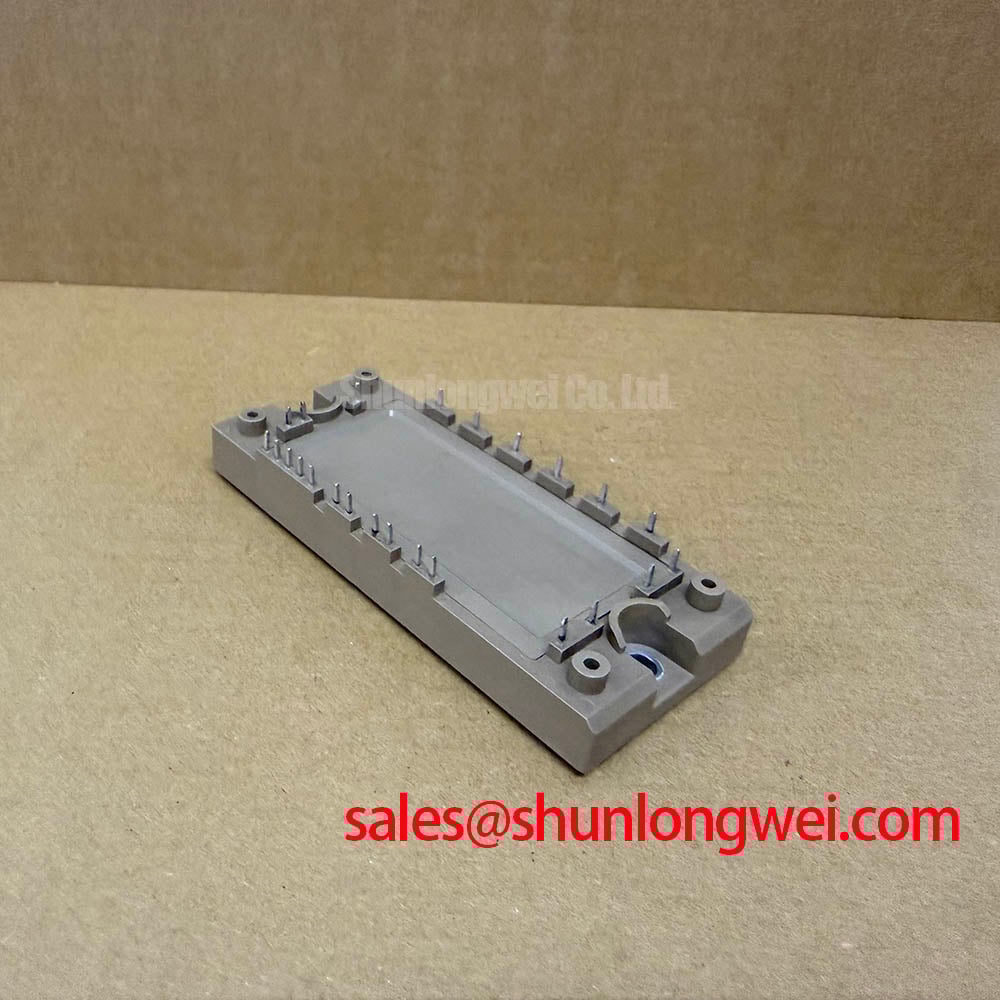

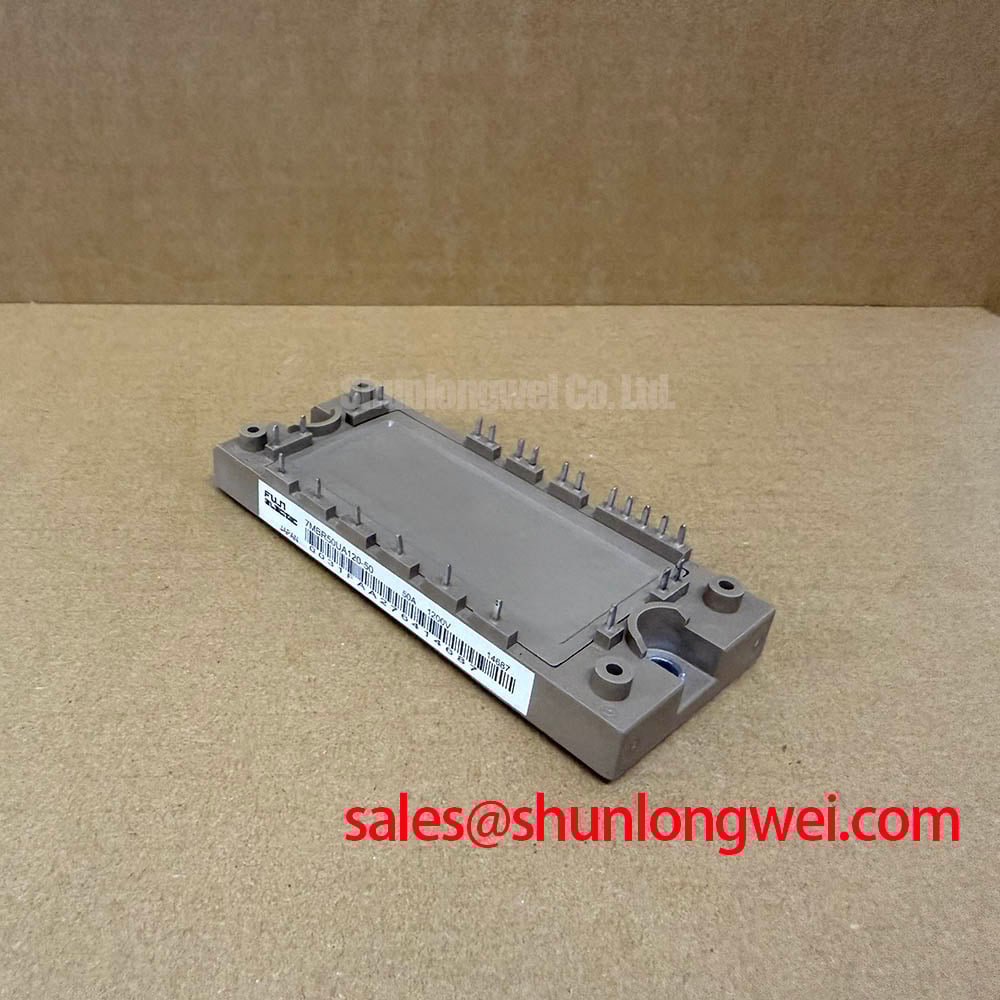

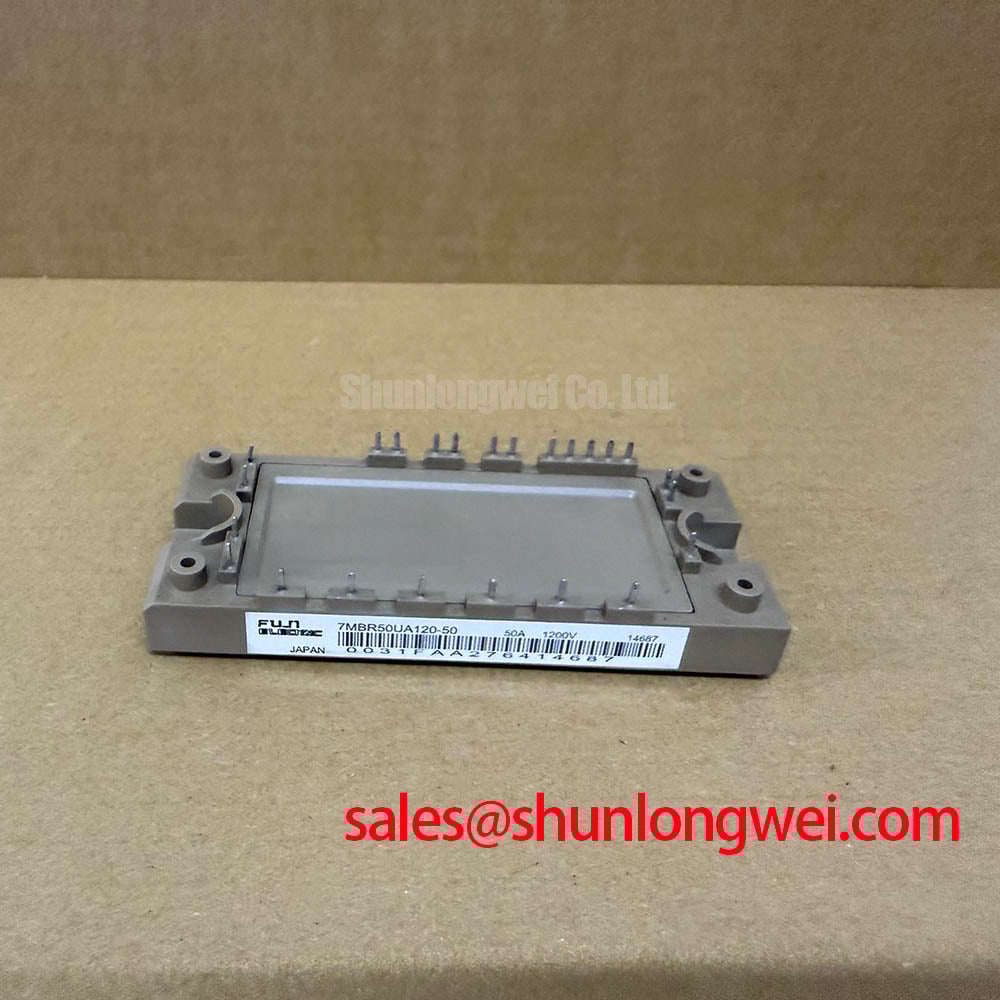

The Fuji Electric 7MBR50UA120-50 is a highly integrated Power Integrated Module (PIM) designed to streamline the power stage of compact motor drives and power supplies. This module delivers robust performance by co-packaging a three-phase converter bridge, a brake chopper, and a three-phase inverter into a single, thermally efficient unit. Its design directly addresses the engineering challenge of maximizing power density without compromising on thermal stability or electrical performance in space-constrained industrial systems.
Operational Contexts and Strategic Value
In today's automated industrial landscape, the pressure to reduce equipment footprint while increasing power output is constant. The 7MBR50UA120-50 directly supports this trend by offering a "seven-pack" configuration that consolidates multiple power functions. This integration is crucial for designers of small to medium-sized Variable Frequency Drives (VFDs), AC servo amplifiers, and uninterruptible power supplies (UPS). By using a single PIM like the 7MBR50UA120-50, engineers can significantly simplify printed circuit board (PCB) layouts, reduce component count, and minimize assembly complexity. This leads to faster design cycles and a lower total cost of ownership, providing a distinct advantage in competitive markets.
Core Technical Specifications at a Glance
For engineers performing a preliminary evaluation, the following parameters are central to the 7MBR50UA120-50's capabilities. This selection is intended to provide a high-level overview of its performance envelope for initial design consideration.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) - Inverter/Brake | 1200 V |
| Continuous Collector Current (IC) - Inverter (Tc=80°C) | 50 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) - Inverter (IC=50A) | 2.40 V (Typ) |
| Repetitive Peak Reverse Voltage (VRRM) - Converter | 1600 V |
| Power Dissipation (PC) - Inverter (1 device) | 205 W |
For a comprehensive list of all electrical and thermal characteristics, please refer to the official 7MBR50UA120-50 datasheet.
Frequently Asked Questions for System Designers
What is the primary benefit of the integrated seven-pack configuration in the 7MBR50UA120-50?
The key advantage is system simplification. By combining the input rectifier, brake chopper, and output inverter into one module, it reduces PCB complexity, lowers stray inductance, and shortens the supply chain, which is critical for developing compact and cost-effective servo drives and small inverters. For systems requiring a similar level of integration with different current ratings, the 7MBR75VB120-50 provides a 75A alternative within the Fuji Electric portfolio.
How does the low VCE(sat) of 2.40V impact the design?
A lower Collector-Emitter Saturation Voltage (VCE(sat)) directly translates to lower conduction losses during operation. Think of VCE(sat) as the electrical "friction" the switch presents when it's on; less friction means less heat generated. For an engineer, this simplifies thermal management, potentially allowing for a smaller heatsink or operation at higher ambient temperatures, thereby improving the overall system efficiency and reliability.
What does the integrated thermistor offer?
The built-in thermistor provides a direct, real-time method for monitoring the module's internal temperature. This feedback is crucial for implementing over-temperature protection in the control system. It allows the drive to safely reduce power or shut down if thermal limits are approached, preventing catastrophic failure and enhancing the long-term operational safety of the equipment.
Is this module suitable for high-frequency switching applications?
The 7MBR50UA120-50 is part of Fuji's U-Series IGBTs, which are optimized for low conduction losses (low VCE(sat)). While suitable for standard motor drive frequencies (typically a few kHz up to ~15 kHz), designs requiring very high switching frequencies (>20 kHz) should carefully analyze the switching loss characteristics (Eon, Eoff) presented in the datasheet to ensure thermal performance remains within safe limits. A detailed guide on this topic can be found in our article on IGBT selection for high-frequency designs.
Optimized for Compact Power Conversion
The 7MBR50UA120-50 is engineered for applications where space and assembly efficiency are primary design drivers. Its capabilities are well-matched for:
- AC and DC Servo Drive Amplifiers: The module's integrated nature and precise switching characteristics provide the control and power density required for robotics and automated machinery.
- Small to Medium Inverters for Motor Drives: It serves as the core power stage for general-purpose inverters controlling conveyor belts, pumps, fans, and other industrial machinery.
- Uninterruptible Power Supplies (UPS): Its reliability and comprehensive functionality make it a solid choice for the inverter and rectifier stages in commercial and industrial UPS systems, ensuring consistent power delivery.
For general-purpose motor drives where thermal performance is paramount, the 7MBR50UA120-50's low conduction losses make it an optimal choice for achieving high efficiency in a compact form factor.
A Foundation for Reliable Power Systems
The trajectory of industrial automation and power electronics points towards greater integration, higher efficiency, and enhanced reliability. The Fuji Electric 7MBR50UA120-50 is a component that embodies these principles. By providing a verified, all-in-one power stage solution, it empowers design engineers to focus on system-level innovation, such as advanced control algorithms and user interface development, rather than the intricacies of discrete power component layout. This strategic integration simplifies the design process and contributes to the creation of more robust, compact, and market-ready power conversion systems.
