SKM150GB12T4: IGBT Module Technical & Application Review

Efficient Power Conversion with Semikron's SEMITRANS 2 IGBT Module

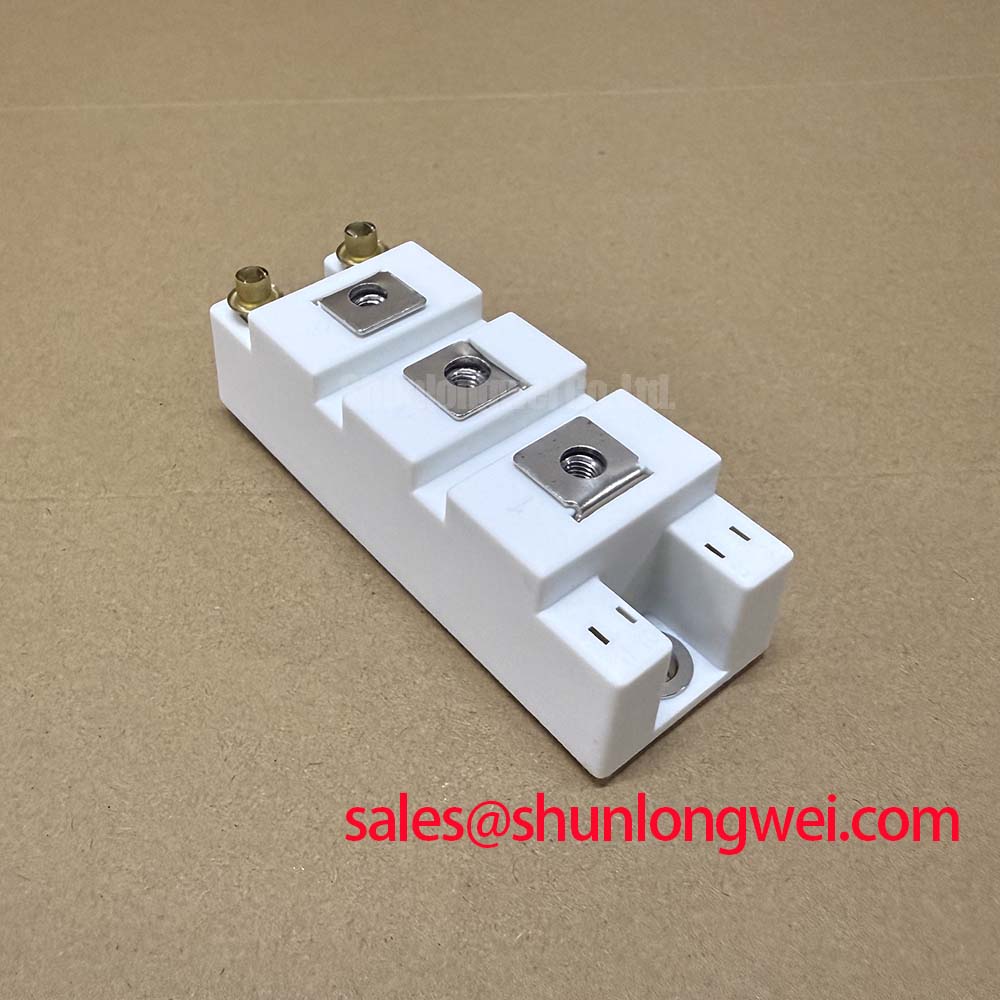

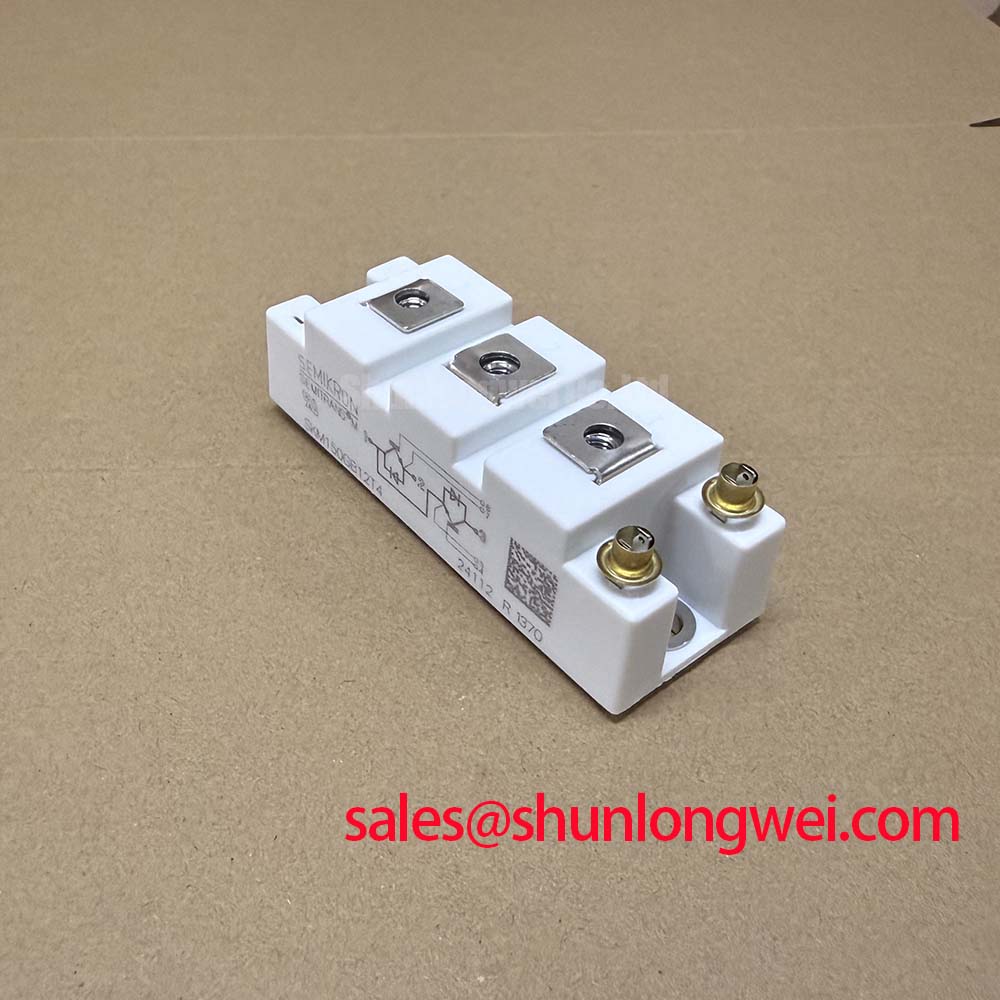

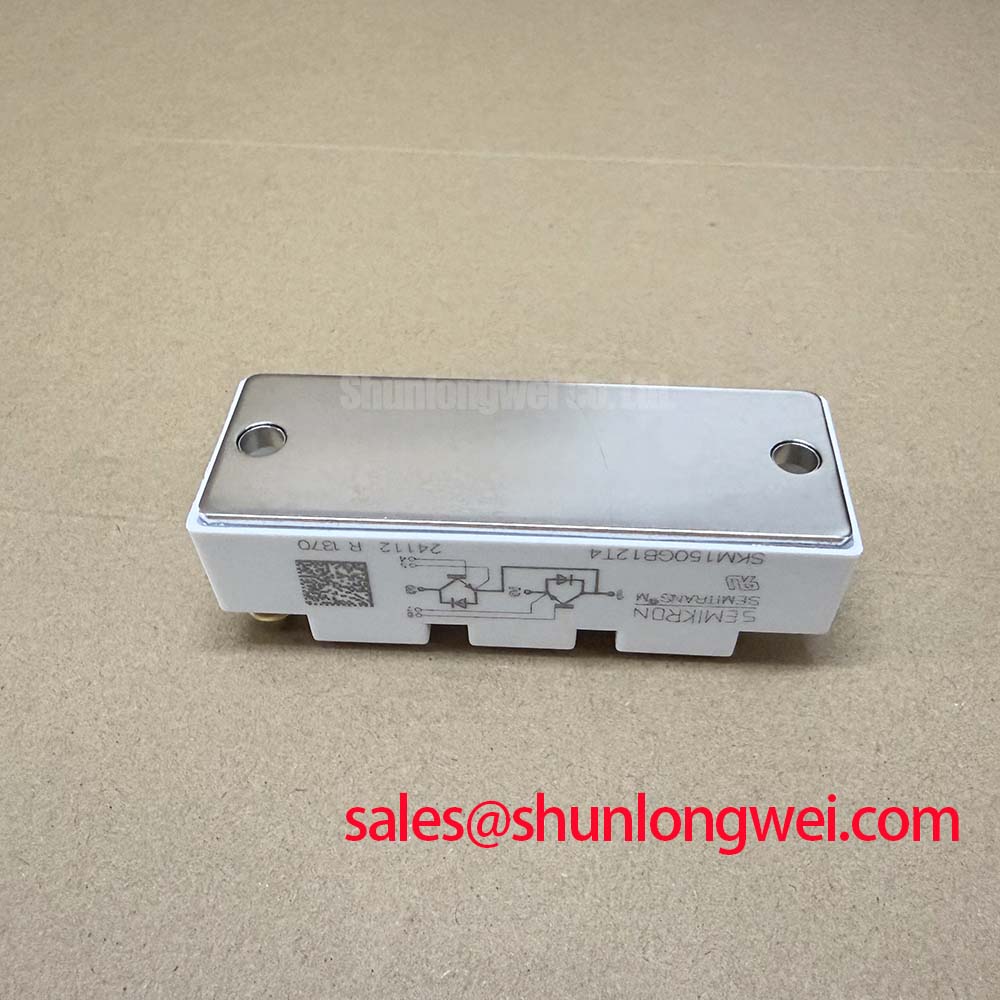

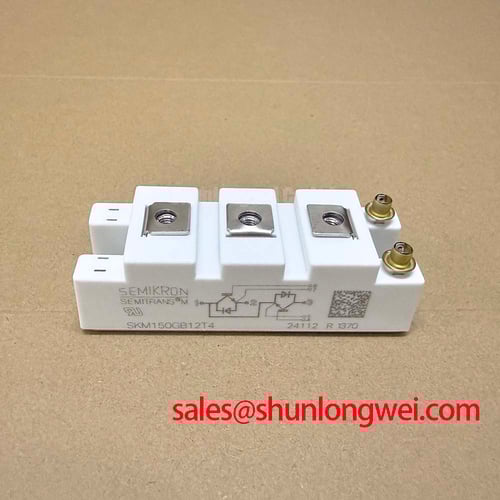

The Semikron SKM150GB12T4 is a SEMITRANS 2 IGBT module engineered for high-frequency power conversion systems, delivering superior efficiency through its advanced internal components. It combines a 1200V blocking voltage with a 150A nominal current rating and an impressively low thermal resistance from junction to case (Rth(j-c)) of 0.19 K/W. This design prioritizes minimal power loss and enhanced thermal stability. For engineers developing high-frequency systems like AC inverter drives or electronic welders, the key benefit is the module's ability to balance low conduction losses, attributed to its Trench Gate IGBTs, with excellent switching performance from its integrated CAL4 diodes, enabling operation up to 20 kHz.

Deployment Snapshots: Efficiency in Action

The SKM150GB12T4's design finds its place in applications where operational efficiency and long-term reliability are crucial. Its technical specifications make it a robust component for industrial power systems that experience demanding load cycles. For instance, in modern Variable Frequency Drives (VFDs), the module's ability to handle high switching frequencies directly translates to finer motor control and reduced audible noise. The increased power cycling capability, a result of its Direct Bonded Copper (DBC) baseplate, ensures resilience in applications with frequent start-stop operations, a common scenario in automated manufacturing and robotics.

Target Systems: Where Switching Performance is Paramount

The SKM150GB12T4 module is specified for a range of demanding industrial power conversion applications. Its architecture is particularly well-suited for systems where the balance between switching speed and thermal performance dictates overall efficiency and component lifespan. Core application areas include:

• AC Inverter Drives: The module’s capacity for operation up to 20 kHz allows for the design of compact and efficient motor controllers with high dynamic response.
• Uninterruptible Power Supplies (UPS): In UPS systems, the low VCE(sat) and fast-switching CAL diode contribute to higher conversion efficiency, which reduces operating costs and cooling requirements.
• Electronic Welding Systems: For high-frequency welders, the module provides the rapid and precise power control necessary for stable arc performance and high-quality welds.

For variable frequency drives up to 75kW requiring minimal heat sink volume, the SKM150GB12T4's low typical VCE(sat) of 2.2V (at 150°C) makes it a thermally superior choice.

Technical Inquiries for the SKM150GB12T4

What is the main benefit of the integrated CAL4 diode technology in the SKM150GB12T4?
The primary advantage of the 4th generation CAL (Controlled Axial Lifetime) free-wheeling diode is its soft switching characteristic. This means it has a low reverse recovery charge (Qrr), which significantly reduces turn-on losses in the opposing IGBT. This "soft" recovery also minimizes voltage overshoots and electromagnetic interference (EMI), simplifying the design of snubber circuits and filtering, a critical factor in systems operating at higher frequencies.

How does the module's construction contribute to its reliability in industrial environments?
The module's reliability stems from its robust mechanical design, specifically the use of an insulated copper baseplate with Direct Bonded Copper (DBC) technology. This construction provides excellent thermal conductivity and a strong bond between the ceramic insulator and the copper layers. This results in superior thermal cycling performance, meaning the module can withstand repeated temperature fluctuations without succumbing to material fatigue, a common failure point in lesser designs.

Is the SKM150GB12T4 suitable for paralleling to achieve higher current output?
Yes, the SKM150GB12T4 is designed with features that facilitate parallel operation. A key characteristic is its positive temperature coefficient for the collector-emitter saturation voltage (VCE(sat)). This means that as an individual IGBT chip heats up, its on-state voltage increases, naturally encouraging current to share more evenly with cooler, parallel-connected modules. This self-balancing behavior helps prevent thermal runaway in one module and is crucial for building stable, high-current inverter stages. For further reading on this topic, explore this in-depth analysis of IGBT modules.

Comparative Data for Informed Design Choices

When evaluating IGBT modules, engineers often compare key parameters to match a component to specific application demands. The SKM150GB12T4 distinguishes itself through a combination of its trench gate IGBTs and soft-recovery diodes. For systems where switching losses are a dominant concern, such as high-frequency converters, this module presents a compelling option.

For systems that may require a different balance of parameters, other modules in the 1200V class can be considered. For instance, the FS150R12KT4 provides an alternative with a different housing and thermal interface, which may be beneficial for specific mechanical layouts. Similarly, for designs demanding higher current handling within a single package, the SKM200GB12T4 offers a 200A nominal rating in the same SEMITRANS family. The selection process should be guided by a thorough analysis of the system's thermal budget, switching frequency, and mechanical constraints.

Strategic Edge in Energy-Conscious Designs

The increasing global focus on energy efficiency, driven by regulations and operational cost reduction, places components like the SKM150GB12T4 at the center of modern power electronic design. Its internal 4th generation trench IGBT technology directly addresses this trend by minimizing VCE(sat), which is a primary source of conduction losses in an inverter. This efficiency is not just a datasheet metric; it translates into tangible benefits such as smaller heatsinks, higher power density, and lower total cost of ownership over the system's lifetime. As industries move towards more compact and powerful motor drives and renewable energy systems, leveraging the efficiency gains offered by such advanced Semikron modules becomes a key competitive advantage.

Anatomy of Efficiency: Trench Gate and CAL Diode Synergy

The performance of the SKM150GB12T4 is fundamentally rooted in the synergy between its two core semiconductor components: the IGBT and the inverse diode. The module utilizes 4th generation Trench Gate Field-Stop IGBTs. What is the primary benefit of Trench Gate technology? It allows for a higher channel density on the silicon die, which results in a significantly lower on-state resistance and thus a lower VCE(sat) compared to older planar gate technologies. This directly reduces the power dissipated as heat during the conduction phase.

Complementing the IGBT is the CAL4 (Controlled Axial Lifetime) diode. The term "soft switching" refers to how the diode transitions from a conducting to a blocking state. A soft-recovery diode, like the CAL4, has a less abrupt drop in current, which minimizes voltage spikes and oscillations (EMI). The relationship between VCE(sat) and switching losses is a critical trade-off in IGBT design; the SKM150GB12T4 is optimized to provide a balanced solution for applications operating at frequencies up to 20 kHz.

Core Electrical and Thermal Specifications at a Glance

The following table highlights the key performance metrics of the SKM150GB12T4, providing essential data for system design and thermal analysis. These values are extracted from the official datasheet to ensure accuracy for engineering evaluation.

Download the SKM150GB12T4 Datasheet

A Forward Look at System Integration

As power conversion systems continue to evolve, the value of highly integrated and optimized modules like the SKM150GB12T4 becomes increasingly apparent. The future of power electronics design lies in achieving greater power density without compromising on reliability or efficiency. This module represents a strategic component in that journey. By integrating advanced IGBT and diode technologies within a standardized, thermally efficient package, it provides engineers with a building block that simplifies the development of next-generation inverters and power supplies, enabling them to meet future energy standards and performance expectations.
