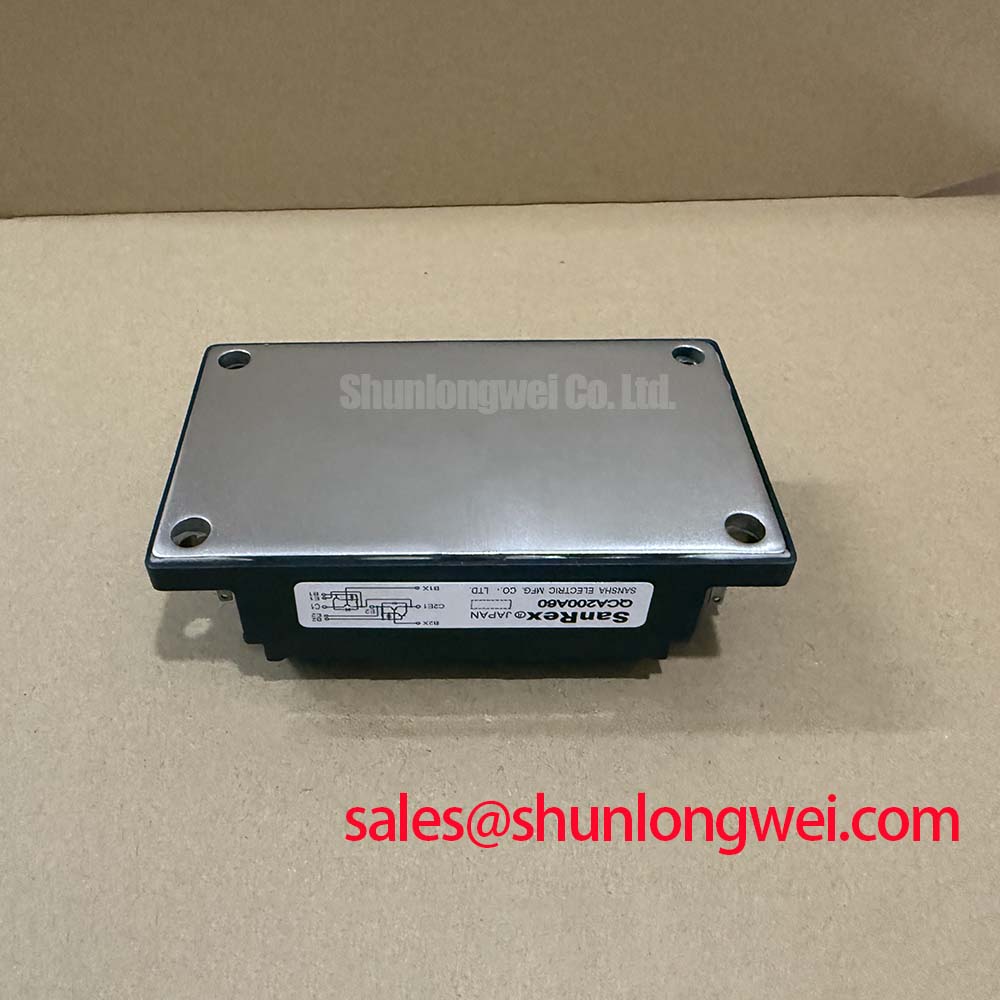

QCA200A60 Datasheet: 600V/200A Chopper Transistor Module
Engineered for High-Efficiency Switching Applications
The Sanrex QCA200A60 is a chopper transistor module designed to deliver superior switching performance and minimize power losses in demanding applications. 600V | 200A | VCE(sat) 2.7V. Key benefits include lower conduction losses and faster switching capability. This module directly addresses how to reduce total energy waste in high-frequency power converters by integrating a high-speed, high-gain Darlington transistor with a parallel fast recovery diode in a single, electrically isolated package.
Data-Backed Decision Making: QCA200A60 Performance Profile
When evaluating power modules, a component's datasheet provides the empirical evidence needed for sound engineering decisions. The QCA200A60 is specified with characteristics that position it for efficiency-focused designs. Compared to earlier-generation transistor technologies, its combination of a low saturation voltage and fast switching times presents a clear advantage in reducing both major sources of power loss: conduction and switching. This data-centric profile enables engineers to accurately model thermal performance and project gains in system efficiency, moving beyond estimations to predictable outcomes.
Applications Where Switching Efficiency Drives Value
The technical specifications of the Sanrex QCA200A60 make it a strong candidate for power systems where minimizing heat and maximizing throughput are critical operational goals. Its design is well-suited for a range of high-frequency and high-power applications, enabling designers to build more compact and energy-efficient equipment. With its balance of a 2.7V VCE(sat) and fast switching, the QCA200A60 is the optimal choice for high-frequency switch-mode power supplies where minimizing total energy loss is the primary design driver.
- Uninterruptible Power Supplies (UPS): The module's efficiency helps reduce cooling requirements and operating costs in critical backup power systems.
- AC/DC Servo Drives: Fast and precise switching is essential for accurate motor control, leading to improved positioning and reduced energy consumption in robotics and automated machinery.
- Switching Power Supplies: The low total power loss (conduction and switching) allows for higher operating frequencies, which can lead to the use of smaller inductors and capacitors, reducing the overall size and weight of the power supply.
- Welding Power Supplies: Robust current handling and efficient switching are crucial for creating stable and controlled welding arcs.
Aligning with Megatrends: The Role of Efficient Power Switching
The global push towards higher energy efficiency and system electrification puts a spotlight on core power components. Devices like the QCA200A60 are instrumental in this transition. By reducing wasted energy at the component level, it contributes directly to broader industry goals such as lowering the total cost of ownership (TCO) for industrial equipment and meeting increasingly stringent energy consumption regulations. For system integrators and OEMs, deploying modules engineered for low-loss operation is a direct strategy for delivering products that are not only powerful but also economically and environmentally responsible. For further reading, an overview of the role of modern IGBTs can be found in The Backbone of High-Efficiency Power Systems.
Key Specifications for Loss Analysis
Engineering decisions are founded on quantifiable data. The following parameters from the QCA200A60 datasheet are central to evaluating its performance in an efficiency-oriented design. For a complete list of specifications, please download the official QCA200A60 Datasheet.
| Parameter | Value | Engineering Insight |
|---|---|---|
| Collector-Emitter Voltage (V_CEX) | 600V | Provides a safe operating margin for applications running on 200/220V AC lines, accommodating voltage spikes and transients common in industrial environments. |
| Collector Current (I_C) | 200A | Indicates a robust capacity for handling significant power levels, suitable for medium- to high-power motor drives and power converters. |
| Collector-Emitter Saturation Voltage (V_CE(sat)) | 2.7V (Typ) at I_C = 200A | This value is a direct indicator of conduction losses. A lower V_CE(sat) means less power is dissipated as heat when the transistor is fully on, improving overall system efficiency. Think of it as the 'toll' current pays to flow through the switch; a lower toll saves energy. |
| High DC Current Gain (h_FE) | 75 (Min) | A high gain means less input current is required to control the 200A collector current, simplifying the gate drive circuitry and reducing the power consumed by the control stage itself. |
| Isolation Voltage (V_iso) | 2500V (AC, 1 minute) | Ensures robust electrical isolation between the power circuit and the heatsink/chassis. This enhances safety and simplifies thermal design by allowing the module to be mounted on a common, non-isolated heatsink with other components. |
An Inside Look at the QCA200A60's Loss-Reduction Architecture
The Sanrex QCA200A60 is identified as a Darlington power transistor module, which integrates two bipolar transistors in a configuration that provides very high current gain (hFE). This high gain is a key feature for simplifying the driver stage. A simpler, lower-power driver circuit consumes less energy, contributing to the overall efficiency of the system. The integrated fast recovery diode (FWD) is another critical element. It provides a safe path for freewheeling current in inductive load applications, such as motor control, and its fast recovery characteristic (low trr) is crucial for minimizing the turn-on losses in the transistor during high-frequency operation. For systems that may require a half-bridge topology, a dual-IGBT module like the CM200DY-24H provides an alternative configuration for evaluation.
Deployment Snapshot: Optimizing a High-Frequency Welder
In a typical scenario, a designer upgrading a 30kHz welding power supply would evaluate the QCA200A60 for its potential to reduce the size of the main heatsink. By calculating the total power loss using the module's V_CE(sat) for conduction losses and its specified switching times for switching losses, the engineer can precisely determine the reduction in waste heat compared to a previous-generation component. This allows for either a smaller heatsink—reducing material cost and final product weight—or operating the system at a higher duty cycle without thermal throttling, thereby increasing productivity. This practical application highlights how component-level specifications directly translate to tangible system-level benefits.
Technical Questions for System Designers
What is the primary benefit of the QCA200A60's Darlington configuration?
The main benefit is its high DC current gain (hFE), specified with a minimum of 75. This allows the 200A output current to be controlled by a much smaller input current, simplifying the design and power requirements of the gate driver circuitry.
How does the integrated fast recovery diode impact performance?
The integrated fast recovery diode (FWD) is essential for applications with inductive loads, like motors or transformers. It provides a path for the current to flow when the transistor turns off. Its "fast recovery" characteristic minimizes reverse recovery losses, which are a significant component of switching losses at high frequencies, thereby improving overall efficiency.
What does the 2500V isolation voltage mean for my design?
The 2500V isolation rating means the mounting base is electrically isolated from the internal semiconductor elements. This allows you to mount the module directly to a grounded chassis or a common heatsink shared with other isolated modules without needing additional insulating pads, which simplifies mechanical assembly and improves thermal transfer. To learn more about how IGBTs function, see this guide on the IGBT working principle.
Is this module suitable for hard-switching or soft-switching topologies?
Given its fast switching characteristics and the inclusion of a fast recovery diode, the QCA200A60 is well-suited for hard-switching topologies like those found in conventional PWM-controlled inverters and converters. Its performance can also be leveraged in certain soft-switching circuits to further reduce switching losses.
How do I interpret the Safe Operating Area (SOA) curve for this device?
The Safe Operating Area (SOA) curve in the datasheet defines the voltage and current limits within which the module can operate without damage. It is crucial for ensuring reliability, especially during turn-on, turn-off, and potential short-circuit events. Engineers must ensure their application's load line remains within the boundaries of the SOA under all operating conditions. For more on this topic, external resources like Wikipedia offer a good primer on Safe Operating Area (SOA).
Future-Facing Design Considerations
As you plan your next-generation power systems, the selection of a switching component like the Sanrex QCA200A60 warrants a forward-looking perspective. The module's efficiency characteristics are not just about meeting today's performance targets but also about building in margin for future demands. Consider how a lower heat signature today could facilitate a future power-density upgrade without a complete thermal redesign. The inherent reliability of a simplified driver stage, enabled by the module's high gain, can contribute to a lower field failure rate over the product's entire lifecycle. Approaching component selection with this strategic mindset ensures that the designs of today remain competitive and adaptable for the challenges of tomorrow.
