G101EVN01.4: Engineering a High-Contrast Visual Experience for Demanding Industrial Environments
Delivering Exceptional Image Fidelity and Off-Axis Readability

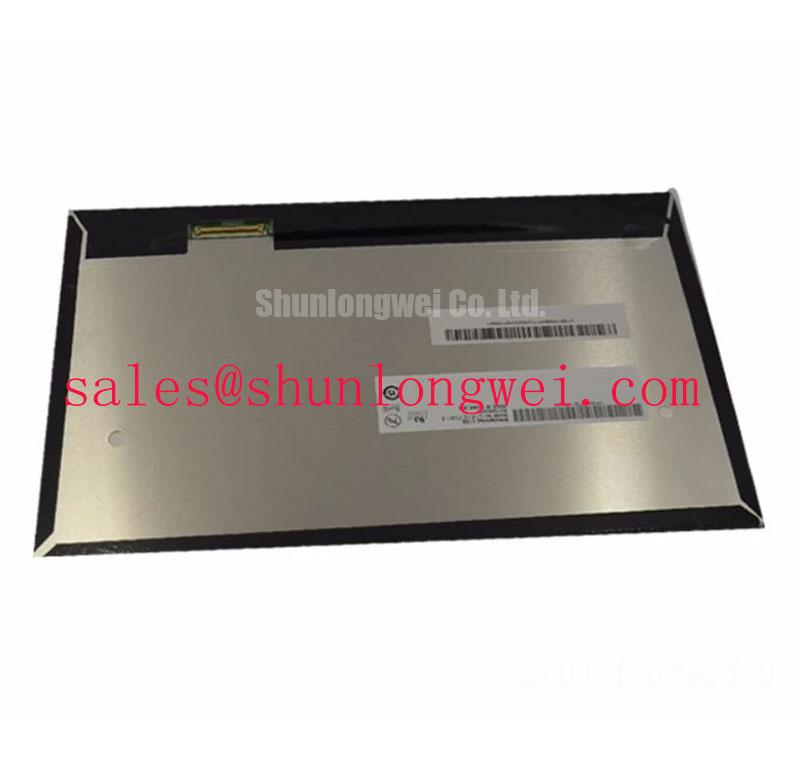

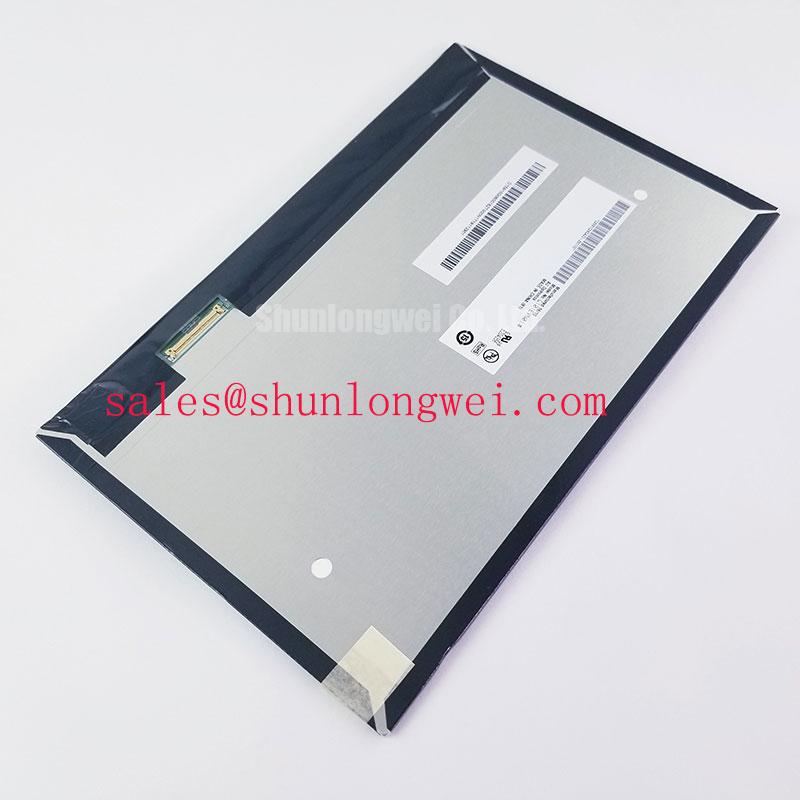

The G101EVN01.4 from AUO is a 10.1-inch a-Si TFT-LCD module engineered to deliver superior visual performance for industrial applications where image clarity and reliability are paramount. Its defining feature is an exceptional contrast ratio, ensuring deep blacks and vibrant colors, which is critical for accurate data interpretation in complex human-machine interfaces (HMIs). With key specifications of 1280x800 WXGA | 1300:1 Contrast Ratio | 50K Hour WLED Backlight, this display provides both high performance and long-term operational stability. It excels in delivering consistent, readable imagery across wide viewing angles and addresses the need for robust displays in factory automation and medical diagnostics. For systems requiring a higher brightness specification for outdoor use, the related G101EVN01.2 offers an alternative solution.
Application Scenarios & Value
Enhancing Operator Accuracy in Industrial HMI and Control Systems
For OEM engineers designing industrial control panels, medical monitoring devices, or transportation information systems, the G101EVN01.4 provides a distinct advantage. Its high 1300:1 contrast ratio is not just a number; it translates directly to improved operator performance by ensuring that critical information is legible, even with small fonts or detailed graphics. This high contrast, combined with MVA technology, delivers symmetrical viewing angles of 85° in all directions. This means operators do not need to be positioned directly in front of the screen to get a clear, color-accurate view, a crucial factor in environments where equipment is accessed from various positions. This wide-angle performance mitigates the risk of misinterpretation, directly contributing to operational safety and efficiency in environments like process control rooms or patient monitoring stations. This module is an excellent fit for complex HMIs where immediate and accurate data comprehension is non-negotiable.
Key Parameter Overview
Specifications Tailored for Industrial Integration and Longevity
The G101EVN01.4 is specified to balance high optical performance with the durability required for industrial deployments. Its parameters reflect a design philosophy focused on reliability and seamless integration into a variety of systems.
| Category | Parameter | Specification | Engineering Value |
|---|---|---|---|
| Optical Performance | Resolution | 1280(RGB)×800 (WXGA) | Provides clear, detailed images suitable for graphical user interfaces and data-rich displays. |
| Contrast Ratio | 1300:1 (Typ.) | Ensures excellent image depth with deep blacks and bright whites for superior legibility. | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Delivers consistent image quality from nearly any viewing direction, critical for multi-user or off-axis applications. | |
| Mechanical & Environmental | Operating Temperature | -20 ~ 70 °C | Supports deployment in a wide range of industrial environments, from cold storage to factory floors. |
| Storage Temperature | -30 ~ 80 °C | Offers robust resilience during shipping and storage in uncontrolled temperature conditions. | |
| Backlight System | Lamp Type | WLED | Offers high energy efficiency and a slim profile compared to older CCFL technology. |
| Backlight Lifetime | 50,000 Hours (Min.) | Provides a long operational life, minimizing maintenance requirements and enhancing total cost of ownership (TCO). | |
| Interface | Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins | A standard, reliable interface that simplifies system integration with a wide array of controller boards. |
Download the G101EVN01.4 datasheet for detailed specifications and performance curves. (Note: A direct official datasheet link was not available; specifications are compiled from verified industry sources).
Industry Insights & Strategic Advantage
Meeting the Demand for High-Fidelity Visualization in Modern Industry
The push towards Industry 4.0 and more sophisticated medical diagnostic tools places increasing demands on display technology. The era of simple, low-resolution character displays is fading. Today's industrial equipment requires HMIs that can render complex schematics, high-resolution video feeds, and intuitive touch-based controls. The G101EVN01.4, with its WXGA resolution and high color depth, directly supports this trend. Its MVA (Multi-domain Vertical Alignment) technology is a key enabler, offering performance that rivals IPS (In-Plane Switching) panels in viewing angles and contrast. For system integrators, this means the ability to design more ergonomic and effective user interfaces, which in turn boosts productivity and reduces operator error. The panel's long-life WLED backlight also aligns with strategic goals for creating low-maintenance, high-reliability systems, a critical purchasing consideration for end-users in manufacturing and healthcare.
Frequently Asked Questions (FAQ)
What is the primary benefit of the 1300:1 contrast ratio in an industrial setting?
Its primary benefit is enhanced legibility. Think of it like reading black text on a crisp white page versus on a grayish page. The high contrast makes graphical elements, data points, and alarms stand out clearly, reducing eye strain and minimizing the risk of misreading critical information, especially in variable lighting conditions.
How do the 85/85/85/85 viewing angles affect system design?
These symmetrical, wide viewing angles provide significant design flexibility. Engineers can mount the display in fixed positions without worrying that operators viewing from the side, above, or below will see distorted colors or a washed-out image. This is essential for collaborative workstations or large machinery where the HMI must be readable from multiple perspectives.
What does the 50,000-hour backlight lifetime mean in practical terms?
A 50,000-hour lifetime translates to over 5.7 years of continuous, 24/7 operation before the backlight brightness is expected to decrease to 50% of its initial value. For a typical 8-hour workday, this extends to well over a decade, making it a "fit and forget" component for long-lifecycle industrial equipment and reducing the total cost of ownership.
Is the LVDS interface on this module difficult to integrate?
No, the LVDS interface is a mature and widely adopted standard in the industrial display market. It offers robust noise immunity, which is crucial in electrically noisy factory environments. A vast ecosystem of single-board computers, display controllers, and drivers are readily available to support seamless integration.
How does the wide operating temperature range of -20 to 70°C add value?
This wide range allows the G101EVN01.4 to be reliably deployed in applications beyond standard indoor environments. It can function effectively in unheated warehouses, outdoor-adjacent control kiosks, or within enclosures on factory floors where internal temperatures can rise significantly, eliminating the need for complex and costly environmental control systems.
Strategic Considerations for System Designers
Integrating the G101EVN01.4 into a new system design provides a strategic path to enhancing the user experience and perceived value of the end product. Its superior optical characteristics, particularly the high contrast and wide viewing angles, elevate the human-machine interface from a simple control surface to a rich, intuitive information hub. This focus on visual quality and long-term reliability ensures that the display component will meet the demanding expectations of industrial and medical markets, contributing to the overall robustness and market competitiveness of the final system. For designs requiring different resolutions or sizes, exploring other AUO industrial displays such as the G121EAN01.0 or the G150XTN06.8 may offer compatible solutions with different performance targets.
