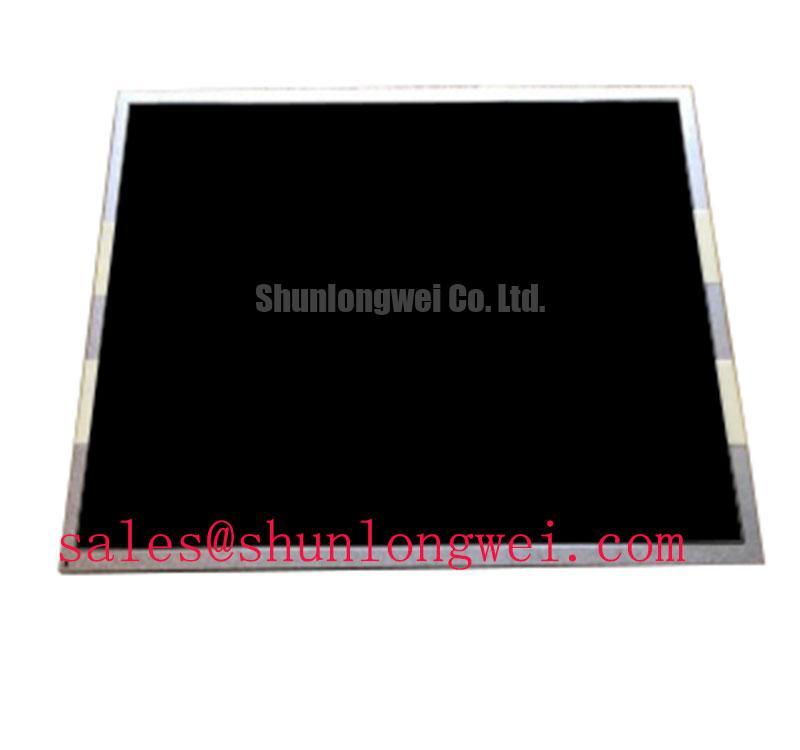

AUO G150XTN06.8 | Robust 15.0" Industrial LCD for Demanding Environments
The AUO G150XTN06.8 is not just another display; it's an engineering solution crafted for applications where reliability and performance under harsh conditions are non-negotiable. This 15.0-inch TFT-LCD panel from industry leader AUO is specifically designed to bridge the gap between standard commercial displays and the rigorous demands of the industrial sector. It delivers exceptional visual clarity, operational stability, and mechanical durability, making it a premier choice for next-generation systems.
- Extreme Temperature Range: Operates flawlessly from -30°C to +80°C, ensuring reliability in unconditioned environments.
- Enhanced Readability: Features a 400 cd/m² brightness coupled with an anti-glare surface treatment to minimize reflections.
- Industrial-Grade Longevity: Equipped with a long-life WLED backlight system rated for 50,000 hours of continuous operation.
- Standardized Integration: Utilizes a common LVDS interface, simplifying the design-in process for a wide range of controller boards.
Technical Deep Dive: The Engineering Behind the Performance
Understanding the specific engineering choices behind the G150XTN06.8 reveals its suitability for challenging applications. This display isn't merely assembled; it's holistically designed for endurance.
The standout feature is its exceptional operating temperature range. This is achieved through the use of a specially formulated liquid crystal fluid that maintains viscosity and response times even at freezing temperatures, preventing ghosting or slow pixel transitions. On the high end, the panel's components, including the a-Si TFTs and driver ICs, are specified to resist thermal degradation, ensuring stable color and contrast in environments like sun-exposed enclosures or near heat-generating machinery. For engineers, this specification eliminates the need for complex and costly external heating or cooling systems in many designs.
Furthermore, the panel's optical stack is optimized for industrial settings. The anti-glare surface is a crucial element that diffuses ambient light, reducing specular reflection and improving legibility. This is a critical factor for Human-Machine Interfaces (HMIs) on factory floors or in-vehicle displays where lighting conditions are uncontrollable. Learn more about how these features contribute to sunlight readable HMIs in our definitive engineer's guide.
Key Specifications of the AUO G150XTN06.8
The following table outlines the critical performance metrics for system integration. For complete electrical and mechanical details, download the full G150XTN06.8 datasheet.
| Parameter | Value |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Backlight Lifetime | 50K hours (Typ.) |
Where the G150XTN06.8 Excels: Application Deep Dive
The unique combination of features in the AUO G150XTN06.8 makes it an ideal fit for several demanding sectors:
- Industrial Automation & HMIs: Its wide temperature tolerance and robust construction make it perfect for control panels on factory floors, enduring vibrations, temperature swings, and 24/7 operation without failure.
- Outdoor Kiosks & Digital Signage: While not a full sunlight-readable panel, its 400-nit brightness and anti-glare coating provide excellent clarity for shaded outdoor applications like ticketing machines, EV charging stations, and information kiosks.
- Medical Equipment: The long production lifecycle and consistent performance are vital for medical devices like patient monitors and diagnostic imaging stations, where component changes require costly re-certification.
- Transportation Systems: From marine bridge displays to information panels in train carriages, the G150XTN06.8's resilience to temperature extremes and shock ensures operational uptime.
More Than a Component: A Strategic Asset for Industrial Digitization
In the era of Industry 4.0, the digitization of industrial processes is accelerating. The HMI is no longer just a button panel; it is the central nervous system for complex machinery, providing critical data visualization and control. Investing in a reliable display like the AUO G150XTN06.8 is a strategic decision. Its long-term stability reduces the total cost of ownership (TCO) by minimizing field service calls and downtime. It provides a stable platform for software development, ensuring that the visual interface performs reliably for the entire lifespan of the machine it controls. For a foundational understanding of the technology, explore our ultimate guide to TFT-LCDs.
Engineer's FAQ for the G150XTN06.8
What type of controller/driver board is required for this display?
The G150XTN06.8 uses a standard 1-channel, 6/8-bit LVDS interface with a 20-pin connector. It is compatible with a wide range of universal and application-specific A/D controller boards. When selecting a board, ensure its LVDS output matches the panel's resolution and bit-depth requirements. For specific recommendations, please contact our technical team.
What is AUO's commitment to long-term availability for this model?
AUO's industrial display lines are known for their long production lifecycles, typically 5-7 years or more. This is a key differentiator from consumer-grade panels. The G150XTN06.8 is part of this industrial commitment, making it a safe choice for projects with long service lives. We can provide specific EOL (End of Life) notifications and last-time-buy information for your project planning.
