Comprehensive Comparison of Samsung LCD Displays: LTM150XI-A01 and LTA150XH-L06

What This Component Is and Its Industry Significance

In industrial automation, medical diagnostics, point-of-sale (POS) systems, and computer numerical control (CNC) machinery, 15.0-inch liquid crystal displays with XGA resolution (1024 × 768 pixels) have served as an enduring standard for human-machine interfaces (HMIs). Within this operational class, Samsung developed two widely deployed active-matrix TFT display modules: the LTM150XI-A01 and the LTA150XH-L06. Both panels utilize Liquid Crystal Display Technology configured in a classic 4:3 aspect ratio, providing the mechanical footprint, optical characteristics, and electrical interfaces required by mission-critical systems.

Although these two panels share identical screen diagonals and native pixel counts, they address distinct hardware generations, interface topologies, and optical illumination profiles. The LTM150XI-A01 is engineered primarily for industrial control consoles, instrumentation readouts, and legacy terminal upgrades, emphasizing stable color response, predictable low-voltage differential signaling (LVDS), and standardized mounting dimensions. Conversely, the LTA150XH-L06 was tailored for commercial terminals, public information kiosks, and high-ambient-light industrial environments requiring enhanced luminance output, optimized wide-temperature performance, and revised backlight tube geometries.

Understanding the exact electrical, optical, and mechanical distinctions between the LTM150XI-A01 and the LTA150XH-L06 is vital for hardware engineers and maintenance technicians. Field replacement, retrofit engineering, and system life-extension projects cannot rely on physical dimensions alone; discrepancies in power sequencing, logic rail voltages, inverter drive currents, and connector pinouts can lead to signal degradation or component damage. Alongside other classic industrial displays such as the NL6448BC26-27 and specialized visual support hardware like the EL552-256-Q1, these Samsung displays represent foundational building blocks in long-lifecycle industrial electronics.

Working Principle and Physical Structure

Both the LTM150XI-A01 and LTA150XH-L06 operate on the principle of active-matrix thin-film transistor modulation. A modern Thin-Film Transistor Liquid-Crystal Display (TFT LCD) functions as an array of microscopic, voltage-controlled light valves positioned between optical polarizers, color filters, and a rear illumination assembly.

The Optical and Microscopic Stack

The display panel comprises several precision-bonded layers:

• Backlight Unit (BLU): Composed of Cold Cathode Fluorescent Lamps (CCFL), a high-efficiency polymethyl methacrylate (PMMA) light guide plate (LGP), bottom reflective films, and optical diffuser/prism sheets that convert linear lamp light into a uniform planar surface emitter.
• Rear Polarizer: Linearly polarizes the unpolarized light emitted by the backlight unit at a specific optical angle (typically 45° or 135°).
• TFT Glass Substrate: Hosts an integrated matrix of 1024 × 768 × 3 (2,359,296 individual sub-pixel nodes). Each sub-pixel contains an amorphous silicon (a-Si) field-effect transistor acting as an analog transmission switch, accompanied by a storage capacitor (C_ST).
• Liquid Crystal Layer: Nematic liquid crystal molecules aligned within micro-grooved polyimide alignment layers. In the field-free state (Twisted Nematic mode), the molecular directors rotate polarized light by 90°.
• Color Filter Substrate & Common Electrode: Houses Red, Green, and Blue resin matrix stripes aligned with individual sub-pixels, coated with a transparent Indium Tin Oxide (ITO) plane serving as the common reference voltage (V_COM).
• Front Polarizer: Oriented perpendicular (or parallel, depending on normally white/black mode) to the rear polarizer to modulate optical transmission based on the phase retardation imparted by the liquid crystal layer.

Electrical Control and Signal Serialization

External graphics processors transmit digital RGB data via an LVDS link to the panel’s onboard Timing Controller (T-CON). The LVDS protocol reduces electromagnetic interference (EMI) and pin count by transmitting high-speed serial differential pairs (typically three to four data channels plus one differential clock channel: RxIN0±, RxIN1±, RxIN2±, RxIN3±, and RxCLK±). The onboard T-CON processes these differential waveforms, deserializes the byte stream into parallel sub-pixel amplitude values, and generates synchronous timing clocks:

• Gate (Row) Drivers: Sequentially apply a high positive turn-on voltage (V_GH ≈ +20V to +25V) to each horizontal line, turning on the a-Si TFT switches across that entire row for one horizontal period (1 / f_H). When unselected, the gate voltage drops to a negative cutoff bias (V_GL ≈ -5V to -8V) to prevent sub-pixel leakage.
• Source (Column) Drivers: Simultaneously drive analog voltage levels onto all column electrodes while a given row is active. This charges the microscopic liquid crystal capacitance (C_LC) to the exact target potential relative to V_COM, establishing the precise electric field needed to tilt the nematic molecules and regulate optical transmittance.

Key Features, Advantages, and Technology Comparison

While the LTM150XI-A01 and LTA150XH-L06 share fundamental resolution and dimensional baselines, their electrical topologies, optical ratings, and connector schemes exhibit significant differences. Engineers tasked with hardware refurbishment or cross-compatibility validation must evaluate these differences carefully.

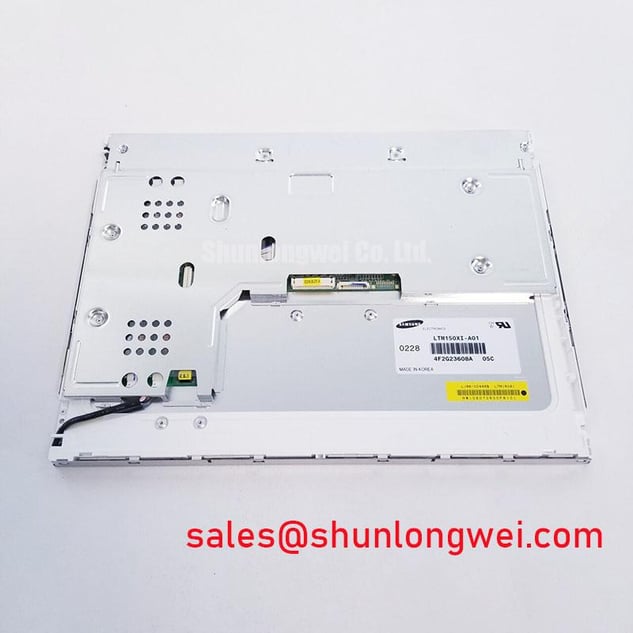

The LTM150XI-A01 typically utilizes a standardized 20-pin single-channel LVDS interface connector and is optimized for low power consumption in enclosed industrial chassis. The LTA150XH-L06 features an upgraded optical assembly delivering higher surface luminance, improved contrast ratios, and distinct connector configurations tailored for extended-duty commercial and medical displays. For comparison with alternative industrial displays, such as the TX20D208VM0BAA, technical parameters must be cross-referenced against exact electrical and timing requirements.

Key Distinctions in Field Integration

• Optical Performance: The LTA150XH-L06 incorporates higher-efficiency prism sheets and a multi-lamp array that increases luminance to 450 cd/m², making it preferable for high-glare environments. The LTM150XI-A01 draws lower overall power, generating less internal heat inside sealed enclosures.
• Temporal Response: With an aggregate response time of under 20 ms, the LTA150XH-L06 provides reduced motion blur during dynamic waveform rendering, which is beneficial for diagnostic equipment and active operator interfaces.
• Inverter Compatibility: Because the LTA150XH-L06 uses higher-power lamp sets requiring higher strike and run voltages, pairing it with an undersized CCFL inverter designed for the LTM150XI-A01 can result in lamp flickering, uneven edge illumination, or inverter shutdown triggered by over-current/open-lamp protection circuits.

Real-World Applications and Operating Precautions

Industrial integration of the LTM150XI-A01 and LTA150XH-L06 spans mission-critical domains where continuous operation is essential:

• CNC Machine Tool Interfaces: Retrofitting legacy CRT and early LCD operator panels on machine controllers from manufacturers such as Fanuc, Siemens, and Heidenhain.
• Medical Monitoring Consoles: Patient monitoring equipment, ultrasound displays, and blood analysis workstations requiring stable color rendering and wide horizontal viewing angles.
• Process Control and SCADA Panels: Enclosed industrial PCs and rackmount monitors used in chemical processing, power distribution, and automated manufacturing lines.
• Commercial Kiosks and Banking Terminals: Automated Teller Machines (ATMs) and ticketing kiosks subjected to wide temperature swings and long daily operating hours.

Critical Operating and Engineering Precautions

1. Logic Power Rail Sequencing (V_DD):
Strict adherence to power-on and power-off timing profiles is mandatory to protect the internal T-CON and driver ICs from CMOS latch-up. The logic voltage supply (V_DD = 3.3V) must stabilize within a defined rise-time window of 0.5 ms < t₁ ≤ 10 ms before active LVDS data signals are asserted. If differential signals are applied before V_DD reaches its operational threshold, internal protection diodes can become forward-biased, potentially causing permanent thermal damage to the input buffers.

2. LVDS Trace Routing and Differential Impedance:
The single-channel LVDS link operates at a pixel clock frequency of approximately 65 MHz (for 1024 × 768 at 60 Hz). With 7-bit serialization, bit rates reach ~455 Mbps per differential pair. Transmission lines on carrier boards or flexible flat cables (FFC) must maintain a balanced differential characteristic impedance of 100 Ω ± 10%. Pair-to-pair and intra-pair trace lengths should be matched to within 0.5 mm to minimize phase skew, clock jitter, and electromagnetic radiation.

3. High-Voltage CCFL Inverter Hazards:
The CCFL backlight requires a dedicated high-voltage AC inverter. During initial ignition, the inverter delivers a starting strike voltage between 1,200 V_rms and 1,550 V_rms at 40 kHz to 65 kHz, dropping to an operating voltage of 600 V_rms to 710 V_rms under a nominal tube current of 5.0 mA to 6.5 mA. Field engineers must observe strict high-voltage safety clearances (≥ 3.0 mm spacing to chassis ground) and never probe active lamp output terminals with a standard digital multimeter.

4. Mechanical Mounting and Thermal Management:
Uneven torque applied to front bezel mounting brackets can distort the display’s mechanical frame, inducing localized birefringence shifts known as “pooling” or optical mura. Mounting screws should be tightened evenly to a maximum torque of 0.29 N·m (3.0 kgf·cm). In fully sealed IP65/NEMA4 enclosures, passive heat dissipation must maintain internal ambient air temperatures below +50°C to prevent premature degradation of CCFL electrodes and liquid crystal clearing point transitions.

Engineering Selection Guidelines and Field Diagnostics

When selecting between the LTM150XI-A01 and LTA150XH-L06 for a new system design or an in-field retrofit, engineers should evaluate operating environment brightness, thermal constraints, logic rail availability, and inverter capacity. The following diagnostic matrix details systematic troubleshooting steps for common display and backlight failures encountered in service.

Step-by-Step Replacement and Conversion Checklist

When swapping an LTM150XI-A01 with an LTA150XH-L06 (or vice versa), execute the following electrical verification procedure:

1. Pinout Mapping: Confirm pin 1 orientation on both the source motherboard and panel connector. Verify whether the LVDS format follows the JEIDA or VESA standard (specifically for bit mapping on data channels RxIN0 through RxIN3).
2. Voltage Selection: Ensure the host motherboard logic jumper is set strictly to 3.3V. Supplying 5.0V to a 3.3V-only T-CON revision will cause immediate breakdown of the timing controller.
3. Backlight Inverter Matching: Verify that the CCFL inverter strike voltage rating matches or exceeds the panel requirement (at least 1,400 V_rms for LTA150XH-L06). Check that the CCFL output current does not exceed 6.5 mA_rms to avoid lamp degradation.
4. Ground Continuity: Secure all chassis grounding lugs between the LCD metal frame, inverter ground plane, and system power supply common to prevent ground loop noise from coupling into the low-voltage differential pairs.

By systematically applying these selection parameters, timing verifications, and diagnostic checks, systems engineers can ensure reliable display operation and extend the service life of critical industrial equipment.
