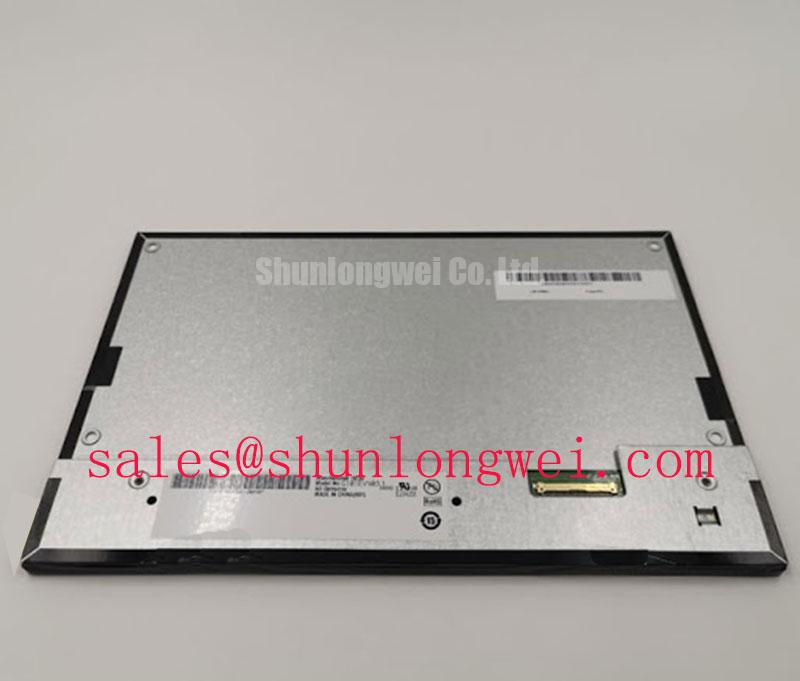

AUO G101EVN03.2 TFT-LCD Display: 1000-Nit WXGA Panel for Outdoor HMI
How do you guarantee critical machine data remains legible when direct sunlight hits the operator console? The G101EVN03.2, a premium 10.1-inch WXGA TFT-LCD panel by AU Optronics, solves this engineering bottleneck by delivering uncompromising sunlight readability and visual clarity in harsh environments. Featuring a 1000 cd/m² WLED backlight, a remarkable 1300:1 contrast ratio, and a wide 85/85/85/85 viewing angle, this module ensures zero-washout performance. What is the primary benefit of the G101EVN03.2 MVA panel? It provides a 1300:1 contrast ratio for exceptional readability under direct sunlight. Beyond raw brightness, its standard 40-pin LVDS interface dramatically simplifies system integration while mitigating electromagnetic interference. For outdoor industrial HMIs requiring uncompromising visibility, this 1000-nit 10.1-inch display is the optimal choice.
Frequently Asked Questions
Clarifying LVDS Integration and Optical Characteristics
- How does the 1000-nit WLED backlight of the G101EVN03.2 affect thermal management in an IP65 enclosure? While high-luminance arrays generate localized heat, this module utilizes a highly efficient edge-lit WLED architecture. Engineers must still account for thermal dissipation pathways from the panel's metallic chassis to the enclosure's external heatsink to maintain the -20°C to 60°C operating stability.
- Why is the 1300:1 contrast ratio critical for outdoor digital signage? High brightness alone cannot combat glare. Contrast ratio acts much like the signal-to-noise ratio in RF engineering; the 1300:1 specification ensures that the visual "signal" (the UI elements) remains distinctly separated from the optical "noise" (ambient light reflection), preventing the screen from appearing washed out.
- What are the power requirements for the 40-pin LVDS interface on this AUO display? The logic circuit operates on a standard 3.3V DC input. However, the high-brightness backlight requires a dedicated, robust WLED backlight driver capable of sustaining the required forward current without flickering, even under active PWM dimming conditions.
- Does the G101EVN03.2 support optical bonding? Yes, the panel's flat rectangular form factor and rigid mechanical envelope make it an excellent candidate for optical bonding. Applying a bonded cover glass eliminates the internal air gap, further reducing surface reflection and enhancing ruggedness.
Key Parameter Overview
Highlighted Specifications for Environmental Resilience
The following table highlights the decisive electro-optical and mechanical parameters of the G101EVN03.2, prioritizing data essential for outdoor and industrial integration.
| Category | Critical Parameter | Engineering Significance |
|---|---|---|
| Optical | 1280x800 (WXGA) | 1000 cd/m² | Ensures high-definition rendering and absolute direct sunlight readability. |
| Display Tech | MVA | 1300:1 Contrast | 85/85/85/85 VA | Provides ultra-deep blacks and prevents color inversion at extreme off-axis angles. |
| Electrical | 40-pin LVDS (1 ch, 6/8-bit) | Standardized differential signaling for high data rates with a minimal EMI footprint. |
| Environmental | Operating: -20°C to 60°C | Industrial-grade operational resilience for unconditioned, rigorous environments. |
Download the G101EVN03.2 datasheet for detailed specifications and performance curves.
Technical Deep Dive
The Mechanics of MVA and High-Brightness WLED Synergies
The core advantage of the G101EVN03.2 lies in its implementation of Multi-domain Vertical Alignment (MVA) technology coupled with a high-intensity edge-lit array. Standard Twisted Nematic (TN) panels often suffer from severe grayscale inversion when viewed from off-axis angles, rendering critical data illegible to operators moving around a machine. MVA technology fundamentally eliminates this risk.
Think of the liquid crystal molecules in an MVA panel as precisely controlled louvers on a high-end architectural window. Instead of tilting in a single uniform direction, they are partitioned into multiple microscopic "domains" that angle in opposing directions. This multidirectional light scattering ensures that the native 1300:1 contrast ratio is maintained across the entire 85/85/85/85 viewing cone. When this sophisticated light modulation is driven by the 1000 cd/m² WLED backlight, the TFT-LCD overcomes the high ambient lux of outdoor settings, ensuring that critical process controls remain distinctly visible without eye strain.
Application Scenarios & Value
Deploying the G101EVN03.2 in Outdoor Industrial HMIs
In the field, deploying graphical interfaces on heavy machinery presents the dual challenge of ensuring continuous legibility and resisting extreme environmental stress. Consider an Industrial HMI mounted on a marine vessel or a construction excavator. The display is subjected to intense solar loading. By integrating the G101EVN03.2, designers directly address the washout issue through the panel's native 1000 cd/m² luminance.
Furthermore, the 1280x800 active resolution provides sufficient pixel density to render intricate topological maps and real-time diagnostic telemetry without jagged aliasing. From a system architecture standpoint, routing a high-speed video signal through an electrically noisy engine environment requires robust differential signaling. The native LVDS Interface on this display inherently rejects common-mode noise, guaranteeing artifact-free video transmission over longer cable runs. For deep insights into engineering robust operator panels, consult our guide on sunlight readable HMIs.
While this model is ideal for high-ambient light, for systems requiring standard brightness to conserve battery, the related G101EVN01.0 offers an optimized power footprint. Conversely, the G104SN03 V5 provides a 10.4-inch SVGA alternative for legacy control retrofits. By selecting the optimal AUO display for the specific luminous environment, procurement teams can strategically balance power budgets against visibility requirements, ensuring operational continuity in any deployment scenario.
