AUO G101UAN01.0 | Advanced AHVA Technology for Superior Visuals

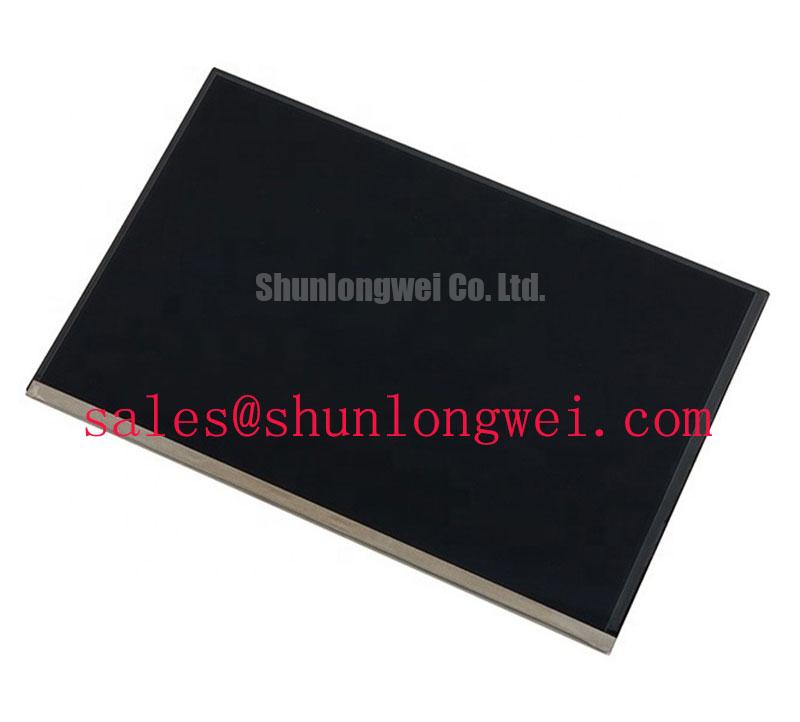

The AUO G101UAN01.0 is a 10.1-inch TFT-LCD module engineered for applications where visual precision and performance are non-negotiable. It transcends standard display offerings by delivering exceptional image quality, **high resolution**, and industrial-grade reliability, making it an ideal solution for specialized systems.
- Display Technology: 10.1" AHVA (Advanced Hyper-Viewing Angle), Normally Black
- Resolution & Brightness: 1920x1200 (WUXGA) resolution with a typical brightness of 380 cd/m²
- Viewing Angle: Symmetric and ultra-wide 89/89/89/89 viewing angles for consistent off-axis viewing
- Core Applications: Medical Imaging Systems, Industrial HMI, Portable Diagnostic Tools, and High-Fidelity Multimedia Displays
- Key Advantage: Combines **high resolution**, **eDP interface**, and superior color fidelity for data-critical environments.
Technical Deep Dive: Core Technology Advantages
The performance of the G101UAN01.0 is rooted in two key technological pillars that directly address common customer pain points.
AHVA (Advanced Hyper-Viewing Angle) Technology
- The Principle: As an IPS-like technology, **AHVA** arranges liquid crystal molecules parallel to the panel's surface. This structure minimizes light leakage and color distortion when viewed from different angles. Unlike traditional TN panels that suffer from severe color shifts, the AUO G101UAN01.0 maintains color and contrast integrity across its entire viewing cone.
- The Value: For collaborative workplaces or medical diagnostic stations, this means multiple users can view the screen simultaneously without misinterpreting data. The color accuracy is dependable, which is critical for applications like ultrasound displays or industrial process control where subtle color variations carry significant meaning.
High-Resolution WUXGA with eDP Interface
- The Principle: This display features a high-density 1920x1200 (WUXGA) resolution. It utilizes the **Embedded DisplayPort (eDP)** interface, which offers a higher data bandwidth and lower power consumption compared to older standards, simplifying integration into modern, high-performance host systems. The **WLED backlight system** is efficient and rated for a long operational lifespan of **50,000 hours**.
- The Value: The combination of high resolution and the **eDP interface** is ideal for displaying complex schematics, detailed medical images, and high-fidelity graphics. The long-term reliability reduces total cost of ownership by minimizing the need for costly field replacements and maintenance downtime.
Application Scenarios and Problem-Solving
This display isn't just a component; it's a solution. Here’s how the G101UAN01.0 excels in demanding fields:
- Medical Imaging: In portable ultrasound machines or patient monitoring systems, the WUXGA resolution and **AHVA technology** provide medical professionals with sharp, unambiguous images. The **wide viewing angle** allows for accurate readings from any position in the room.
- Industrial Automation & HMI: On a busy factory floor, operators need to see HMI data clearly from a distance and at an angle. The robust operating temperature range (-20 to 70°C) ensures stable performance **24/7**. Integrating a proper EMI filter into the system design further enhances its reliability in electrically noisy environments.
- Portable Diagnostic Tools: The efficient design and **eDP interface** make this panel highly suitable for portable, battery-powered diagnostic equipment where power consumption and clarity are both priorities. The **380 cd/m²** brightness is sufficient for most indoor and shaded outdoor applications.
Key Technical Parameters
| Parameter | Value |
|---|---|
| Screen Size | 10.1 inch |
| Resolution | 1920(RGB)×1200, WUXGA |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Signal Interface | eDP (2 Lanes) |
| Operating Temperature | -20 ~ 70 °C |
| Compliance | Fully compliant with RoHS compliance standards |
Frequently Asked Questions (FAQ)
- Is the G101UAN01.0 suitable for battery-powered devices?
The **eDP interface** and WLED backlight allow for efficient power management. By dynamically adjusting the brightness (via PWM control), you can balance readability and power consumption effectively for portable applications. - What level of technical support is available for integration?
We provide comprehensive support for integrating this display. This includes assistance with **eDP signal routing**, backlight driver configuration, and mechanical mounting. For complex projects, our engineers can help you optimize your design. Contact us for technical support to discuss your specific requirements.
For systems demanding uncompromising visual performance and durability, the AUO G101UAN01.0 offers a clear advantage over conventional displays. If your application requires high-fidelity imaging in challenging environments, this module is an an exceptional choice. Explore More Industrial LCDs to find the perfect fit for your project.
