Innolux G121XCE-L02: Engineering Grade 12.1-inch XGA Display for Demanding Industrial Environments
Content last revised on October 4, 2025.
Delivering Robust Visual Performance from Factory Floors to Medical Carts

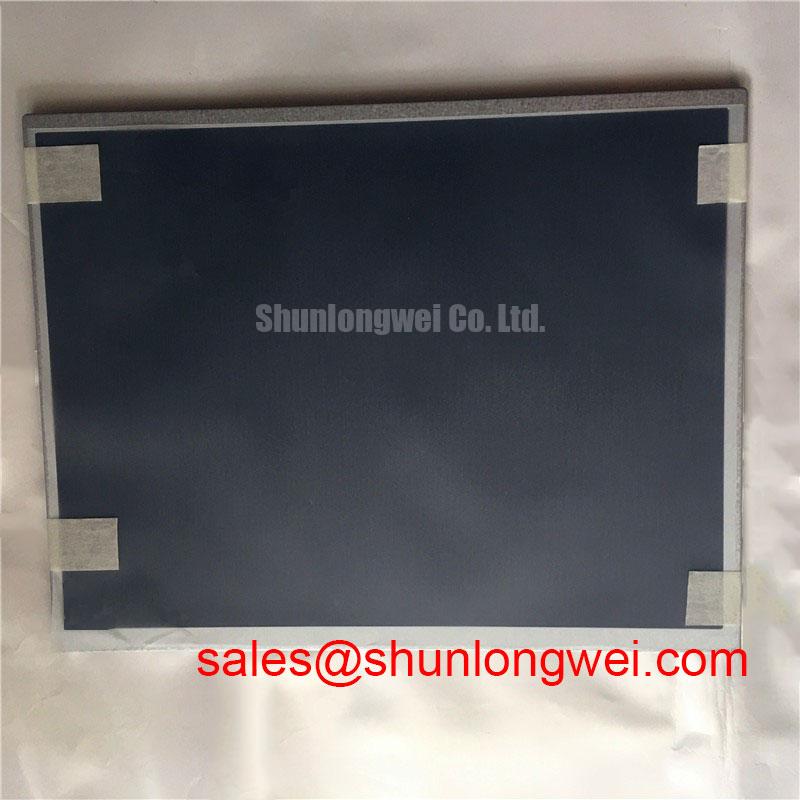

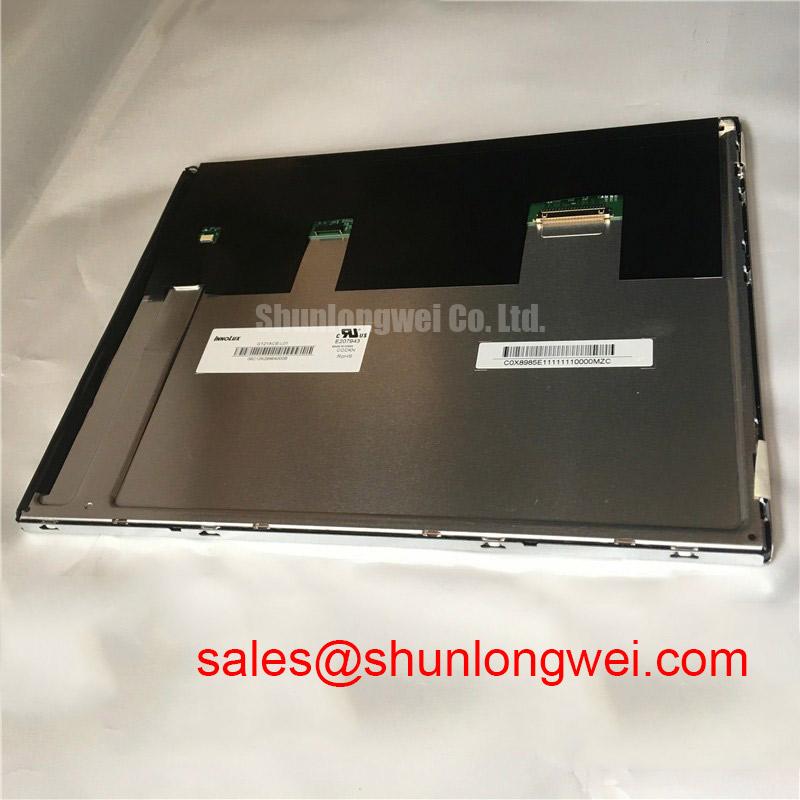

The Innolux G121XCE-L02 is a 12.1-inch a-Si TFT-LCD module engineered for exceptional visual clarity and operational resilience in applications where performance cannot be compromised. It delivers a superior viewing experience through its combination of high brightness, wide viewing angles, and a broad operational temperature range, addressing the core challenges of industrial HMI and medical device design. With key specifications including 1024x768 XGA Resolution | 500 cd/m² Brightness | -30 to 70°C Operating Temperature, this display provides both exceptional image quality and environmental durability. Its core benefits include consistent readability in variable lighting and reliable performance in extreme temperatures. For systems requiring consistent visual fidelity across wide viewing cones, such as collaborative robotics or patient monitoring systems, the G121XCE-L02's AAS technology is a critical enabler. For applications demanding higher resolution in a similar form factor, the G121EAN01.0 offers a WXGA (1280x800) alternative.
Key Parameter Overview
Decoding the Specs for Environmental Reliability
The specifications of the G121XCE-L02 are tailored for industrial and medical applications that demand both optical performance and physical robustness. The wide operating temperature and high brightness are particularly significant for deployment in non-climate-controlled environments.
| Parameter | Specification | Engineering Implication |
|---|---|---|
| Screen Size | 12.1 inches | Provides a substantial viewing area for complex data visualization without an excessive physical footprint. |
| Resolution | 1024x768 (XGA) | Delivers sharp, clear images and text suitable for detailed GUIs in industrial controllers and medical monitors. |
| Brightness | 500 cd/m² (Typ.) | Ensures excellent readability in bright indoor environments, a crucial factor for factory automation and surgical displays. |
| Viewing Angle | 89/89/89/89 (L/R/U/D) (Typ.) | Utilizing AAS technology, it provides consistent image quality from virtually any angle, critical for multi-operator HMIs. |
| Operating Temperature | -30°C to 70°C | This wide range guarantees operational reliability in harsh conditions, from cold storage facilities to hot factory floors. |
| Contrast Ratio | 1000:1 (Typ.) | Renders deep blacks and bright whites, enhancing image depth and data legibility. |
| Interface | LVDS (1 ch, 6/8-bit) | A standard, reliable interface that simplifies system integration with a wide variety of industrial motherboards. |
Download the G121XCE-L02 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Medical Devices
The G121XCE-L02 is best suited for applications where consistent, clear visuals are critical for operational safety and efficiency. Its feature set directly addresses common engineering challenges in demanding sectors.
High-Fidelity Engineering Scenario: Consider a CNC milling machine's control panel located on a factory floor with fluctuating ambient light. The operator must be able to clearly read critical machining coordinates and status updates from various standing positions. The G121XCE-L02's 500-nit brightness cuts through glare, while its 89/89/89/89 viewing angle, a hallmark of its Azimuthal Anchoring Switch (AAS) technology, ensures that the display remains perfectly legible without color shift, whether the operator is standing directly in front of it or off to the side. This prevents costly data entry errors and improves workflow efficiency. For similar industrial applications in a more compact size, the G104XCE-L01 offers comparable wide-viewing angle technology in a 10.4-inch format.
- Industrial HMI Panels: The wide operating temperature and robust design ensure longevity and reliability in manufacturing environments subject to heat, cold, and vibration.
- Medical Monitoring Equipment: The high contrast ratio and symmetric, wide viewing angles are essential for accurate diagnostic readings by multiple medical professionals simultaneously in operating rooms or at patient bedsides.
- Portable Test & Measurement Instruments: Its balance of size, resolution, and brightness makes it an excellent choice for field equipment where readability under varied lighting conditions is paramount.
- Transportation and Marine Displays: The ability to withstand extreme temperatures makes it a viable candidate for in-cabin displays in vehicles and marine chart plotters.
Frequently Asked Questions (FAQ)
What is the primary benefit of the AAS (Azimuthal Anchoring Switch) technology used in the G121XCE-L02?AAS technology, similar to IPS (In-Plane Switching), provides superior color fidelity and image consistency across extremely wide viewing angles (89° in all directions), preventing the color and contrast shifts common in older TN panels.
How does the -30°C to 70°C operating temperature range impact system design?This wide thermal range often simplifies system design by reducing or eliminating the need for dedicated heating or cooling components for the display, saving cost, space, and power in enclosures intended for outdoor or unconditioned industrial environments.
Is the 500 cd/m² brightness sufficient for outdoor use?While 500 cd/m² provides excellent readability for bright indoor and shaded outdoor conditions, it is not considered fully sunlight-readable. For direct sunlight applications, displays with brightness levels of 1000 cd/m² or higher are typically recommended. This model is optimized for demanding indoor and industrial settings.
Can the G121XCE-L02 display 16.7M colors with a 6-bit driver?Yes, the panel uses a 6-bit + Hi-FRC (High Frame Rate Control) driver. This technology rapidly alternates between colors to create the perception of intermediate shades, allowing it to simulate a full 16.7 million color palette (8-bit color) for more lifelike images.
What does the 30,000-hour LED backlight lifetime signify for total cost of ownership?A 30,000-hour lifetime, defined as time to 50% initial brightness, translates to over 3.4 years of continuous 24/7 operation. For typical 8-hour industrial shifts, this suggests a potential operational life well over a decade, ensuring long service intervals and a low total cost of ownership by minimizing replacement and maintenance costs.
Engineer's Perspective
An Engineer's Take on the G121XCE-L02
From a design engineering standpoint, the AUO G121XCE-L02 is a highly practical and reliable component for mission-focused industrial systems. Its value lies not in a single standout specification, but in the balanced combination of strong optical performance and rugged environmental tolerances. The standard LVDS interface and integrated LED driver simplify the integration process, allowing design teams to focus on software and system-level features rather than display subsystem complexities. The wide viewing angle is not just a "nice-to-have"; it's a critical safety and usability feature in collaborative workspaces. This display is a workhorse component, engineered for longevity and clarity in environments where display failure is not an option.
