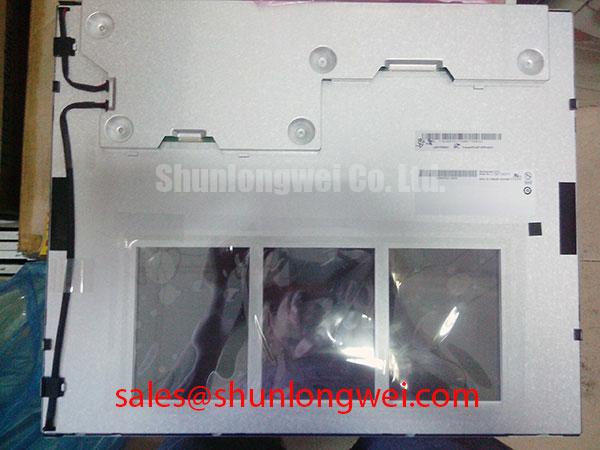

AUO G190ETN02.0 | Robust 19-inch SXGA Display for Demanding Industrial Environments
The AUO G190ETN02.0 is not just another screen; it's an engineering solution designed for steadfast performance where consumer-grade displays falter. This 19.0-inch TFT-LCD panel combines a legacy-friendly SXGA resolution with an exceptionally wide operating temperature range, making it a premier choice for systems that demand longevity and unwavering reliability.
- Brand & Model: AUO G190ETN02.0
- Core Function: 19.0" 1280x1024 (SXGA) Industrial LCD Module
- Key Strengths: Exceptional -30°C to 80°C operating temperature, 50,000-hour WLED backlight life, and high-contrast visuals.
- Primary Applications: Industrial Human-Machine Interfaces (HMI), medical diagnostic equipment, ATM systems, and semi-outdoor information kiosks.
Technical Deep Dive: Engineered for Endurance and Clarity
Two core attributes set the G190ETN02.0 apart: its environmental resilience and its seamless integration capability.
- Extreme Temperature Operation (-30°C to 80°C): Many displays suffer from crystallization of liquid crystal at low temperatures or degradation under high heat. The AUO G190ETN02.0 utilizes a specialized wide-temperature liquid crystal formula and robust electronic components that maintain fluid viscosity and stable performance across this vast range. This directly translates to operational reliability in non-climate-controlled environments like factory floors, outdoor-facing terminals, and transportation systems, preventing costly downtime.
- LVDS Interface and 50K Hour Backlight: The panel employs a standard LVDS (2 ch, 8-bit) interface, ensuring broad compatibility with industrial motherboards and single-board computers, simplifying system design. Its WLED backlight system is not only energy-efficient but is rated for 50,000 hours of operation. This long lifespan is critical for "set-and-forget" applications, drastically reducing the total cost of ownership by minimizing maintenance cycles. The design principles for such integrated drivers often draw from best practices in power electronics packaging to ensure thermal stability and longevity.
Application Scenarios: Solving Real-World Challenges
The value of the G190ETN02.0 is most evident in how its features solve specific application pain points.
- Industrial Automation & HMI: On a manufacturing floor, a display must withstand temperature swings, vibration, and continuous operation. The G190ETN02.0's ruggedness and long-life backlight ensure the HMI remains a reliable control point, displaying critical process data without failure.
- Medical Imaging & Diagnostics: The 1280x1024 SXGA resolution and 1000:1 contrast ratio provide the sharpness and detail necessary for non-diagnostic review stations and medical instrumentation readouts, ensuring data is presented clearly and accurately.
- ATMs and Public Kiosks: These systems face direct exposure to environmental extremes. The wide operating temperature ensures the screen remains functional in freezing winters and hot summers, while its brightness and anti-glare surface maintain readability for users.
- System Integration: When integrating this display, system-level considerations are key. For instance, ensuring clean power from robust industrial power electronics and implementing a proper EMI filter are crucial for meeting certification standards and ensuring signal integrity.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Name | G190ETN02.0 |
| Screen Size | 19.0 inch |
| Resolution | 1280(RGB)×1024, SXGA |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Operating Temperature | -30 ~ 80 °C |
| Backlight Lifetime | 50,000 hours (Typ.) |
| Compliance | Meets global standards like RoHS compliance |
Selection Guidance: TN vs. IPS in Industrial Contexts
Engineers often weigh the choice between a TN panel like the G190ETN02.0 and a comparable IPS panel. While IPS technology offers wider viewing angles, the G190ETN02.0's advanced TN technology provides faster response times, which is critical for reducing motion blur in applications displaying dynamic video or rapidly changing data. For most industrial HMI, process control, and instrumentation applications where the operator is positioned directly in front of the screen, the viewing angles of this AUO panel are more than sufficient. Its primary advantage lies in providing a highly reliable, cost-effective, and thermally robust solution without over-engineering for viewing angles that may not be required. If your project prioritizes operational uptime in harsh conditions over all-axis viewability, the G190ETN02.0 is the superior engineering and business choice.
For projects requiring different specifications or to compare this model with other options, you can explore more industrial LCD solutions on our website or contact us for a detailed quote and technical consultation.
