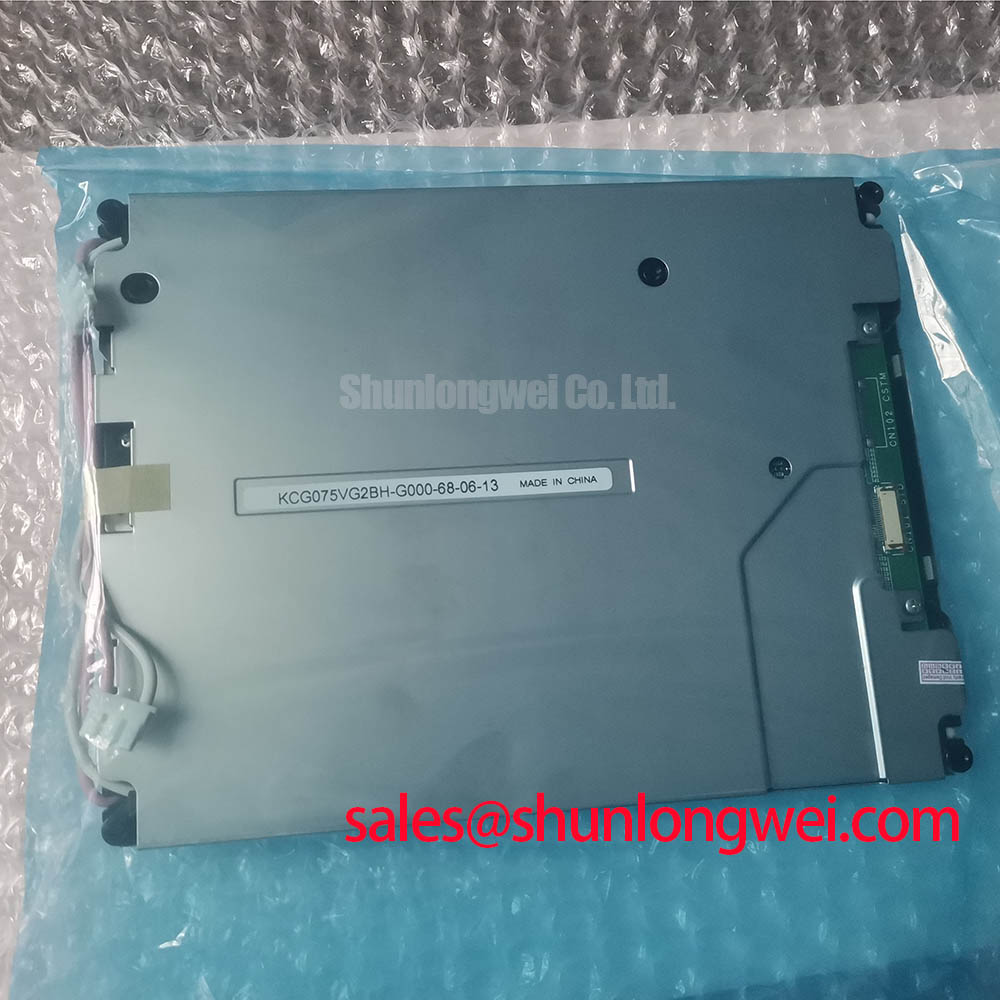

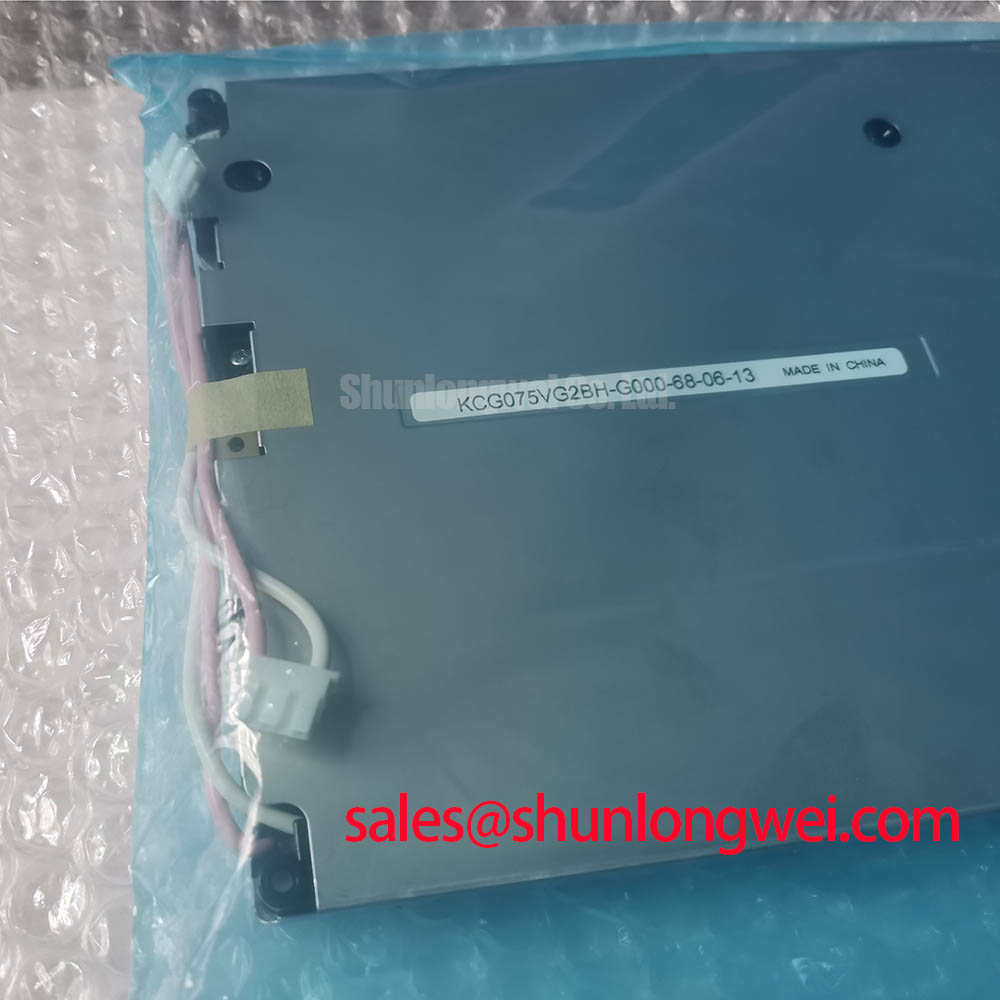

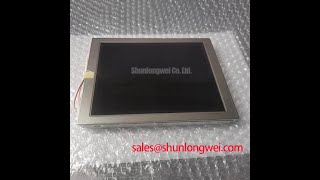

KCG075VG2BH-G00 | 7.5-inch VGA Industrial LCD for Cost-Effective Durability
A Technical Focus on Purpose-Built Industrial Displays
In an era dominated by high-resolution, fast-response TFT panels, the persistence and strategic deployment of Color Super-Twist Nematic (CSTN) technology speaks volumes about its specific engineering advantages. The Kyocera KCG075VG2BH-G00 is a prime example of this philosophy: a 7.5-inch VGA display engineered not for consumer-grade aesthetics, but for uncompromising industrial reliability and lifecycle value. Its design prioritizes operational stability in demanding environments through a combination of a wide operating temperature range (-20°C to 70°C), robust construction, and a highly compatible 640x480 resolution. This display delivers clarity and performance where it matters most, providing a cost-effective and dependable human-machine interface (HMI) solution for systems designed for the long haul.
Frequently Asked Questions for System Integrators
- Why choose a CSTN display like the KCG075VG2BH-G00 over a modern TFT?The primary driver is the total cost of ownership (TCO) for specific applications. CSTN technology offers a significantly more cost-effective solution for HMIs where ultra-wide viewing angles and video-rate response times are not critical. For static or slow-changing graphical data in industrial controls or test equipment, the KCG075VG2BH-G00 provides excellent readability and reliability without the higher cost and power consumption of an equivalent TFT panel.
- What is the typical lifespan of the CCFL backlight, and are there LED conversion options?The integrated Cold Cathode Fluorescent Lamp (CCFL) backlight is designed for long-term industrial use, typically offering a half-life of 20,000 to 50,000 hours. This ensures consistent brightness over years of operation. While this model is specified with CCFL, engineers evaluating new designs or retrofits can explore custom LED rail solutions for even longer life and lower power, though this requires driver circuit modification.
- How does the 640x480 resolution benefit legacy system integration?VGA (640x480) is a foundational resolution in industrial computing. Many embedded controllers, single-board computers, and established software GUIs are optimized for this format. Integrating the KCG075VG2BH-G00 into existing product lines often requires no changes to the system's frame buffer or software drivers, dramatically reducing development time and validation costs compared to adopting a higher, non-native resolution.
- What does the wide operating temperature range of -20°C to 70°C mean for my application?This broad range guarantees operational integrity in non-climate-controlled environments. It allows the display to be deployed in outdoor kiosks (within an enclosure), on factory floors subject to seasonal temperature swings, and inside vehicle cabins without requiring specialized heating or cooling elements for the display itself, simplifying the overall system thermal design.
- Is an anti-glare (AG) surface treatment standard on this model?Yes, the KCG075VG2BH-G00 features a standard anti-glare surface treatment. This is critical for industrial usability, as it diffuses reflections from overhead lighting or indirect sunlight, preventing the operator's view from being obscured and reducing eye strain during long shifts.
Core Specifications and Their Engineering Significance
Understanding the value of the KCG075VG2BH-G00 requires looking at its specifications through an engineering lens. Each parameter is a deliberate choice aimed at maximizing industrial utility and longevity. Download the full datasheet for complete details.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Screen Size | 7.5 inch (19 cm) | Provides a compact yet easily readable area for complex GUIs, ideal for control panels and portable instrumentation where space is a consideration. |
| Resolution | 640(RGB)×480 (VGA) | Ensures seamless compatibility with a vast range of legacy and cost-optimized industrial controllers, minimizing software redevelopment and validation efforts. |
| Operating Temperature | -20°C to 70°C | Enables deployment in harsh thermal conditions, from cold storage facilities to sun-exposed cabins, without performance degradation, enhancing system robustness. |
| Luminance | 400 cd/m² (Typ.) | Delivers bright, clear images that remain visible in typical indoor industrial and ambient light conditions, crucial for operator accuracy and reducing error. |
| Display Technology | CSTN (Passive Matrix) | A strategic choice for cost-sensitive applications that do not require video-rate playback, offering excellent reliability and lower power draw for static interfaces. |
| Interface | 18-bit parallel RGB CMOS | A straightforward, low-latency interface that is easy to implement with a wide variety of microcontrollers and display drivers, simplifying hardware integration. |
Applications Engineered for Unwavering Uptime
The KCG075VG2BH-G00 is not a general-purpose display. It is a specialized tool for applications where operational continuity and long-term stability are the primary design criteria. Its feature set makes it an ideal fit for:
- Industrial Process Control Panels: On factory floors, where machinery HMIs must function reliably for a decade or more through temperature cycles and electrical noise, this display's robustness is paramount.
- Test and Measurement Instruments: For oscilloscopes, spectrum analyzers, and network testers, the VGA resolution perfectly matches the information density required, while the high-contrast visuals ensure precise readings. For more compact instruments, the 5.7-inch G057VN01 V2 offers similar industrial-grade reliability.
- Medical Diagnostic Equipment: In non-diagnostic roles such as equipment status monitors or user interfaces on infusion pumps and ventilators, its reliability and long-term availability are critical for regulatory compliance and product lifecycle management.
- Point-of-Sale (POS) and Kiosk Systems: For systems where the primary display shows transactional data, the cost-effectiveness and durability of the KCG075VG2BH-G00 provide significant value over the product's lifespan.
The Engineering Rationale: CSTN and CCFL in Modern Design
The choice of CSTN and a CCFL backlight in the KCG075VG2BH-G00 is a calculated engineering decision. CSTN, or passive-matrix technology, functions like a precise grid system. Pixels are addressed at the intersection of a specific row and column signal. This is fundamentally simpler than an active-matrix TFT, which requires a dedicated transistor for every single sub-pixel. Think of it as a city's road network: CSTN is an efficient grid, whereas TFT provides a dedicated traffic light at every intersection. For displaying largely static HMI data, the grid is perfectly sufficient, more cost-effective, and consumes less power. This technical simplicity directly translates to higher reliability. Further details on display technologies can be found in our guide to TFT-LCDs.
Strategic Value in Long-Lifecycle System Design
Selecting the Kyocera KCG075VG2BH-G00 is a strategic decision that prioritizes long-term product stability and manages supply chain risk. In industrial and medical fields, product lifecycles can exceed 15 years. Using a mature, industrial-focused component from a manufacturer like Kyocera, known for its long-term supply commitments, mitigates the risk of forced redesigns due to the end-of-life (EOL) announcements common with consumer-oriented displays. This approach reduces the total cost of ownership by preserving the initial investment in software development, system validation, and agency certifications, a key consideration for any high-reliability system. This stability is a hallmark of major industrial display manufacturers like AUO and their peers.
Selection Criteria: KCG075VG2BH-G00 vs. Modern TFT Panels
When does it make sense to specify this CSTN panel over a seemingly more modern TFT? The decision hinges on a clear understanding of application requirements, not just a comparison of specifications.
- For Cost-Driven, Static HMIs: If your interface primarily displays numerical data, status indicators, or simple graphics that do not change rapidly, the KCG075VG2BH-G00 offers the most economical and reliable path.
- For Legacy System Upgrades: If you are refreshing a product built around a VGA display, this model is often a drop-in compatible replacement that preserves your existing system architecture.
- When Wide Viewing Angles are Secondary: For single-operator interfaces where the user is positioned directly in front of the screen, the viewing cone of this display is more than adequate. TFTs are only necessary for multi-viewer or off-axis applications.
Deployment Profile: Fortifying Test Equipment Reliability
A leading European manufacturer of portable network analysis tools faced significant field-failure rates with their previous-generation display, which was not rated for the temperature extremes encountered by field technicians working in telecom shelters. By integrating the KCG075VG2BH-G00, they leveraged its -20 to 70°C operating range to eliminate this failure point entirely. The result was a 30% reduction in warranty claims related to the HMI and a marked improvement in product reputation for being "field-proof," demonstrating how a single, well-chosen component can directly impact brand equity.
Future-Proofing Through Proven Technology
The true task of a design engineer is to build a system that meets its performance and reliability targets for its entire intended lifecycle. In that context, specifying a component like the Kyocera KCG075VG2BH-G00 is not about looking backward; it's about making a deliberate, forward-looking choice. It represents an investment in stability, supply chain certainty, and cost predictability. For the right application, embracing this proven, purpose-built technology is the most effective way to engineer a product that endures, minimizing future engineering churn and maximizing the return on your initial design investment.
