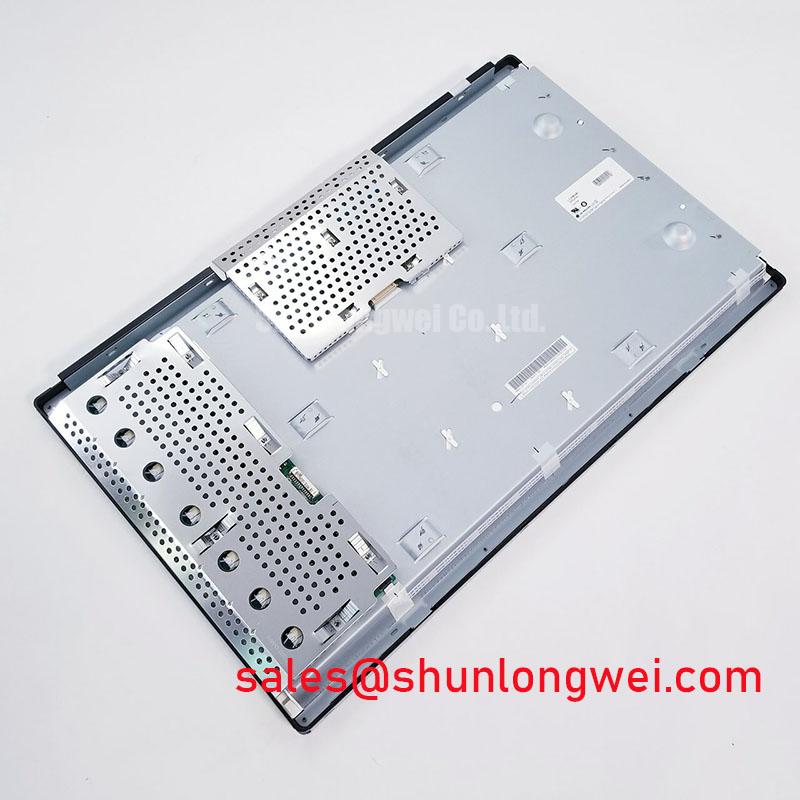

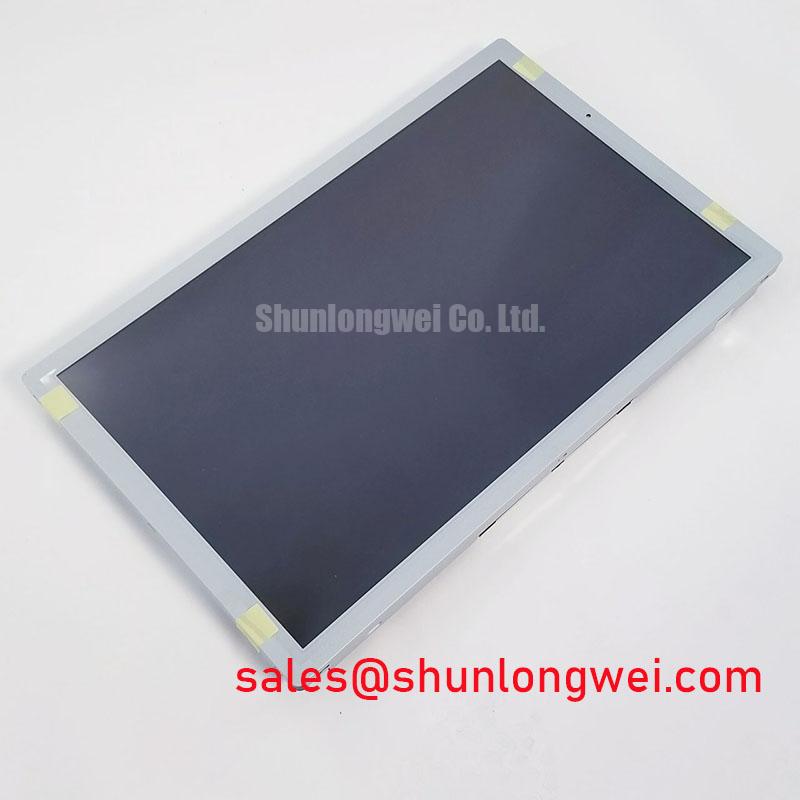

LG LC260W01-A5K3 | Robust 26-inch WXGA Display for Demanding Industrial Applications
The LG LC260W01-A5K3 is a 26-inch TFT-LCD module engineered for applications where visual clarity, reliability, and consistent performance are non-negotiable. It delivers a superior viewing experience built upon LG's proven display technology, making it a trusted component for system integrators in medical, automation, and digital signage sectors.
- Model: LC260W01-A5K3
- Manufacturer: LG Display
- Core Technology: Super-IPS (S-IPS) for exceptional color fidelity and ultra-wide viewing angles.
- Key Features: 1366x768 (WXGA) resolution, 500 nits brightness, 50,000-hour backlight lifespan.
- Primary Applications: Medical diagnostic stations, industrial HMIs, high-traffic digital signage, and transportation information systems.
Technical Deep Dive: Superior Visual Performance and Reliability
Super-IPS Technology for Uncompromised Viewing Angles
Unlike standard TN panels that suffer from significant color and contrast shifts at off-axis viewing, the LC260W01-A5K3 utilizes Super-In-Plane Switching (S-IPS) technology. This architecture ensures that liquid crystal molecules align parallel to the panel's surface, resulting in an exceptionally stable and wide viewing cone of 178°/178°. For the end-user, this means critical data, diagnostic images, or process alerts are displayed with consistent, accurate color and brightness, regardless of the operator's position. This is a crucial feature for collaborative environments and control rooms where multiple personnel view the same screen. It stands as a prime example of a Wide viewing angle LCD designed for professional use.
Engineered for Longevity and Readability
A major pain point in industrial settings is display failure and poor readability in variable lighting. The LC260W01-A5K3 directly addresses this with its robust CCFL backlight system, rated for 50,000 hours of operation. This translates to over 5.7 years of continuous 24/7 use, drastically reducing maintenance cycles and total cost of ownership. Furthermore, its 500 cd/m² brightness and 800:1 contrast ratio ensure excellent legibility, even in brightly lit factory floors or ambient-light-rich commercial spaces. This high-performance backlight is key to its role as a reliable industrial LCD display.
Application-Specific Value of the LC260W01-A5K3
- Medical Imaging & Diagnostics: The WXGA resolution and S-IPS technology provide the color accuracy and detail necessary for reviewing patient data and non-critical diagnostic images, where color consistency can impact interpretation.
- Industrial HMI & Process Control: In a bustling factory, operators need to see machine status at a glance from any angle. The wide viewing cone and high brightness of the LC260W01-A5K3 ensure that alarms and operational data are always clear, enhancing safety and efficiency.
- Public Information & Transportation Displays: For airport FIDS or railway timetables, readability from a distance and from wide angles is essential. The panel's size and optical performance guarantee that information is conveyed effectively to a moving audience.
- Professional A/V & Digital Signage: The long backlight life and stable image quality make it a cost-effective choice for continuous-use digital advertising or information kiosks, minimizing downtime and replacement costs.
Key Technical Specifications
Below is a summary of the critical performance parameters for the LG LC260W01-A5K3.
| Parameter | Value |
|---|---|
| Screen Size | 26.0 inch |
| Resolution | 1366(RGB)×768, WXGA |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Backlight Type | 10 pcs CCFL, 50K hours, Without Driver |
| Operating Temperature | 0 ~ 50 °C |
Integration and Selection Considerations
The LC260W01-A5K3 features a standard LVDS interface, which is a widely adopted standard for industrial motherboards and single-board computers, simplifying system design and integration. When selecting a display, engineers often weigh resolution against size. While higher resolution panels exist, the WXGA resolution on this 26-inch panel offers an optimal pixel density for clear text and graphical elements in typical industrial viewing distances of 1-3 meters. It avoids the scaling issues that can arise when displaying legacy interfaces on Full HD or 4K panels, making it a pragmatic upgrade for systems that do not require ultra-high pixel density. For projects needing this specific balance of size, performance, and proven reliability, this Industrial LCD module is a superior choice.
If your application requires a different size, interface, or specific environmental ratings, contact our technical team for a personalized consultation on our full range of display solutions.
