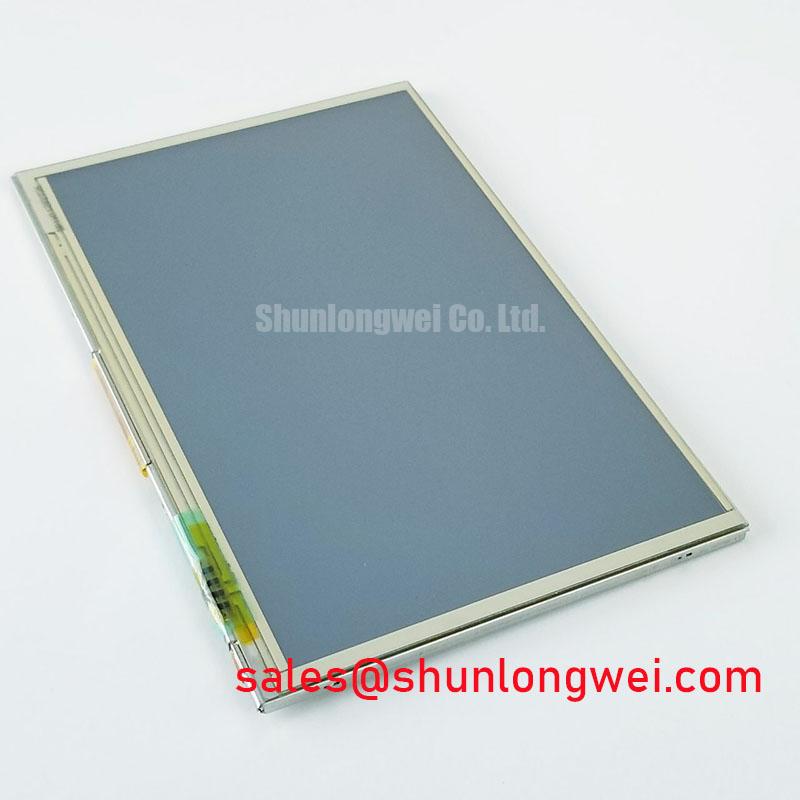

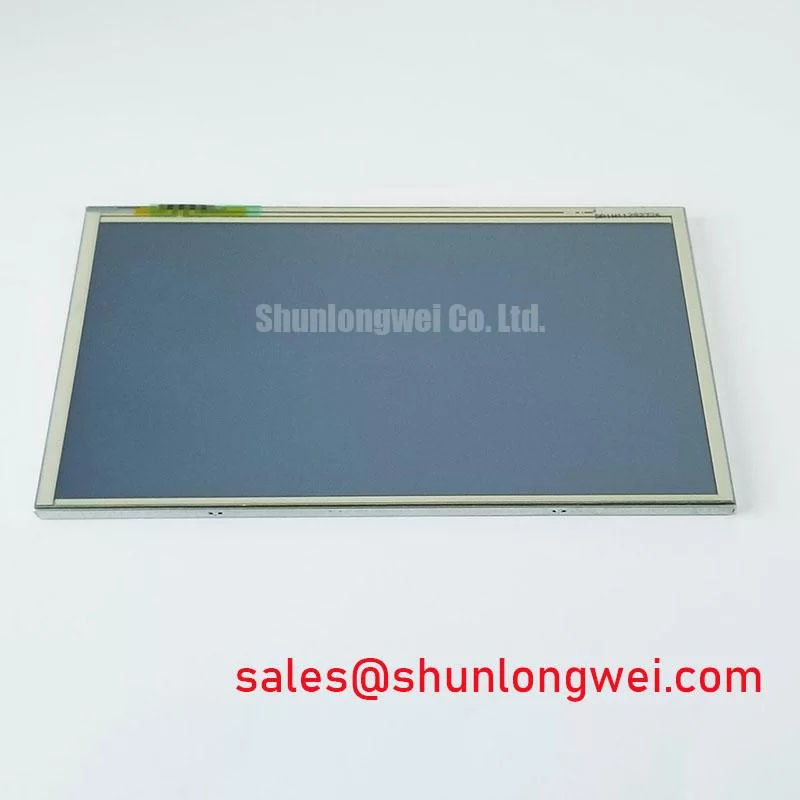

LMS700KF01-001: 7.0-inch WVGA TFT-LCD Engineered for Design Flexibility and System Integration
Product Overview & Key Specifications
A 7.0-inch Display Prioritizing Versatile Integration and Reliability
The LMS700KF01-001 is a 7.0-inch WVGA display that delivers unparalleled design flexibility through its unique combination of a dual data/control interface and a hardware-based reversible scan direction. With key specifications of 800x480 WVGA | 400 cd/m² Brightness | -20 to 70°C Operating Temperature, this module is engineered for robust performance. Its primary benefits include simplified system integration and significantly accelerated development cycles for Human-Machine Interface (HMI) applications. For embedded systems requiring versatile mounting orientations and simplified controller logic, the LMS700KF01-001 is a premier design choice.
Key Parameter Overview
Dissecting the Specifications for Seamless Integration
The technical specifications of the LMS700KF01-001 are tailored for industrial and automotive applications where both performance and design efficiency are critical. The combination of its electrical interface and environmental resilience provides a solid foundation for robust product development.
| Feature Category | Specification | Engineering Significance |
|---|---|---|
| Display Characteristics | 7.0" a-Si TFT-LCD, Normally White | Provides a standard, cost-effective platform for clear information display. |
| Resolution & Pixel Format | 800(RGB)×480 [WVGA], RGB Vertical Stripe | Delivers sharp, clear graphics and text suitable for modern user interfaces. |
| Optical Performance | 400 cd/m² Brightness, 400:1 Contrast Ratio | Ensures good readability in typical indoor and cabin environments. |
| Interface & Control | Parallel RGB (1 ch, 8-bit) + SPI | Dual-interface architecture separates high-speed video data from low-speed module configuration, simplifying host processor tasks. |
| Key Functional Feature | Reversible Scan Direction (Up/Down, Left/Right) | Hardware-level flexibility allows for portrait or landscape mounting without firmware changes, reducing development time. |
| Environmental Resilience | -20 to 70 °C Operating Temperature | Guarantees reliable operation in demanding thermal conditions found in automotive and industrial settings. |
Application Scenarios & Value
System-Level Value in Versatile HMI Designs
The LMS700KF01-001 is optimally suited for applications where a single hardware design must support multiple physical product configurations. Consider an engineering team developing a new generation of industrial controllers or In-Vehicle Infotainment (IVI) systems. A key challenge is often accommodating both landscape and portrait mounting requirements, which typically necessitates different firmware versions for frame buffer rotation or complex flexible cable routing.
This is where the display's hardware-based reversible scan direction provides a decisive advantage. What does the reversible scan feature eliminate? It eliminates the need for software-based frame buffer rotation. An engineer can use the exact same PCB and firmware for both product variants, simply configuring the scan direction via hardware pins or a one-time SPI command. This capability directly translates to reduced software validation effort, simplified inventory management with a single display SKU, and a faster path to market. The integration of this feature into embedded systems transforms a potential development bottleneck into a source of manufacturing efficiency. While this display provides excellent performance for indoor or cabin use, for systems requiring higher brightness in direct sunlight, the related G070ACE-L01 offers a higher luminance of 500 cd/m².
Frequently Asked Questions (FAQ)
Engineering Questions on Integration & Performance
What is the primary benefit of the dual Parallel RGB and SPI interface on the LMS700KF01-001?
The dual interface architecture allows for the separation of tasks. The high-bandwidth Parallel RGB interface is dedicated to transferring video frame data efficiently, while the independent SPI channel handles module configuration and control commands, such as setting contrast or scan direction. This partitioning simplifies the design of the host controller and firmware, preventing control signals from interfering with the timing-critical video stream.
How does the reversible scan direction simplify mechanical and software design?
It provides immense flexibility. Mechanically, the display can be mounted with the FPC connector at the top, bottom, left, or right, simplifying enclosure design and internal wiring. From a software perspective, it completely removes the need for the host processor to perform computationally intensive image rotation. This saves CPU cycles and dramatically simplifies the software stack, especially in resource-constrained embedded systems.
Is the LMS700KF01-001 suitable for use in unheated outdoor enclosures?
With an operating temperature range of -20 to 70°C, the LMS700KF01-001 is robust enough for many outdoor applications, particularly within vehicle cabins or protected enclosures where it isn't exposed to the absolute extremes of weather. The -20°C lower limit ensures reliable startup in cold conditions, a critical requirement for automotive and industrial equipment.
Technical Deep Dive
Inside the Architecture: Dual Interface and Scan Reversibility
A closer analysis of the LMS700KF01-001's architecture reveals a focus on offloading tasks from the host processor to enhance system performance. The dual-interface design is a prime example. Think of the Parallel RGB connection as a multi-lane expressway dedicated to the constant, high-speed flow of video data. The SPI interface acts as a separate, efficient service road. How does the SPI interface help? It allows direct register control without interrupting the main video data stream. This prevents the system slowdowns that can occur when control commands are multiplexed over a single data interface.
Furthermore, the reversible scan function is not a simple software flag but a fundamental capability of the display's integrated driver ICs. It changes the sequence in which the gate and source drivers update the pixels on the TFT-LCD panel. The engineering analogy is the difference between rotating a digital photo in software versus having a projector with a physical lens-shift feature. The former consumes processing power, while the latter is an inherent hardware function that causes zero performance loss. This feature is a key enabler for creating modular and scalable HMI platforms from a single, versatile display module.
To evaluate how the LMS700KF01-001 can streamline your next HMI project, or to discuss specific integration requirements, please contact our team of application specialists for a detailed consultation.
