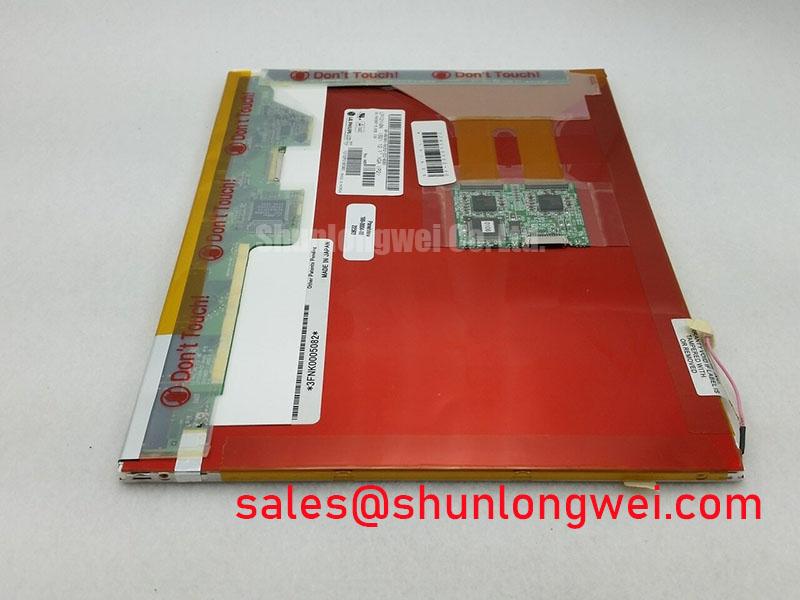

LP121X04-B2P2: Technical Review of the 12.1-inch XGA Industrial TFT-LCD
Engineering a Seamless Fit for System Longevity
The LP121X04-B2P2 is a 12.1-inch a-Si TFT-LCD panel engineered for straightforward integration into industrial and embedded systems. Its value is centered on providing a reliable, standards-compliant display solution that accelerates design cycles and simplifies the lifecycle management of long-term equipment. With key specifications of 1024x768 XGA | 1-ch 6-bit LVDS | 250 cd/m² Brightness | 10,000-hr CCFL Backlight, it offers proven performance and drop-in compatibility. This panel directly addresses the engineering need for a consistent 4:3 aspect ratio display, eliminating software and mechanical redesign efforts for established HMI applications. For maintenance and repair of industrial HMIs requiring a 4:3 aspect ratio, the LP121X04-B2P2 provides a reliable drop-in solution.
Key Parameter Overview
Decoding the Specs for System Integration
The technical specifications of the LP121X04-B2P2 are tailored for clear performance in controlled industrial environments. The following parameters are critical for design and integration assessment.
| Feature | Specification |
|---|---|
| Panel Size | 12.1 inch |
| Resolution | 1024(RGB)×768, XGA |
| Aspect Ratio | 4:3 (W:H) |
| Technology | a-Si TFT-LCD, TN, Normally White |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) |
| Viewing Angle | 60/60/40/50 (Typ.)(CR≥10) |
| Interface Type | LVDS (1 ch, 6-bit), 20 pins Connector |
| Backlight | 1 pcs CCFL, 10K hours, W/O Inverter |
| Operating Temperature | 0 ~ 50 °C |
| Outline Dimensions | 261(W) × 199(H) × 11.5(D) mm |
Download the LP121X04-B2P2 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial HMI and Control Systems
The LP121X04-B2P2 is engineered to solve a common but critical challenge: the maintenance, repair, and upgrade of legacy industrial equipment. What is the primary benefit of its XGA resolution? It ensures backward compatibility with legacy industrial software, which is often tightly coupled to a 4:3 aspect ratio. This prevents costly recoding and revalidation of HMI software.
A high-fidelity engineering scenario involves a CNC milling machine control console where the original display has failed. The operator faces significant production downtime. The LP121X04-B2P2, with its standard XGA resolution and ubiquitous LVDS Interface, serves as a form, fit, and function replacement. The maintenance engineer can swap the panel with minimal mechanical or electrical modifications, restoring the machine to operational status quickly. The LVDS interface acts like a dedicated, low-noise highway for video data, ensuring signal integrity even within the electrically noisy environment of a factory floor. This focus on standard interfaces is a core tenet of effective TFT-LCD integration.
For systems that may require different optical characteristics or a transition to modern backlighting, exploring panels like the G121XCE-L01 could provide alternatives with LED backlights for comparison during the design phase.
Technical & Application FAQ
Clarifying Key Engineering Questions
What are the design considerations for the CCFL backlight of the LP121X04-B2P2?
The panel utilizes a single Cold Cathode Fluorescent Lamp (CCFL) with a typical lifespan of 10,000 hours. Engineers must account for an external CCFL inverter to provide the necessary high-voltage AC power. The 10K-hour rating is a crucial parameter for establishing a preventative maintenance schedule in industrial applications, ensuring the backlight is replaced before it reaches its end-of-life and impacts display luminance.
How does the standard LVDS interface of the LP121X04-B2P2 simplify system upgrades or repairs?
The single-channel, 6-bit LVDS interface is an industry standard that simplifies the design process significantly. Why is the LVDS interface important? It simplifies electrical integration and reduces signal noise. This means designers can use a wide variety of off-the-shelf single-board computers (SBCs) and display controllers without needing custom interface hardware. For repairs, it ensures that a replacement panel can connect directly to the existing system cable, dramatically reducing downtime and technical complexity.
Application Vignette
Extending the Life of Test and Measurement Equipment
Consider a scenario where a specialized piece of laboratory test equipment, vital for quality control, begins to show a dim and unreadable display. The equipment is fully functional but is over a decade old, and a complete system replacement would cost tens of thousands of dollars and require extensive re-training of personnel. The root cause is a failing 12.1-inch CCFL display.
The LP121X04-B2P2 presents a direct and cost-effective solution. Its mechanical dimensions and mounting points are consistent with older panels, allowing it to fit into the existing chassis. The 20-pin LVDS connector is a pin-for-pin match with the existing data cable, eliminating any need for rewiring. An engineer can source a compatible CCFL inverter and complete the entire display module replacement in under an hour. The result is a fully restored HMI with a bright, clear display, extending the operational life of a critical asset and maximizing the return on the original investment. This underscores the critical difference between consumer and industrial display philosophies, where longevity and maintainability are paramount.
Engineering Support and Component Sourcing
For detailed technical inquiries, block diagrams, or to discuss sourcing for your production or maintenance requirements, please contact our technical sales team for assistance with the LP121X04-B2P2 display panel.
