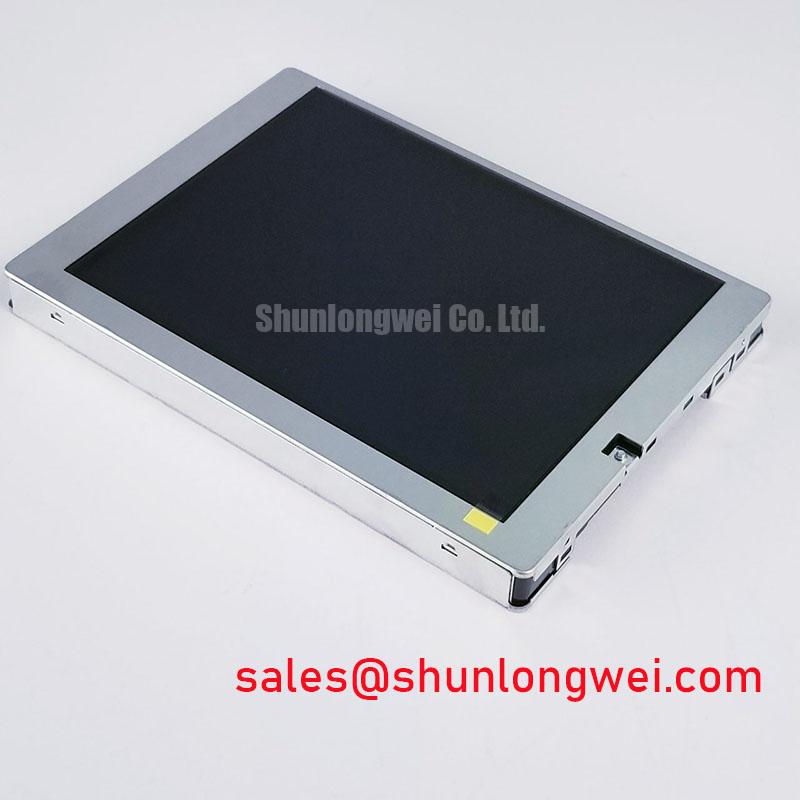

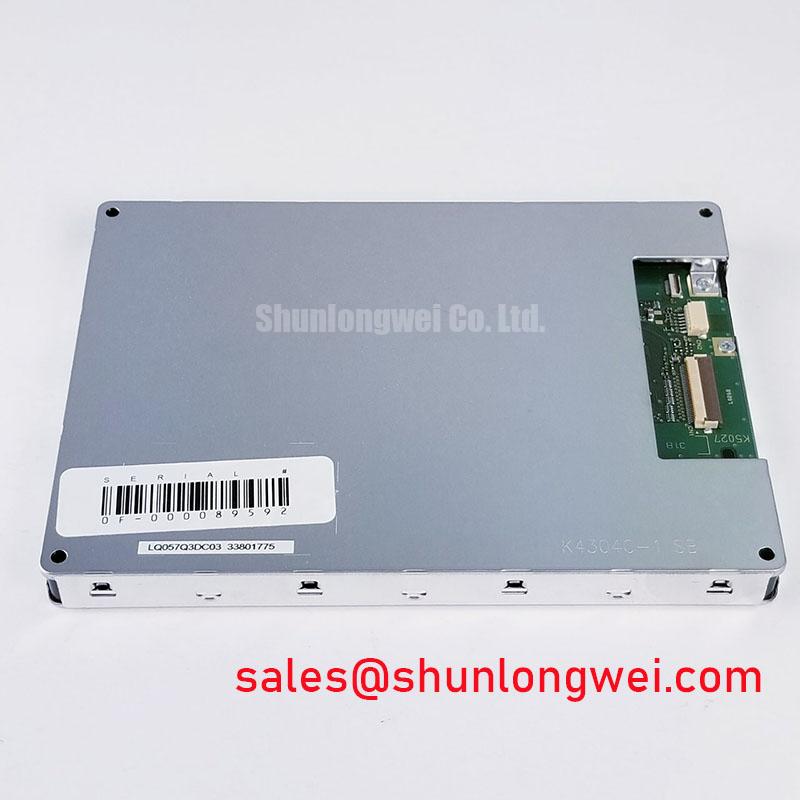

Sharp LQ057Q3DC03 5.7-inch QVGA Display: Engineered for Industrial Longevity and Environmental Resilience
An Engineering-Focused Review of the LQ057Q3DC03 TFT-LCD Module
The Sharp LQ057Q3DC03 is a 5.7-inch QVGA TFT-LCD module engineered for exceptional durability and visual performance in demanding industrial environments. With its key specifications of 320x240 Resolution | 450 cd/m² Brightness | -20°C to 70°C Operating Temperature, this display delivers critical advantages in reliability and total cost of ownership. Its primary benefits include extended operational life through a replaceable backlight and consistent readability across a wide thermal range. For engineers designing systems for unconditioned environments where long-term serviceability is a key requirement, the LQ057Q3DC03's robust design provides a dependable HMI foundation. What is the primary benefit of its field-replaceable backlight? It significantly lowers the total cost of ownership by simplifying long-term maintenance.
Key Parameter Overview
Decoding the Specifications for Environmental Robustness and Optical Performance
The technical specifications of the Sharp LQ057Q3DC03 are tailored for industrial applications where performance cannot be compromised by environmental factors. The combination of thermal resilience, optical clarity, and long-life design features provides a stable and reliable display solution for system integrators.
| Parameter | Specification | Engineering Value & Interpretation |
|---|---|---|
| Screen Size | 5.7 inch (14.4 cm) diagonal | Provides a compact yet effective viewing area for data display in space-constrained industrial control panels and portable test equipment. |
| Resolution | 320(RGB) x 240, QVGA | Delivers clear and sharp rendering of GUIs, numerical data, and status indicators, which is ideal for classic HMI applications. |
| Brightness | 450 cd/m² (Typ.) | Ensures high visibility in typical indoor industrial and semi-outdoor lighting conditions, improving operator accuracy and reducing eye strain. |
| Operating Temperature | -20°C to +70°C | This wide thermal range guarantees reliable display startup and operation in unheated warehouses, outdoor-adjacent control cabinets, and refrigerated environments. |
| Storage Temperature | -30°C to +80°C | Demonstrates the module's resilience, allowing for storage and transport in extreme conditions without degradation of performance. |
| Backlight System | 1x CCFL, Replaceable | A critical feature for extending the service life of the end equipment. A replaceable backlight means the highest-aging component can be serviced in the field, maximizing uptime and reducing TCO. |
| Surface Treatment | Anti-glare, Low Reflection | Minimizes distracting reflections from overhead lighting, which is crucial for maintaining readability on the factory floor or in medical monitoring equipment. |
Download the LQ057Q3DC03 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Instrumentation
The Sharp LQ057Q3DC03 is best suited for applications where operational availability over a long lifecycle is a primary design driver. Its feature set directly addresses common engineering challenges in industrial and medical fields.
A high-fidelity engineering scenario is the development of a Human-Machine Interface (HMI) for a CNC milling machine on a factory floor. These environments often lack precise climate control, with temperatures fluctuating significantly. The LQ057Q3DC03's -20°C to 70°C operating range ensures the display remains functional and responsive, from cold morning startups to peak afternoon temperatures. Furthermore, the anti-glare surface is critical for operators who must view the screen from various angles under intense overhead industrial lighting to monitor machine status and input commands. The replaceable backlight is a key value proposition here; after several years of 24/7 operation, the backlight's brightness may degrade, but instead of replacing the entire HMI unit, a technician can simply swap the backlight unit, drastically reducing maintenance costs and downtime. For systems that require a higher VGA resolution within a similar form factor, the related LQ064V3DG06 offers an alternative path for more data-intensive applications.
Frequently Asked Questions (FAQ)
What is the primary engineering advantage of the LQ057Q3DC03's replaceable backlight unit?
The key advantage is a significantly extended operational lifetime for the host device and a lower total cost of ownership (TCO). The backlight is typically the component with the shortest lifespan in an LCD module. By making it field-replaceable, the display's service life is no longer limited by the backlight's degradation, avoiding costly system-level replacements.
How does the -20°C to +70°C operating temperature range impact system design choices?
This wide temperature range simplifies thermal management design. It allows the display to be integrated into systems deployed in non-climate-controlled environments, such as outdoor kiosks, vehicle cabins, or factory floors, without requiring complex and costly heating or active cooling subsystems specifically for the display module.
Is the 450 cd/m² brightness sufficient for outdoor applications?
While 450 cd/m² provides excellent readability for indoor and semi-shaded outdoor environments, it is not considered fully "sunlight readable," which typically requires 1000 cd/m² or more. It is perfectly suited for factory HMIs, medical monitors, and control panels that are not exposed to direct, bright sunlight. For a deeper understanding of displays designed for high ambient light, see this guide to sunlight readable HMIs.
What does the QVGA resolution of 320x240 pixels mean for a GUI designer?
QVGA is a standard resolution that is well-suited for displaying critical process data, status indicators, soft keys, and simple graphics common in industrial control. It allows for a clean, uncluttered interface that prioritizes clarity and immediate comprehension over high-definition imagery, aligning perfectly with the functional requirements of most industrial and test equipment.
What is the significance of the Anti-Glare (AG) surface treatment in an industrial setting?
The AG coating diffuses ambient light, reducing specular reflections that can obscure the screen's content. In a factory with varied and often harsh lighting, this ensures that operators can read the display clearly from multiple viewing angles without being hindered by glare, which directly contributes to operational efficiency and safety.
Industry Insights & Strategic Advantage
Aligning with Total Cost of Ownership and Lifecycle Management Trends
In the industrial sector, the focus is shifting from initial acquisition cost to the Total Cost of Ownership (TCO). Equipment is expected to operate reliably for a decade or more. The Sharp LQ057Q3DC03 directly supports this strategic objective. Its most significant contribution is the field-replaceable backlight. This design feature acknowledges that backlight systems have a finite life and provides a practical, cost-effective path to extend the utility of the entire HMI or device it's built into. This philosophy of serviceability over disposal is a cornerstone of sustainable industrial design, reducing electronic waste and minimizing lifetime operational expenses. By selecting components like the LQ057Q3DC03, OEMs can offer their customers a more robust and economically viable long-term solution.
An Engineer-to-Engineer Perspective
From a design engineer's viewpoint, the LQ057Q3DC03 is a practical, low-risk component choice for industrial HMI projects. It's not a display that pushes boundaries on resolution or color gamut; instead, it doubles down on what matters most in its target applications: reliability and longevity. The wide operating temperature range provides a significant thermal margin, reducing the engineering effort needed for system-level thermal validation. The replaceable backlight is a tangible feature that translates directly into a stronger value proposition for the end customer. In essence, this module is a workhorse, built to deliver consistent performance year after year in environments that would cause consumer-grade displays to fail. It represents a safe, dependable choice for any system where uptime and serviceability are non-negotiable requirements.
