Radiated Emissions, Grounding and Signal Integrity at the Display Connector

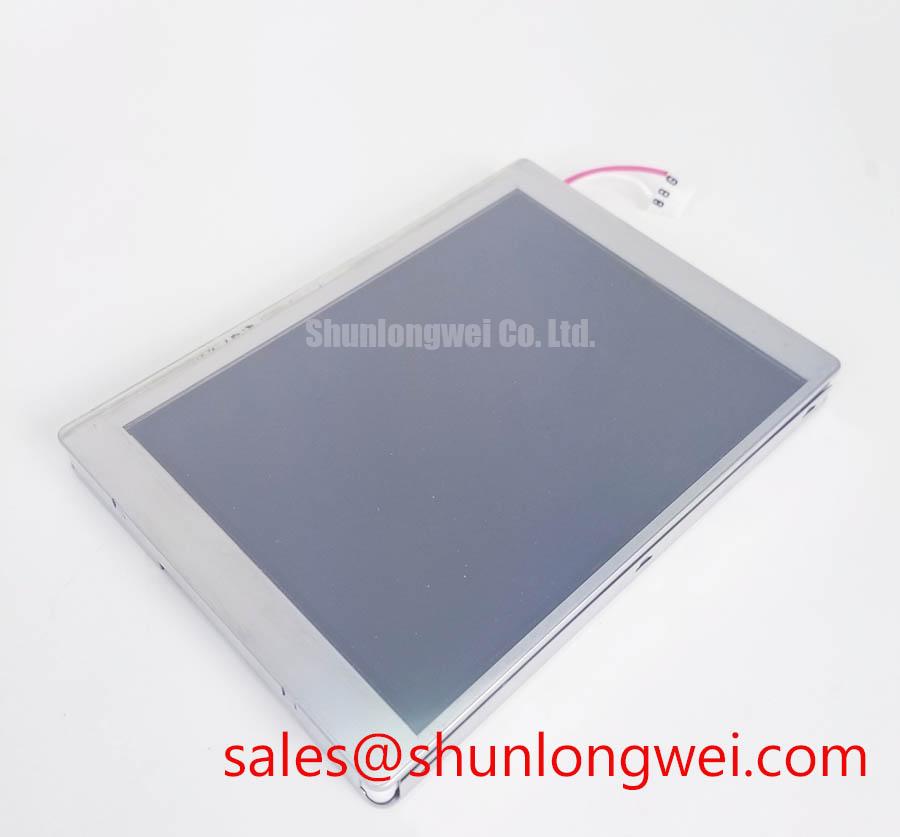

LQ074V3DC01 hardware specification card: Manufacturer: Sharp. Product category: industrial LCD/HMI panel. Display technology and module form: TFT-LCD active-matrix color display module (Official Factory Specification). Supply voltage, resolution, connector pinout, backlight type and mechanical dimensions are not established by the supplied factory specifications.
Probe the host display supply and video signals at the connector while the machine is running, then compare the traces with those recorded while nearby motor equipment is idle. If horizontal noise bands or pixel jitter change with motor operation, inspect the cable route, shield termination and chassis bonding before assigning the fault to the LQ074V3DC01. A disturbed image can reflect interference entering the host electronics, a marginal connector contact or an unstable supply; its appearance alone does not identify which path is responsible.
Design Consideration: Keep the display cable away from high-current switching conductors where the enclosure permits, and assess how its shield bonds to the host chassis. Shield coverage, grounding arrangement and any common-mode ferrite belong to the equipment design. The module’s supplied specifications do not establish an LVDS interface, a differential-pair impedance or a skew limit, so those requirements must come from the original display and host documentation rather than from a generic cable rule. A changed cable should be checked for pin assignment, contact orientation, routing and signal integrity against the known-good assembly.
For an intermittent black screen, check the connector latch under good light and examine the flexible cable for a crease at its exit point. Reseat only after isolating power, then verify that the cable enters squarely and remains secure when the harness is returned to its installed route. Repeated flexing near a connector can make a fault appear position-dependent, but a moving image is not proof that the cable alone needs replacement. Check the supply at the panel end during the event; a sound reading at the controller does not establish what reaches the display.
Field Alert: Disconnect power before unplugging or reseating the display cable to avoid applying live signals to partially engaged contacts.
Emissions compliance is determined at equipment level, not by assigning a CISPR class to a loose panel. If an enclosure change or cable replacement alters the ground path, the system engineer should assess image stability and emissions in the completed machine. Sharp’s industrial display resources provide manufacturer context; they do not replace the model-specific interface requirements needed for this check.
Primary-Color Screening and Dark-Image Fault Isolation
Display solid red, green and blue test images on the LQ074V3DC01 and mark any defects that remain fixed at the same screen location. Run the patterns through the installed video path first, so the inspection includes the controller and cable. Compare questionable marks under consistent lighting and viewing position. A fixed bright or dark subpixel, a line extending across the image and a broad patch of uneven illumination call for different follow-up checks; a single pattern is not enough to distinguish them.
Next, show a dark image and inspect the screen with an angled flashlight. If content can be made out under external illumination while the panel itself remains dark, investigate the illumination supply and its control path. If the image is bright but corrupted, compare the incoming signals and connector contacts with a known-good signal path. Where a line persists across test patterns, record its position and check whether gentle, non-loading movement of the external cable changes it. Do not press on the glass or diagnose an unverified internal driver structure from the line’s appearance.
A white image adds a useful uniformity check after the primary colors. Look for local shadows, edge brightening and patterns that change when the assembly is returned to its bezel. Photograph results with the same exposure settings if screens are being compared; automatic camera exposure can conceal a weak illuminated area or exaggerate a small one. An apparent color shift can also change with viewing angle. Confirm the viewing geometry used by the equipment before treating an off-axis photograph as evidence of a panel fault.
The supplied factory specifications identify this unit as a TFT-LCD active-matrix color display module; they do not establish an IPS or MVA mode, an optical-bonding construction or a pixel-defect acceptance limit. Those distinctions matter when a service team compares a removed assembly with another display. The TFT LCD technology overview explains the general relationship between active-matrix addressing and the displayed image, but inspection acceptance must follow the equipment’s applicable criteria.
If a candidate display is being assessed during a repair, LQ065T5BR02 is a separate model to compare, not a confirmed drop-in replacement. Check the active area, mounting envelope, connector orientation, electrical interface and controller timing before considering a substitution. Matching a photograph of the front face does not establish electrical compatibility.
Humidity Exposure, Storage and Image Persistence Checks
Inspect the panel perimeter and connector area for visible moisture or residue before energizing a unit taken from damp storage. Allow the assembly to reach the work area’s conditions without trapping condensation inside the enclosure. If the installed screen develops haze or dark patches, compare their appearance before and after the equipment reaches a stable operating temperature, and inspect the cover window as well as the display. Surface contamination, moisture in an enclosure and an optical defect can look similar through a closed HMI.
Design Consideration: Enclosure sealing, ventilation and any bonded cover window should be evaluated as parts of the complete display assembly. Optical bonding must not be assumed for the LQ074V3DC01 from its TFT-LCD designation. Likewise, the supplied specifications do not establish storage humidity limits, an operating-temperature range or a backlight lifetime. Do not apply proposed environmental test conditions or brightness-decay figures as though they were this model’s factory ratings.
When a display responds slowly after cold storage, compare the behavior after thermal stabilization and check the host’s video timing before calling it a failure. Liquid-crystal response is temperature-dependent as a general operating principle, while the acceptable response of this particular module depends on its original specification and the equipment’s display requirements. If a heater is present in the machine, evaluate its control and placement as part of that machine; the supplied panel data does not specify a heater.
For a faint remnant of a long-static HMI image, test changing content and observe whether the pattern diminishes under the equipment’s normal operating conditions. Record what remains visible on uniform fields rather than treating every remnant as permanent damage. The same comparison helps distinguish displayed-content persistence from an uneven illumination pattern. Guidance on broader inspection and integration principles is available in The Ultimate Guide to Industrial TFT LCD Technology; the machine’s acceptance decision still depends on its own visual requirements.
Where an AGV or forklift telematics display is under evaluation, review vibration restraint, enclosure sealing and the readable viewing position as system-level conditions. The LQ074V3DC01 should not be treated as qualified for either installation solely because it is categorized as an industrial LCD/HMI panel.
Bezel Loading, Fastener Control and Power-Sequence Verification
Loosen an overconstrained bezel in a controlled bench setup and watch whether a localized dark patch changes without touching the glass. A pressure-sensitive change points toward an assembly interaction worth measuring, not an automatic diagnosis of the panel. Check the host drawing for support points, edge clearances and fastener locations, then compare the installed frame with an undistorted reference assembly. The supplied factory specifications do not establish an M3 fastening pattern, a torque limit or bezel envelope tolerances for this model.
Design Consideration: Tighten mounting hardware progressively and evenly where the equipment design calls for it, while keeping frame load away from unsupported display areas. The torque and sequence must be determined from the enclosure, fasteners and applicable mechanical drawings. Recheck the dark image after the bezel is secured; a defect that appears only in the assembled state warrants investigation of contact pressure or cover-window alignment before the panel is condemned.
For a white screen at startup or an image lingering during shutdown, capture the host supply, control and display-signal behavior through both transitions. Compare the traces with the original machine schematic and a functioning unit if one is available. An unstable supply, interrupted connector contact or incorrect host sequencing may produce similar visible results, so confirm the waveform at the panel connector rather than relying on the screen alone. The system integrator should verify the required supply voltage and power-sequencing limits from the original panel documentation.
Do not infer that another Sharp display shares this module’s supply or illumination arrangement. For example, LQ084S3LG03 is a distinct display model, not an identified backlight driver for the LQ074V3DC01. When reviewing a machine’s display power path, trace the installed illumination-control and panel-supply connections from its own wiring documentation, then test the assembled screen for stable startup, shutdown and image uniformity.
