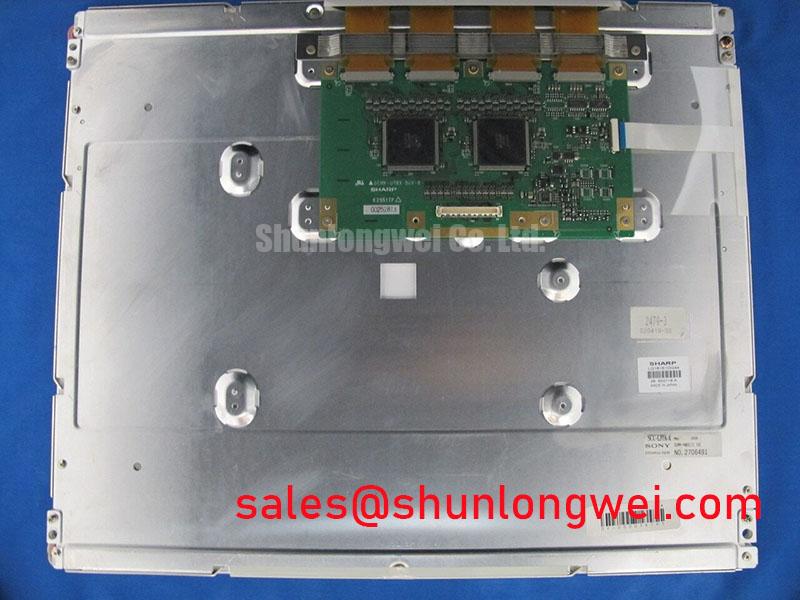

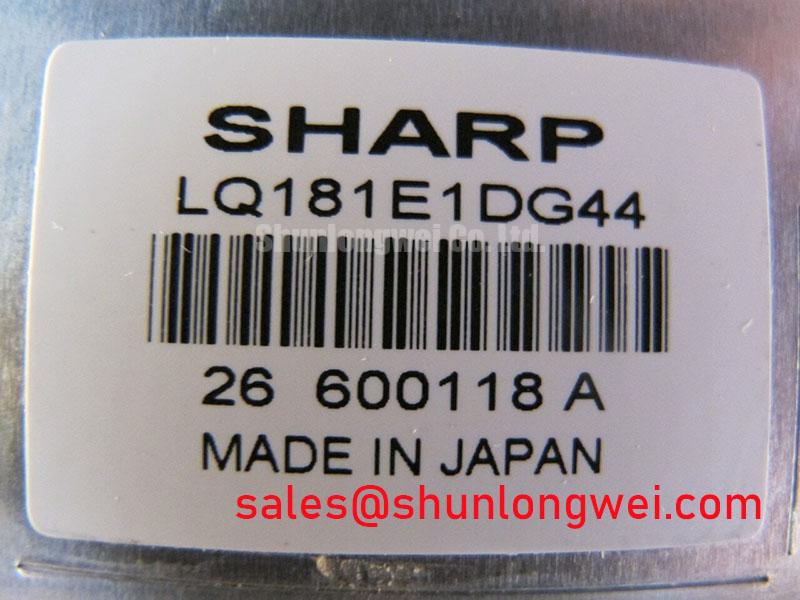

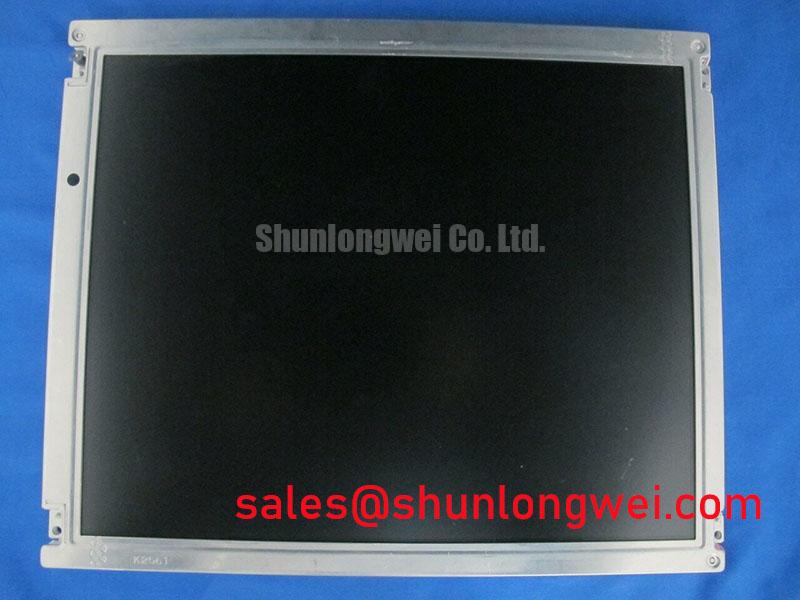

LQ181E1DG44: Technical Review of a Large-Format SXGA Industrial Display
Engineering an 18.1-Inch Display for Demanding Visual Applications
The Sharp LQ181E1DG44 is an 18.1-inch SXGA TFT-LCD module engineered for system integration simplicity and visual clarity in specialized industrial and medical applications. This display delivers a high-detail visual interface through its 1280x1024 resolution, a standard dual-channel LVDS connection, and a luminance of 200 cd/m². Its key engineering benefits include exceptional detail for complex GUIs and simplified electrical integration. For designers seeking a large-format 4:3 aspect ratio display to maintain or upgrade legacy systems, the LQ181E1DG44 provides a well-defined and reliable solution. With its specific combination of size and resolution, this module is the optimal choice for control room HMIs and diagnostic equipment where information density is critical.
Application Scenarios & Value
System-Level Benefits in Industrial and Medical Interface Design
The LQ181E1DG44 is engineered for applications where displaying dense, high-resolution data on a large screen is a primary operational requirement. Its specific feature set addresses common challenges in both legacy system upgrades and new, specialized equipment design.
A high-fidelity engineering scenario is the modernization of a process control system's Human-Machine Interface (HMI). Many existing industrial consoles are built around 4:3 aspect ratio displays. The challenge is to find a replacement panel that not only fits the mechanical enclosure but also enhances data visualization. The LQ181E1DG44's 18.1-inch diagonal and SXGA (1280 x 1024) resolution directly solve this problem, allowing complex SCADA diagrams, process flows, and alarm logs to be displayed with superior clarity and without requiring a complete console redesign. This large-format screen reduces the need for operators to scroll or switch between views, improving response time and minimizing potential errors in a critical environment.
In medical imaging, the panel serves as a capable primary or secondary display for diagnostic workstations. Its resolution is sufficient for reviewing detailed outputs from various imaging modalities, providing clinicians with a clear and stable canvas for analysis. For applications where a widescreen format is more suitable, the G156XW01 V1 offers an alternative in a 15.6-inch size.
Key Parameter Overview
Decoding the Specs for System Integration
The technical specifications of the LQ181E1DG44 are centered on delivering a specific combination of size, resolution, and interface standard. The following table highlights the key metrics that are critical for system design and evaluation. Each parameter has been selected to provide engineers and procurement managers with the data needed for preliminary compatibility and performance assessments.
| Parameter | Value |
| Display Technology | a-Si TFT-LCD |
| Screen Size (Diagonal) | 18.1 inches |
| Resolution | 1280(RGB) x 1024 [SXGA] |
| Aspect Ratio | 5:4 (H:V) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 350:1 (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
| Operating Temperature | 0 ~ 50 °C |
| Backlight System | 4 pcs CCFL |
Technical Deep Dive
Implications of the Dual-Channel LVDS Interface
A defining feature of the LQ181E1DG44 from a system integration perspective is its dual-channel LVDS (Low-Voltage Differential Signaling) interface. This is not merely a connection standard; it is a technology choice that has significant engineering implications for signal integrity, electromagnetic compatibility (EMC), and physical system design.
To handle the data rate required for an SXGA resolution at typical refresh rates, a significant amount of information must be transmitted from the graphics controller to the display's timing controller (TCON). A dual-channel LVDS setup effectively doubles the data bandwidth compared to a single-channel implementation. Think of it as upgrading from a single-lane road to a two-lane highway. This allows the data for the 1.3 million pixels to be transmitted smoothly without requiring extremely high clock frequencies that could generate prohibitive levels of electromagnetic interference (EMI). For engineers designing systems for sensitive medical or industrial environments, this inherent low-EMI characteristic of LVDS technology is a critical advantage, simplifying the path to regulatory compliance.
Frequently Asked Questions (FAQ)
What is the primary benefit of the SXGA resolution on a screen of this size?
The 1280x1024 resolution on an 18.1-inch panel provides a high pixel density that is ideal for displaying fine details. This is crucial in applications like industrial control, where intricate schematics or multiple data readouts must be viewed simultaneously and legibly, or in medical imaging, where subtle visual information can be clinically significant.
How does the LVDS interface impact system design compared to older parallel interfaces?
The LVDS interface significantly simplifies system design. It requires fewer wires, reduces susceptibility to noise, and generates lower EMI. This leads to simpler and more reliable cabling, easier PCB layout for the display controller, and a more robust overall system, which is a key topic covered in The Ultimate Guide to TFT-LCD.
Is the CCFL backlight a concern for new designs?
The use of a CCFL (Cold Cathode Fluorescent Lamp) backlight is indicative of this panel's design era. While modern displays use LEDs, CCFL backlights are well-understood and highly reliable within their specified lifespan. For maintaining legacy systems or for applications where a CCFL-specific inverter is already part of the system architecture, the LQ181E1DG44 ensures compatibility. What is the advantage of a CCFL backlight? It offers a very stable and broad spectral output.
What does the 5:4 aspect ratio imply for its best-fit applications?
The 5:4 aspect ratio is closer to a square than modern 16:9 widescreen displays. This makes it an ideal drop-in replacement for older equipment designed for this form factor. It is also highly efficient for applications that are vertically oriented, such as document viewing, coding, or displaying vertically stacked process control data, as it minimizes wasted horizontal space.
Strategic Integration for Long-Lifecycle Systems
The LQ181E1DG44 represents a strategic component for engineers and managers responsible for the maintenance and performance of long-lifecycle equipment. Its specific combination of a large 18.1-inch diagonal, a 5:4 SXGA resolution, and a standard LVDS interface provides a robust solution for a set of well-defined industrial and medical challenges. By enabling the upgrade of visual interfaces without forcing a complete and costly redesign of the host system, this TFT-LCD module allows for the extension of capital equipment life, ensuring that critical systems continue to operate with enhanced clarity and reliability. Its value lies not in competing with the latest display trends, but in providing a stable, predictable, and effective solution where it is needed most. For a deeper understanding of why industrial-grade displays are a better long-term investment, see our analysis on industrial vs. consumer displays.
