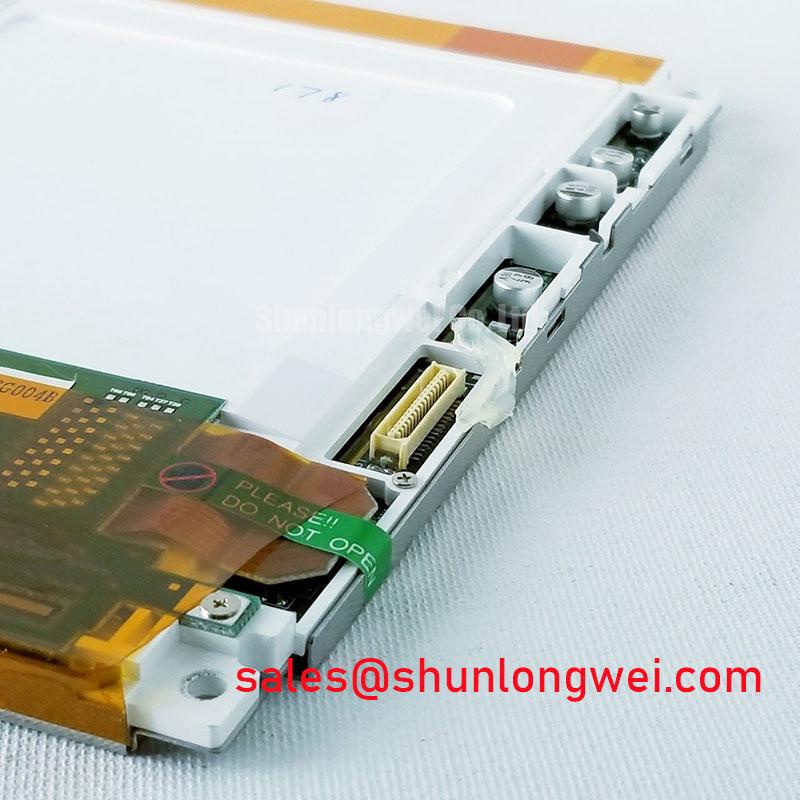

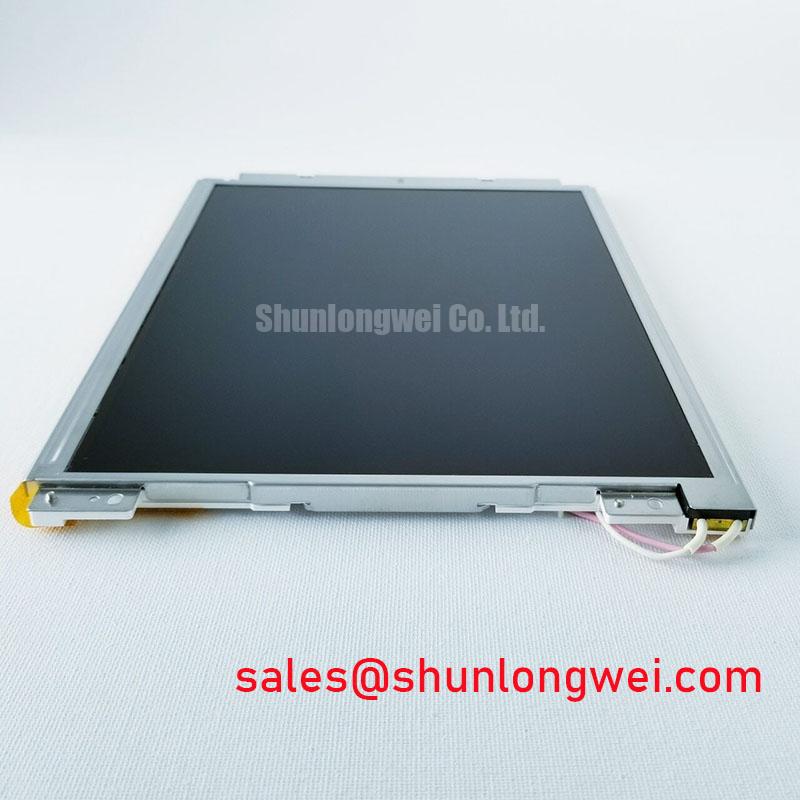

LT104V4-101: Samsung 10.4-inch VGA TFT-LCD for Legacy System Integration
Engineered as a direct-fit solution, the Samsung LT104V4-101 is a 10.4-inch a-Si TFT-LCD display module optimized for maintaining and extending the life of established industrial equipment. Its key value is providing a form-fit-function replacement that minimizes downtime and eliminates the need for costly system-level redesigns. With core specifications of 10.4” VGA 640x480 | Parallel RGB Interface | 10k-Hour CCFL Backlight, this panel ensures operational continuity for critical machinery. For maintaining legacy industrial HMIs, its native VGA resolution and Parallel RGB interface make the LT104V4-101 a critical support component.
Application Scenarios & Value
Ensuring Longevity in Established Industrial Automation and Control Systems
The LT104V4-101 is purpose-built for scenarios where system stability and validated performance are paramount. Its primary application is in the repair and maintenance of legacy systems where a full-scale digital overhaul is technically or financially prohibitive. Consider a Computer Numerical Control (CNC) machine or a process controller from an earlier manufacturing era; its Human-Machine Interface (HMI) is often hard-coded for a 640x480 resolution and expects a direct Parallel RGB signal. The LT104V4-101 provides a direct, drop-in replacement, preserving the integrity of the original system software and hardware architecture. What is the primary benefit of its Parallel RGB interface? Direct compatibility with legacy control systems, eliminating costly redesigns.
This focus on backward compatibility is crucial for industries like manufacturing, medical diagnostics, and specialized instrumentation. By providing a reliable replacement component, the LT104V4-101 allows engineering and maintenance teams to extend the return on investment of high-value capital equipment, avoiding recertification processes and extensive retraining associated with new systems. While this panel serves VGA applications, for systems requiring similar form-factor but different interface or performance characteristics, related models like the LQ104V1LG61 or the G104VN01 V0 may present alternative specifications.
Key Parameter Overview
Core Specifications for Legacy System Compatibility Assessment
The technical specifications of the Samsung LT104V4-101 are tailored for seamless integration into existing systems. The parameters below are critical for engineers to validate its suitability as a replacement part.
| Feature Group | Parameter | Value |
| Optical Characteristics | Panel Size | 10.4 inches |
| Resolution | 640(RGB)×480 [VGA] | |
| Brightness | 70 cd/m² (Typ.) | |
| Contrast Ratio | 80:1 (Min.) (Transmissive) | |
| Display Technology | a-Si TFT-LCD, TN, Normally White | |
| Interface & Backlight | Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Backlight Type | 1 pcs CCFL (Cold Cathode Fluorescent Lamp) | |
| Backlight Lifetime | 10,000 hours (Typ.) | |
| Mechanical & Environmental | Outline Dimensions | 244(W) × 179.4(H) × 8.7(D) mm |
| Active Area | 211.2(W) × 158.4(H) mm | |
| Operating Temperature | 0 ~ 50 °C |
Frequently Asked Questions
Engineering Inquiries on Integration and Performance
What is the primary advantage of the Parallel RGB interface on the LT104V4-101?
The Parallel RGB interface is its most critical feature for legacy applications. It transmits video data directly over multiple parallel lines without the need for the complex serialization/deserialization hardware required by modern interfaces like LVDS. This ensures direct, low-latency compatibility with older graphics controllers, drastically simplifying the repair process and avoiding any need for signal conversion adapters or software driver modifications.
The brightness is listed at 70 nits. Is this suitable for my application?
A brightness of 70 cd/m² is characteristic of older CCFL-backlit displays and is designed for indoor, controlled-lighting environments typical of factory floors, control rooms, and laboratories. It is not intended for direct sunlight or high-ambient-light conditions. This level is generally sufficient for the clear presentation of data and graphical interfaces on legacy HMI and instrumentation panels, matching the performance of the original components it is designed to replace.
How does the CCFL backlight's 10,000-hour lifespan impact maintenance schedules?
The 10,000-hour typical lifespan of the CCFL backlight provides a predictable service interval for maintenance planning. This equates to approximately 13-14 months of continuous 24/7 operation before the backlight reaches half its initial brightness. For systems operating on standard 8-hour shifts, this provides a multi-year operational window. Engineers can use this metric to proactively schedule display replacements during planned equipment shutdowns, minimizing unexpected failures. For further reading, consult our guides on industrial display maintenance.
Technical Deep Dive
The Engineering Rationale for Utilizing a Classic Interface and Display Technology
The selection of a display like the LT104V4-101 is a strategic engineering decision rooted in lifecycle management. Its use of a-Si TFT (Amorphous Silicon) technology combined with a Parallel RGB interface represents a stable, well-understood platform. The engineering value is not in cutting-edge performance, but in guaranteed compatibility.
To understand the importance of its interface, think of Parallel RGB as a multi-lane highway where each color component has its own dedicated lane. This direct connection is simple and robust, mirroring the point-to-point wiring in classic control cabinets. Modern interfaces are more like a high-speed bullet train on a single track—highly efficient, but requiring complex 'station' electronics (serializers/deserializers) at both ends. For a legacy system designed for the highway, retrofitting for the bullet train is an unnecessary and costly overhaul. The LT104V4-101 provides the exact 'highway' connection needed, ensuring the original system controller can communicate without any translation.
This commitment to legacy standards is the core value proposition, offering a tactical solution that prioritizes operational continuity and cost control over performance enhancement. It is a key component for any organization focused on maximizing the operational lifespan of its existing, validated industrial hardware.
In essence, the LT104V4-101 serves as a vital bridge, connecting the present-day need for reliable components with the vast installed base of past-generation industrial technology. It empowers organizations to manage their assets strategically, ensuring that proven, high-value systems continue to generate value without being prematurely retired due to the unavailability of a single, critical component.
