Chassis Fastener Loading and Dark Field Mura Inspection

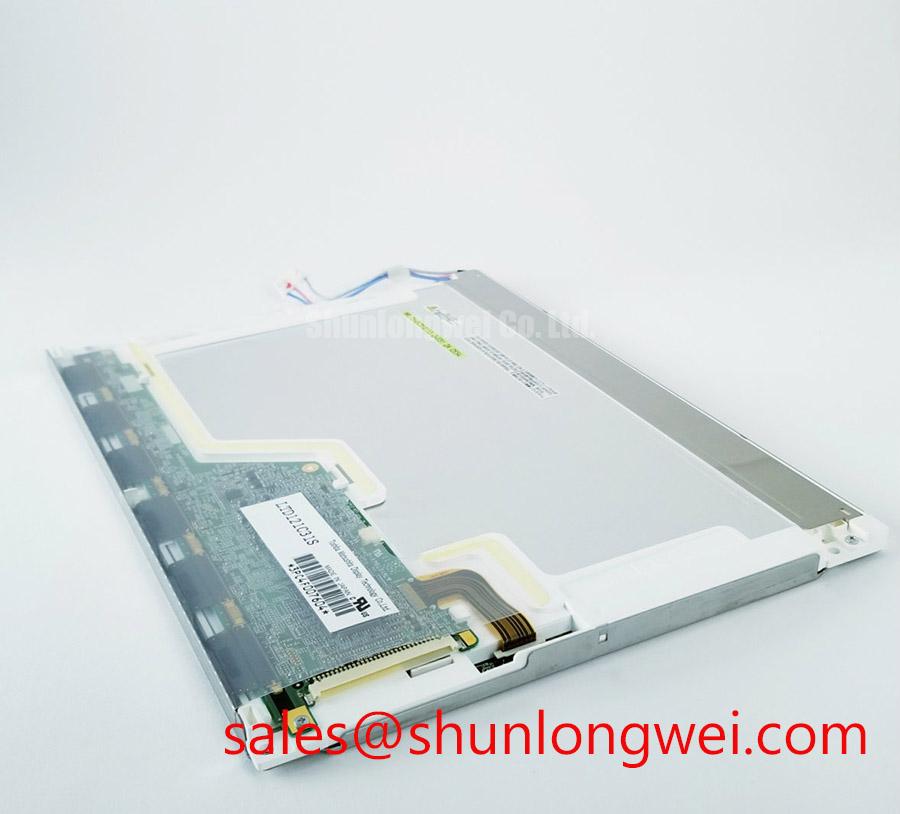

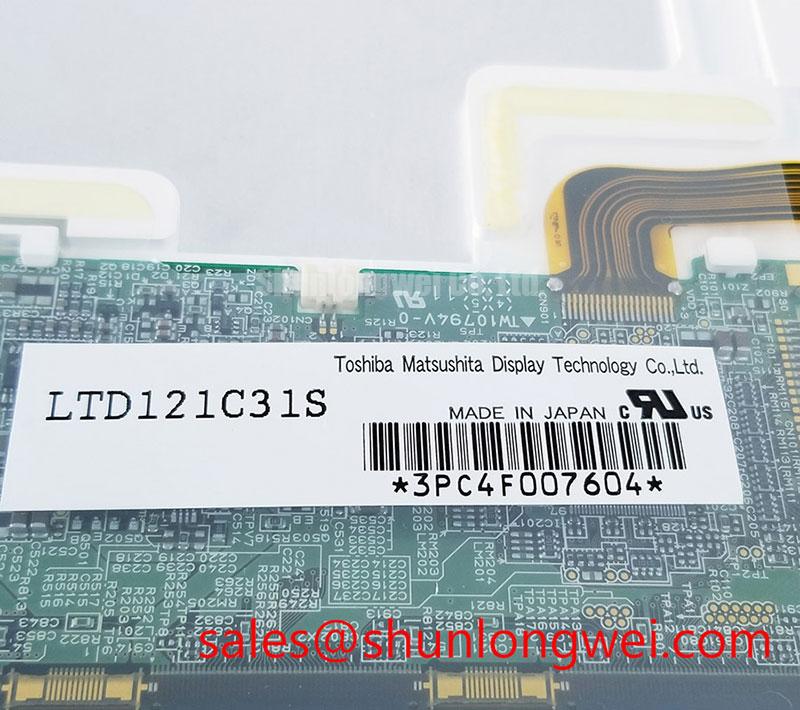

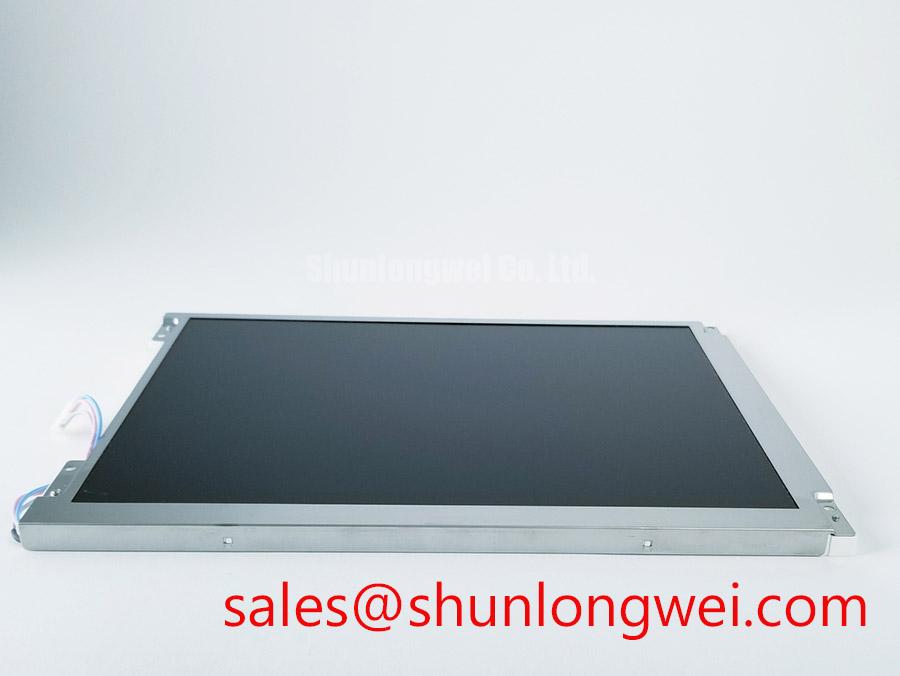

LTD121C31S hardware specification card: Manufacturer designation: Toshiba; product category: industrial LCD display module; module technology: TFT-LCD active matrix color display. Supply voltage, resolution, interface pinout, backlight type, dimensions and optical ratings are not specified in the supplied factory parameters.
Display a uniform dark gray image and watch for bright or dark patches that change as the chassis fasteners are loosened in a controlled sequence. A pattern that shifts with bezel pressure is a reason to inspect the mounting arrangement, not proof that the LTD121C31S itself has failed. Photograph the screen before adjustment, keep the image settings unchanged, and compare the same locations after the panel is seated again.
The enclosure should support the module without twisting its frame or pressing the visible display area. Check that the bezel opening clears the active viewing region, that the panel sits flat on its intended supports, and that cable routing does not pull one corner upward. If the host assembly uses M3 fasteners, tightening them gradually in a cross pattern is a Design Consideration for distributing pressure. No model-specific fastener torque or bezel tolerance is established by the supplied factory parameters; use the enclosure drawing and its approved assembly procedure to set those limits.
A dark field is useful because uneven edge pressure can become conspicuous when the image contains little bright detail. Repeat the check with a white field and normal operating imagery: a patch visible only at one viewing angle may warrant a different investigation from a patch that tracks a chassis adjustment. Record the ambient lighting and viewing position so a second technician can reproduce the observation.
For a CNC operator panel or robot teach pendant, assess outdoor or shop-floor visibility in the finished enclosure rather than assigning the bare panel an unverified sunlight contrast rating. Reflections from the cover window, display orientation and machine lighting all affect the result. Inspect the surface treatment actually fitted to the assembly; an anti-glare or anti-reflective coating is not established for LTD121C31S by the supplied parameters. Compare readability using the intended cover and lighting conditions before accepting the mechanical fit.
Incoming Bench Inspection of Pixels, Backlight and Cable Seating
Show full-screen red, green and blue images and mark any fixed bright pixels, dark pixels or persistent lines at their exact screen positions. Follow with white and dark gray fields to examine luminance uniformity and edge shading. Keep the test image source, brightness control and camera exposure consistent between panels; otherwise, a changed photograph can be mistaken for a changed display.
When a region looks dark, illuminate the screen obliquely with a handheld light while the test image remains active. Faint image content visible in the affected region can help direct attention toward illumination or its drive path; missing or distorted image content calls for examination of the signal path as well. This observation is a screening aid, not a definitive diagnosis of a driver bond, cable or backlight. Avoid pressing on the glass or connector area to make an intermittent line appear.
💡 Bench Tip: Remove power and use ESD precautions before reseating the display cable, then align it squarely and close the connector latch without forcing it.
Inspect the mating connector for an uneven latch, damaged contacts and cable strain near its exit from the enclosure. After reseating, repeat the same color fields and gently move only the supported cable section to check whether a line or image dropout follows cable movement. If it does, compare the connector and harness with a known-good assembly before attributing the fault to the panel. The supplied factory parameters do not identify a COG or TAB construction for this model, so neither should be treated as a confirmed internal failure location.
For signal integrity, identify the actual interface and pin assignments from the original equipment documentation before probing. An unverified assumption about LVDS, TTL, termination or clock timing can make a sound panel appear defective and can expose it to an incorrect connection. If the host provides differential video, examine the signal at the relevant connector with an appropriate probe and compare it with a known-good operating path. Check supply behavior and power sequencing against the host documentation rather than applying a generic display timing rule to LTD121C31S.
Edge Heating, Color Shift and Cold Operation Checks
Run a uniform white image after the equipment reaches its normal operating condition and compare the color near each edge with the center of the screen. A warmer-looking edge, uneven brightness or a change that appears only after warm-up deserves a repeatable temperature and image check. Log the enclosure condition, nearby heat sources and image settings alongside the photographs; visual memory alone is a poor reference for gradual color shift.
Map accessible chassis temperatures without loading the display surface. If one edge is consistently warmer, inspect airflow obstructions, adjacent electronics and the panel’s contact with its supports. Improving heat distribution may be a Design Consideration for the host enclosure, but a heat spreader should not be added simply because an edge looks discolored. Its material, placement and contact pressure must be assessed against the assembly design so the proposed remedy does not create a mounting-pressure problem.
Do not infer a particular light-guide material, yellowing mechanism or backlight service life from color shift alone. Compare the image with a known-good panel under the same settings, then inspect the host’s illumination drive and any optical layers that belong to the enclosure. The Ultimate Guide to Industrial TFT LCD Technology provides broader context for separating display, illumination and integration effects; it does not replace measurements on this assembly.
If the equipment operates in the cold, capture the same moving image at startup and after temperature stabilization. Slower apparent transitions may relate to the operating conditions of the display system, but no low-temperature response-time rating or heater requirement is established here for LTD121C31S. Confirm the permitted temperature range and any heater-control sequence from the original machine documentation before evaluating cold-start behavior.
Backlight Noise and Interference Checks in the Host Assembly
Change the host brightness setting while listening near the display enclosure and watching for image flicker. Note whether an audible tone follows the brightness command, occurs only at startup or remains unchanged when the display image changes. Those distinctions help separate illumination-drive behavior from a video-path fault without assuming which backlight technology is fitted to LTD121C31S.
Inspect the host wiring diagram to locate the backlight supply, its control input and any fault indication. If the equipment reports a backlight fault, compare that indication with measured supply behavior and visible illumination before replacing the panel. An open-load or short-circuit response belongs to the installed driver circuit; no such protection function is confirmed as a specification of this display module. Likewise, neither a CCFL ignition voltage nor an LED dimming ratio should be assigned to this model without its applicable documentation.
For intermittent disturbance, capture the image and relevant supply or control waveform while neighboring machinery changes operating state. Servo equipment can introduce electrical noise into a shared installation; the servo drive reference describes the equipment category, while IEEE Transactions on Industry Applications is an industry research resource for installation-level electrical effects. Neither link establishes an EMC rating for this panel. As a Design Consideration, review cable routing, grounding and shielding where disturbances coincide with nearby switching activity, then verify any change in the complete machine.
If a touch layer is fitted to the equipment, test its response separately from the displayed image. Glove use and moisture can affect touch operation, but the supplied parameters do not establish a touch technology or sensitivity rating for LTD121C31S. Record whether the reported fault is a missing image, missing illumination or missed touch input before selecting the next measurement.
