TM121SV-02L01: Technical Specifications and Engineering Analysis for Industrial Display Applications
Introduction and Core Features
Engineered for Reliability in Legacy Industrial Systems

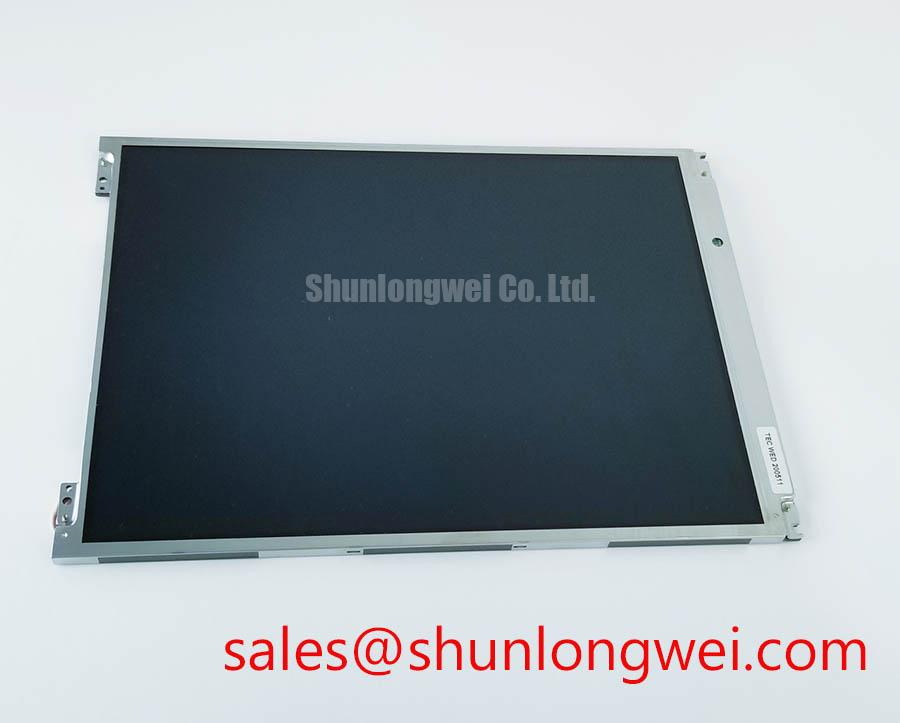

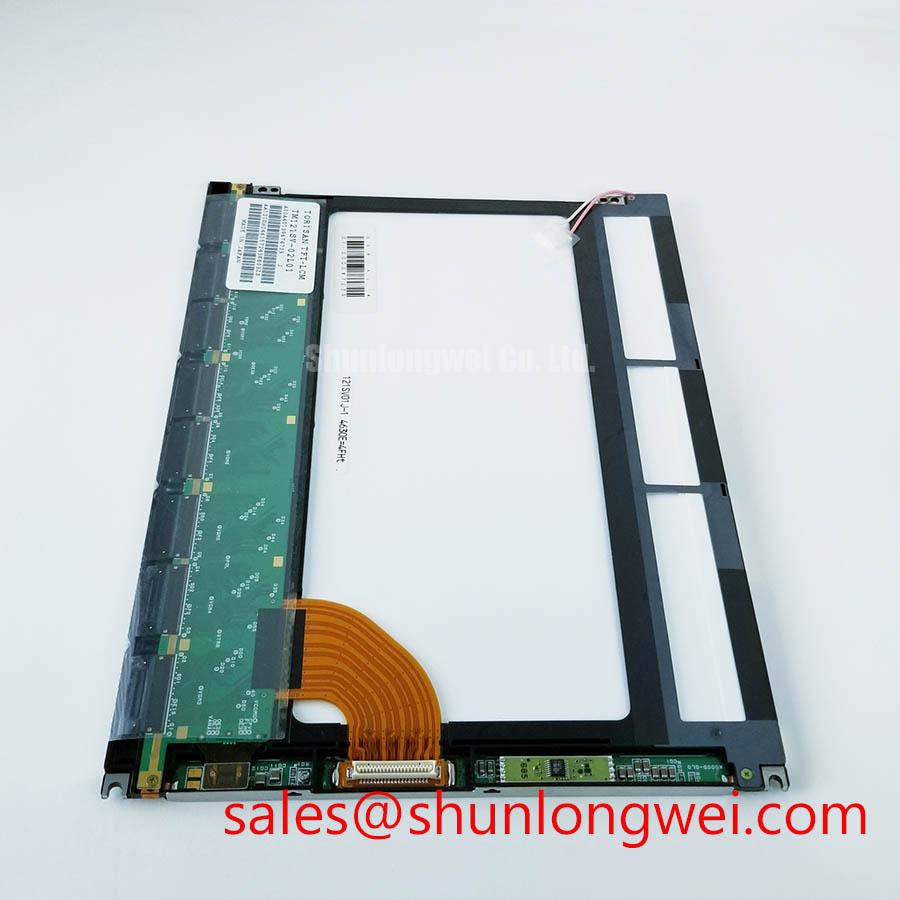

The TM121SV-02L01 is a 12.1-inch SVGA TFT-LCD module engineered for long-term performance in demanding industrial environments. It provides a stable and reliable display solution specifically for sustaining and upgrading legacy control systems, medical devices, and instrumentation. With its combination of strong optical performance and robust construction, it addresses the critical need for compatible, high-quality replacement displays. For legacy HMIs requiring a durable SVGA panel with proven performance, the TM121SV-02L01 is the definitive choice.
- Core Specifications: 12.1" SVGA (800x600) | 400 cd/m² Brightness | -10 to +70°C Operating Temp
- Key Engineering Benefits: High-clarity visuals for data interpretation and drop-in compatibility for legacy systems.
- Primary Use Case: This module's standard resolution and interface make it an ideal drop-in replacement for aging industrial HMIs, significantly minimizing system rework and downtime.
Key Parameter Overview
Decoding the Specifications for Legacy System Integration
The technical parameters of the TM121SV-02L01 are tailored for straightforward integration into existing systems while ensuring dependable operation. The specifications below highlight its suitability for industrial applications where reliability and visual consistency are paramount.
| TM121SV-02L01 Technical Specifications | |
|---|---|
| Display Panel Properties | |
| Manufacturer | TORiSAN |
| Model Name | TM121SV-02L01 |
| Screen Size | 12.1 inches |
| Resolution | 800(RGB)×600, SVGA |
| Active Area | 246(H)×184.5(V) mm |
| Panel Technology | a-Si TFT-LCD |
| Optical Performance | |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Interface & Electrical | |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Backlight System | 2 pcs CCFL, 50K hours, without inverter |
| Environmental Ratings | |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
Download the TM121SV-02L01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial MRO and Control Systems
The primary value of the TM121SV-02L01 lies in its ability to extend the operational life of high-value capital equipment. Consider an aging CNC machine or a factory floor process control system where the original HMI has failed. The system's controller and software are locked to an 800x600 SVGA resolution. A complete system retrofit would be prohibitively expensive and time-consuming. What is a key benefit of its standard resolution? It enables direct, drop-in replacement for legacy systems.
The TM121SV-02L01 directly addresses this challenge. Its native SVGA resolution and standard LVDS interface allow engineers to replace the faulty display without altering the host controller's hardware or software. The 400 cd/m² brightness ensures that the new interface is clearly readable under typical factory lighting, maintaining operator efficiency and safety. Furthermore, its wide operating temperature range of -10 to +70°C guarantees that the replacement panel can withstand the same thermal stresses as the original, ensuring long-term reliability. This drop-in replacement strategy drastically reduces maintenance costs and production downtime.
While the TM121SV-02L01 is ideal for SVGA systems, for equipment requiring a more compact industrial-grade display, the G104S1-L01 offers similar robust performance in a 10.4-inch footprint.
Industry Insights & Strategic Advantage
Extending Equipment Lifecycles in the Era of Industry 4.0
In an industrial landscape increasingly focused on the latest IoT and connected technologies, a significant installed base of mission-critical legacy machinery remains the backbone of many manufacturing and processing operations. The strategic advantage of components like the TM121SV-02L01 is their role in enabling effective lifecycle extension. By providing a reliable, form-fit-function replacement for obsolete displays, it allows businesses to maximize the return on investment from their existing Process Control Systems and specialized Test and Measurement Instruments.
This approach aligns with sustainable MRO (Maintenance, Repair, and Operations) strategies, prioritizing component-level repair over costly full-system replacement. The TM121SV-02L01 acts as a crucial bridge, ensuring that proven, reliable industrial assets continue to deliver value without forcing a premature and expensive transition to new platforms. For a deeper understanding of the technologies involved, see our guide to TFT LCDs in industrial applications.
Frequently Asked Questions
Engineering Questions on Real-World Implementation
What are the implications of the CCFL backlight for my design?
The Cold Cathode Fluorescent Lamp (CCFL) backlight requires an external inverter to provide the necessary high-voltage AC power. For MRO applications, the existing system's inverter is often compatible, which simplifies the replacement process. CCFL technology is known for its stable color rendering, a critical factor in applications where color accuracy is important for diagnostics or status indication.
Is the TM121SV-02L01 a direct replacement for other 12.1" SVGA panels?
With its standard 800x600 resolution, industry-common LVDS interface, and typical 12.1" form factor, the TM121SV-02L01 is a strong candidate for replacing many obsolete panels. However, to guarantee 100% compatibility, design engineers must always cross-reference the mechanical drawings to verify mounting hole locations and the pinout of the 20-pin connector against the datasheet of the original display.
To evaluate the TM121SV-02L01 for your system maintenance or legacy upgrade project, please contact our technical support team for further information and engineering assistance.
