MCC200-16IO1: 1600V, 200A Dual SCR Module for Reliable Industrial Power Control
Product Overview & Key Specifications
Engineered for High-Reliability Power Control in Demanding Environments

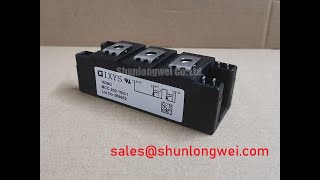

The MCC200-16IO1 is a high-reliability thyristor module, configured as a dual SCR common cathode, engineered for demanding industrial power control applications. It provides robust and precise control by leveraging proven planar chip technology within a thermally efficient standard package. With key specifications of 1600V | 200A (I_TAV) | TO-240AA Package, this module offers excellent blocking voltage stability and a simplified path for thermal design. Its high surge current rating and robust voltage blocking make it an ideal choice for managing the significant inrush currents typical in motor soft starter circuits and phase-controlled rectifiers.
Key Parameter Overview
Decoding the Specs for High-Reliability Power Control
The technical specifications of the MCC200-16IO1 are foundational to its performance in industrial applications. Understanding these parameters is key to designing reliable and efficient power control systems. The following table highlights critical values and explains their direct engineering impact.
| Parameter | Value | Engineering Significance & Value |
|---|---|---|
| VRRM / VDRM | 1600 V | Provides a substantial safety margin for operation on 480V and 690V industrial AC lines, ensuring high reliability against voltage transients and line disturbances. |
| ITAV (at TC=85°C) | 200 A | Defines the maximum average on-state current under specified thermal conditions, enabling its use in medium-to-high power controlled rectifier and AC controller circuits. |
| ITSM (10ms, 50Hz) | 5100 A | This high surge current capability is critical for applications like motor soft starters, allowing the device to safely withstand large, non-repetitive inrush currents without degradation. Think of ITSM like a dam's spillway; it's designed to handle a sudden, massive surge for a very short time, protecting the entire system. |
| VT0 | 0.85 V | The threshold voltage is a key parameter for calculating conduction losses, enabling engineers to accurately model thermal performance and select appropriate cooling solutions. |
| Package | TO-240AA | This international standard package simplifies mechanical design, heatsink procurement, and assembly, reducing development time and manufacturing complexity. |
Download the MCC200-16IO1 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Motor Control and Power Rectification
For medium-power industrial soft starters and controlled rectifiers operating on 480V to 690V lines, this 1600V module provides a robust and thermally manageable solution. Its primary value lies in its ability to reliably manage power in applications where control over voltage and current is paramount for equipment longevity and operational efficiency.
A core engineering challenge in industrial automation is managing the startup of large AC motors. The MCC200-16IO1 directly addresses this in Soft Starter designs. Its high surge current rating (ITSM) allows it to absorb the initial inrush current, while its precise gate control enables gradual Phase Angle Control. This smooth voltage ramp mitigates mechanical shock to drivetrains and reduces electrical stress on the local grid. In applications for Controlled Rectifiers, this module enables the creation of efficient DC power supplies for processes like electroplating, battery charging, and powering DC motor drives, where output voltage must be precisely regulated.
The module's robust construction ensures dependable performance, which is critical for minimizing downtime in continuous-operation facilities. For applications demanding a complete three-phase bridge topology with significantly higher current, the MDS500A/1600V offers a 500A integrated solution.
Application Vignette
Implementing Robust AC Motor Soft Starters
Consider a conveyor belt system in a logistics facility that requires a soft starter for a 75 kW motor to prevent gearbox shock and reduce peak demand charges. The system operates on a 480V 3-phase line, which is prone to voltage transients from other nearby heavy machinery.
In this scenario, three MCC200-16IO1 modules are configured in an anti-parallel arrangement to create a full three-phase AC controller. The 1600V rating provides a safety factor of over 2.4 times the line-to-line peak voltage, ensuring the design is resilient against common industrial transients and preventing overvoltage conditions. The 200A current rating comfortably exceeds the motor's full load current. A simple microcontroller adjusts the firing angle of the thyristors, ramping the voltage applied to the motor smoothly. Using phase angle control with the MCC200-16IO1 is like using a dimmer switch for an industrial motor instead of a simple on/off switch; it allows for a gradual power-up, preventing the sudden 'jolt' that damages machinery.
The system-level benefit is twofold. First, the controlled acceleration eliminates the mechanical shock of a direct-on-line start, extending the service life of the conveyor's gearbox and belts. Second, it reduces the electrical inrush current, lowering peak demand on the facility's electrical system and preventing voltage sags. The standard TO-240AA package allows for straightforward implementation of effective thermal management by mounting all three modules on a single, fan-cooled heatsink.
FAQ
Engineering Considerations for the MCC200-16IO1 Module
What is the significance of the 1600V V(RRM) rating for a system designer?
A 1600V rating provides the necessary design margin for reliable operation on industrial three-phase systems, such as 480V, 575V, or even 690V AC lines. It ensures the device can safely block reverse voltage and withstand typical line-side voltage spikes and transients without breakdown, which is a cornerstone of robust AC Motor Drive and rectifier design.
How does the planar passivated chip design contribute to the MCC200-16IO1's long-term reliability?
Planar passivation is a manufacturing process that creates a stable, non-conductive layer over the silicon chip's junctions. This process results in very low leakage currents and highly stable blocking voltage characteristics over the component's entire operational life and temperature range, directly contributing to system predictability and reducing the likelihood of field failures.
What are the key considerations when mounting the TO-240AA package for optimal thermal performance?
To achieve optimal cooling, it is critical to ensure a flat, clean mounting surface on the heatsink. A thin, uniform layer of thermal interface material (TIM) should be applied to eliminate air voids. Most importantly, the specified mounting torque for the terminal and mounting screws must be applied evenly to ensure low thermal resistance and prevent mechanical stress on the module's ceramic base.
The datasheet specifies I(TAV) at a case temperature of 85°C. How does this influence the thermal design?
This specification directly links the module's current-carrying capacity to its thermal environment. It means that to operate the module continuously at its 200A average current rating, the designer must select a heatsink and airflow combination capable of keeping the module's case temperature at or below 85°C. Exceeding this temperature will require de-rating the allowable current to maintain a safe junction temperature.
Can the MCC200-16IO1 be used for single-phase AC switching applications?
Yes, absolutely. A single MCC200-16IO1 module contains two SCRs in a common cathode configuration. These can be connected in an anti-parallel arrangement (by connecting the anode of one to the cathode of the other, and vice-versa) to create a single-phase AC controller suitable for applications like industrial heating control or high-power light dimming.
An Engineer's Perspective
From a design standpoint, the MCC200-16IO1 is a workhorse component. It does not rely on complex technology but instead offers predictable, robust performance based on well-established principles. Its standard housing removes integration risks, and its electrical characteristics are well-suited for the harsh conditions of industrial power control. The combination of high voltage margin and substantial surge current capability provides the confidence needed to design systems that are not just functional but are built to last in the field.
